Clarence: Central Details

PropertyValue
Rupture Count41,037
Ruptures Above Sect Min Mag41,033
Ruptures w/ Nonzero Rates37
Magnitude Range[6.87, 8.45]
Length Range[22, 973] km
Total Rate8.0478087E-4 /yr
Multi-Fault Rate8.0478087E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults248

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

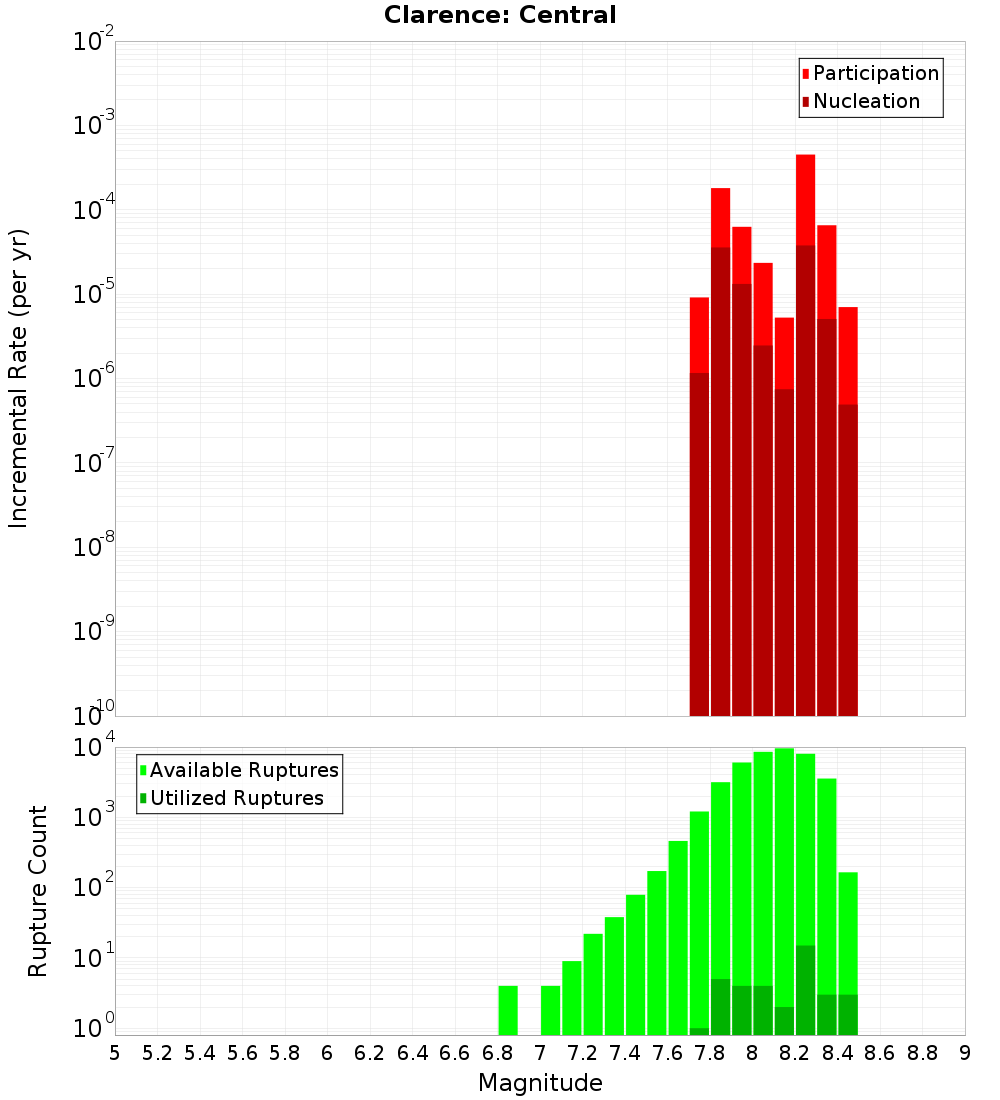

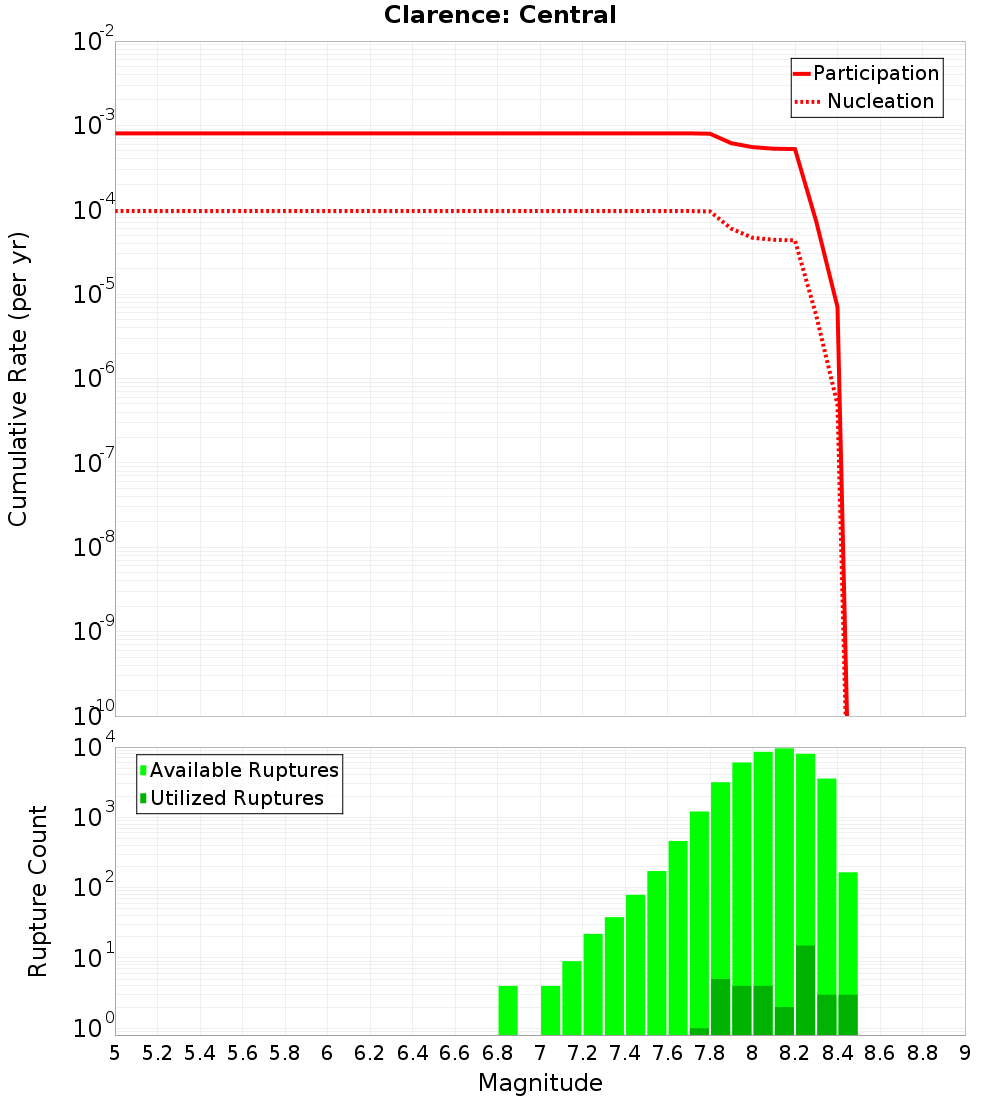

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

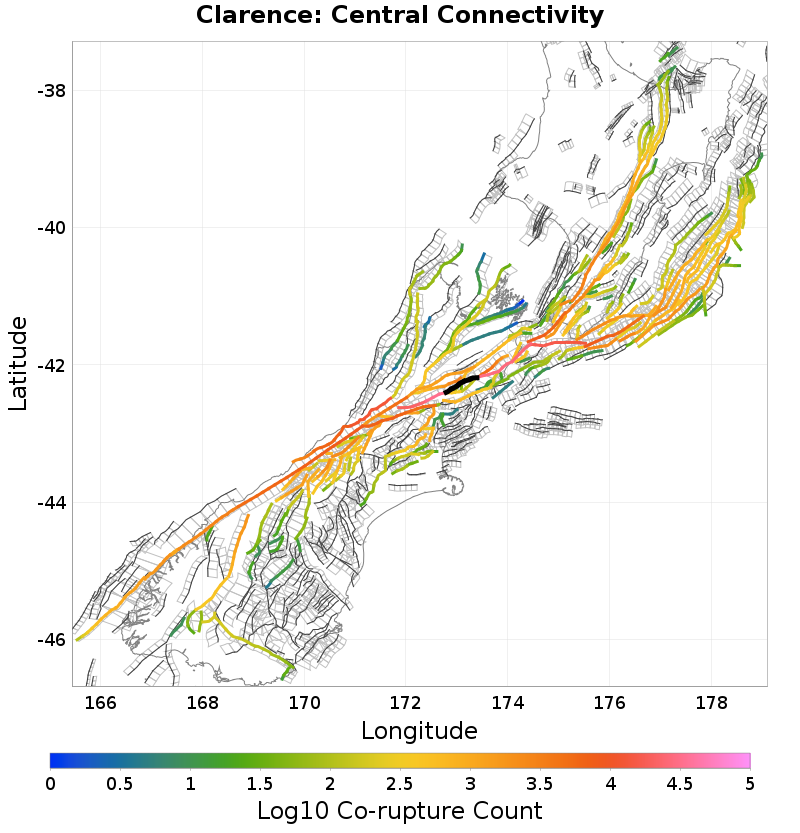

MapMap

Nearby Sections

(top)

Fault Section
Clarence: Southwest, 0 km away
Elliott, 0 km away
Fowlers, 0.07 km away
Clarence: Northeast, 0.09 km away
Barefell, 0.11 km away
Acheron, 0.27 km away
Dillon, 0.32 km away
Fidget, 3.22 km away
Jordan, 7.28 km away
Awatere: Northeast 1, 10.17 km away
Shingle Peak, 10.84 km away
Awatere: Southwest, 12.19 km away
Hanmer, 13.19 km away
Hope: Hanmer NW, 13.28 km away

Clarence: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count33,298
Co-rupture Rate6.33022E-4

Elliott, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?false
Co-rupture Count454
Co-rupture Rate0.0

Fowlers, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count3,453
Co-rupture Rate6.4927604E-5

Clarence: Northeast, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count5,687
Co-rupture Rate4.3287987E-4

Barefell, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?false
Co-rupture Count657
Co-rupture Rate6.4927604E-5

Acheron, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate0.0

Dillon, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate0.0

Fidget, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count28,932
Co-rupture Rate1.7683847E-4

Jordan, 7.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?false
Co-rupture Count191
Co-rupture Rate9.134401E-6

Awatere: Northeast 1, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?false
Co-rupture Count708
Co-rupture Rate6.4927604E-5

Shingle Peak, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Southwest, 12.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count1,492
Co-rupture Rate1.7175887E-4

Hanmer, 13.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?false
Co-rupture Count756
Co-rupture Rate1.7930024E-4

Hope: Hanmer NW, 13.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
