Dunstan Details

PropertyValue
Rupture Count15,524
Ruptures Above Sect Min Mag15,522
Ruptures w/ Nonzero Rates26
Magnitude Range[6.96, 8.41]
Length Range[24, 781] km
Total Rate2.6086523E-4 /yr
Multi-Fault Rate2.2849292E-4 /yr (87.59%)
Directly-Connected Faults12
All Co-Rupturing Faults117

Table Of Contents

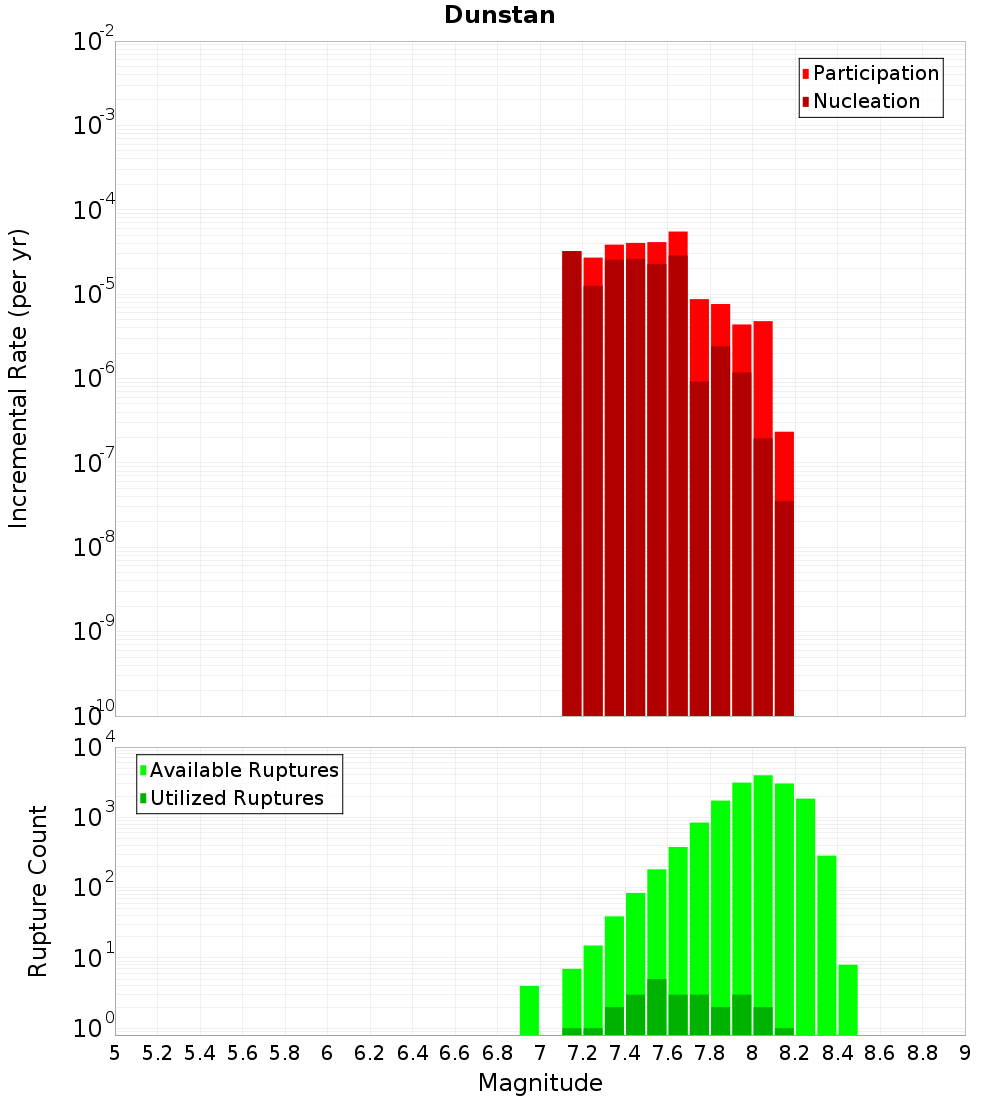

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

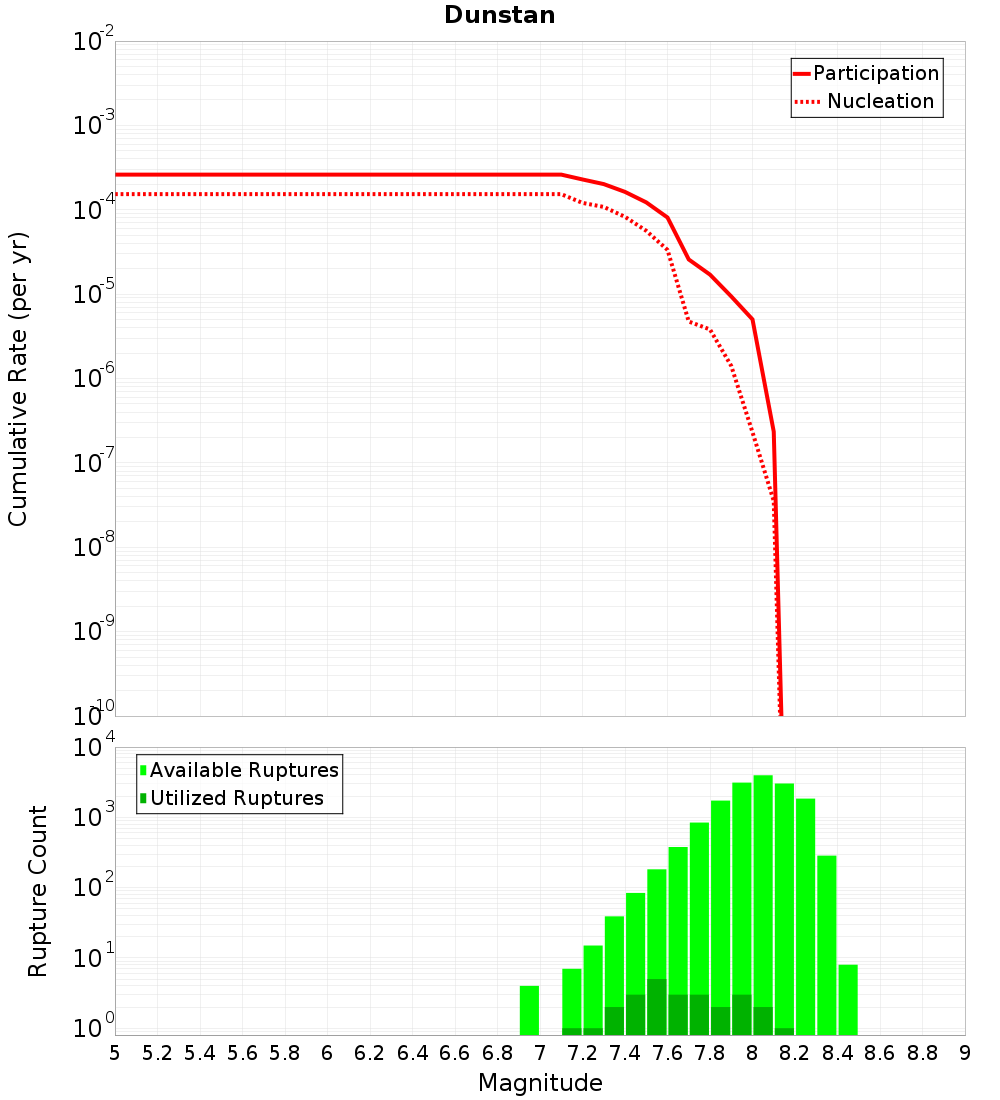

Incremental PlotCumulative Plot

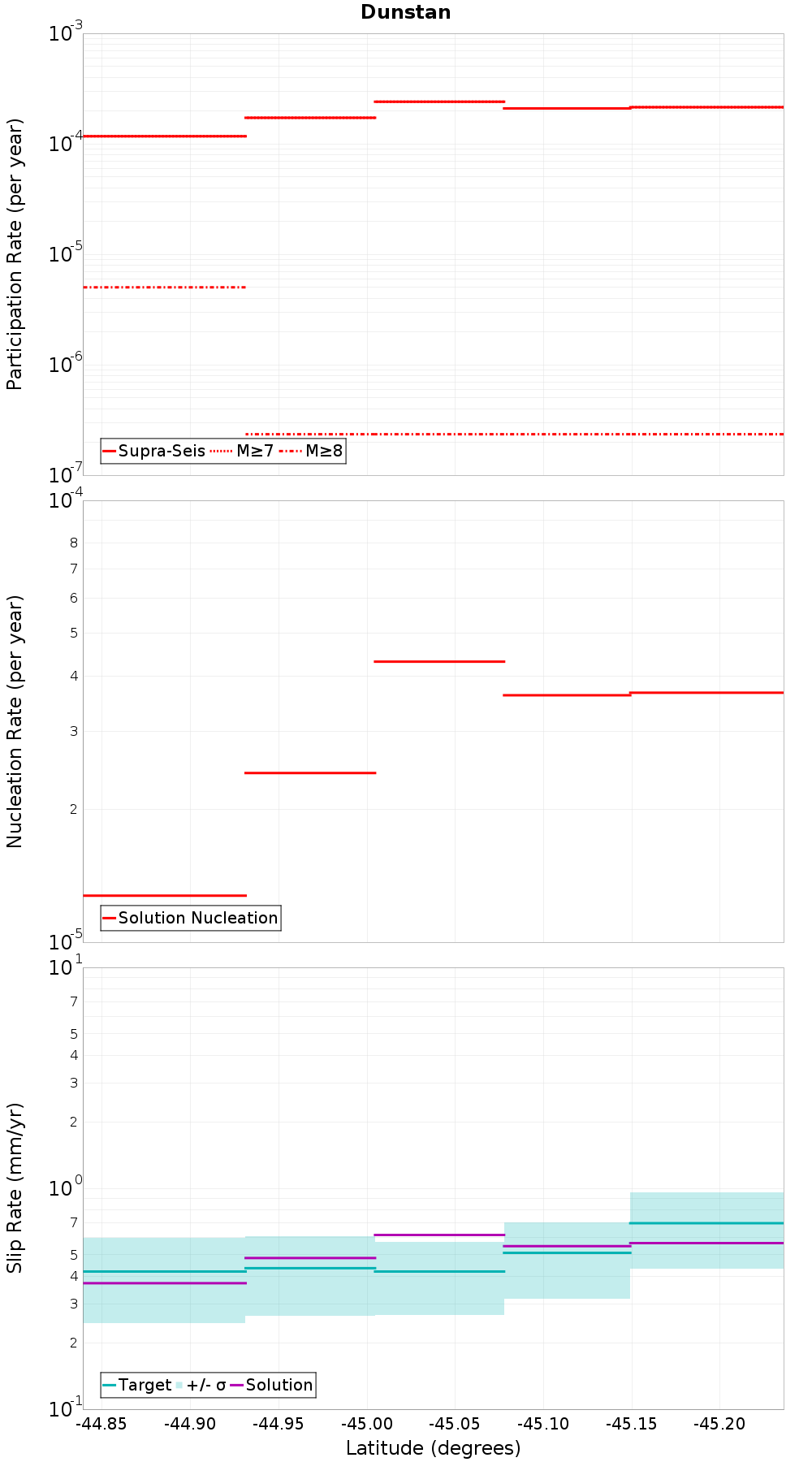

Along-Strike Values

(top)

Along-strike plot

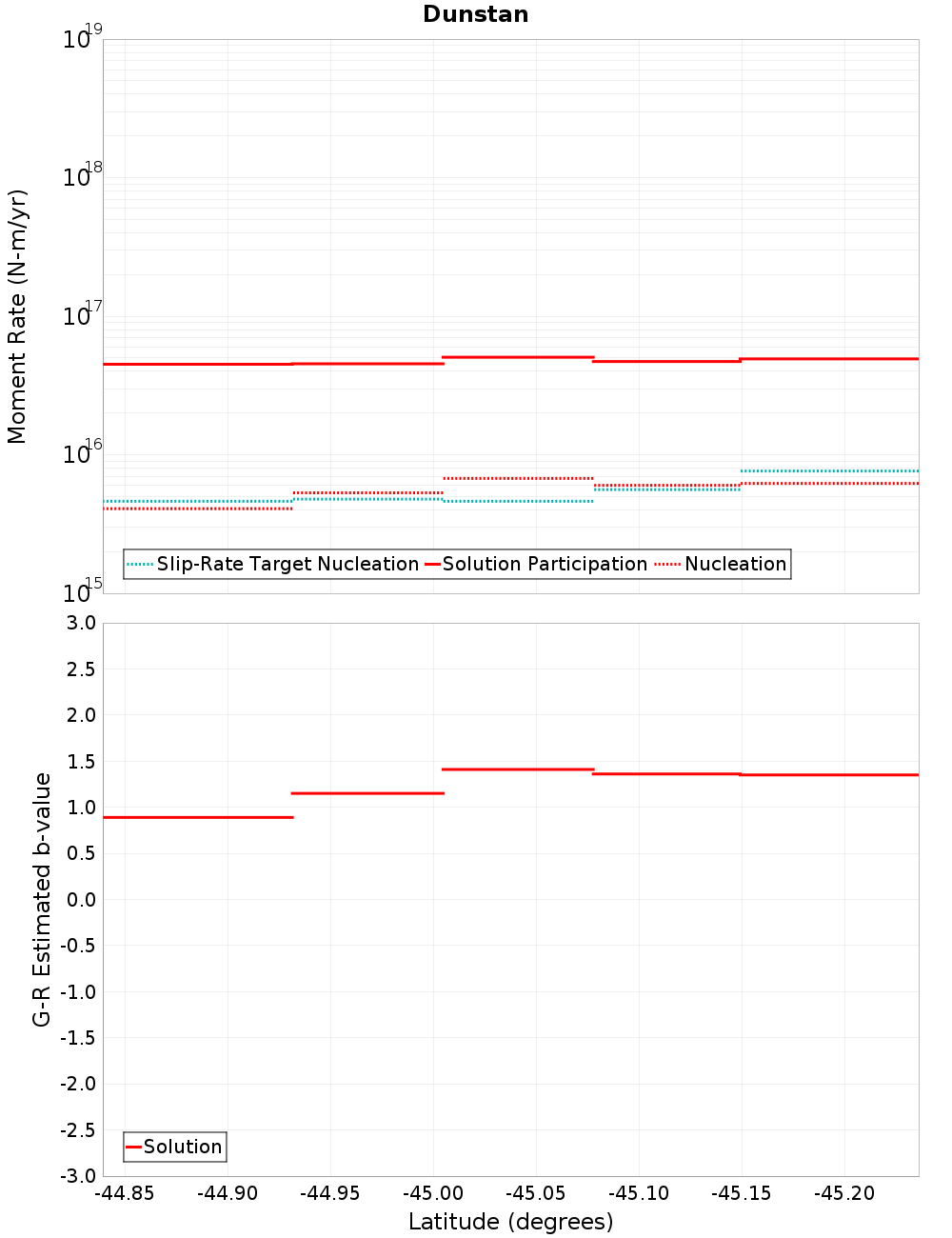

Moment-Rates and b-Values

(top)

Along-strike plot

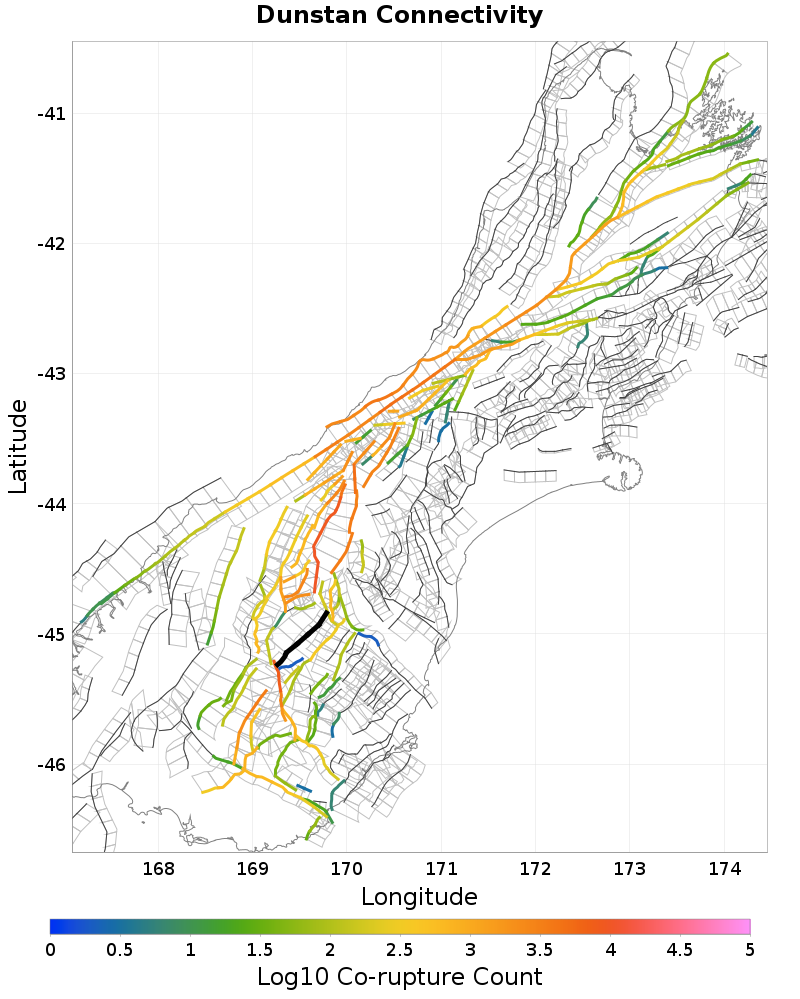

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Goodger, 0.25 km awayOmarama Saddle, 5.06 km away
Grandview, 0.27 km awayPaddys Ridge, 5.46 km away
Roaring Meg, 0.3 km awayDromedary, 5.56 km away
Lindis River, 0.35 km awayRocks Creek, 6.11 km away
Blue Lake, 1.26 km awayRoaring Lion, 6.38 km away
Old Man, 1.92 km awayRaggedy - Blackstone, 9.93 km away
Cluden, 3.56 km awayGalloway Shanty, 10.05 km away
Galloway, 3.61 km awayGarvie, 13 km away
Pisa, 4.44 km away

Goodger, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count2,226
Co-rupture Rate6.6984874E-5

Grandview, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count1,400
Co-rupture Rate0.0

Roaring Meg, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count689
Co-rupture Rate5.2716285E-7

Lindis River, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count2,792
Co-rupture Rate3.082125E-5

Blue Lake, 1.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count283
Co-rupture Rate1.5387714E-5

Old Man, 1.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count8,038
Co-rupture Rate1.4681212E-5

Cluden, 3.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count84
Co-rupture Rate2.7624488E-5

Galloway, 3.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate2.6599166E-6

Pisa, 4.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count131
Co-rupture Rate0.0

Omarama Saddle, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count696
Co-rupture Rate1.097457E-4

Paddys Ridge, 5.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count290
Co-rupture Rate9.110484E-5

Dromedary, 5.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count10,022
Co-rupture Rate1.5419771E-5

Rocks Creek, 6.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?false
Co-rupture Count114
Co-rupture Rate7.523218E-5

Roaring Lion, 6.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?false
Co-rupture Count96
Co-rupture Rate0.0

Raggedy - Blackstone, 9.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?true
Co-rupture Count383
Co-rupture Rate0.0

Galloway Shanty, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?false
Co-rupture Count145
Co-rupture Rate5.2716285E-7

Garvie, 13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NjIuMGZMNjRY
Connected?true
Directly Connected?false
Co-rupture Count136
Co-rupture Rate5.2716285E-7
