Acheron Details

PropertyValue
Rupture Count946
Ruptures Above Sect Min Mag944
Ruptures w/ Nonzero Rates63
Magnitude Range[6.55, 8.38]
Length Range[12, 775] km
Total Rate2.2068319E-4 /yr
Multi-Fault Rate2.2068319E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults94

Table Of Contents

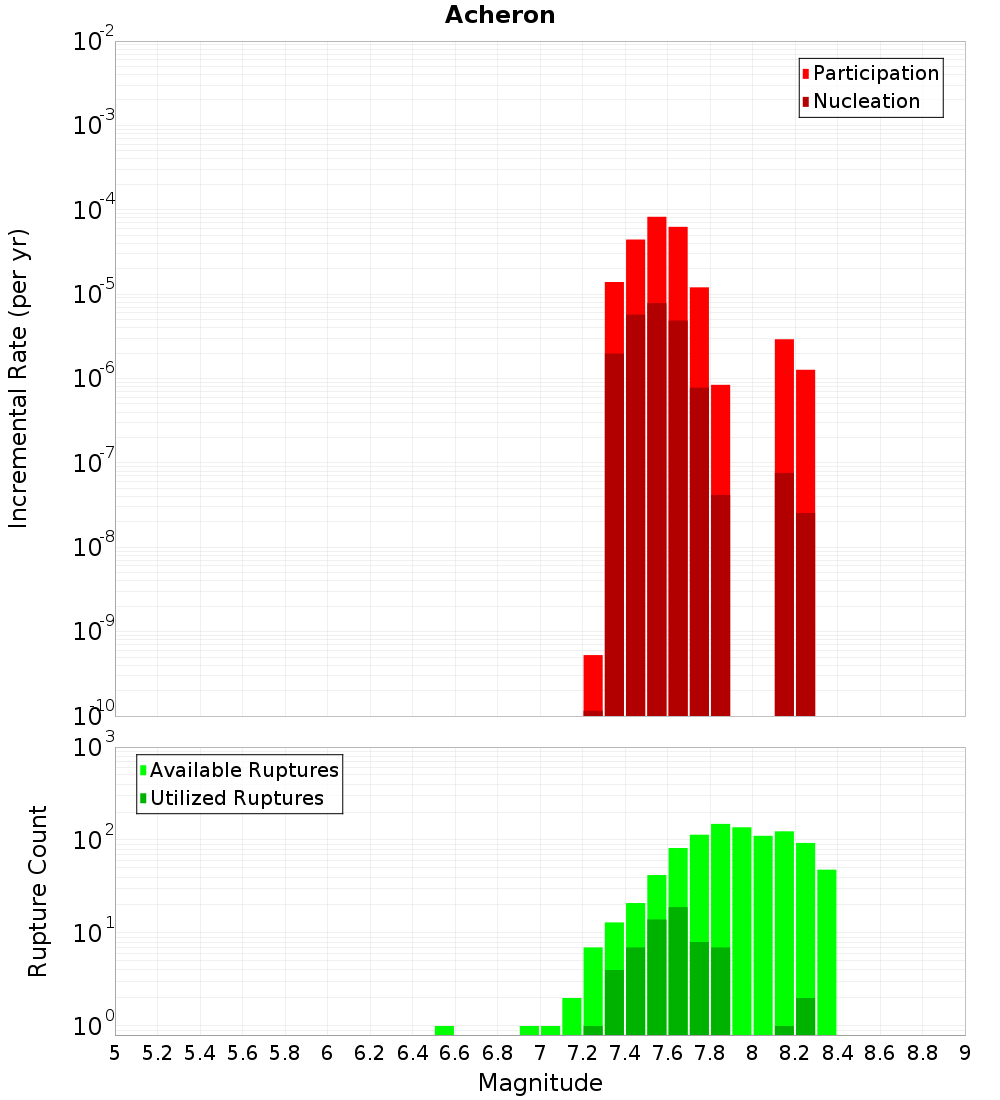

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

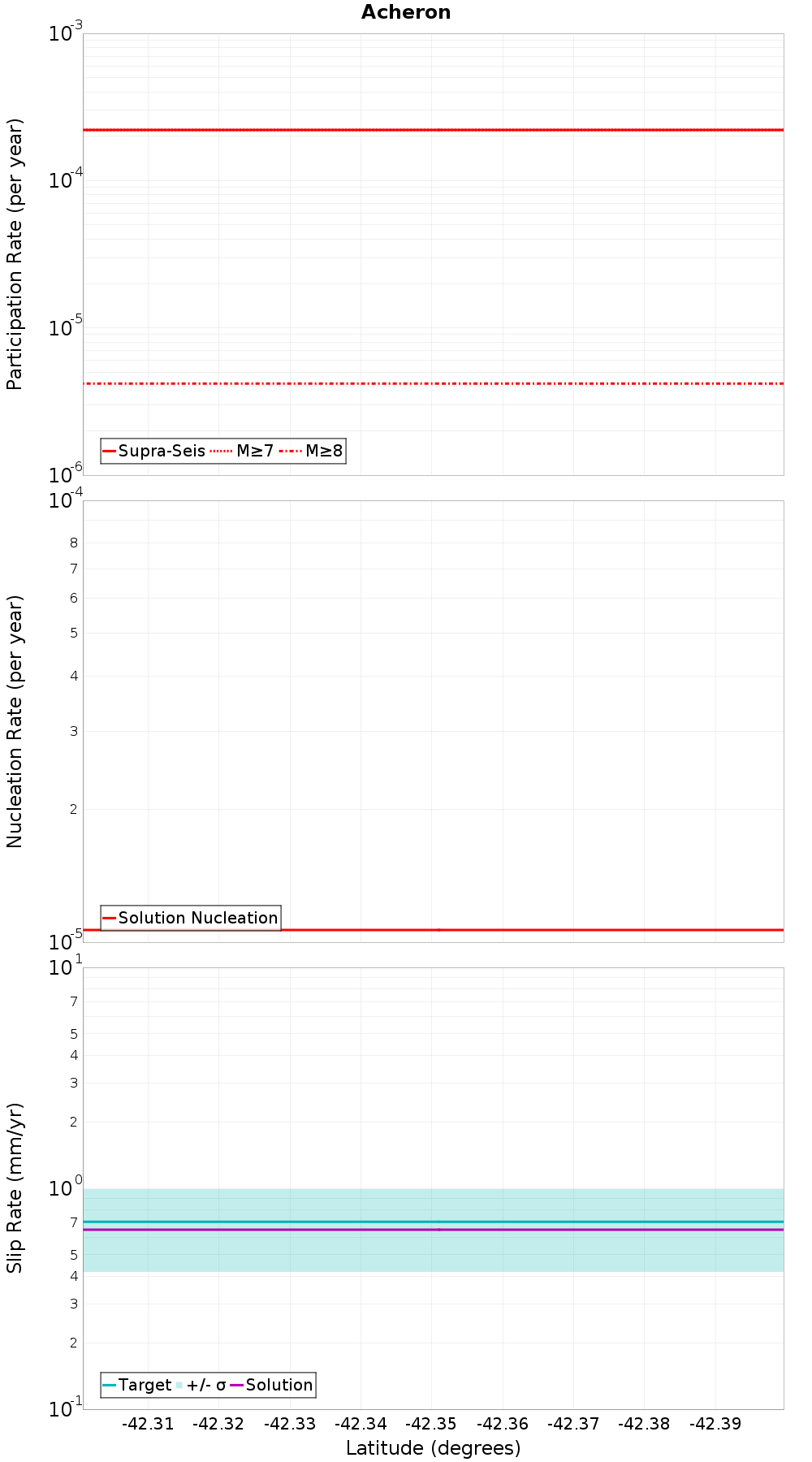

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

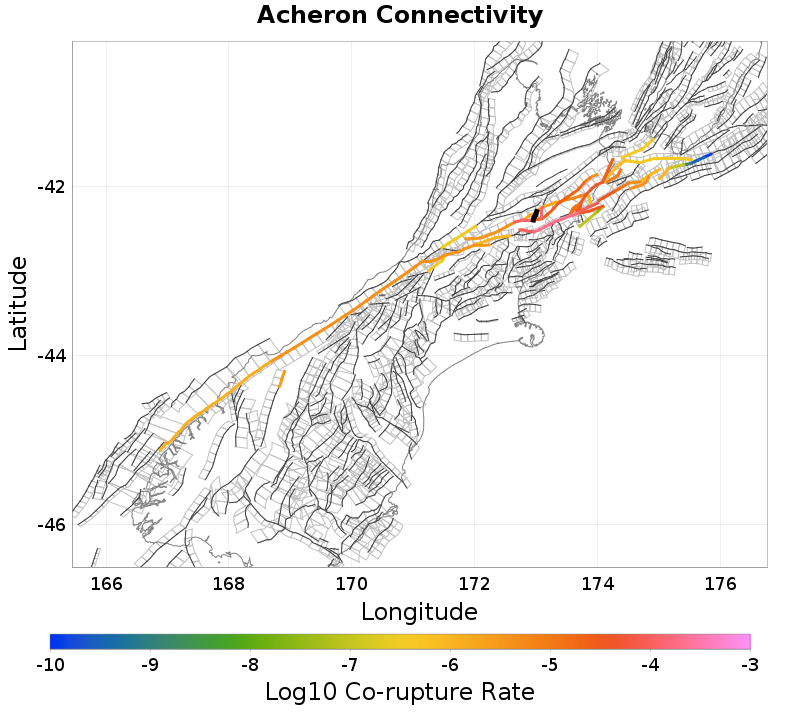

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Elliott, 0.06 km away
Clarence: Central, 0.27 km away
Dillon, 6.46 km away
Fowlers, 7.42 km away
Hope: Hamner SE, 7.87 km away
Barefell, 9.05 km away
Hope: Conway, 11.85 km away
Clarence: Southwest, 13.66 km away
Hanmer, 14.82 km away

Elliott, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?true
Co-rupture Count885
Co-rupture Rate1.2502764E-4

Clarence: Central, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate1.8157021E-6

Dillon, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?true
Co-rupture Count380
Co-rupture Rate1.19393764E-4

Fowlers, 7.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Hope: Hamner SE, 7.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Barefell, 9.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 11.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count98
Co-rupture Rate1.9076864E-4

Clarence: Southwest, 13.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count817
Co-rupture Rate1.0112576E-4

Hanmer, 14.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate9.511309E-5
