Jordan Details

PropertyValue
Rupture Count52,095
Ruptures Above Sect Min Mag52,095
Ruptures w/ Nonzero Rates682
Magnitude Range[7.05, 8.47]
Length Range[29, 1,083] km
Total Rate0.0010663292 /yr
Multi-Fault Rate0.0010663292 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults250

Table Of Contents

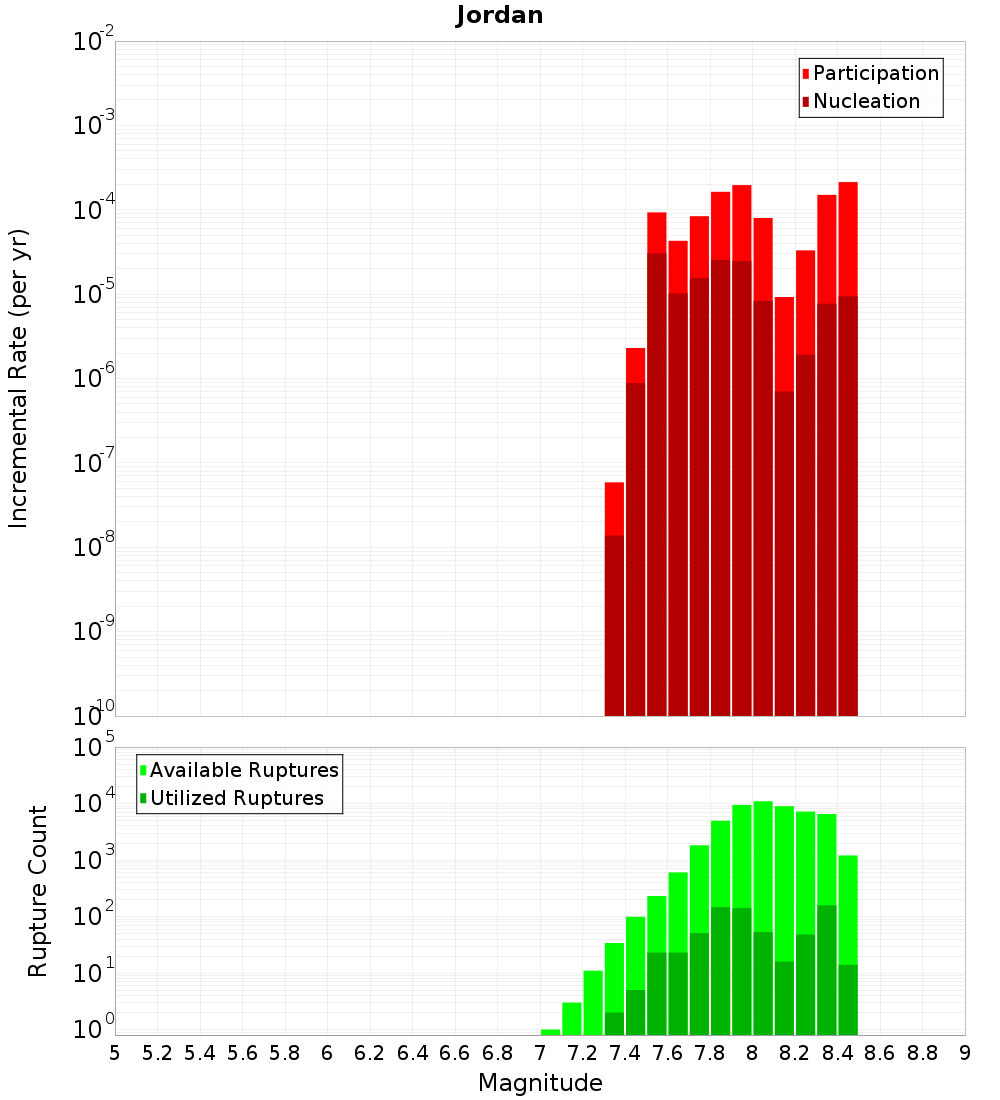

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Conway, 0 km away
Papatea, 0 km away
Kekerengu 1, 0 km away
Fidget, 0 km away
Hope: Seaward, 0 km away
Kowhai, 0.03 km away
Upper Kowhai - Manakau, 0.2 km away
Clarence: Northeast, 0.4 km away
Kaikoura - Mangamaunu, 2.75 km away
Kaikoura 2, 5.37 km away
Clarence: Central, 7.28 km away
Offshore Splay Thrust, 7.78 km away
Elliott, 9.95 km away
Awatere: Northeast 1, 12.41 km away

Hope: Conway, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?true
Co-rupture Count50,244
Co-rupture Rate9.932508E-4

Papatea, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kekerengu 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?true
Co-rupture Count46,703
Co-rupture Rate0.0010450995

Fidget, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count129
Co-rupture Rate0.0

Kowhai, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count50
Co-rupture Rate0.0

Upper Kowhai - Manakau, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Northeast, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?true
Co-rupture Count3,441
Co-rupture Rate2.0730824E-5

Kaikoura - Mangamaunu, 2.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Kaikoura 2, 5.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?true
Co-rupture Count1,072
Co-rupture Rate7.313716E-5

Clarence: Central, 7.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count191
Co-rupture Rate2.9196075E-5

Offshore Splay Thrust, 7.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Elliott, 9.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate4.7878468E-5

Awatere: Northeast 1, 12.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0
