Kakapo Details

Property	Value
Rupture Count	69,471
Ruptures Above Sect Min Mag	69,463
Ruptures w/ Nonzero Rates	987
Magnitude Range	[6.76, 8.47]
Length Range	[20, 1,076] km
Total Rate	0.0012608884 /yr
Multi-Fault Rate	0.0012608884 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	224

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

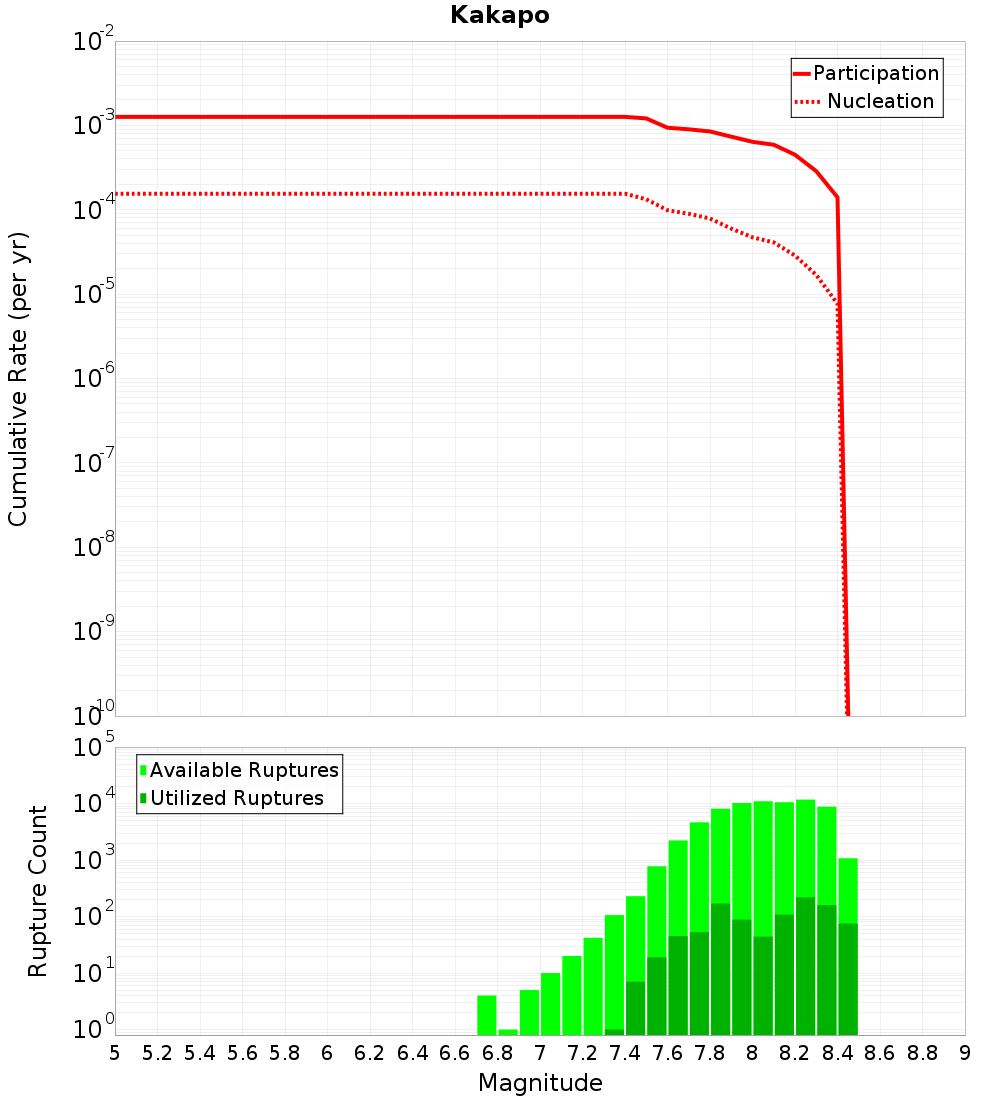

Magnitude-Frequency Distribution

Incremental	Cumulative

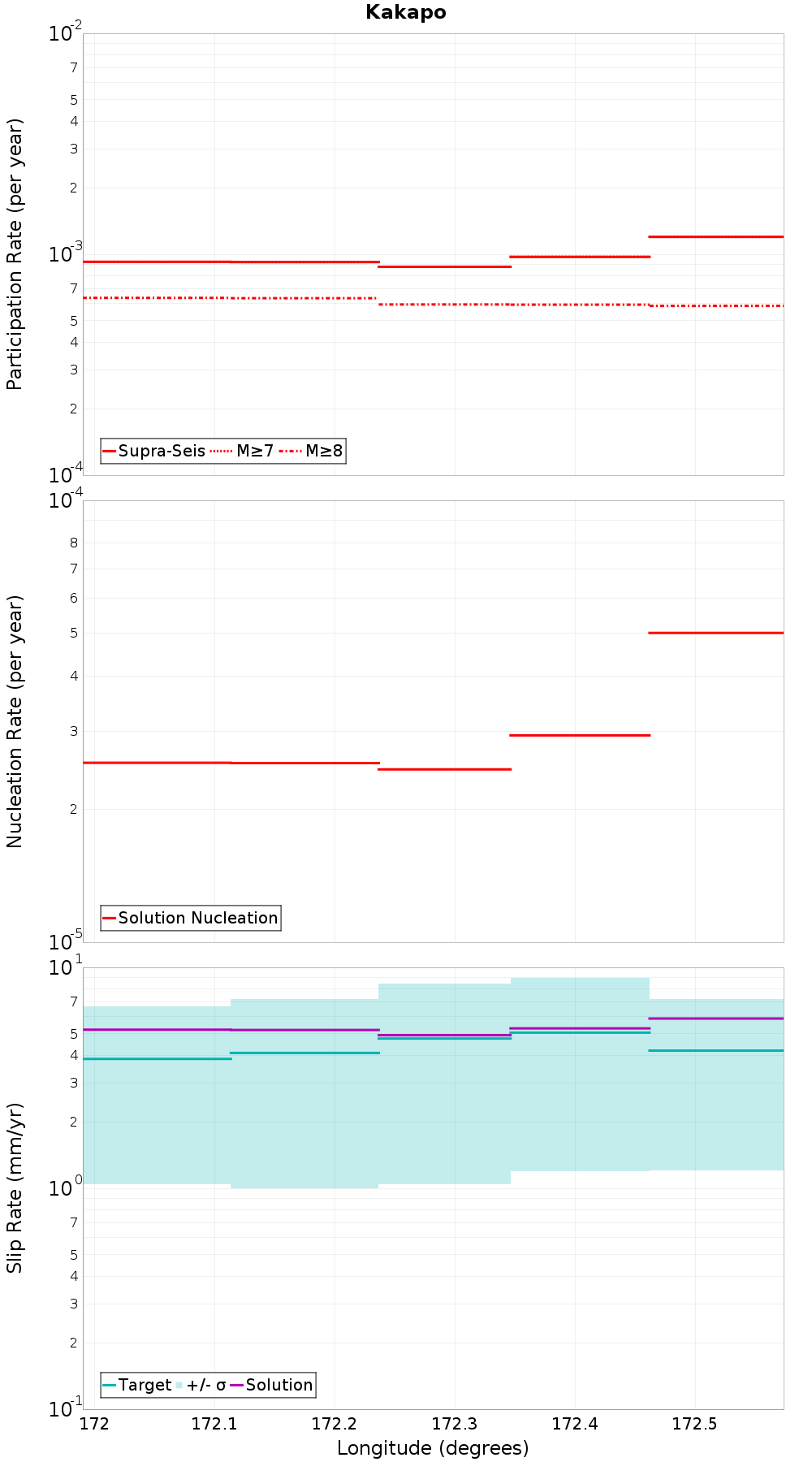

Along-Strike Values

Moment-Rates and b-Values

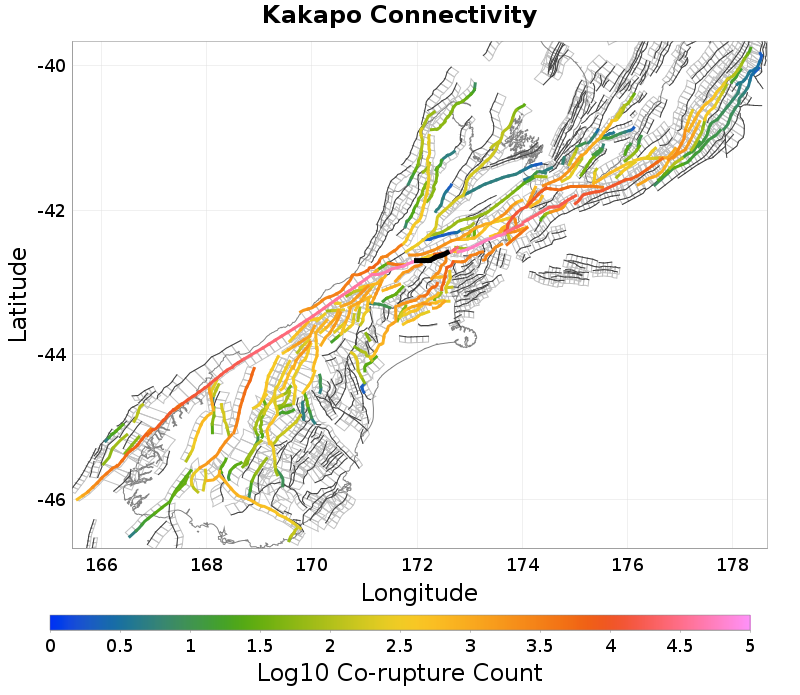

Connectivity

Nearby Sections

Fault Section
Hope: Kakapo-2-Hamner, 0 km away
Hope: Hurunui, 0 km away
Hope: Hope River, 0 km away
Esk North, 0.2 km away
Hurunui Peak, 5.03 km away
Poulter, 5.65 km away
Hope: Hamner SW, 6.21 km away
Hope: Hanmer NW, 6.3 km away
Alpine: Kaniere to Springs Junction, 6.32 km away
Mt White, 6.98 km away
Hohonu North, 7.87 km away
Clarence: Southwest, 8.64 km away
Hanmer, 12.92 km away
Hope: Taramakau, 14.38 km away
Kelly, 14.38 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	true
Co-rupture Count	36,054
Co-rupture Rate	8.958468E-4

Hope: Hurunui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	true
Co-rupture Count	56,190
Co-rupture Rate	7.277419E-4

Hope: Hope River, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	true
Co-rupture Count	6,309
Co-rupture Rate	8.745012E-9

Esk North, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	true
Co-rupture Count	2,561
Co-rupture Rate	1.5060088E-5

Hurunui Peak, 5.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	true
Co-rupture Count	8,452
Co-rupture Rate	9.019215E-5

Poulter, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	true
Co-rupture Count	2,400
Co-rupture Rate	1.9854095E-4

Hope: Hamner SW, 6.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	true
Co-rupture Count	489
Co-rupture Rate	1.731905E-4

Hope: Hanmer NW, 6.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	true
Co-rupture Count	23,196
Co-rupture Rate	3.632189E-4

Alpine: Kaniere to Springs Junction, 6.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	false
Co-rupture Count	1,215
Co-rupture Rate	1.12914764E-4

Mt White, 6.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hohonu North, 7.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	false
Co-rupture Count	3,393
Co-rupture Rate	7.0838023E-12

Clarence: Southwest, 8.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	true
Co-rupture Count	2,127
Co-rupture Rate	3.7721293E-5

Hanmer, 12.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	false
Co-rupture Count	78
Co-rupture Rate	0.0

Hope: Taramakau, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	false
Co-rupture Count	4,297
Co-rupture Rate	7.838694E-5

Kelly, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?	true
Directly Connected?	false
Co-rupture Count	55,530
Co-rupture Rate	7.5527886E-4
