Keepa Details

PropertyValue
Rupture Count5,294
Ruptures Above Sect Min Mag5,292
Ruptures w/ Nonzero Rates54
Magnitude Range[6.42, 8.25]
Length Range[11, 645] km
Total Rate2.2522916E-4 /yr
Multi-Fault Rate2.2522916E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults71

Table Of Contents

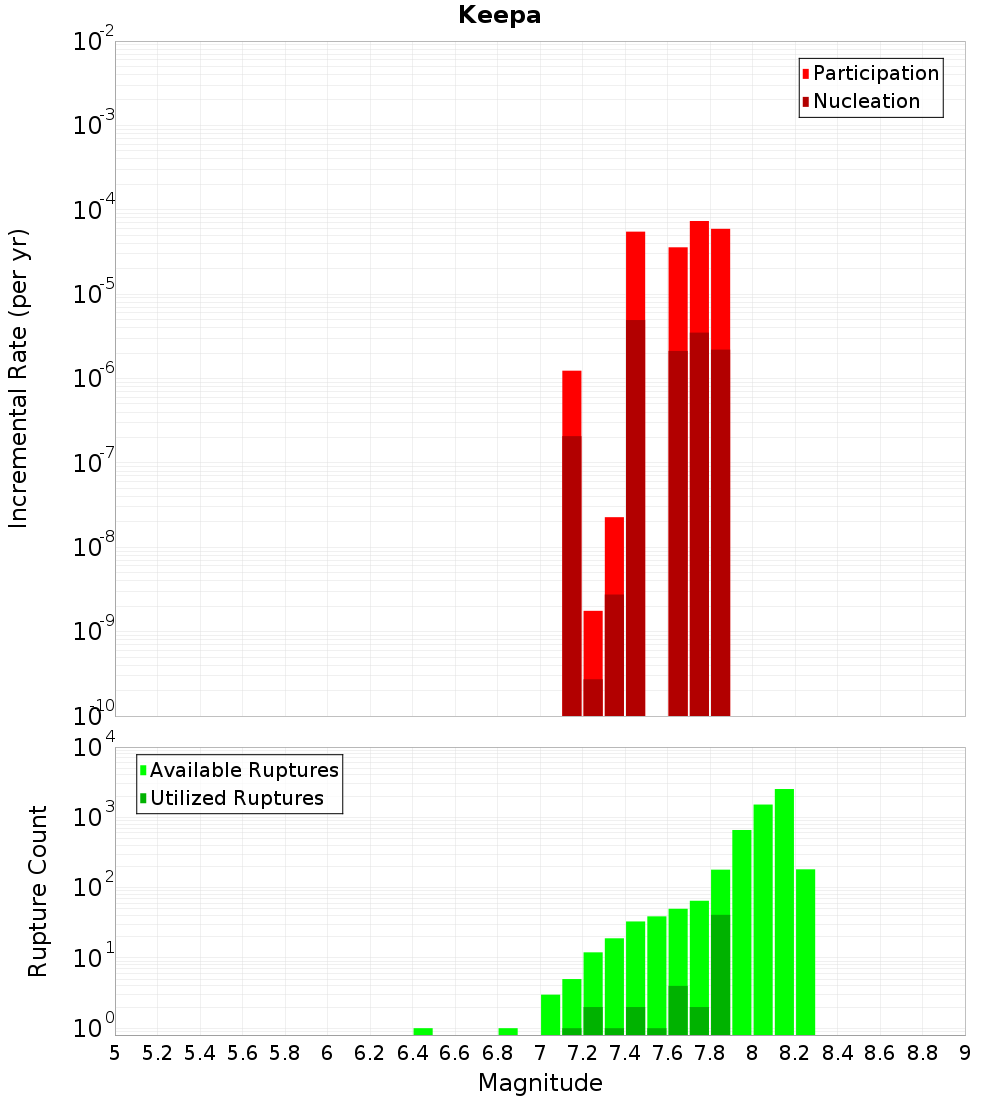

Magnitude-Frequency Distribution

(top)

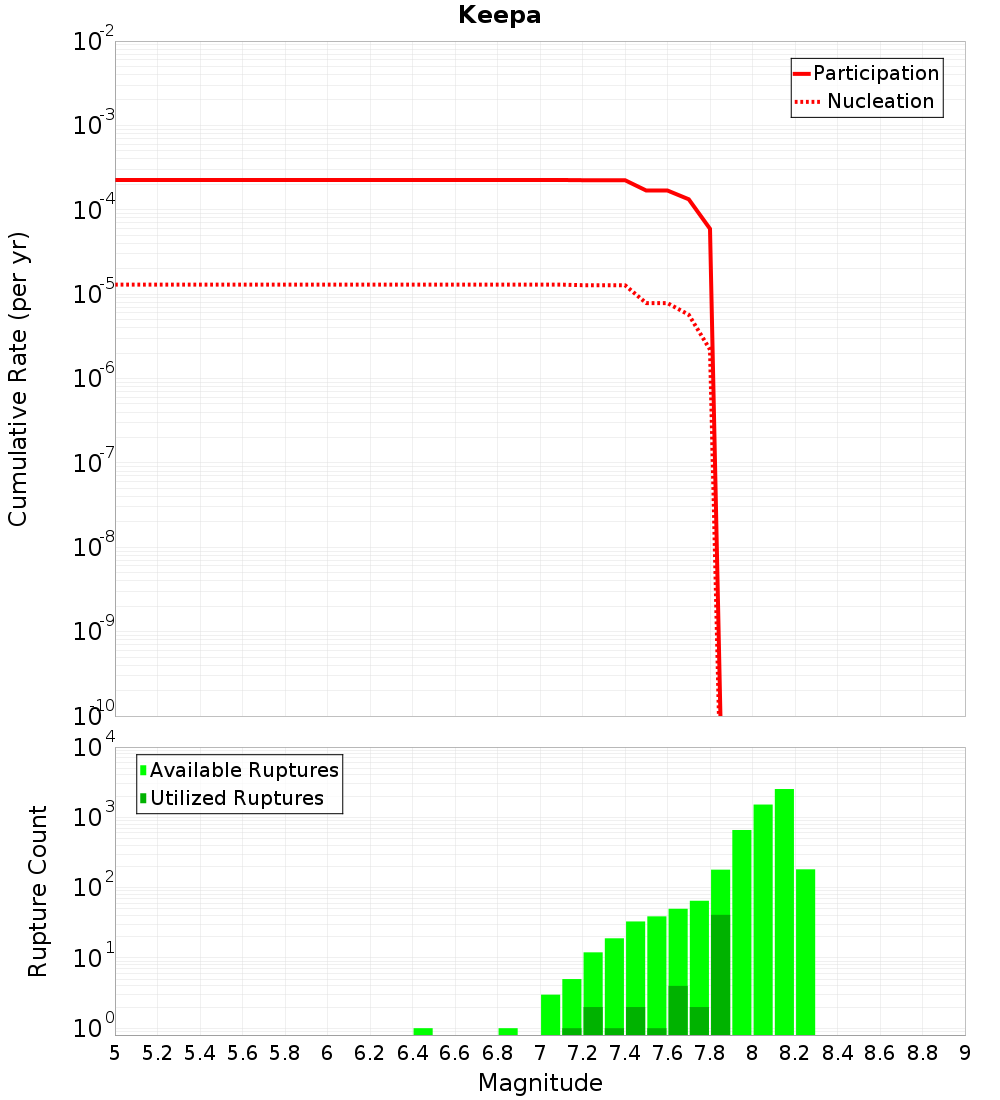

IncrementalCumulative
Incremental PlotCumulative Plot

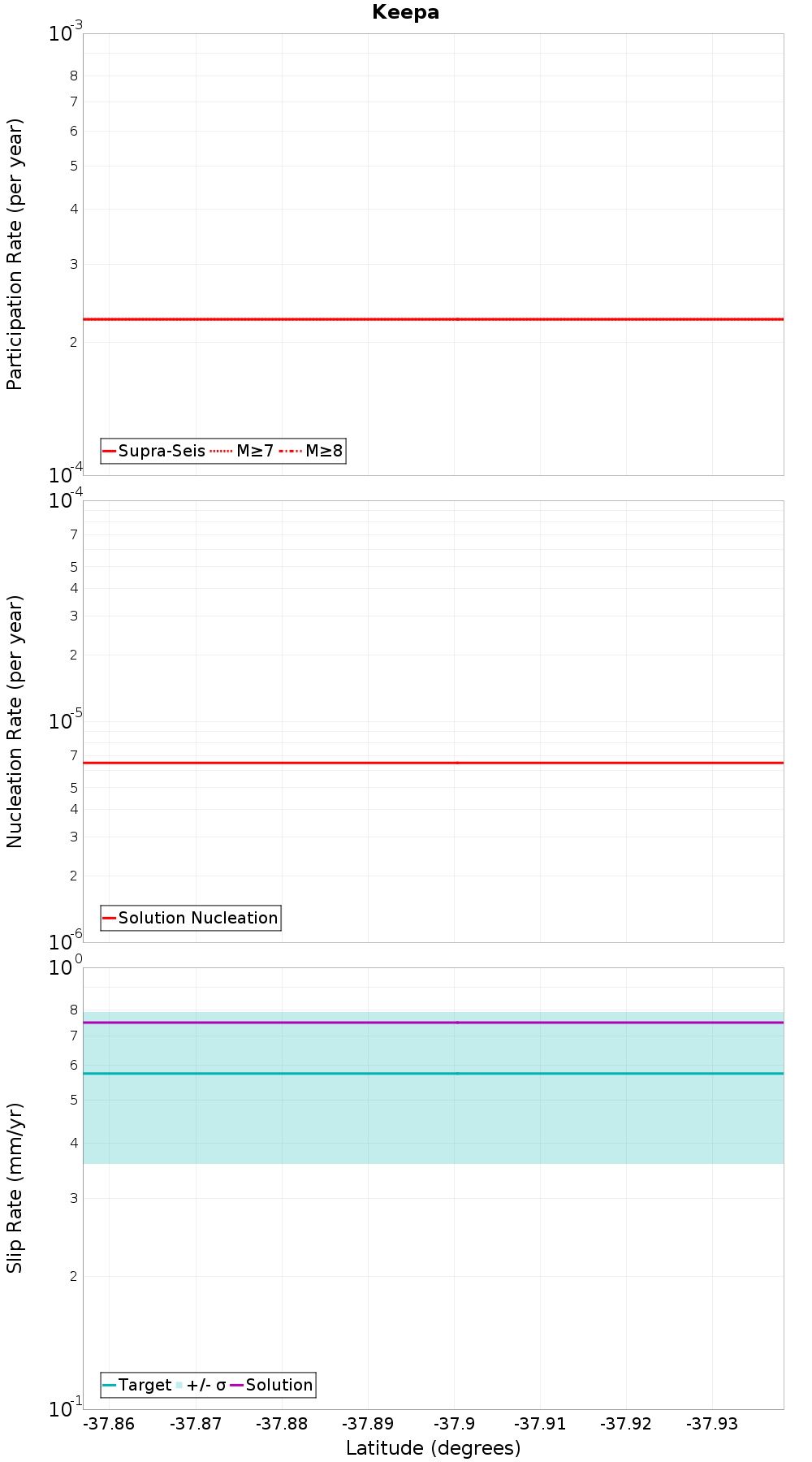

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

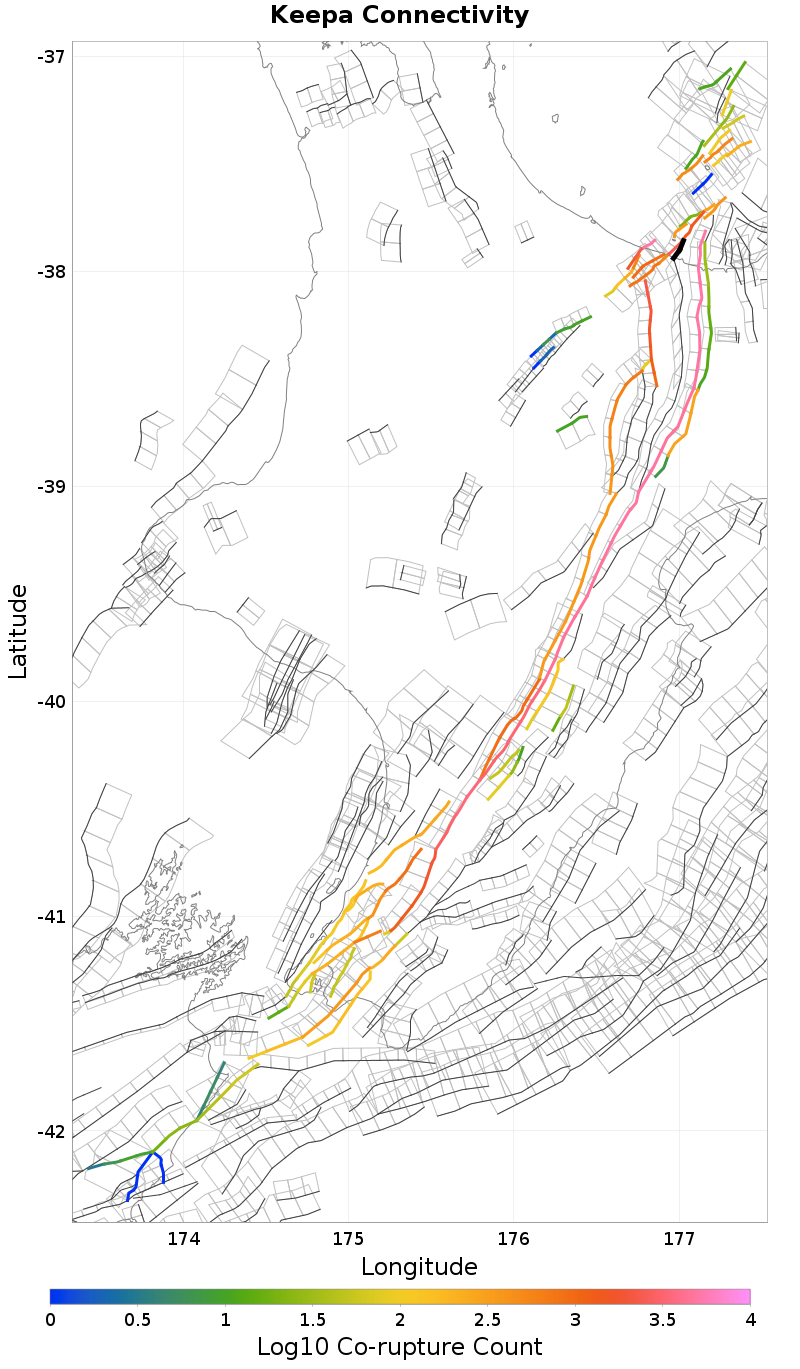

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Whakatane: North, 0 km away
White Island 1, 0.61 km away
Matata, 0.66 km away
Otakiri, 2.92 km away
Edgecumbe Coastal, 3.06 km away
Rangitaiki 1, 4.88 km away
Rangitaiki 2, 7.48 km away
Edgecumbe 1987, 8.1 km away
Waimana: North, 9.02 km away
Waimanawa - Waikaremoana, 10.57 km away
Braemar, 10.8 km away
Waiotahi: North, 11.27 km away

Whakatane: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 0.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count2,717
Co-rupture Rate3.39098E-5

Matata, 0.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?true
Co-rupture Count5,016
Co-rupture Rate1.8842936E-4

Otakiri, 2.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count1,041
Co-rupture Rate2.2733284E-8

Edgecumbe Coastal, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count507
Co-rupture Rate8.2754435E-5

Rangitaiki 1, 4.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count376
Co-rupture Rate2.1728529E-5

Rangitaiki 2, 7.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate1.8231065E-5

Edgecumbe 1987, 8.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count809
Co-rupture Rate5.1447587E-5

Waimana: North, 9.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?true
Co-rupture Count5,105
Co-rupture Rate2.0573569E-4

Waimanawa - Waikaremoana, 10.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Braemar, 10.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count601
Co-rupture Rate1.7021515E-6

Waiotahi: North, 11.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate3.6801208E-5
