Virginia Details
| Property | Value |
|---|---|
| Rupture Count | 3,456 |
| Ruptures Above Sect Min Mag | 3,455 |
| Ruptures w/ Nonzero Rates | 109 |
| Magnitude Range | [6.71, 8.15] |
| Length Range | [16, 493] km |
| Total Rate | 1.8613035E-4 /yr |
| Multi-Fault Rate | 1.8613035E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 70 |
Table Of Contents

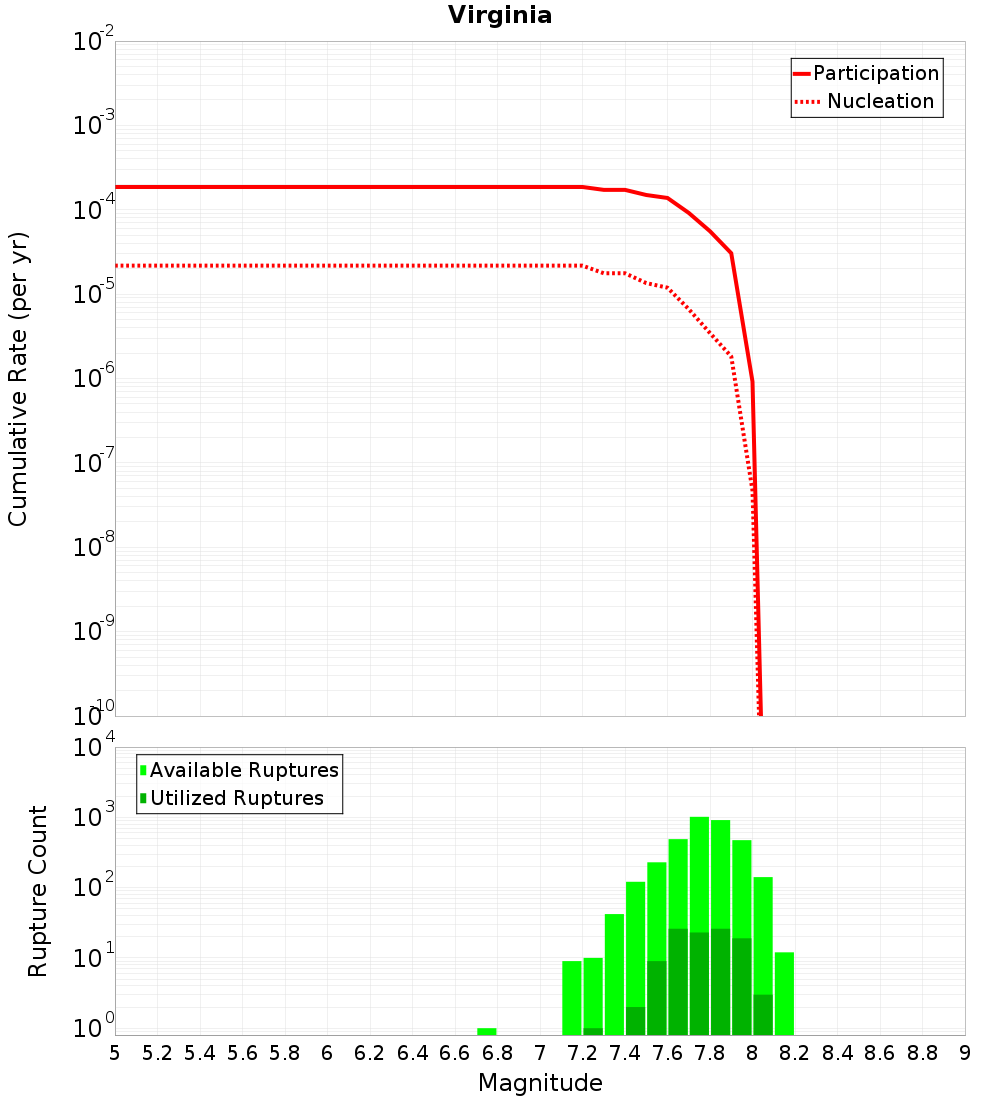

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

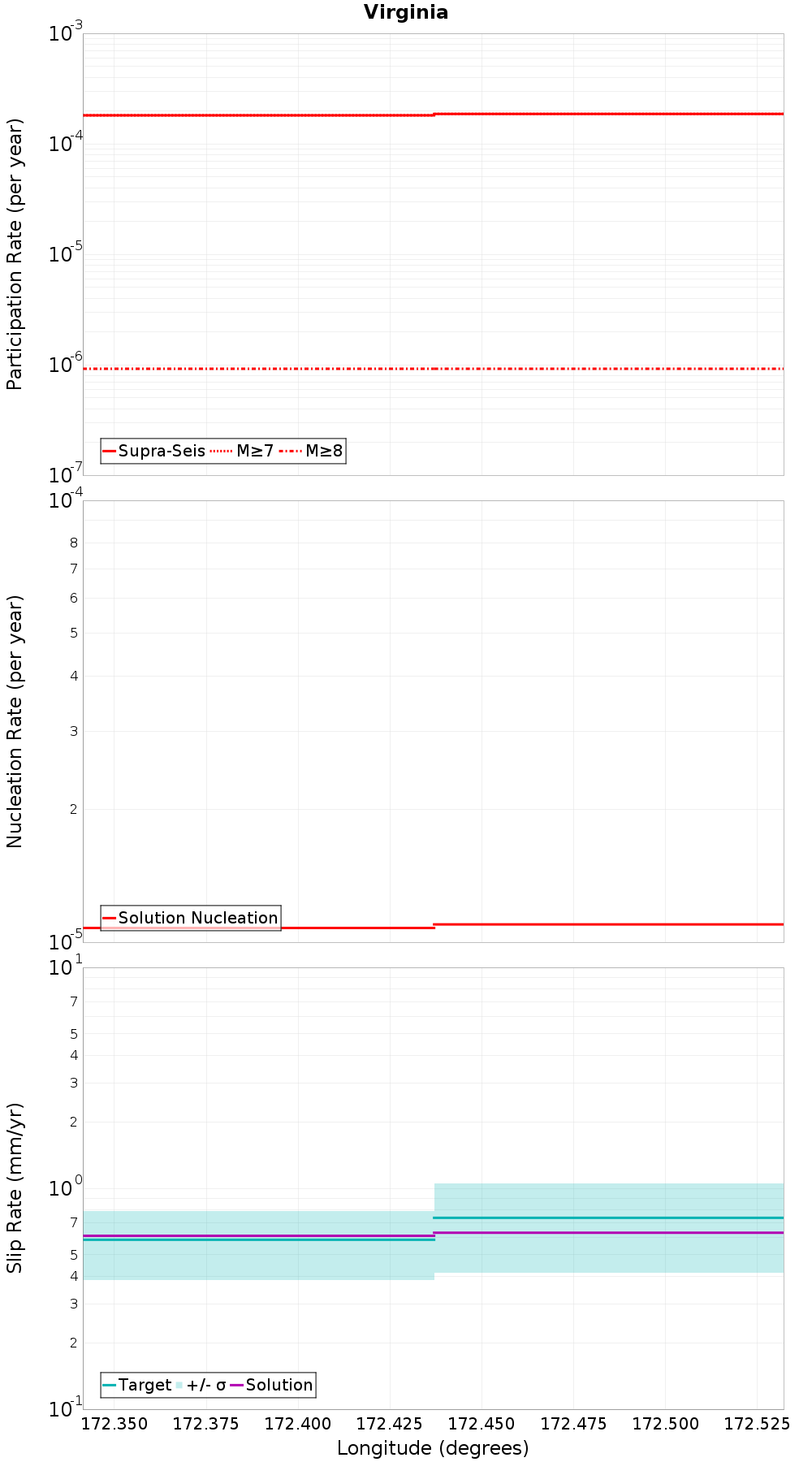

Along-Strike Values
Moment-Rates and b-Values

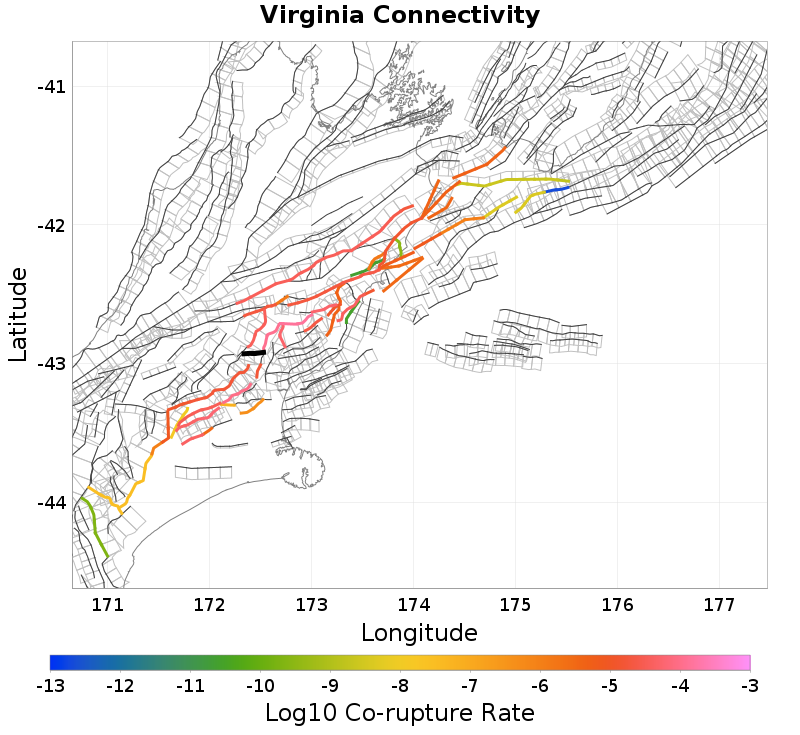

Connectivity
 |  |
|---|
Nearby Sections
Pancake, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mt Arden, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,390 |
| Co-rupture Rate | 1.6569082E-5 |
Hurunui Peak, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 519 |
| Co-rupture Rate | 1.099836E-4 |
Esk North, 2.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,482 |
| Co-rupture Rate | 3.446559E-5 |
Esk South, 3.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Knowles Top, 4.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 568 |
| Co-rupture Rate | 9.3001196E-5 |
Balmoral, 5.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,360 |
| Co-rupture Rate | 5.0625007E-5 |
Doctors, 7.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 15 |
| Co-rupture Rate | 0.0 |
Lees Valley, 9.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,519 |
| Co-rupture Rate | 1.7040678E-5 |
Lowry, 9.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kaiwara South, 12.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Springbank, 14.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 461 |
| Co-rupture Rate | 4.7159713E-7 |
