Waitangi Details
| Property | Value |
|---|---|
| Rupture Count | 47 |
| Ruptures Above Sect Min Mag | 46 |
| Ruptures w/ Nonzero Rates | 20 |
| Magnitude Range | [6.66, 7.47] |
| Length Range | [18, 104] km |
| Total Rate | 1.06142805E-4 /yr |
| Multi-Fault Rate | 1.06142805E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

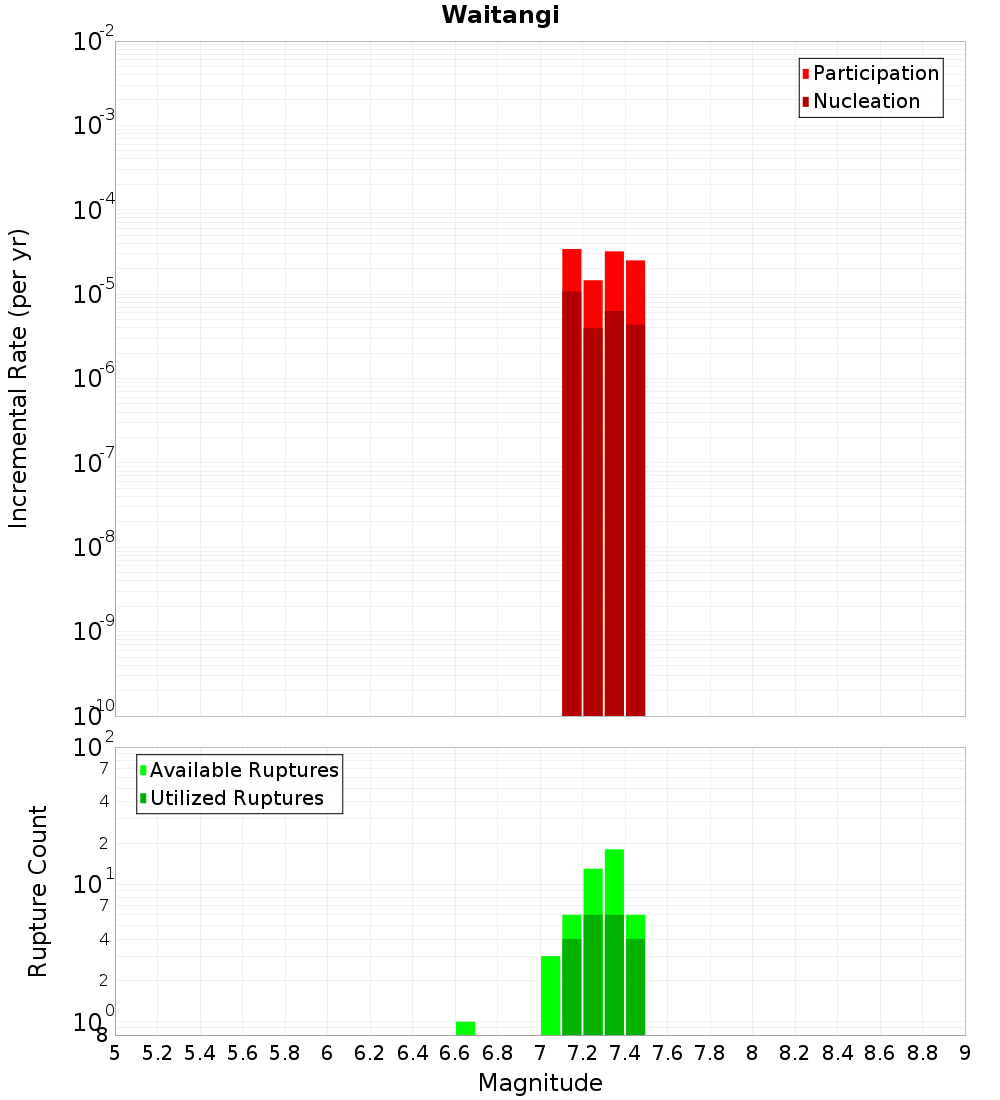

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

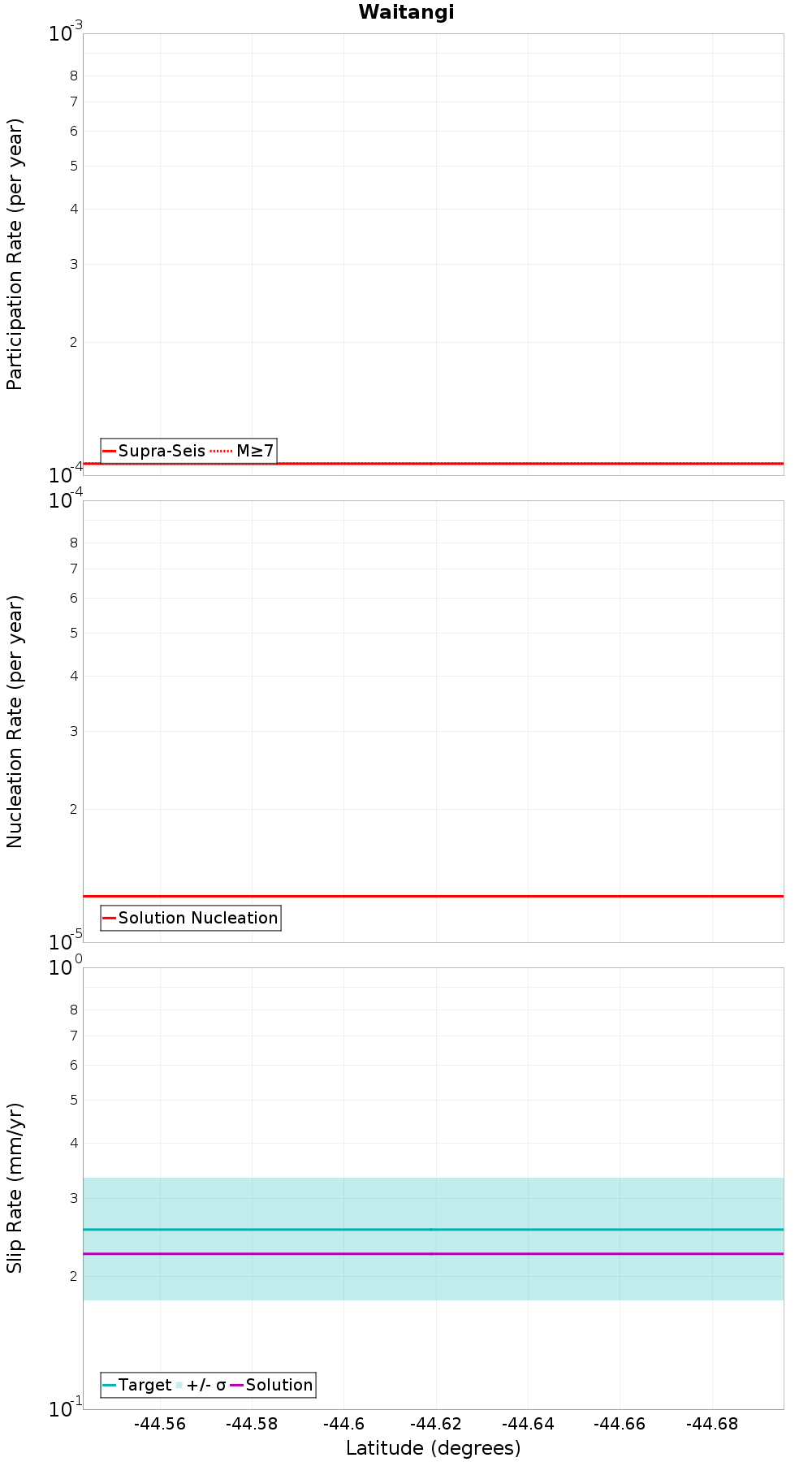

Along-Strike Values
Moment-Rates and b-Values

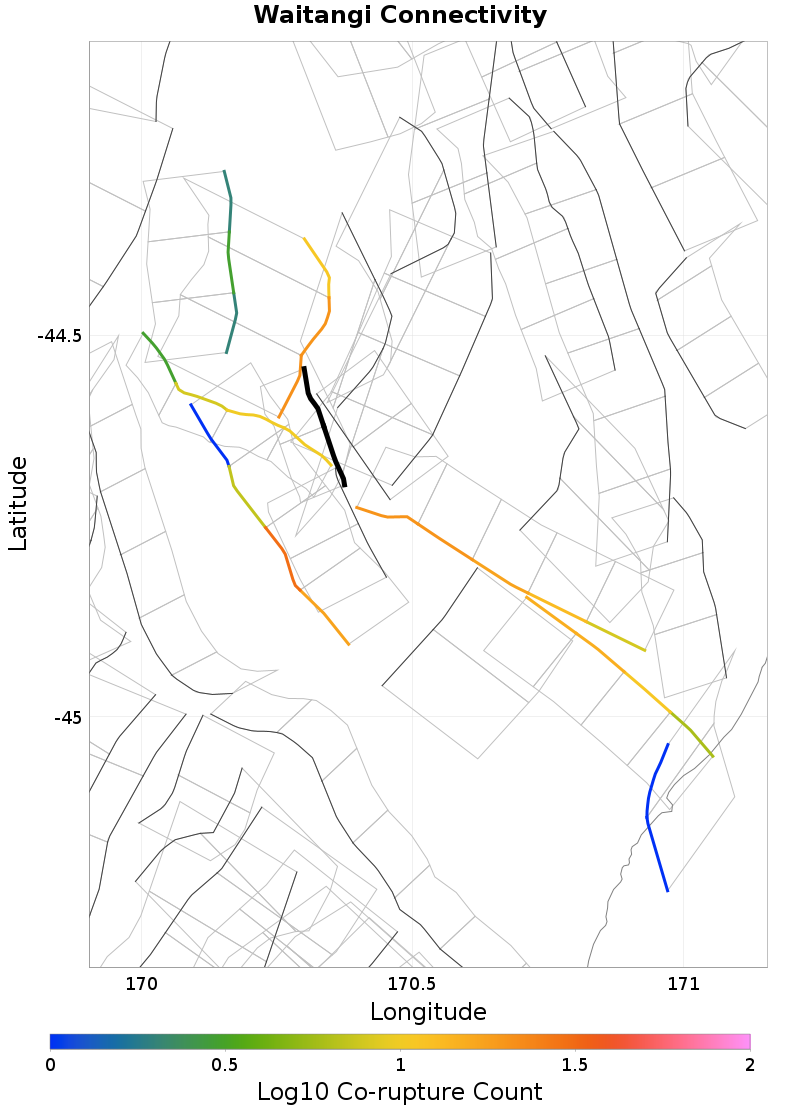

Connectivity
 |  |
|---|
Nearby Sections
Fern Gully, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 10 |
| Co-rupture Rate | 2.8534017E-5 |
Mt Sutton, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Middle Range, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 30 |
| Co-rupture Rate | 7.519434E-5 |
Awahokomo, 0.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Gibson, 0.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 21 |
| Co-rupture Rate | 5.568705E-5 |
Dryburgh, 1.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kirkliston, 1.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Stonewall, 3.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20 |
| Co-rupture Rate | 9.852278E-6 |
Grampian, 8.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Falstone, 11.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFN1NDdi | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 4.9051346E-6 |
