Goodger Details

Property	Value
Rupture Count	2,986
Ruptures Above Sect Min Mag	2,986
Ruptures w/ Nonzero Rates	13
Magnitude Range	[7.02, 8.53]
Length Range	[21, 656] km
Total Rate	5.9594844E-5 /yr
Multi-Fault Rate	5.9594844E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	66

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

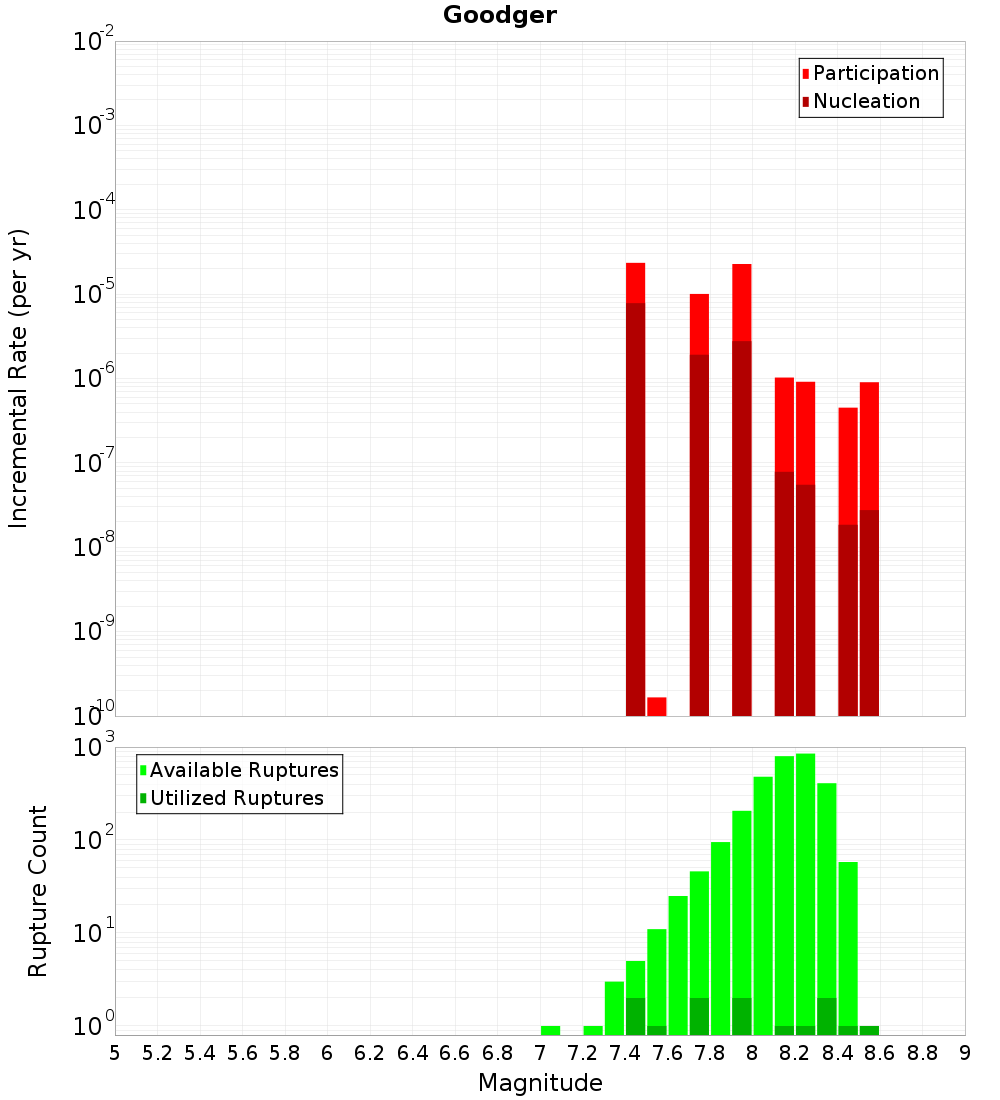

Magnitude-Frequency Distribution

Incremental	Cumulative

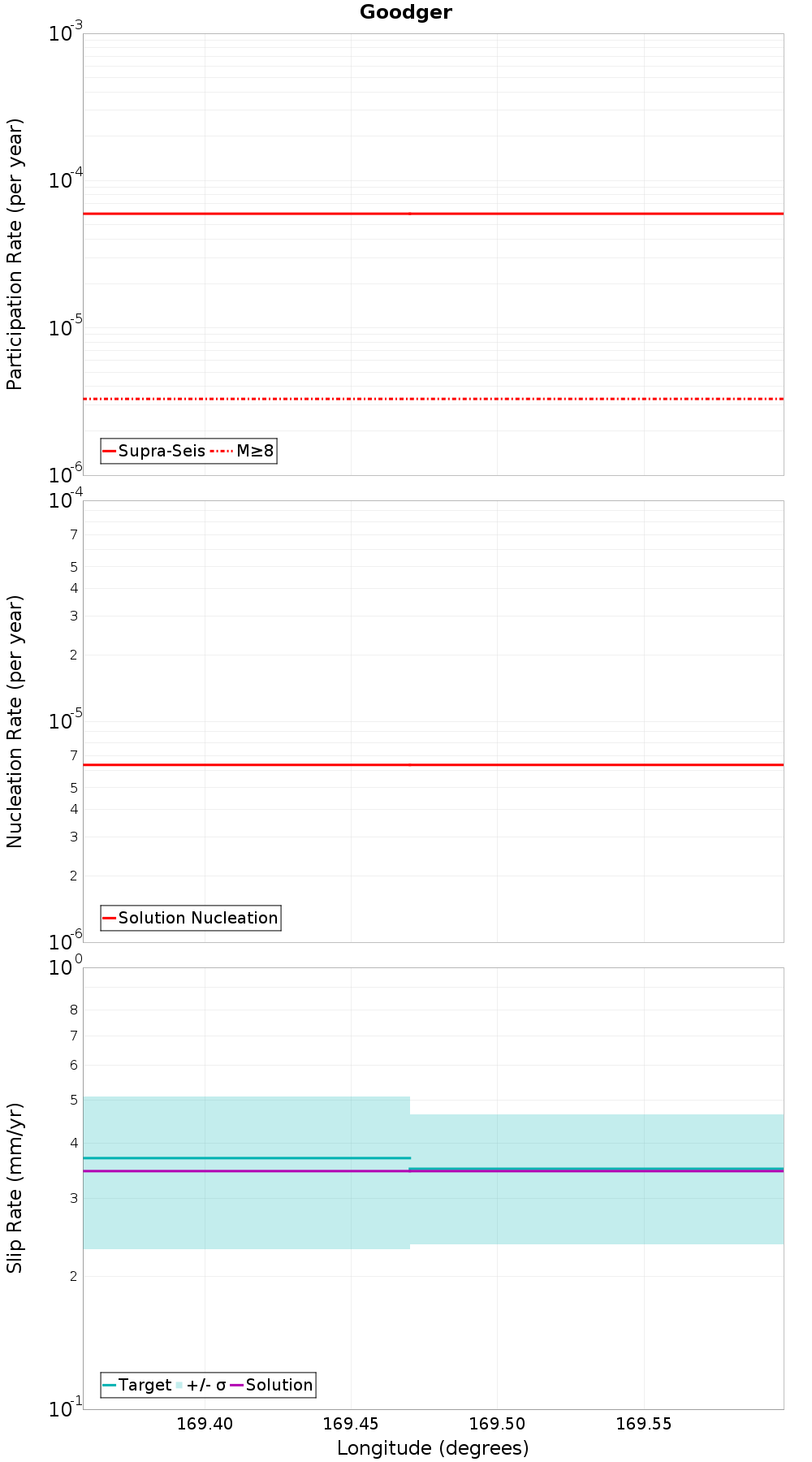

Along-Strike Values

Moment-Rates and b-Values

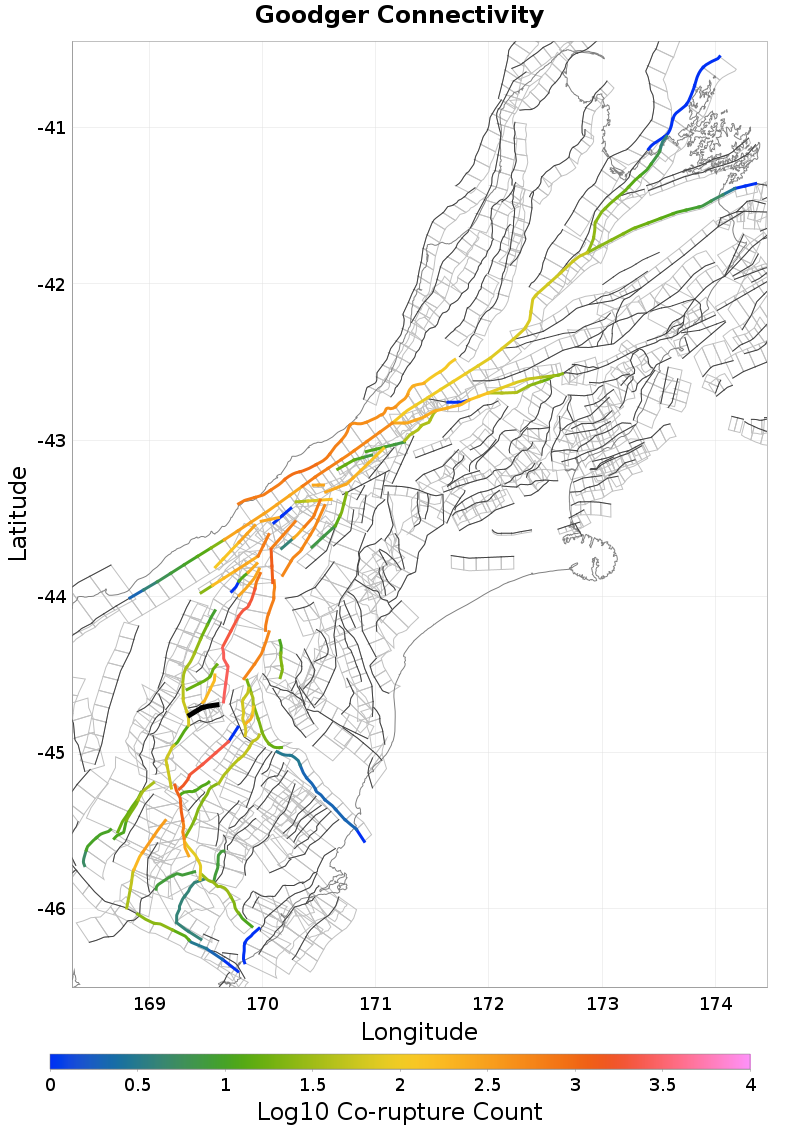

Connectivity

Nearby Sections

Fault Section
Cluden, 0.21 km away
Grandview, 0.22 km away
Dunstan, 0.25 km away
Lindis River, 2.4 km away
Dromedary, 3.8 km away
Raggedy - Blackstone, 4.78 km away
Rocks Creek, 5.62 km away
Pisa, 7.45 km away
Blue Lake, 9.08 km away
Paddys Ridge, 11.59 km away
Garibaldi, 14.34 km away

Cluden, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grandview, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?	true
Directly Connected?	false
Co-rupture Count	66
Co-rupture Rate	0.0

Dunstan, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,226
Co-rupture Rate	1.7000855E-5

Lindis River, 2.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?	true
Directly Connected?	true
Co-rupture Count	184
Co-rupture Rate	3.5158134E-17

Dromedary, 3.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,665
Co-rupture Rate	2.6052656E-5

Raggedy - Blackstone, 4.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?	true
Directly Connected?	false
Co-rupture Count	48
Co-rupture Rate	1.005454E-5

Rocks Creek, 5.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?	true
Directly Connected?	true
Co-rupture Count	220
Co-rupture Rate	3.354219E-5

Pisa, 7.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?	true
Directly Connected?	false
Co-rupture Count	58
Co-rupture Rate	0.0

Blue Lake, 9.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Paddys Ridge, 11.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Garibaldi, 14.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
