Leedstown Details

PropertyValue
Rupture Count222
Ruptures Above Sect Min Mag222
Ruptures w/ Nonzero Rates20
Magnitude Range[7.28, 8.09]
Length Range[28, 216] km
Total Rate5.961569E-5 /yr
Multi-Fault Rate5.961569E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults24

Table Of Contents

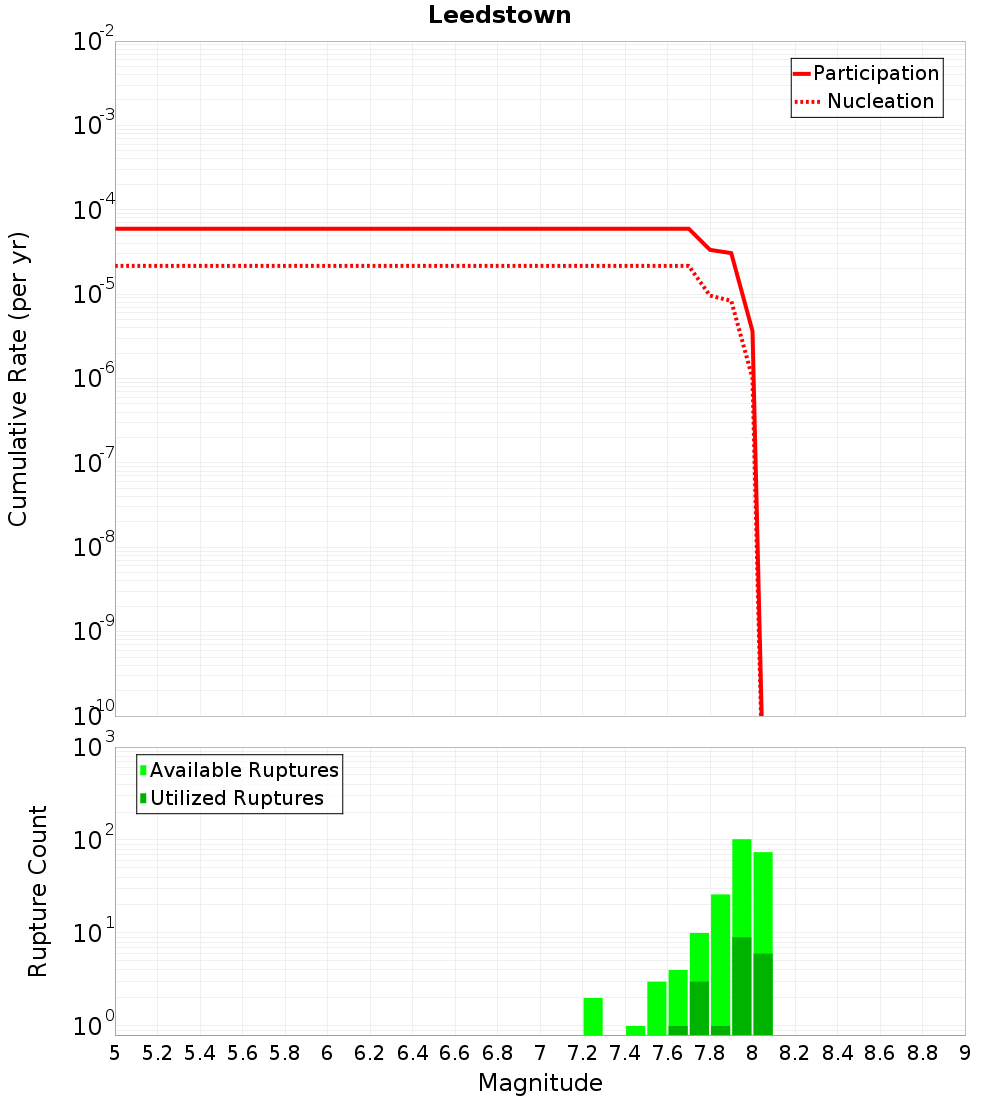

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

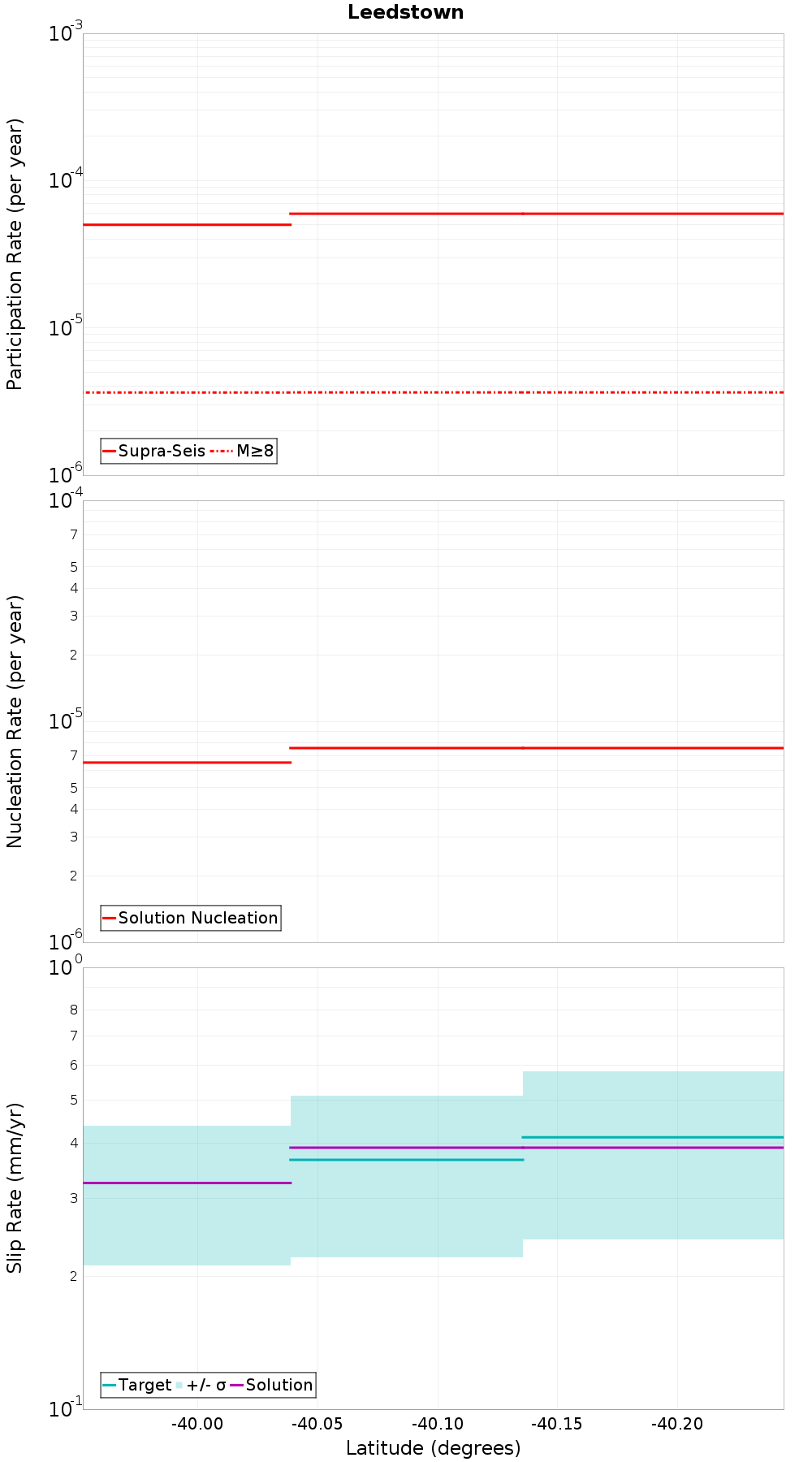

Along-Strike Values

(top)

Along-strike plot

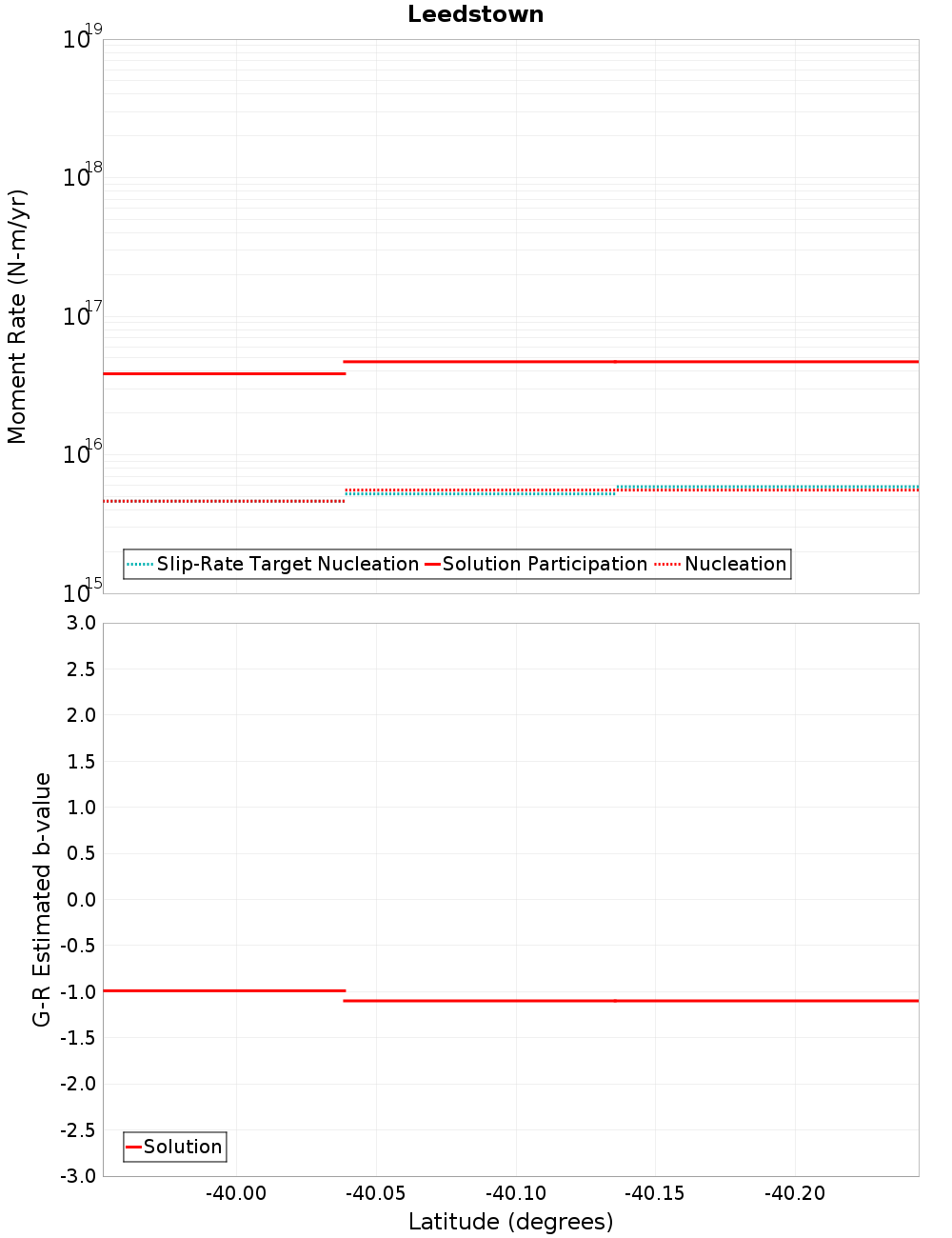

Moment-Rates and b-Values

(top)

Along-strike plot

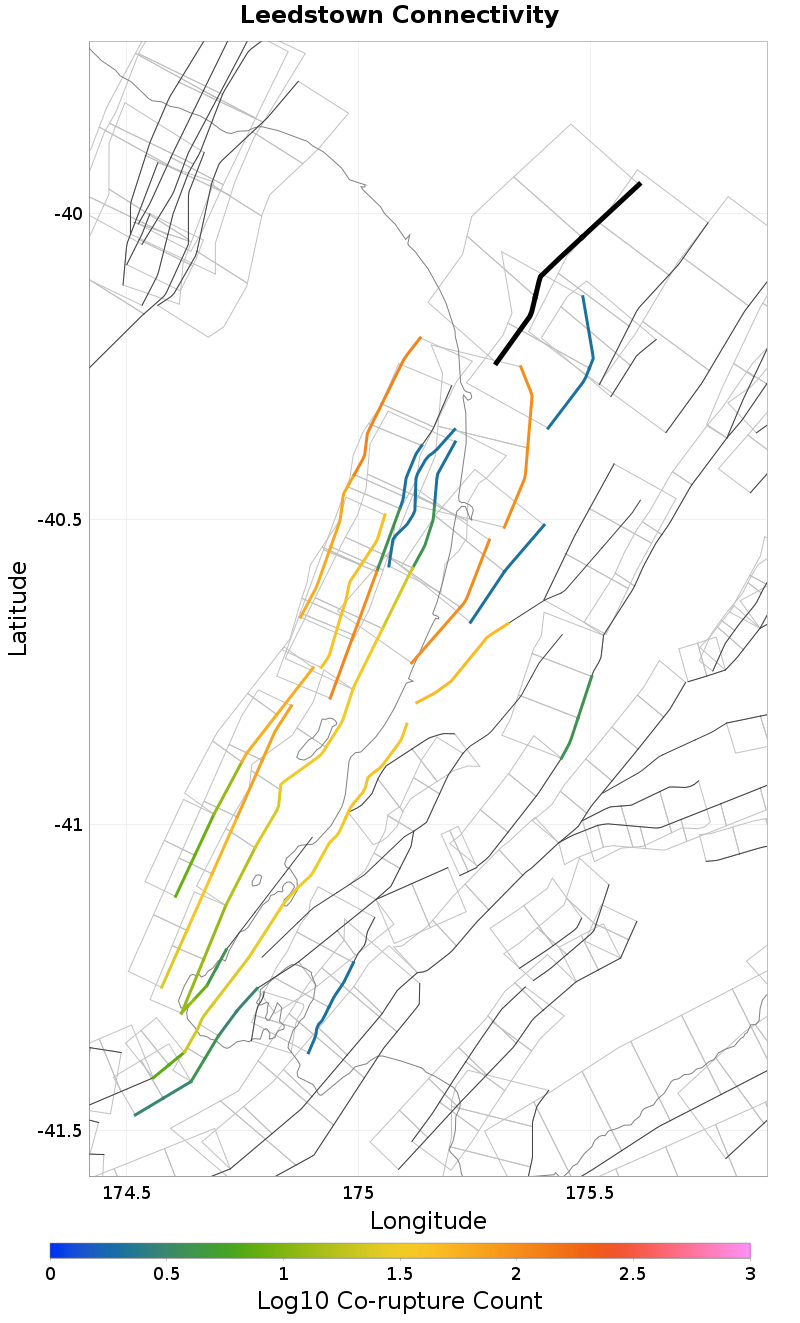

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Himatangi, 3.55 km away
Mascarin, 4.2 km away
Mt Stewart, 6.37 km away
Onepoto, 9.03 km away
Rauoterangi, 12.4 km away
Rangitikei Offshore 1, 14.34 km away

Himatangi, 3.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?true
Co-rupture Count102
Co-rupture Rate2.6684105E-5

Mascarin, 4.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?true
Co-rupture Count117
Co-rupture Rate3.2931584E-5

Mt Stewart, 6.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate0.0

Onepoto, 9.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?false
Co-rupture Count116
Co-rupture Rate2.117323E-5

Rauoterangi, 12.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitikei Offshore 1, 14.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate3.058687E-6
