Paparoa West: North Details
| Property | Value |
|---|---|
| Rupture Count | 5,039 |
| Ruptures Above Sect Min Mag | 5,038 |
| Ruptures w/ Nonzero Rates | 63 |
| Magnitude Range | [6.78, 8.65] |
| Length Range | [16, 988] km |
| Total Rate | 1.4690365E-4 /yr |
| Multi-Fault Rate | 1.4690365E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 65 |
Table Of Contents

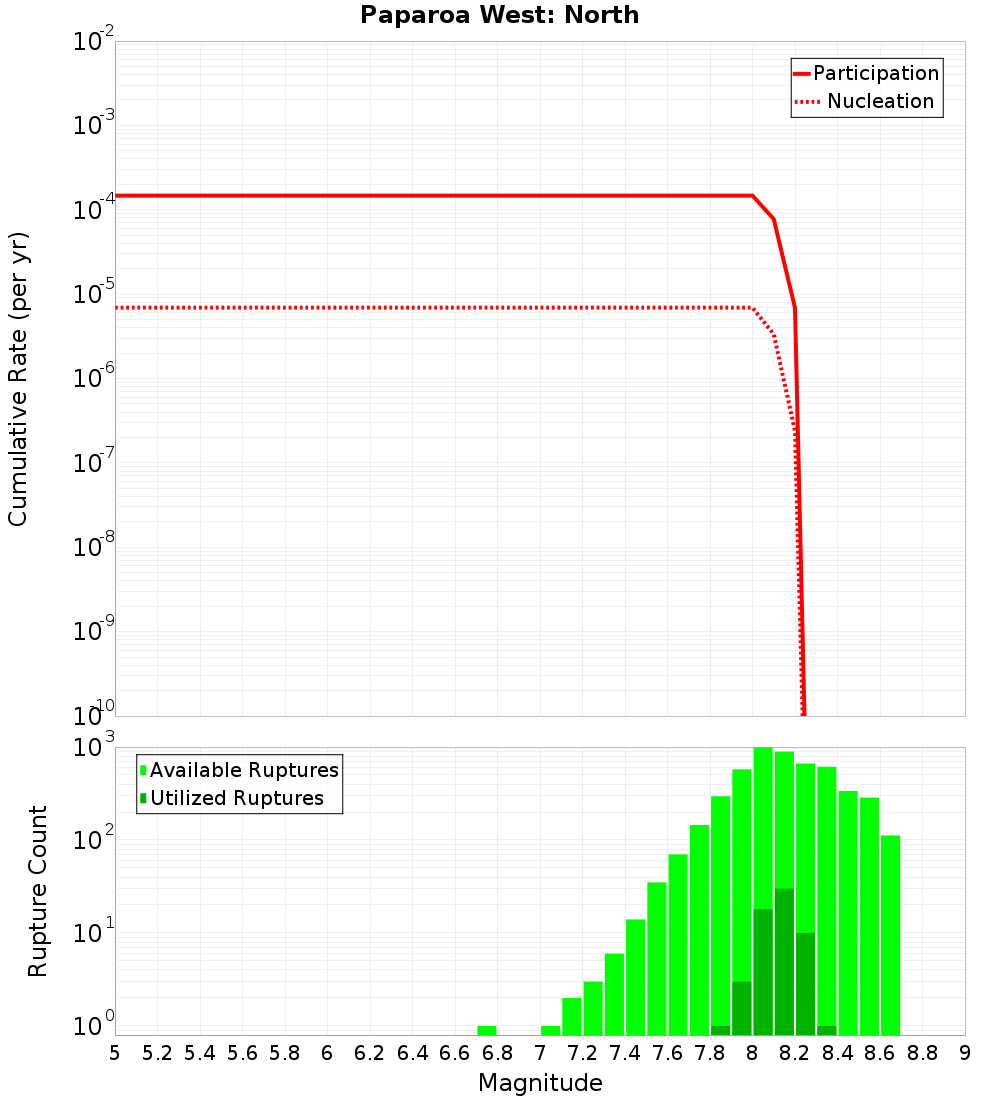

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

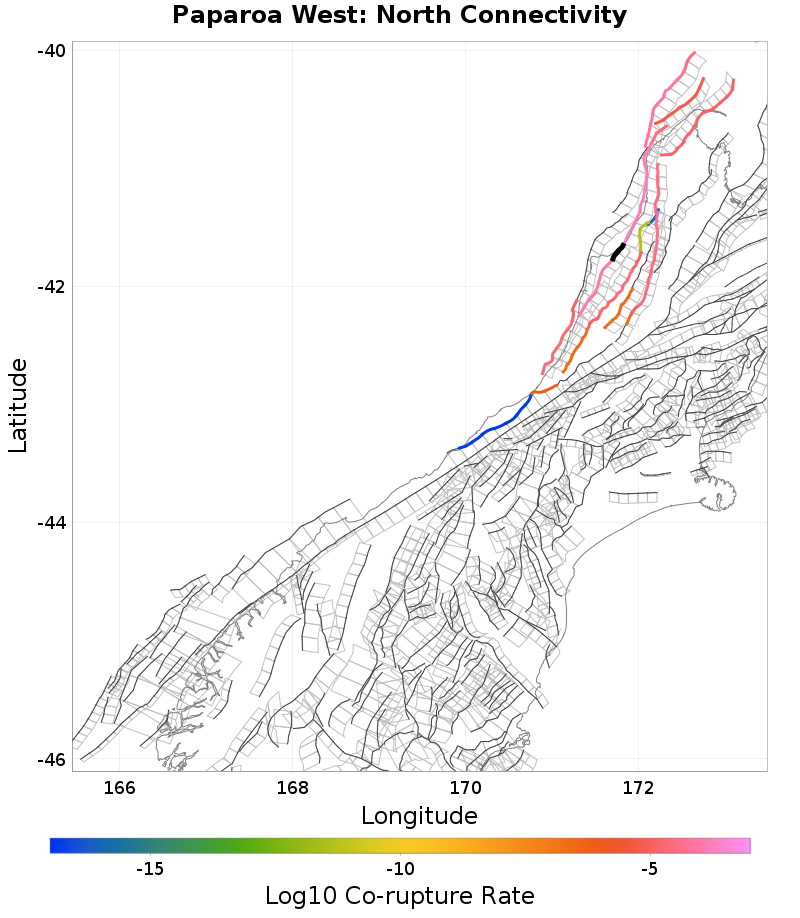

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Paparoa West, 0 km away |
| Inangahua, 0.89 km away |
| Kongahau, 1.54 km away |
| Maimai: North, 2.89 km away |
Paparoa West, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,907 |
| Co-rupture Rate | 1.3469273E-4 |
Inangahua, 0.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 367 |
| Co-rupture Rate | 1.3917461E-5 |
Kongahau, 1.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,910 |
| Co-rupture Rate | 1.4690365E-4 |
Maimai: North, 2.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,296 |
| Co-rupture Rate | 3.500852E-5 |
