Starvation - Ashley Details

PropertyValue
Rupture Count25,324
Ruptures Above Sect Min Mag25,322
Ruptures w/ Nonzero Rates111
Magnitude Range[6.97, 8.48]
Length Range[21, 732] km
Total Rate4.8015005E-4 /yr
Multi-Fault Rate4.8015005E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults108

Table Of Contents

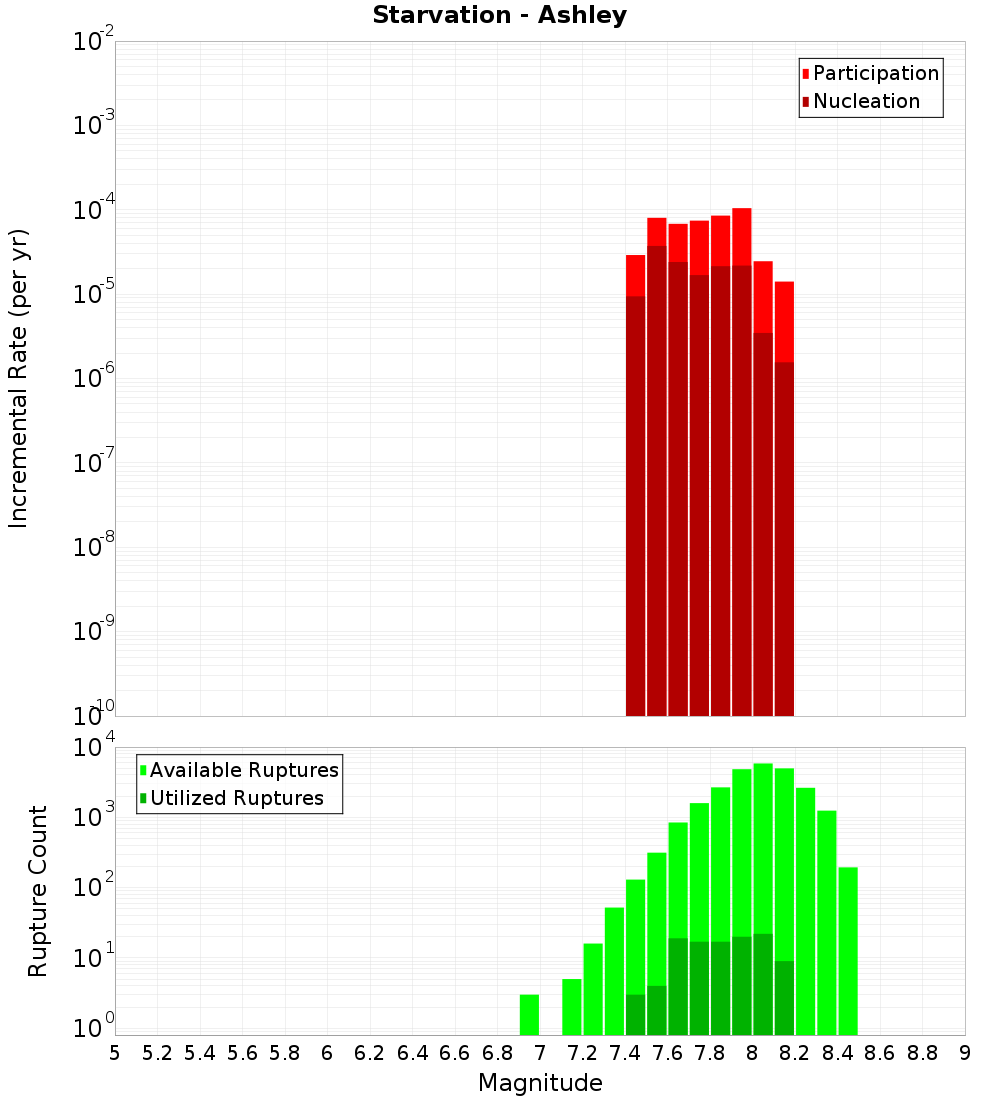

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

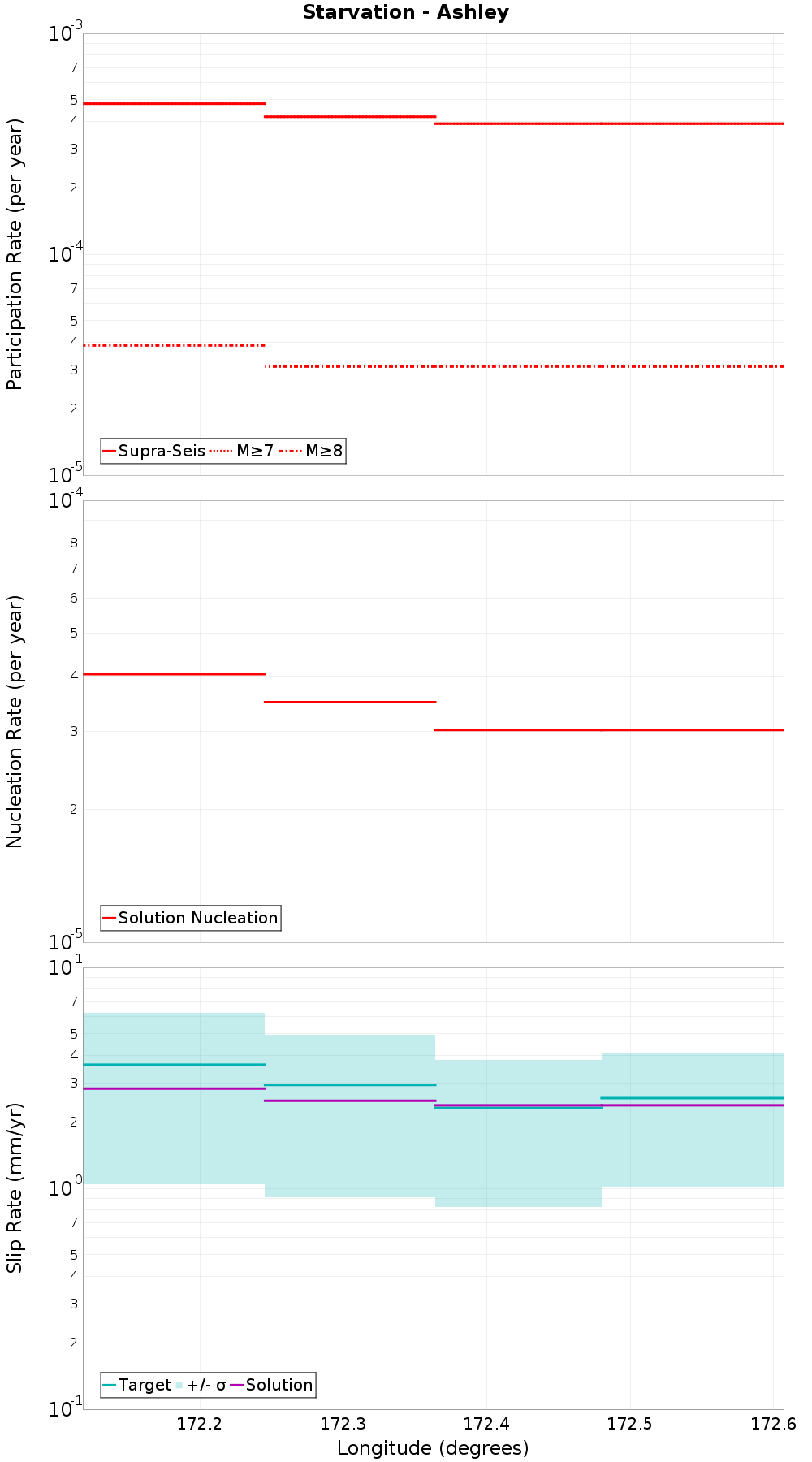

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

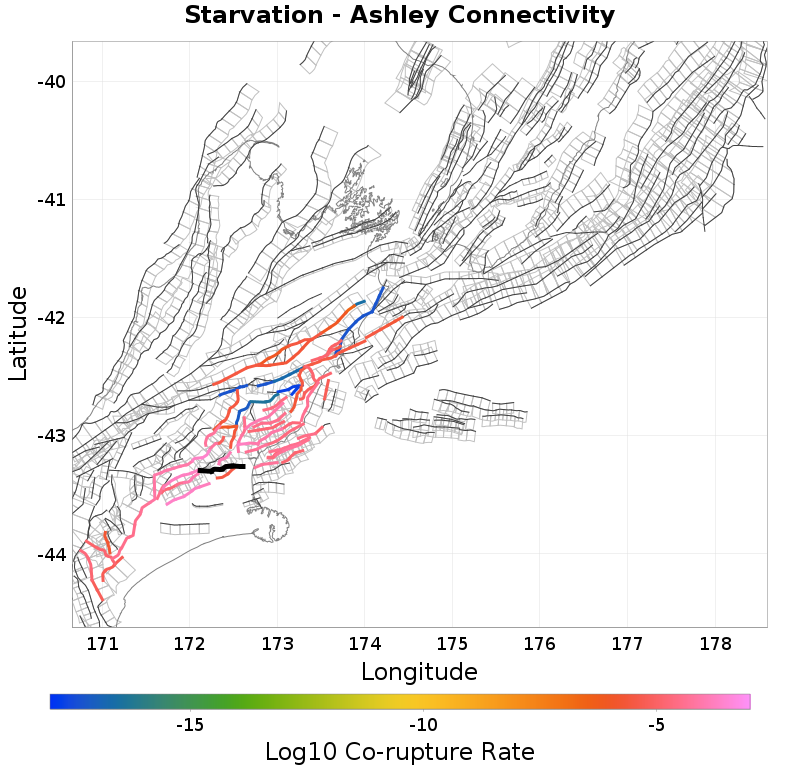

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Springbank, 0.14 km awayHigh Peak - Sheffield, 3.73 km away
Mt Lawry, 0.17 km awayHororata, 6.38 km away
Lees Valley, 0.3 km awayAmberBlyth, 7.86 km away
Pancake, 0.34 km awayDoctors, 8.25 km away
Boby Stream, 0.62 km awayPorters Pass, 10.36 km away
Esk South, 0.81 km awayWaikuku, 11.22 km away
Kowai - View Hill, 0.87 km awayPegasus Bay, 12.18 km away
Knowles Top, 1.58 km awayTorlesse, 12.83 km away

Springbank, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?true
Co-rupture Count655
Co-rupture Rate3.3774709E-6

Mt Lawry, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?true
Co-rupture Count159
Co-rupture Rate1.2245953E-4

Lees Valley, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?true
Co-rupture Count8,065
Co-rupture Rate2.577286E-4

Pancake, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate5.463611E-5

Boby Stream, 0.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?true
Co-rupture Count18,318
Co-rupture Rate1.718357E-4

Esk South, 0.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?true
Co-rupture Count10,625
Co-rupture Rate1.7462751E-4

Knowles Top, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?false
Co-rupture Count97
Co-rupture Rate0.0

High Peak - Sheffield, 3.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?true
Co-rupture Count7,654
Co-rupture Rate1.0879773E-4

Hororata, 6.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?false
Co-rupture Count6,999
Co-rupture Rate2.1753804E-4

AmberBlyth, 7.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?true
Co-rupture Count3,803
Co-rupture Rate5.685436E-5

Doctors, 8.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?false
Co-rupture Count14,211
Co-rupture Rate8.136455E-5

Porters Pass, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?false
Co-rupture Count2,944
Co-rupture Rate8.297626E-5

Waikuku, 11.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?true
Co-rupture Count445
Co-rupture Rate5.22328E-5

Pegasus Bay, 12.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?true
Directly Connected?false
Co-rupture Count31
Co-rupture Rate0.0

Torlesse, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzAuMFVYZWE1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
