Cape Foulwind 4 Details
| Property | Value |
|---|---|
| Rupture Count | 1,936 |
| Ruptures Above Sect Min Mag | 1,933 |
| Ruptures w/ Nonzero Rates | 18 |
| Magnitude Range | [6.96, 8.10] |
| Length Range | [24, 369] km |
| Total Rate | 2.498066E-4 /yr |
| Multi-Fault Rate | 2.498066E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 11 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

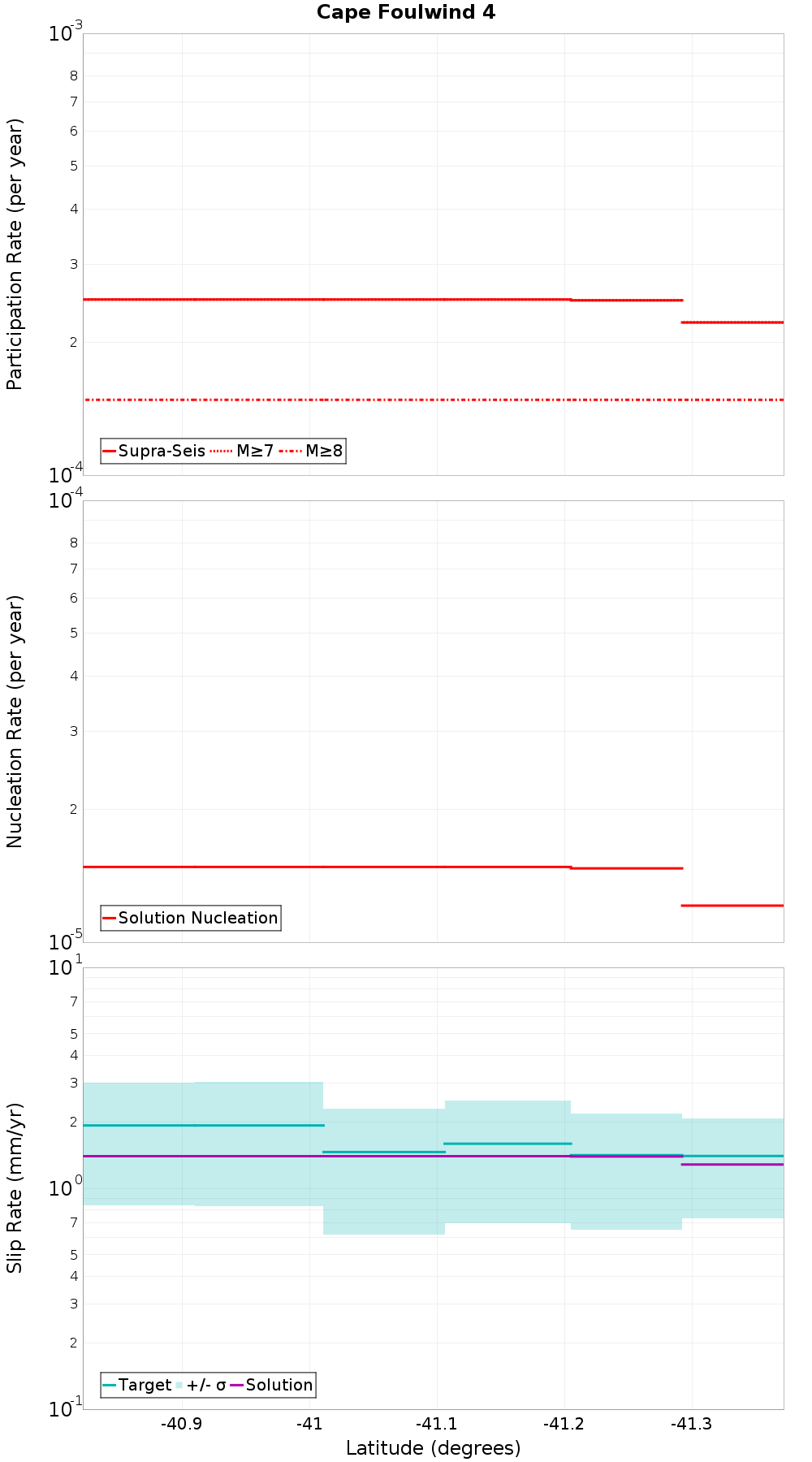

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kahurangi, 0.34 km away |
| Kongahau, 1.28 km away |
| Wakamarama, 1.76 km away |
| Cape Foulwind 2, 8.22 km away |
| Kohaihai, 11.7 km away |
Kahurangi, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,072 |
| Co-rupture Rate | 2.498066E-4 |
Kongahau, 1.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 90 |
| Co-rupture Rate | 0.0 |
Wakamarama, 1.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 626 |
| Co-rupture Rate | 1.6635653E-5 |
Cape Foulwind 2, 8.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,676 |
| Co-rupture Rate | 1.4809048E-4 |
Kohaihai, 11.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
