Caswell High 4 Details
| Property | Value |
|---|---|
| Rupture Count | 264 |
| Ruptures Above Sect Min Mag | 246 |
| Ruptures w/ Nonzero Rates | 15 |
| Magnitude Range | [6.56, 8.00] |
| Length Range | [14, 192] km |
| Total Rate | 4.4902327E-4 /yr |
| Multi-Fault Rate | 4.4902327E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 11 |
Table Of Contents

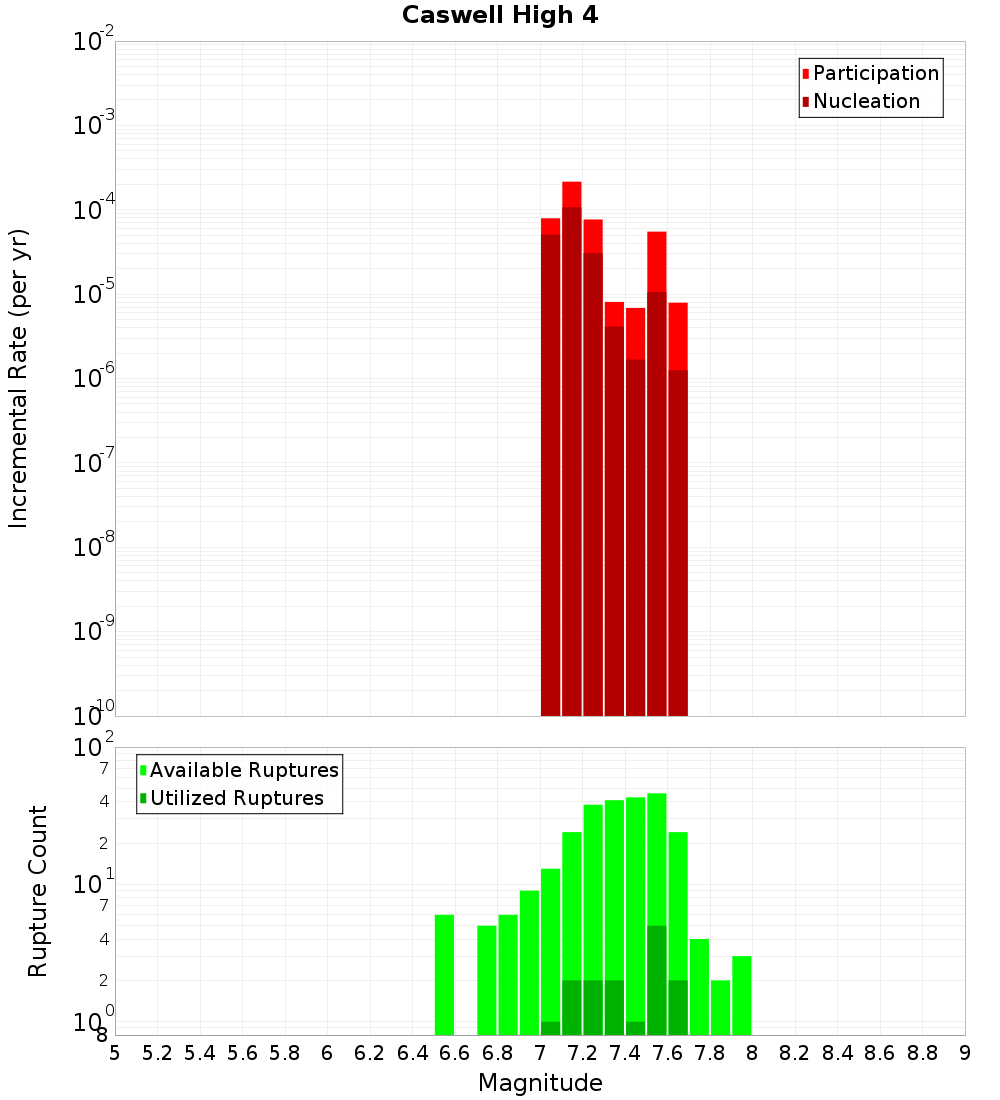

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

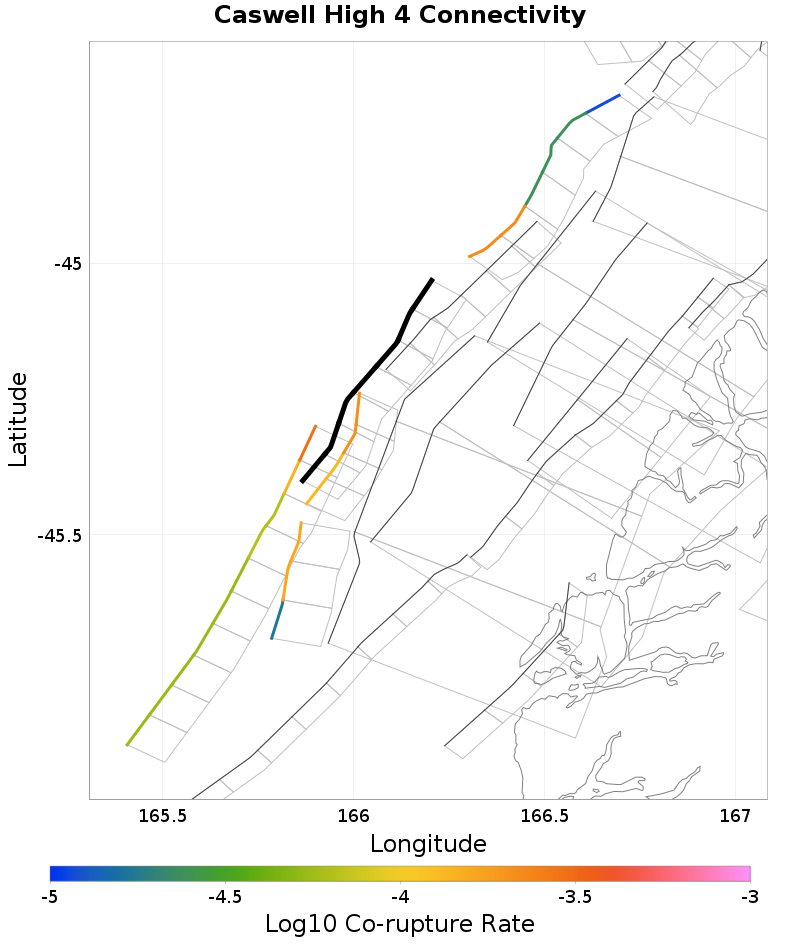

Connectivity
 |  |
|---|
Nearby Sections
Caswell High 5, 0.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Caswell High 3, 0.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 103 |
| Co-rupture Rate | 2.126269E-4 |
Caswell High 1, 2.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 158 |
| Co-rupture Rate | 2.924842E-4 |
Caswell 211, 6.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 1.6284817E-4 |
South Wedge 5, 7.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Caswell High 67, 8.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 138 |
| Co-rupture Rate | 2.2071603E-4 |
Central Wedge 4 - South Wedge 411, 14.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
