Clarence: Northeast Details

PropertyValue
Rupture Count12,472
Ruptures Above Sect Min Mag12,467
Ruptures w/ Nonzero Rates25
Magnitude Range[6.84, 8.54]
Length Range[21, 888] km
Total Rate5.6396844E-4 /yr
Multi-Fault Rate5.6396844E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults188

Table Of Contents

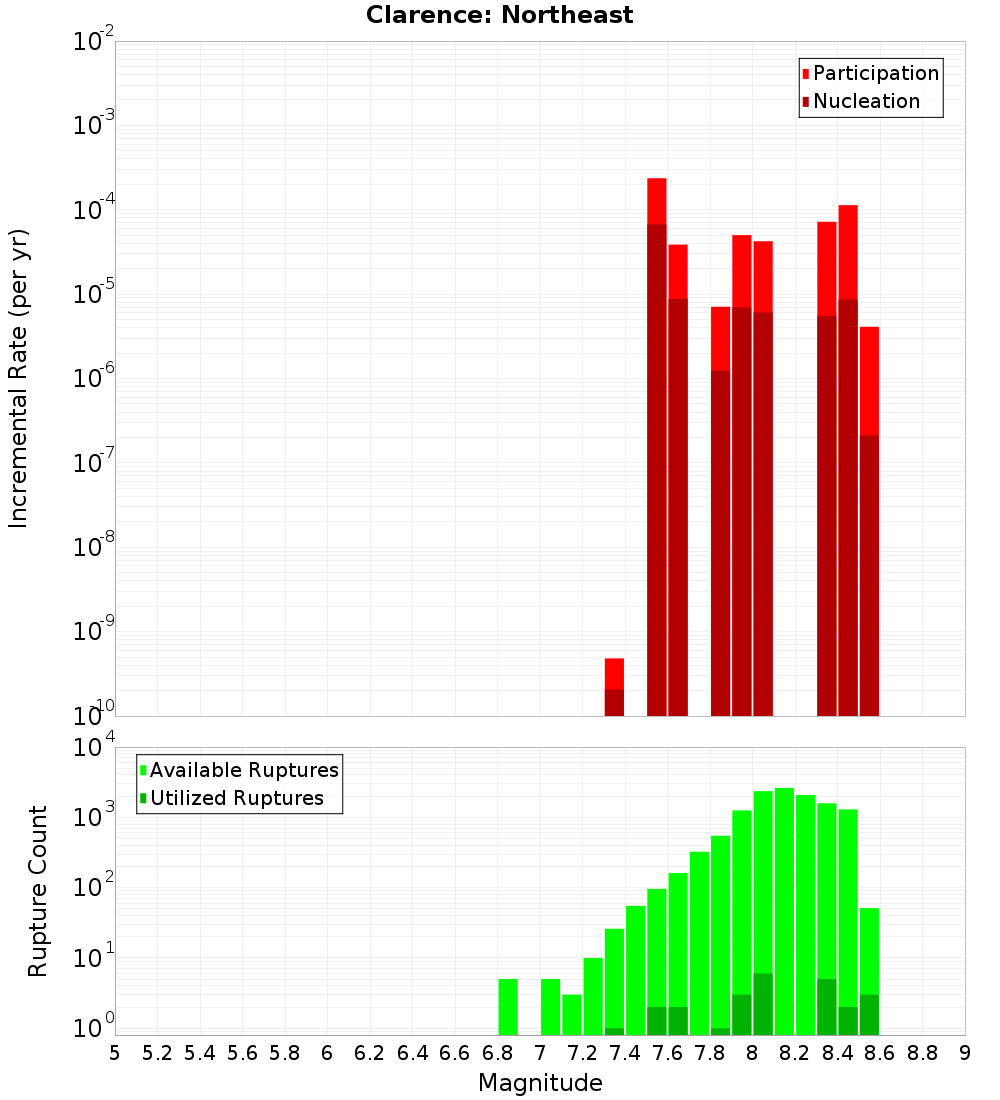

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

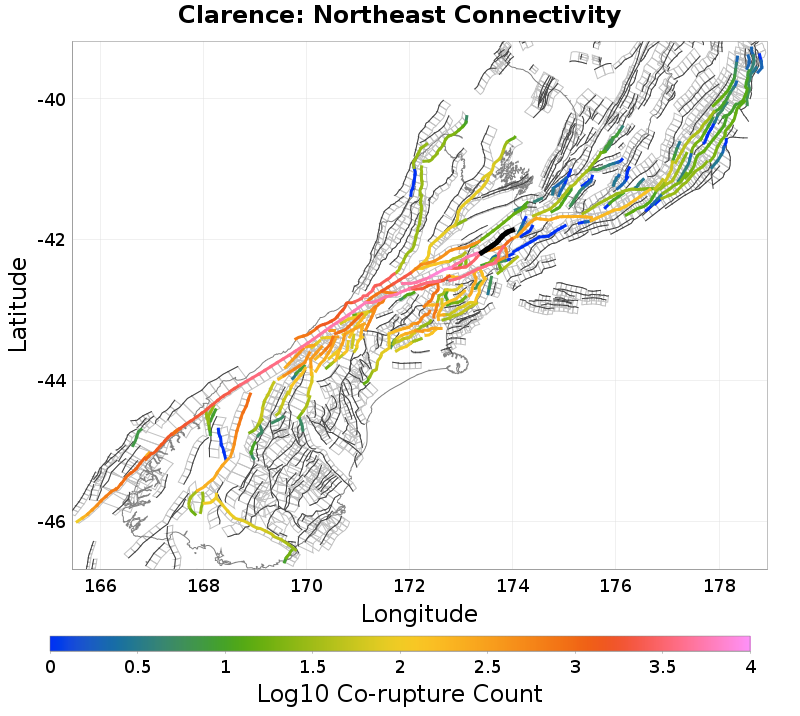

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Elliott, 0.01 km away
Clarence: Central, 0.09 km away
Jordan, 0.4 km away
Fidget, 0.64 km away
Needles East 2, 8.38 km away
Awatere: Northeast 1, 9.18 km away
Kekerengu 1, 10.43 km away
London Hill, 10.86 km away
Awatere: Southwest, 11.07 km away
Needles, 11.97 km away
Papatea, 12.11 km away
Shingle Peak, 13.88 km away

Elliott, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?true
Co-rupture Count3,107
Co-rupture Rate3.2457884E-4

Clarence: Central, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?true
Co-rupture Count5,687
Co-rupture Rate2.457646E-4

Jordan, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?true
Co-rupture Count3,441
Co-rupture Rate0.0

Fidget, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?false
Co-rupture Count394
Co-rupture Rate0.0

Needles East 2, 8.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Awatere: Northeast 1, 9.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Kekerengu 1, 10.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?true
Co-rupture Count995
Co-rupture Rate0.0

London Hill, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Awatere: Southwest, 11.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?false
Co-rupture Count443
Co-rupture Rate0.0

Needles, 11.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?false
Co-rupture Count284
Co-rupture Rate0.0

Papatea, 12.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?false
Co-rupture Count497
Co-rupture Rate0.0

Shingle Peak, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
