Dreyers Rock Details

Property	Value
Rupture Count	10,253
Ruptures Above Sect Min Mag	10,246
Ruptures w/ Nonzero Rates	20
Magnitude Range	[6.31, 8.57]
Length Range	[7, 1,083] km
Total Rate	1.862205E-4 /yr
Multi-Fault Rate	1.862205E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	114

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

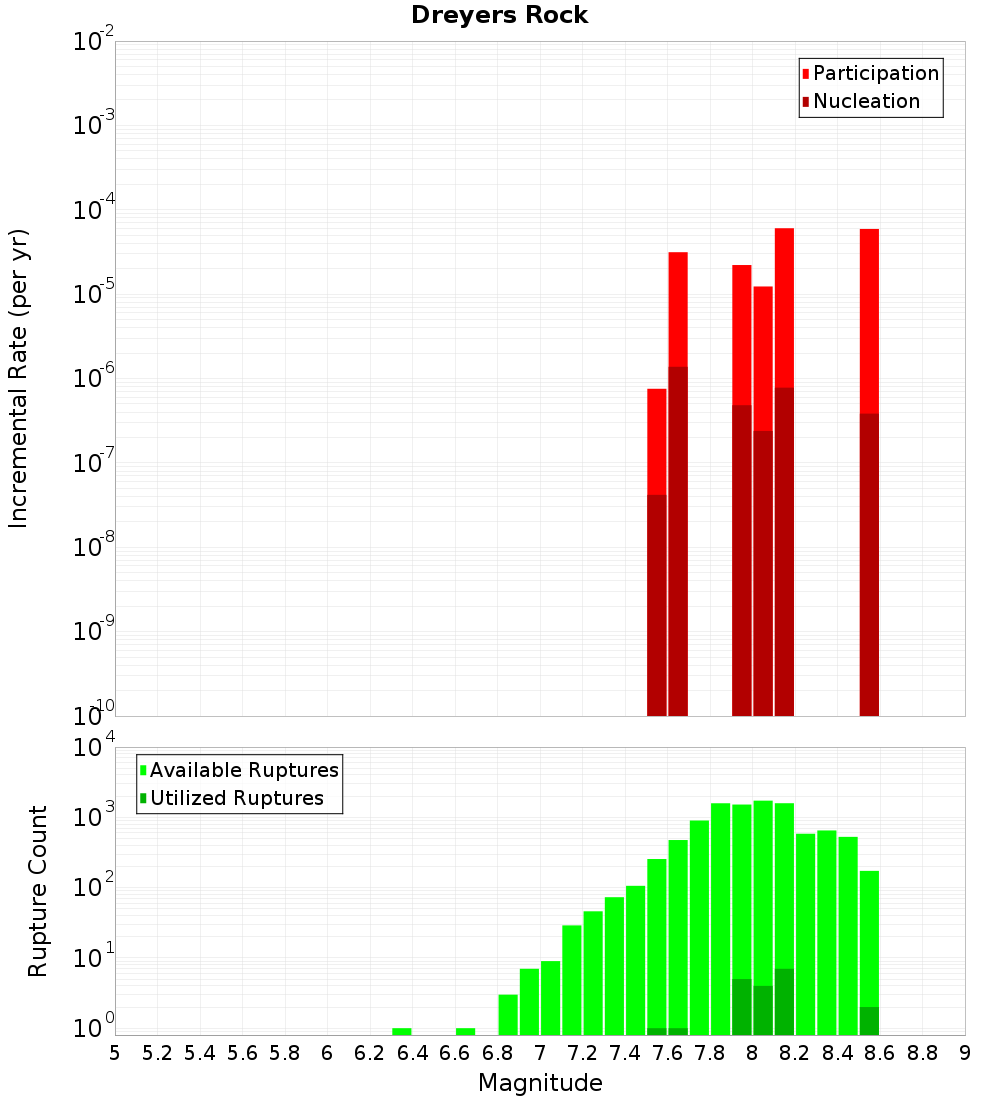

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

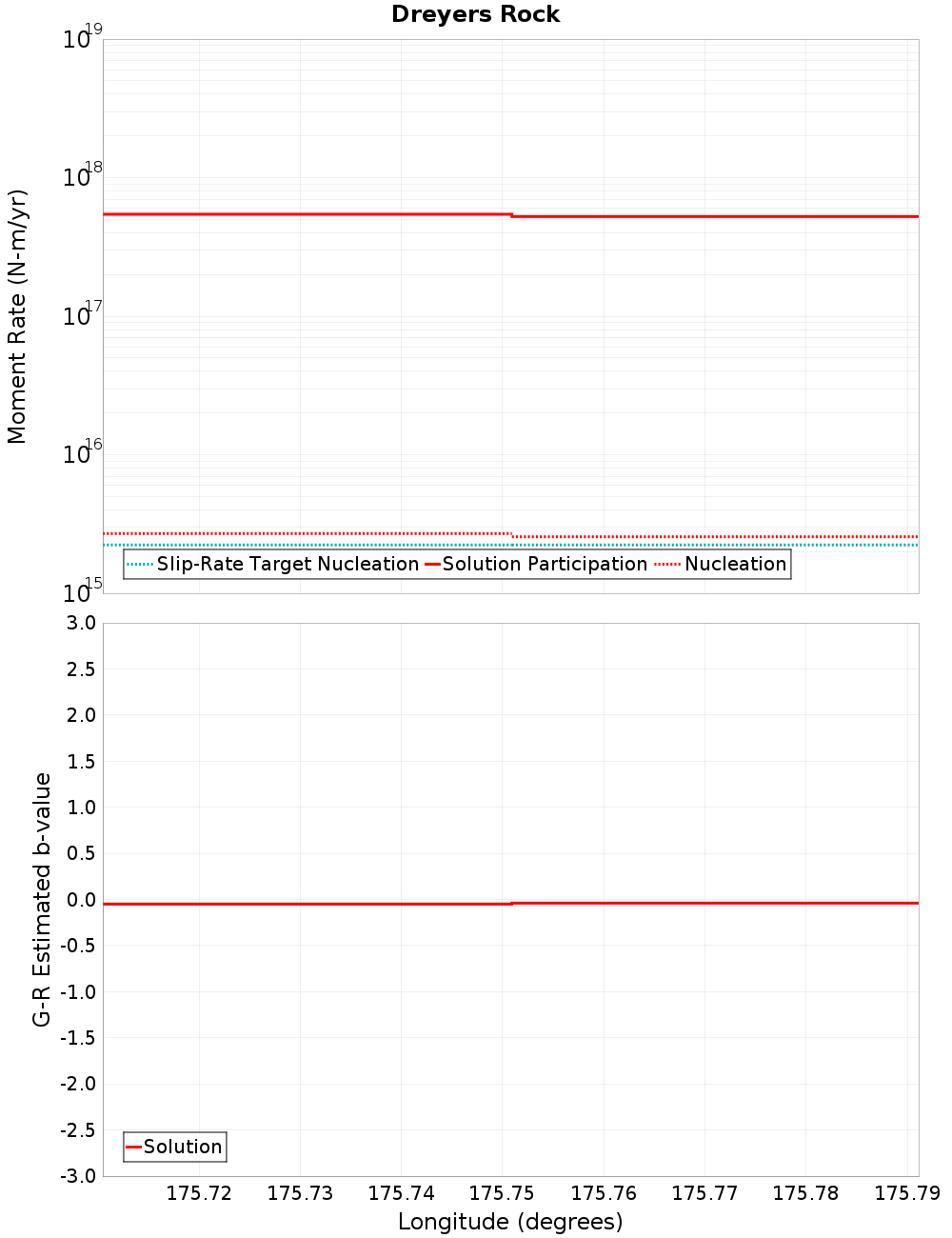

Moment-Rates and b-Values

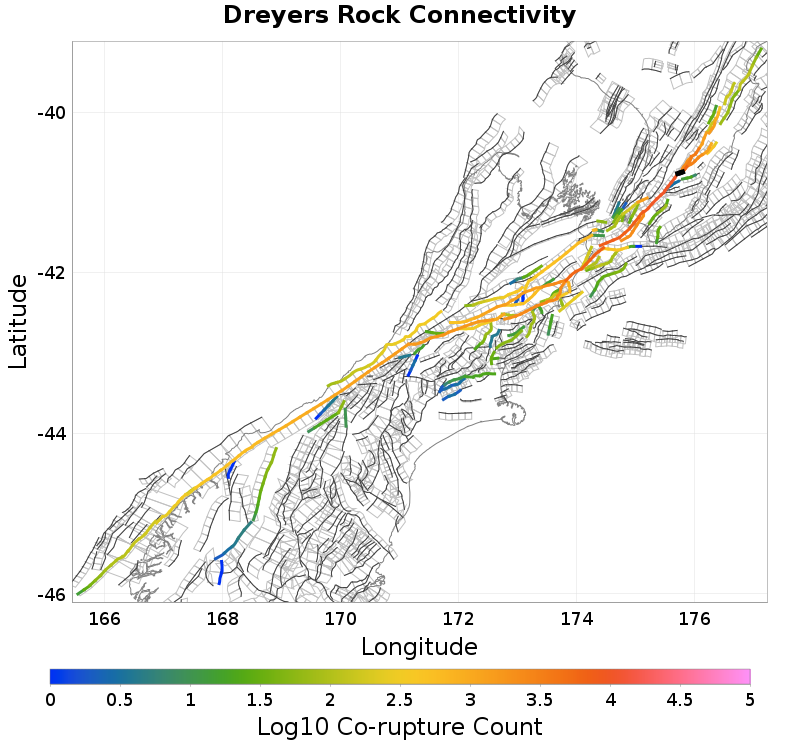

Connectivity

Nearby Sections

Fault Section
Alfredton South, 0 km away
Pa Valley, 0.1 km away
Wairarapa: 3, 0.46 km away
Alfredton North, 5.16 km away
Saunders Road, 7.87 km away
Mokonui Northeast, 9.25 km away
Mokonui Southwest, 9.25 km away
Tokomaru, 14.1 km away

Alfredton South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	true
Co-rupture Count	6,176
Co-rupture Rate	9.57482E-5

Pa Valley, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	true
Co-rupture Count	2,367
Co-rupture Rate	9.268246E-6

Wairarapa: 3, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	true
Co-rupture Count	10,212
Co-rupture Rate	1.862205E-4

Alfredton North, 5.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	true
Co-rupture Count	3,293
Co-rupture Rate	8.355529E-5

Saunders Road, 7.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	false
Co-rupture Count	2,935
Co-rupture Rate	9.339696E-5

Mokonui Northeast, 9.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	0.0

Mokonui Southwest, 9.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Tokomaru, 14.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
