Monowai Details
| Property | Value |
|---|---|
| Rupture Count | 1,002 |
| Ruptures Above Sect Min Mag | 1,001 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.98, 8.54] |
| Length Range | [23, 876] km |
| Total Rate | 4.7436537E-4 /yr |
| Multi-Fault Rate | 4.7436537E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 92 |
Table Of Contents

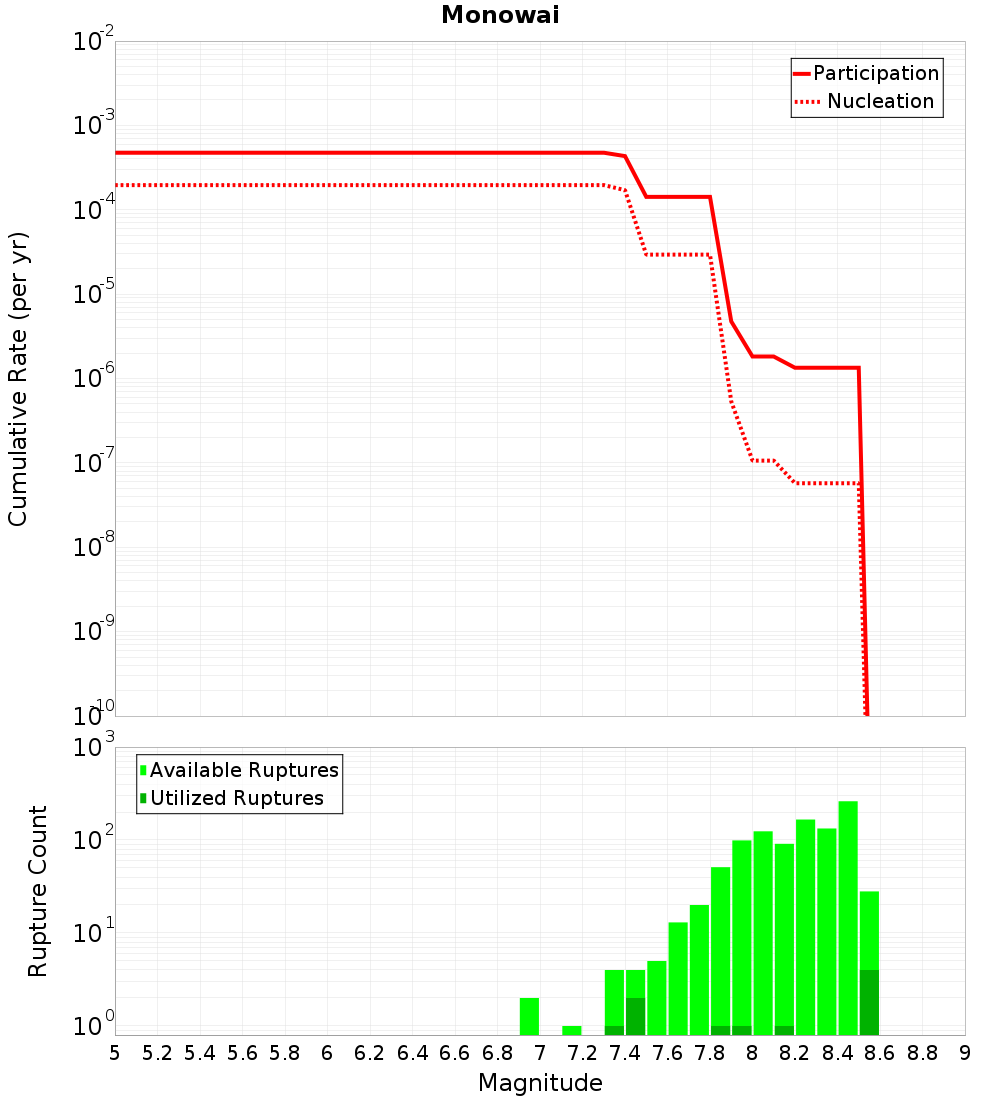

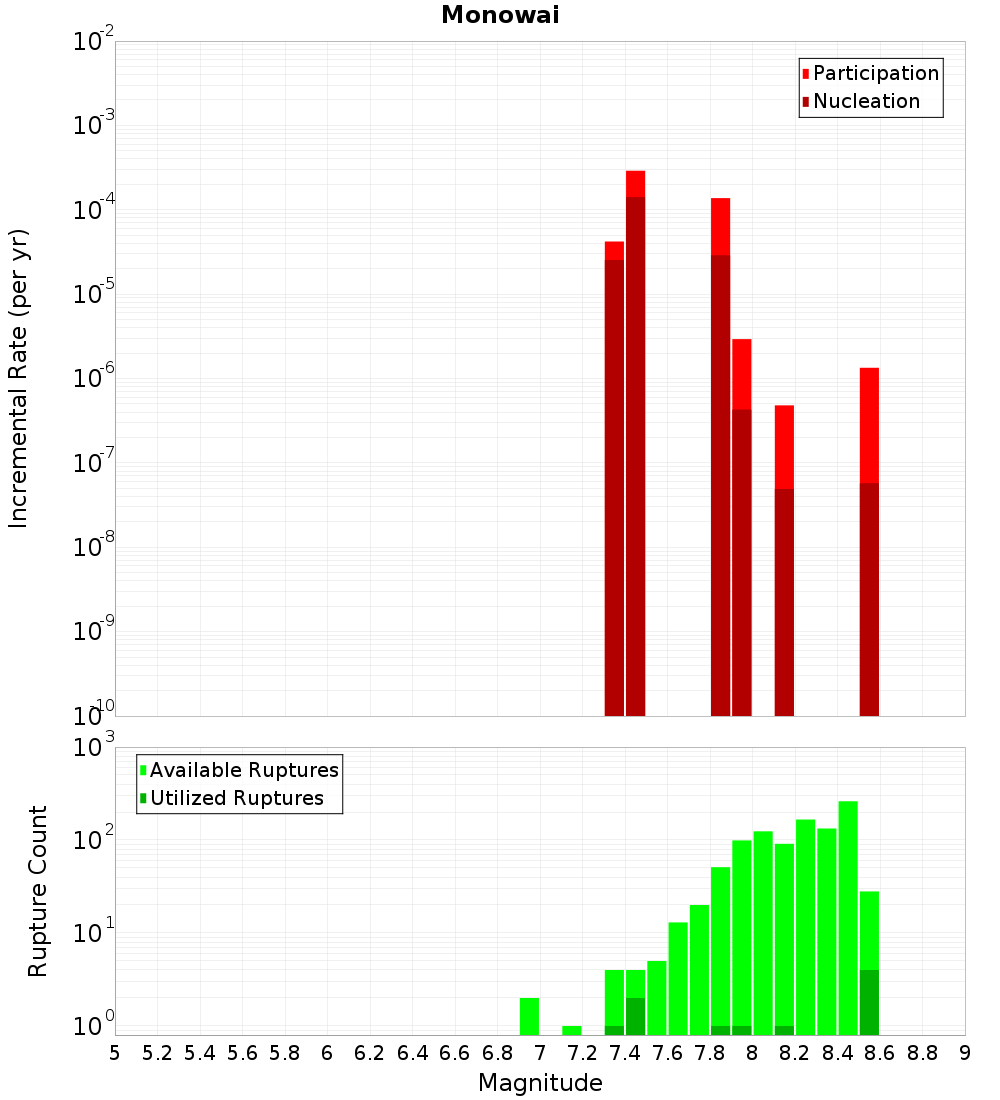

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

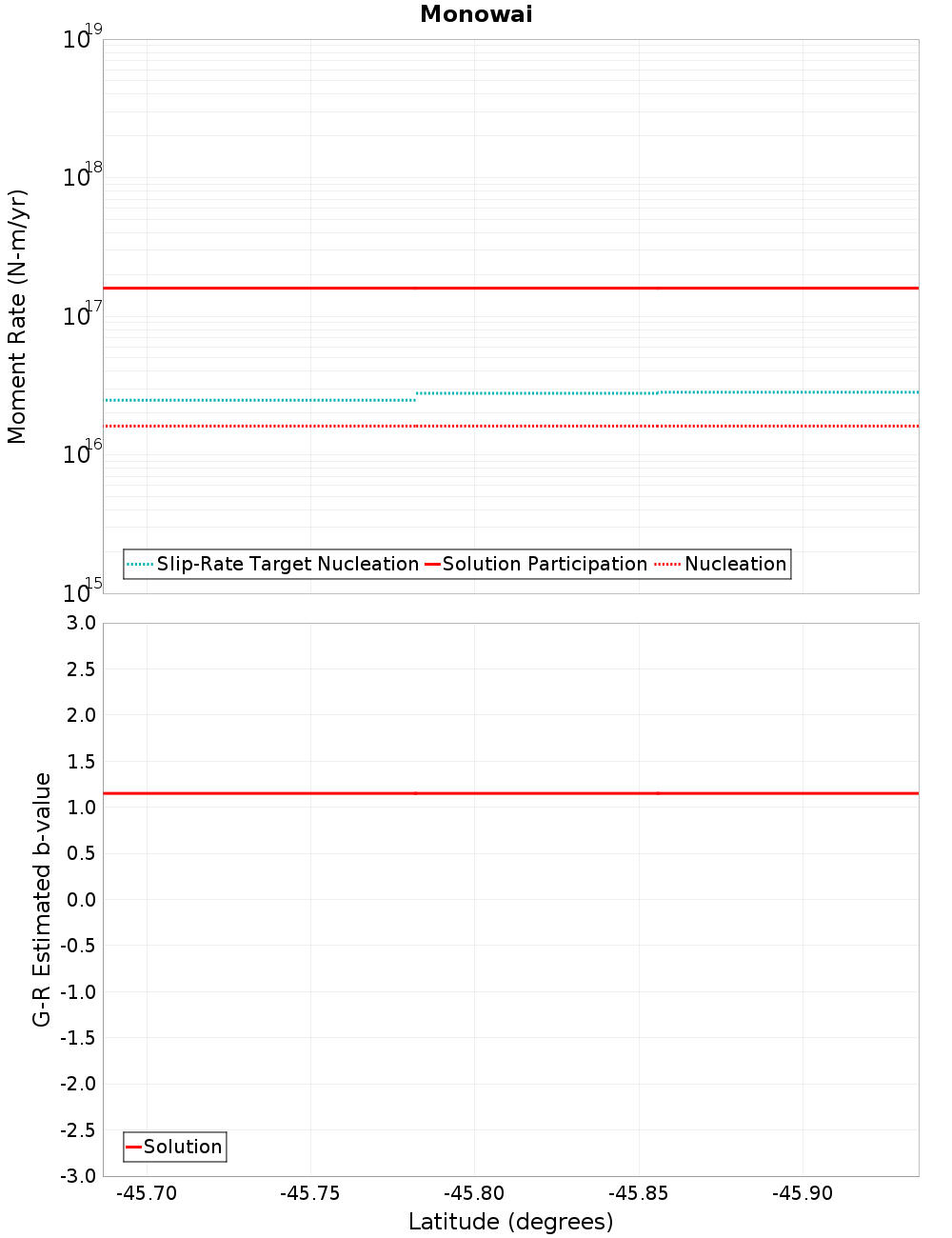

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| McKerchar, 0.17 km away |
| Hauroko: North, 1.01 km away |
| Tin Hut, 3.44 km away |
| Hump Ridge, 10.25 km away |
| Hauroko: South, 14.37 km away |
McKerchar, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 305 |
| Co-rupture Rate | 9.1640046E-5 |
Hauroko: North, 1.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 107 |
| Co-rupture Rate | 1.799252E-4 |
Tin Hut, 3.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 675 |
| Co-rupture Rate | 2.032807E-4 |
Hump Ridge, 10.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 47 |
| Co-rupture Rate | 1.3787954E-4 |
Hauroko: South, 14.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 97 |
| Co-rupture Rate | 1.3787954E-4 |
