Ngapotiki Details

Property	Value
Rupture Count	2,498
Ruptures Above Sect Min Mag	2,495
Ruptures w/ Nonzero Rates	17
Magnitude Range	[6.70, 8.45]
Length Range	[15, 818] km
Total Rate	3.0550294E-4 /yr
Multi-Fault Rate	3.0550294E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	165

Table Of Contents

Magnitude-Frequency Distribution

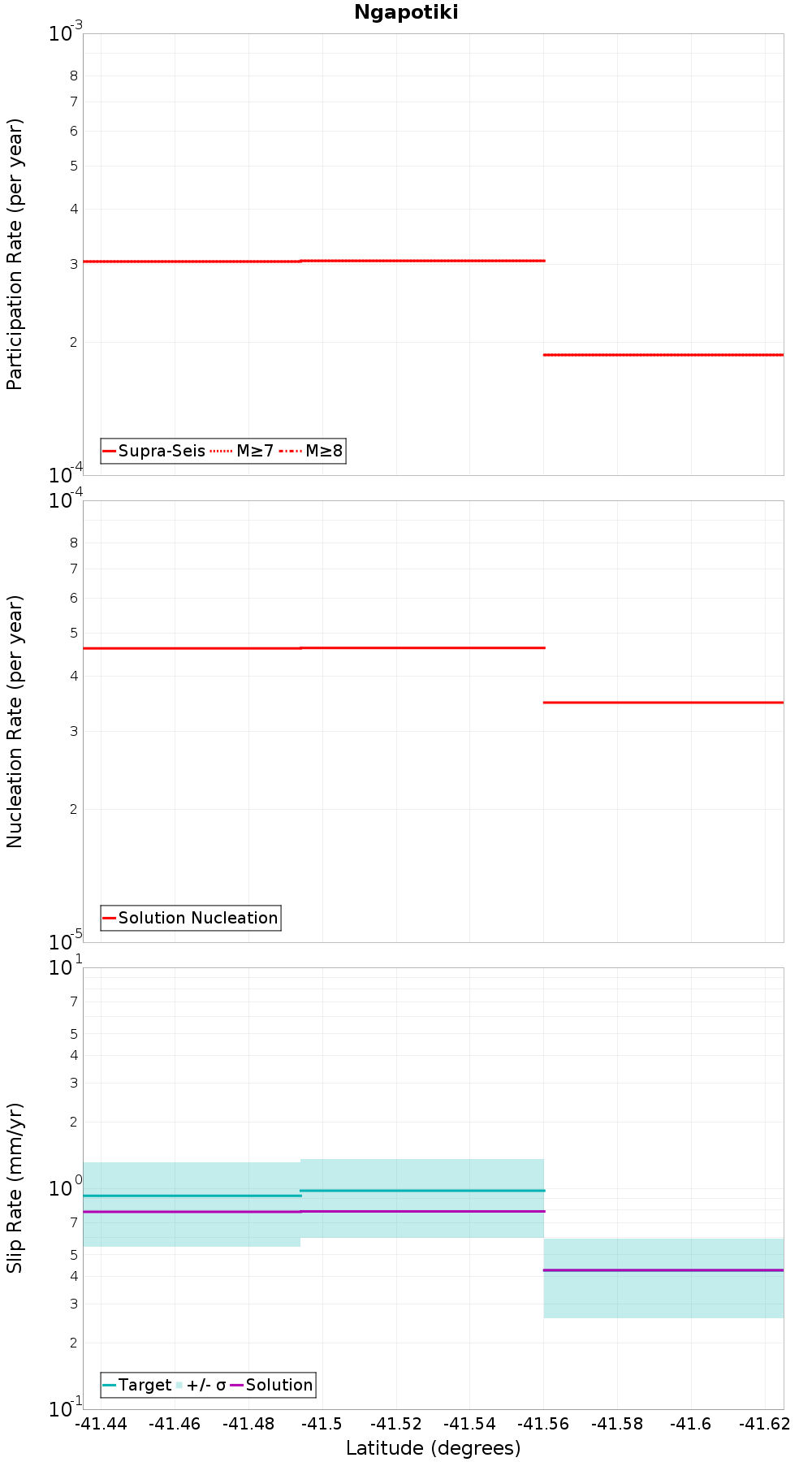

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

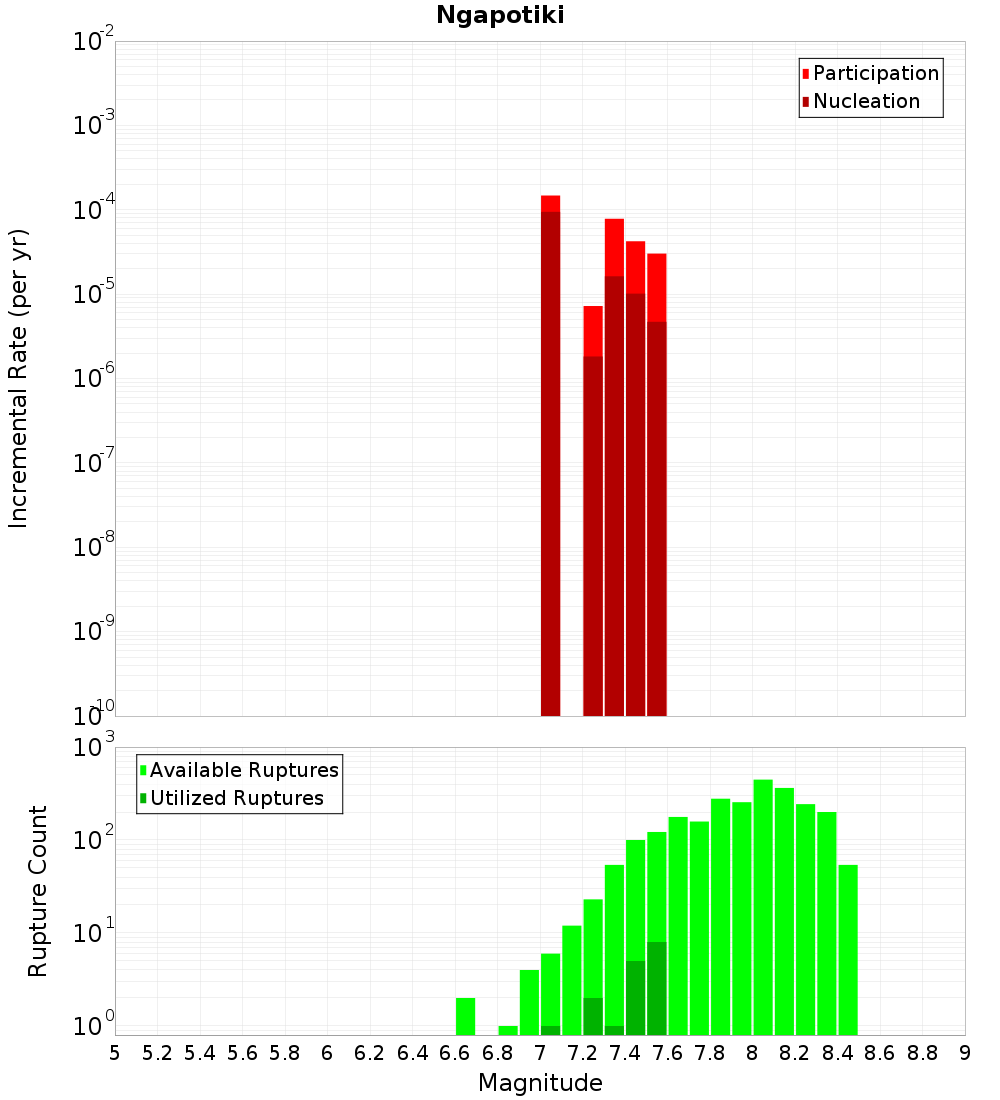

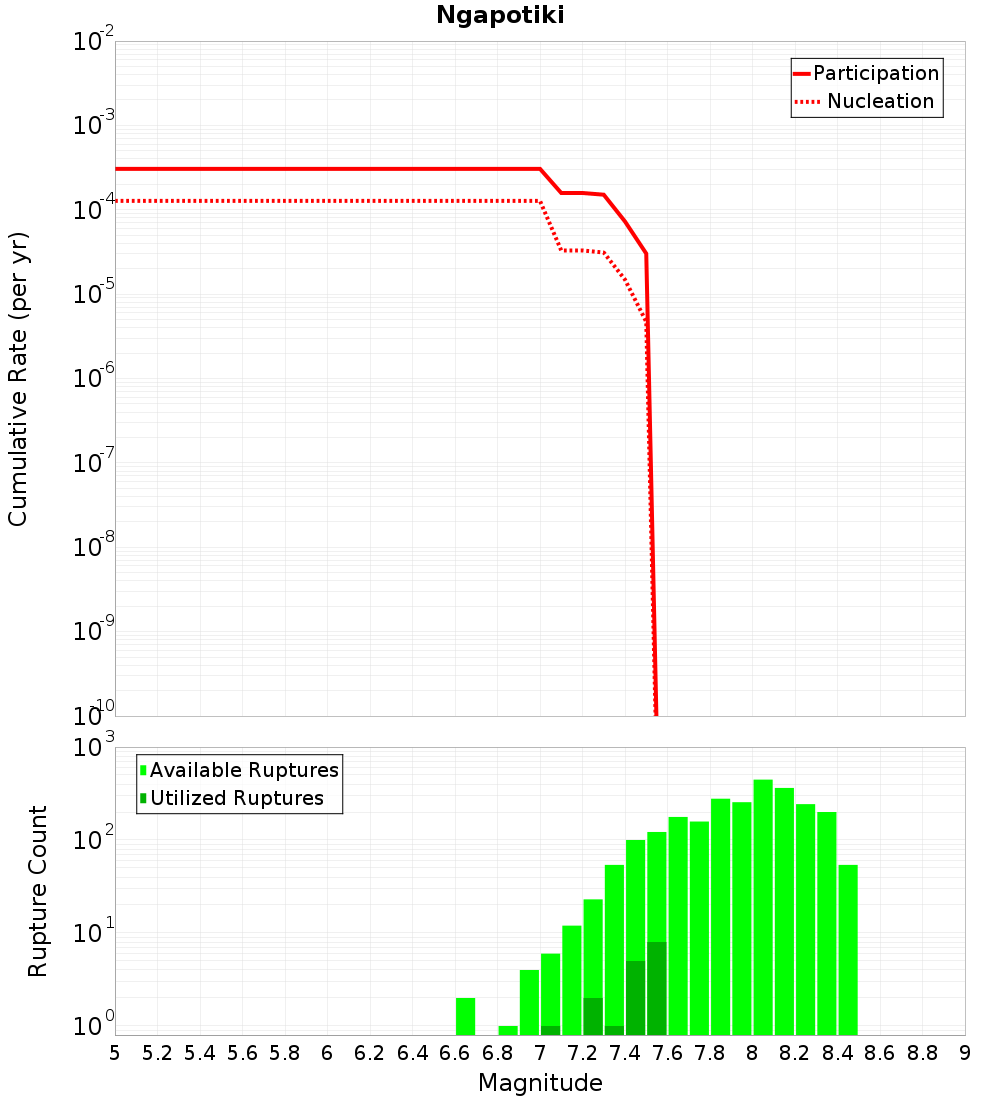

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

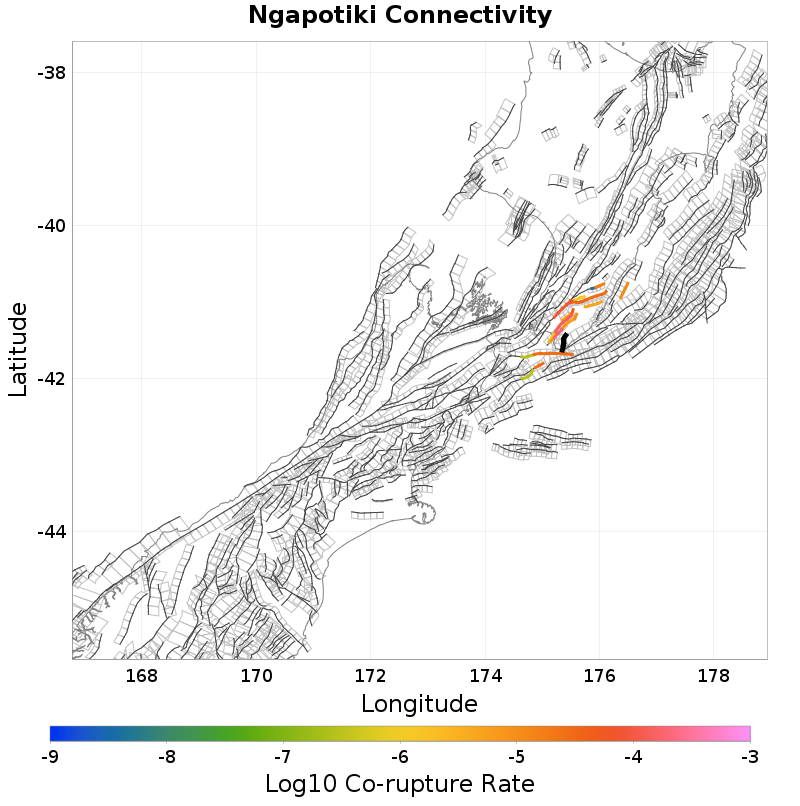

Connectivity

Nearby Sections

Fault Section
Otaraia, 0.19 km away
Palliser - Kaiwhata, 0.63 km away
BooBoo, 3.23 km away
Dry River - Huangarua: 1, 3.58 km away
Opouawe - Uruti, 4.01 km away
Pahaua SE1, 11.9 km away
Pahaua, 12.75 km away

Otaraia, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	true
Co-rupture Count	365
Co-rupture Rate	1.2935007E-4

Palliser - Kaiwhata, 0.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	true
Co-rupture Count	49
Co-rupture Rate	0.0

BooBoo, 3.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	true
Co-rupture Count	860
Co-rupture Rate	2.86555E-5

Dry River - Huangarua: 1, 3.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	true
Co-rupture Count	92
Co-rupture Rate	1.555085E-4

Opouawe - Uruti, 4.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	true
Co-rupture Count	1,138
Co-rupture Rate	0.0

Pahaua SE1, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahaua, 12.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
