Paoanui Ridge North Details
| Property | Value |
|---|---|
| Rupture Count | 18,293 |
| Ruptures Above Sect Min Mag | 18,287 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.83, 8.39] |
| Length Range | [20, 732] km |
| Total Rate | 1.0663309E-5 /yr |
| Multi-Fault Rate | 1.0663309E-5 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 104 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

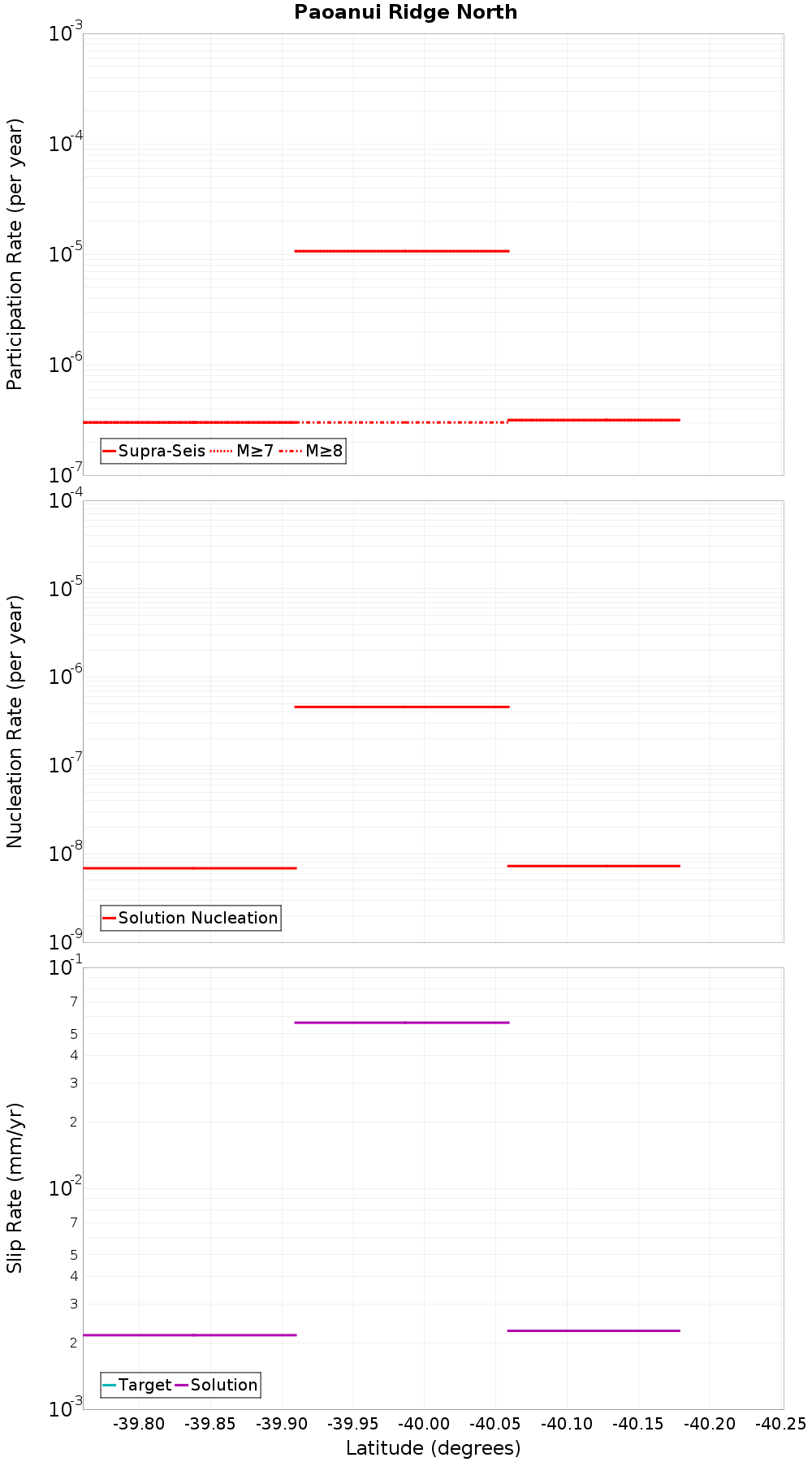

Along-Strike Values
Moment-Rates and b-Values

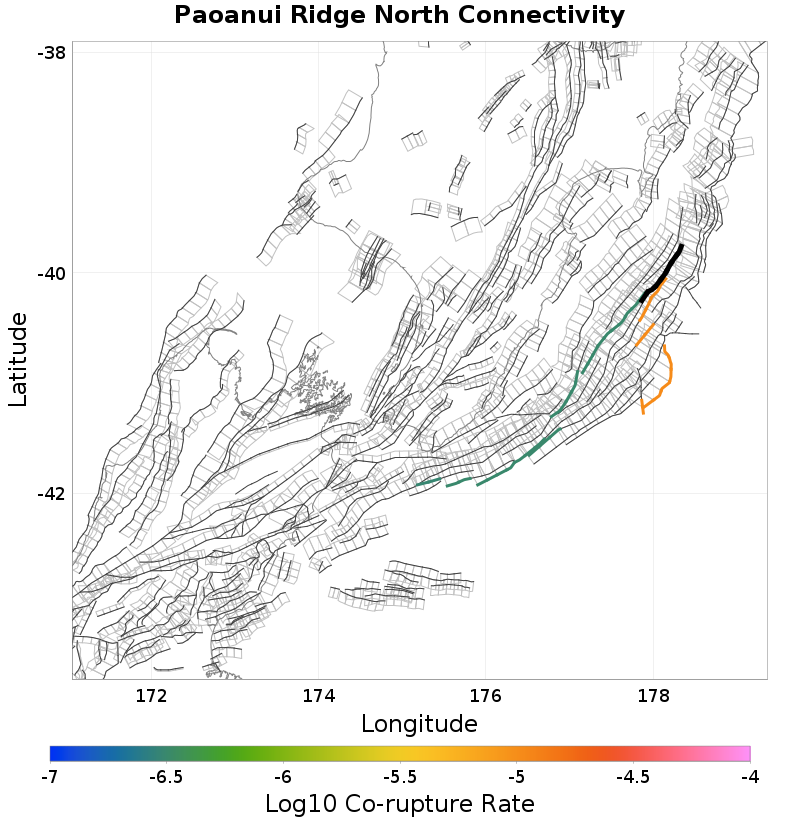

Connectivity
 |  |
|---|
Nearby Sections
Porangahau Northeast, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,101 |
| Co-rupture Rate | 1.0348459E-5 |
PorWest2 - PaoanuiRSouth, 1.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14,108 |
| Co-rupture Rate | 3.148502E-7 |
Porangahau Ridge, 1.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,516 |
| Co-rupture Rate | 0.0 |
Ritchie West 1, 3.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,065 |
| Co-rupture Rate | 0.0 |
Rock Garden - Ritchie East, 4.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,176 |
| Co-rupture Rate | 0.0 |
Akitio Trough West, 6.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,119 |
| Co-rupture Rate | 1.0348459E-5 |
Rock Garden - Ritchie East 1, 6.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,516 |
| Co-rupture Rate | 0.0 |
Omakere Ridge, 7.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Akitio Ridge, 9.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 47 |
| Co-rupture Rate | 0.0 |
Pakupaku Ridge, 10.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,380 |
| Co-rupture Rate | 0.0 |
Omakere South, 11.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motu o Kura East, 14.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
