Te Ikaarongamai Details
| Property | Value |
|---|---|
| Rupture Count | 114 |
| Ruptures Above Sect Min Mag | 105 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.48, 7.75] |
| Length Range | [12, 201] km |
| Total Rate | 1.9250151E-4 /yr |
| Multi-Fault Rate | 1.9250151E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

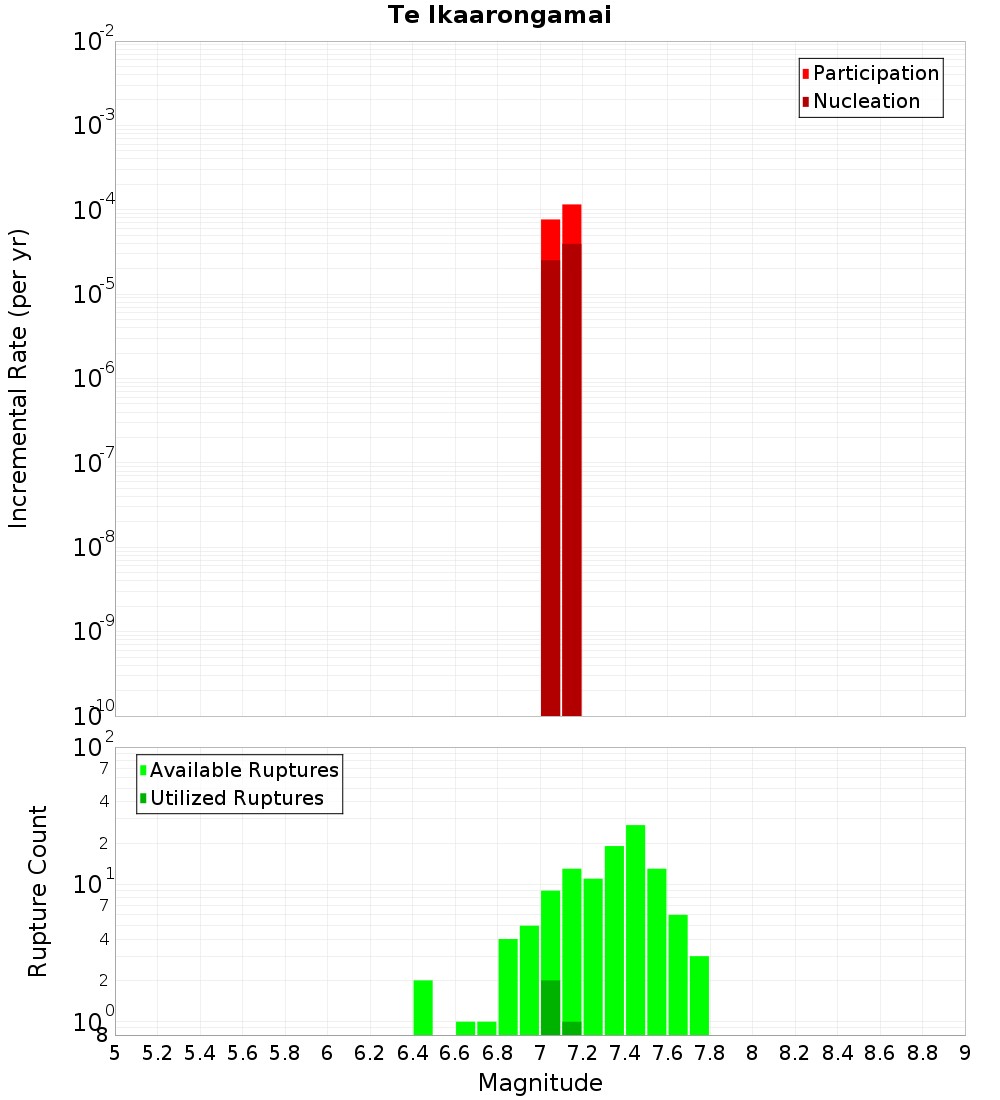

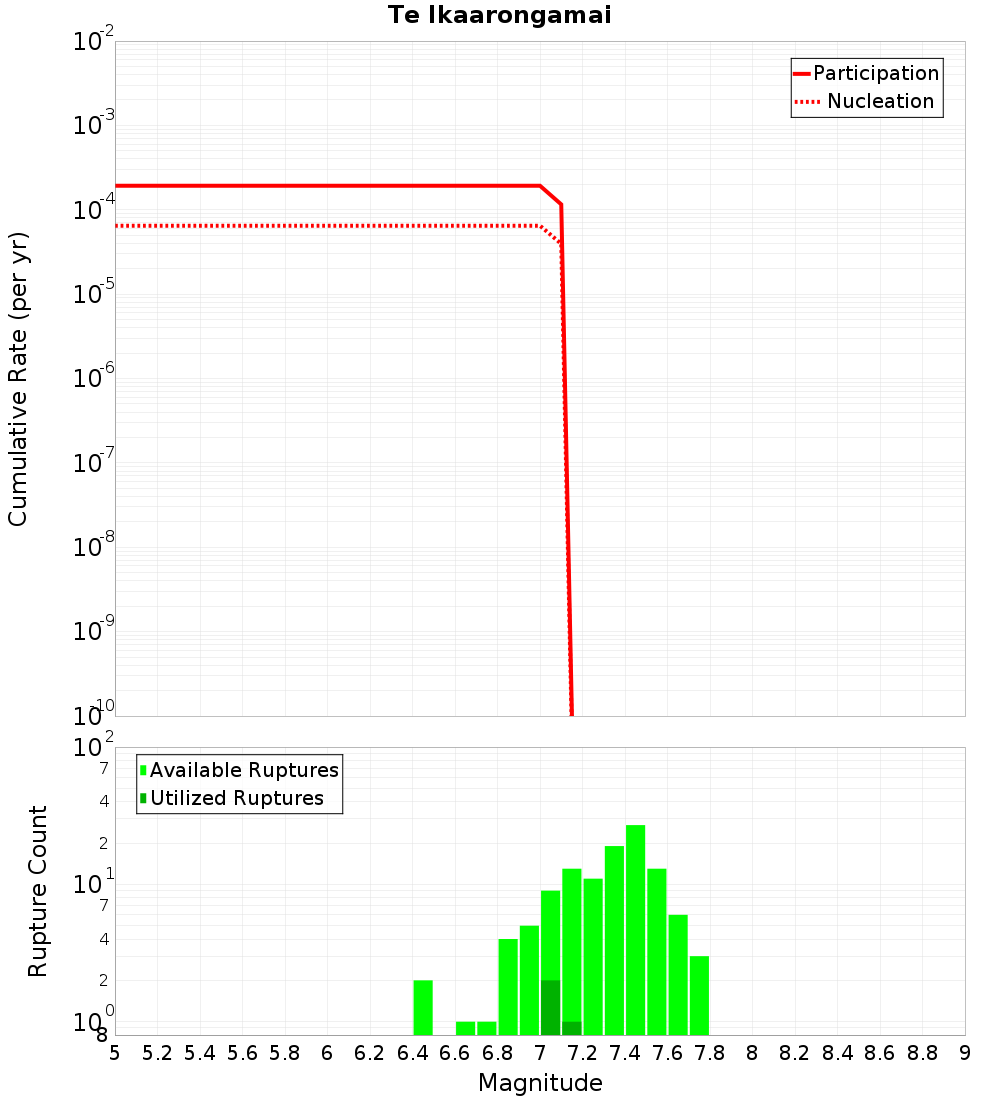

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

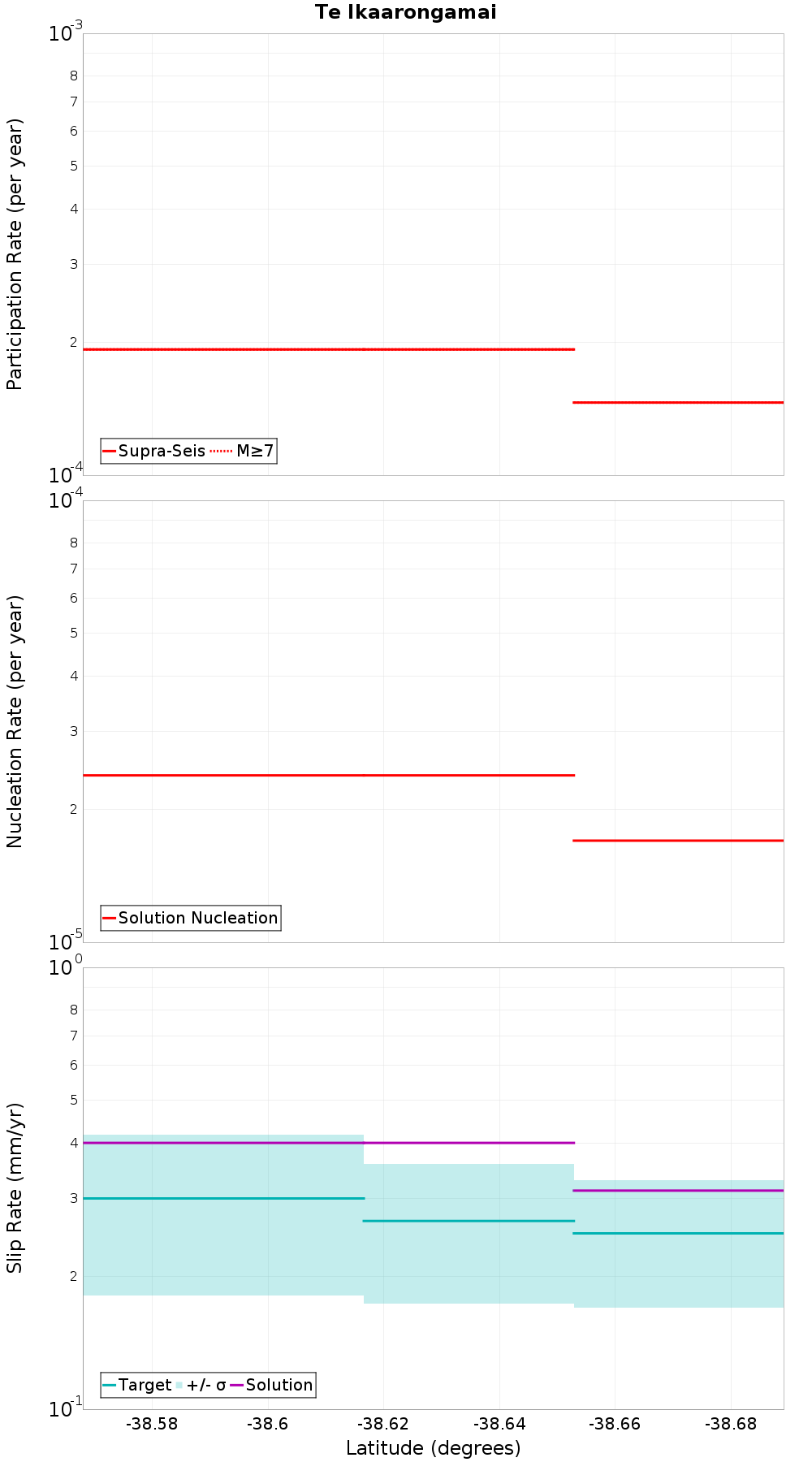

Along-Strike Values

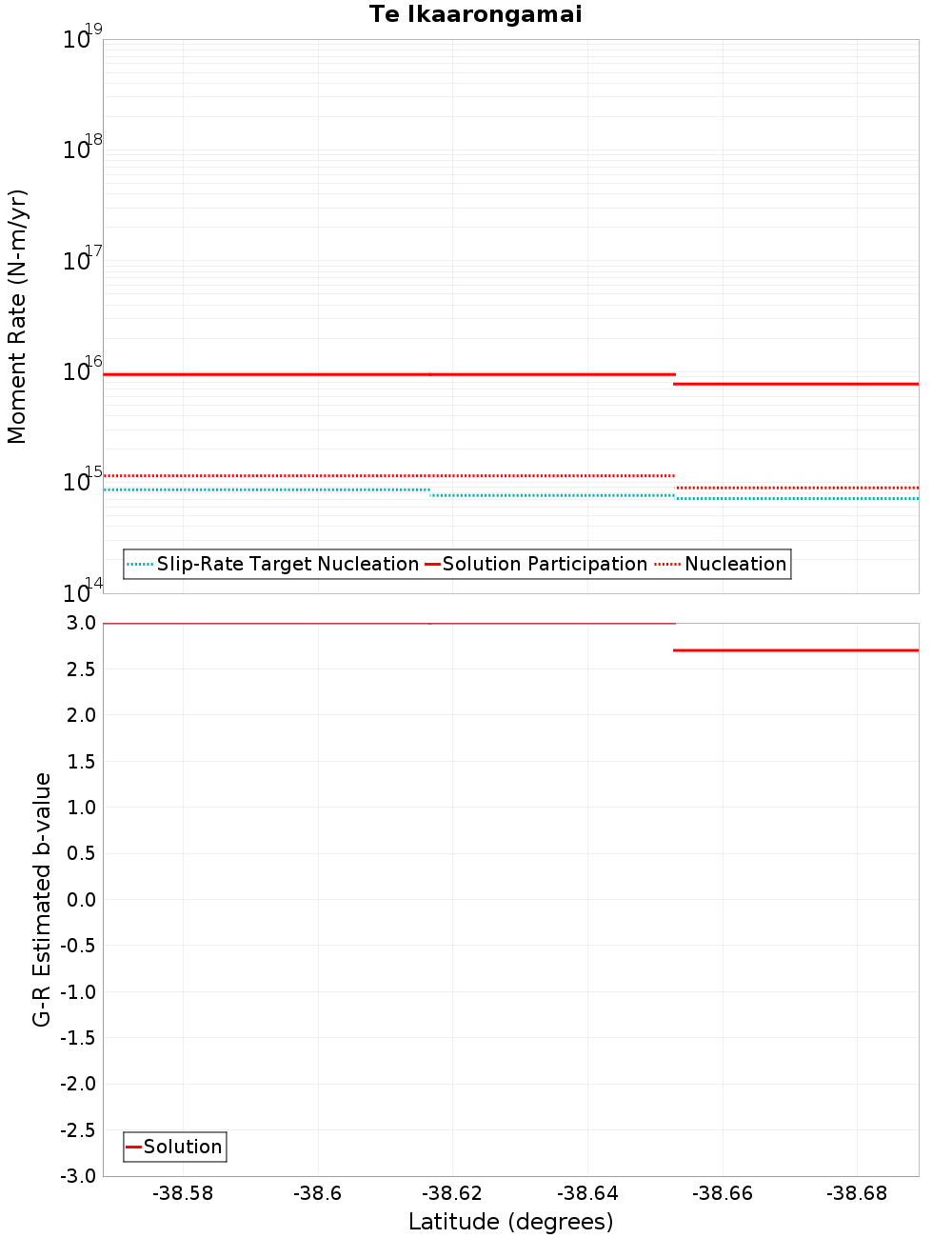

Moment-Rates and b-Values

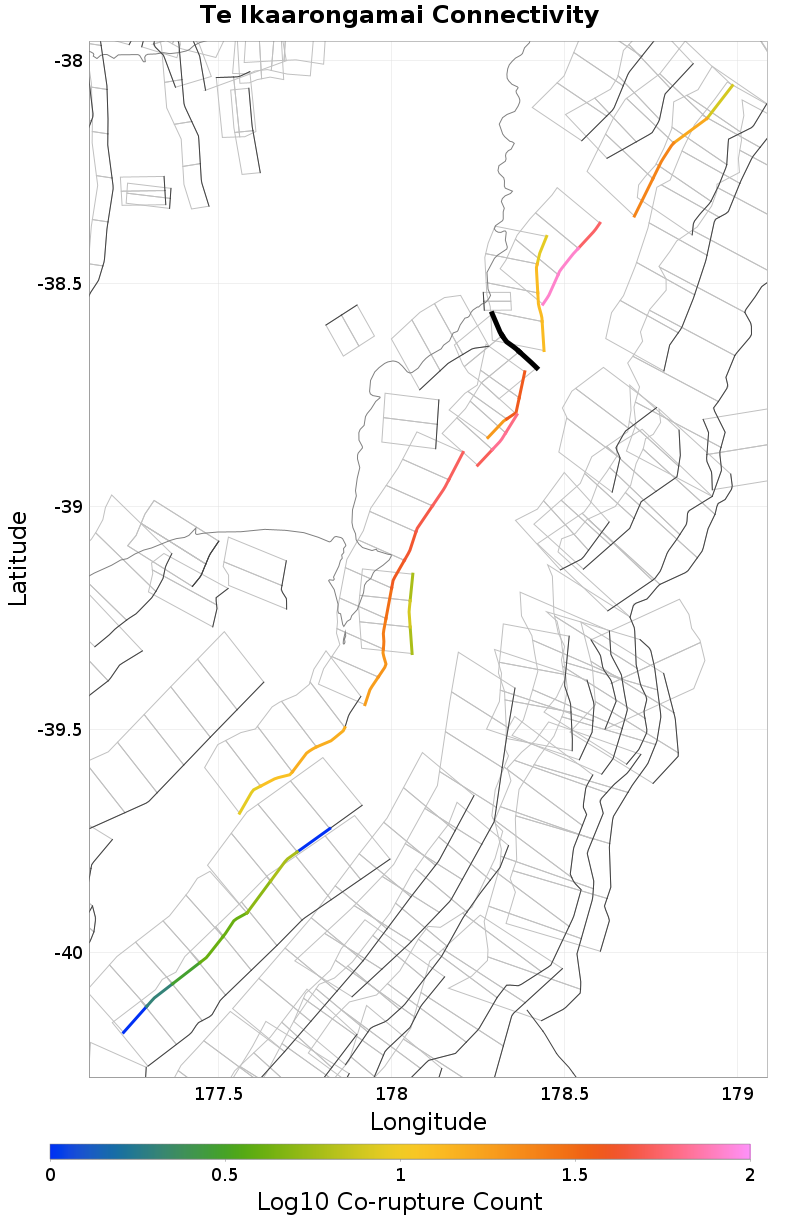

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ariel Bank, 0.16 km away |
| Ariel East, 0.3 km away |
| Gable End South, 0.4 km away |
| Pakarae, 1.66 km away |
| Gable End North, 3.76 km away |
| Ariel Bank 2, 11.29 km away |
| Poverty Bay, 14.34 km away |
Ariel Bank, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 37 |
| Co-rupture Rate | 0.0 |
Ariel East, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 65 |
| Co-rupture Rate | 1.4600149E-4 |
Gable End South, 0.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pakarae, 1.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Gable End North, 3.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
Ariel Bank 2, 11.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 83 |
| Co-rupture Rate | 1.9250151E-4 |
Poverty Bay, 14.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
