Tuatoru 1 Details

PropertyValue
Rupture Count2,512
Ruptures Above Sect Min Mag2,511
Ruptures w/ Nonzero Rates33
Magnitude Range[6.56, 8.37]
Length Range[9, 661] km
Total Rate1.2067399E-5 /yr
Multi-Fault Rate1.2067399E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults67

Table Of Contents

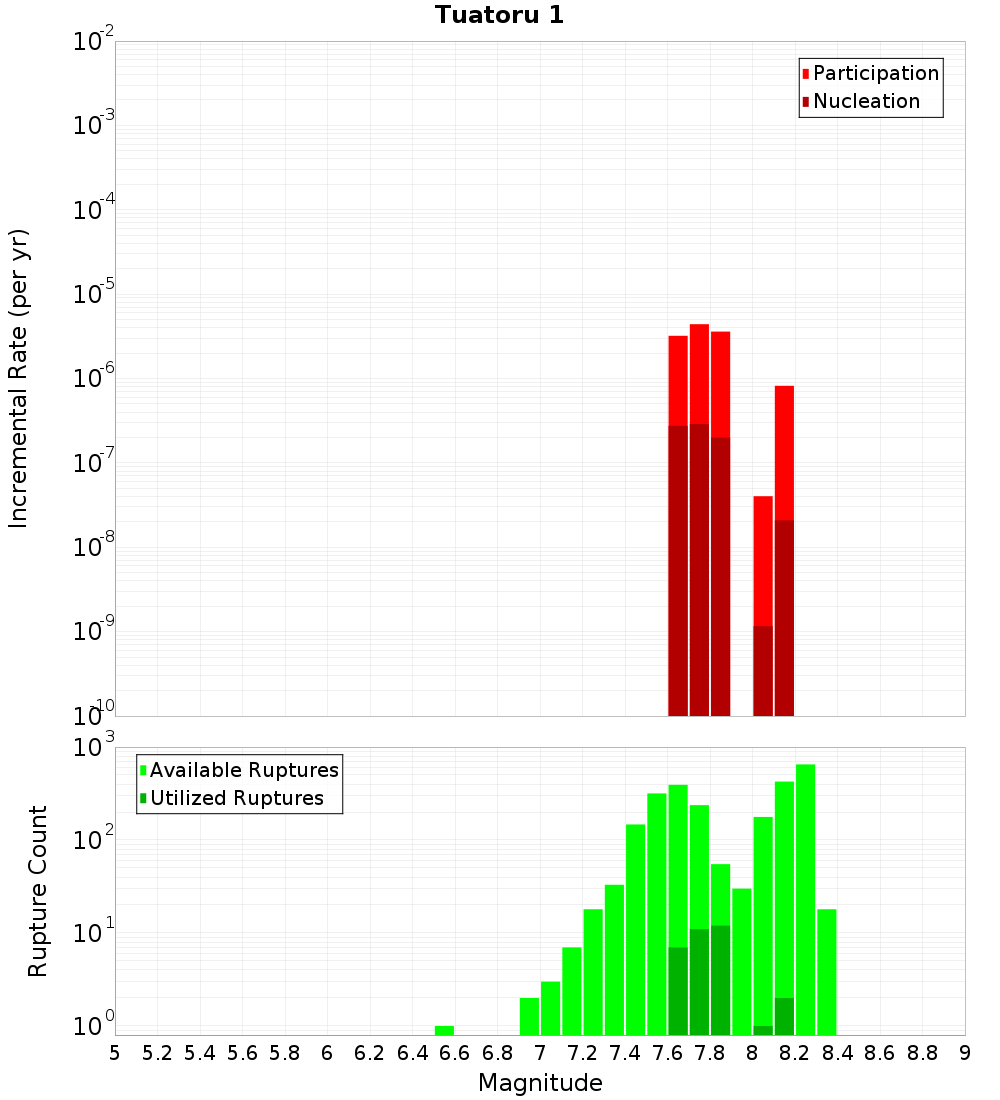

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

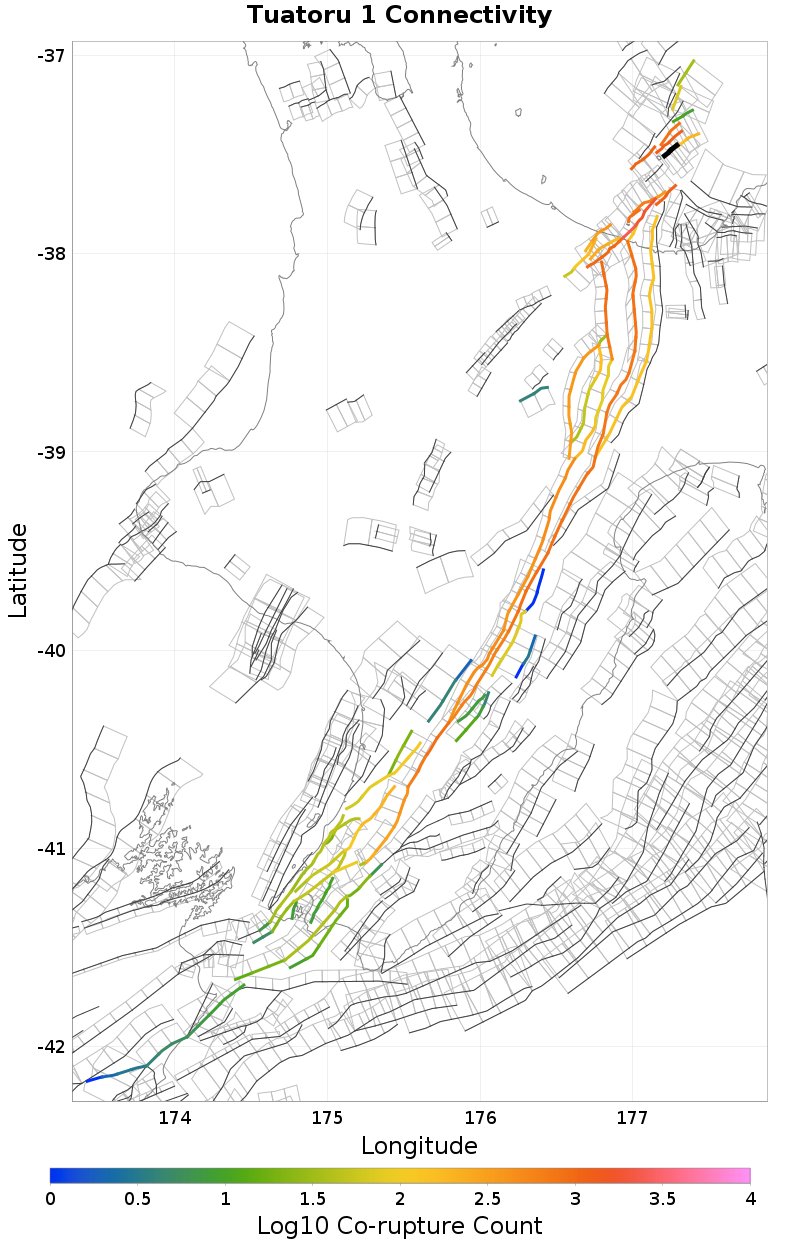

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.43 km away
Te Arawa 1, 3.09 km away
Calypso 2, 3.86 km away
Te Arawa 2, 4.63 km away
Hariki, 5.5 km away
Whakaari 4, 5.84 km away
White Island 2, 5.84 km away
Opotiki 3, 8.38 km away
Te Arawa 3, 9.82 km away
Volkner 3, 10.46 km away
Volkner 4, 11.02 km away
Ohiwa 1, 11.29 km away

Tuatoru 2, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?false
Co-rupture Count193
Co-rupture Rate2.0901841E-6

Te Arawa 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?true
Co-rupture Count1,282
Co-rupture Rate9.97717E-6

Calypso 2, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 4.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?true
Co-rupture Count822
Co-rupture Rate5.575745E-6

Hariki, 5.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?true
Co-rupture Count1,081
Co-rupture Rate3.4975885E-6

White Island 2, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?true
Co-rupture Count1,177
Co-rupture Rate3.7579887E-6

Opotiki 3, 8.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 9.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Volkner 3, 10.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 4, 11.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?true
Directly Connected?false
Co-rupture Count381
Co-rupture Rate5.9882227E-6
