Waipukaka Details

Property	Value
Rupture Count	1,300
Ruptures Above Sect Min Mag	1,297
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.59, 8.41]
Length Range	[14, 764] km
Total Rate	3.3329046E-4 /yr
Multi-Fault Rate	3.3329046E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	71

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

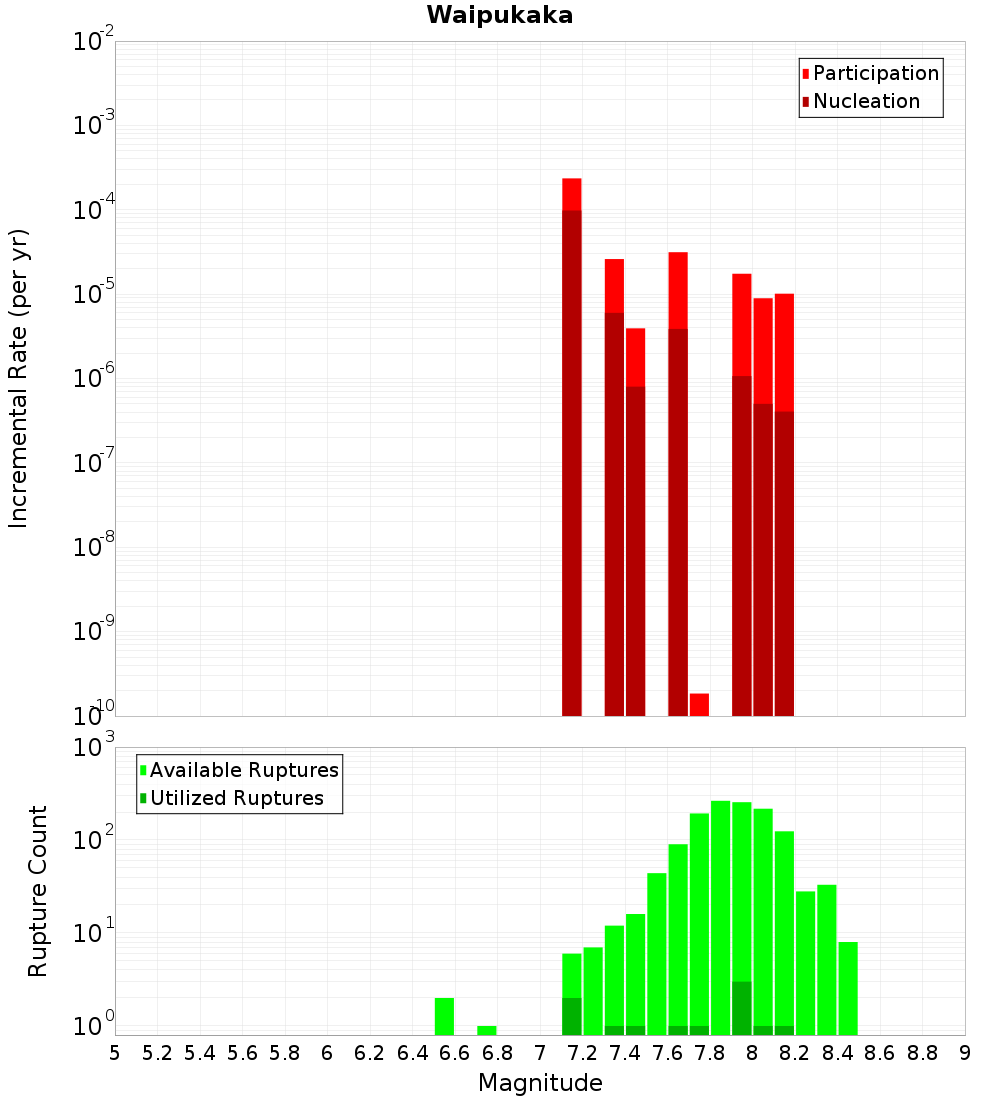

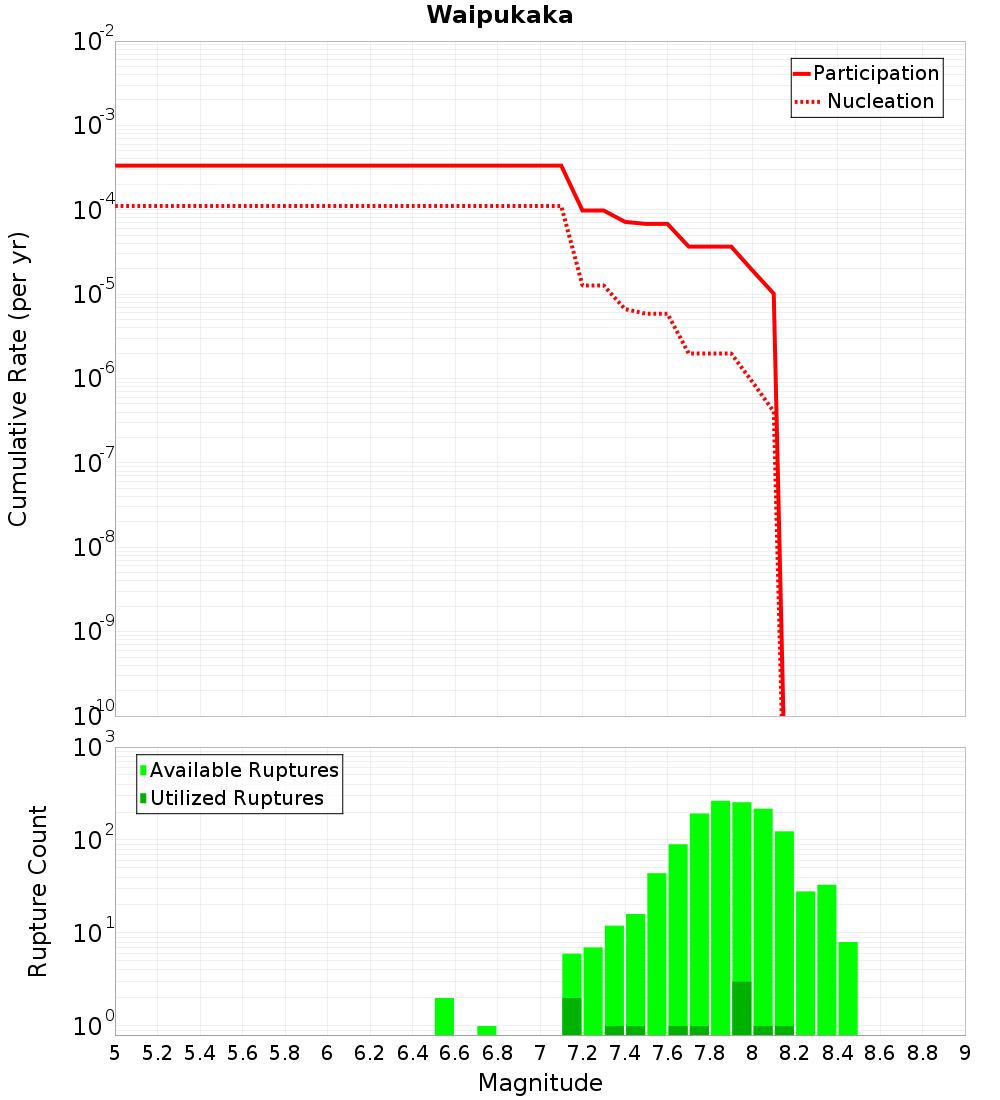

Magnitude-Frequency Distribution

Incremental	Cumulative

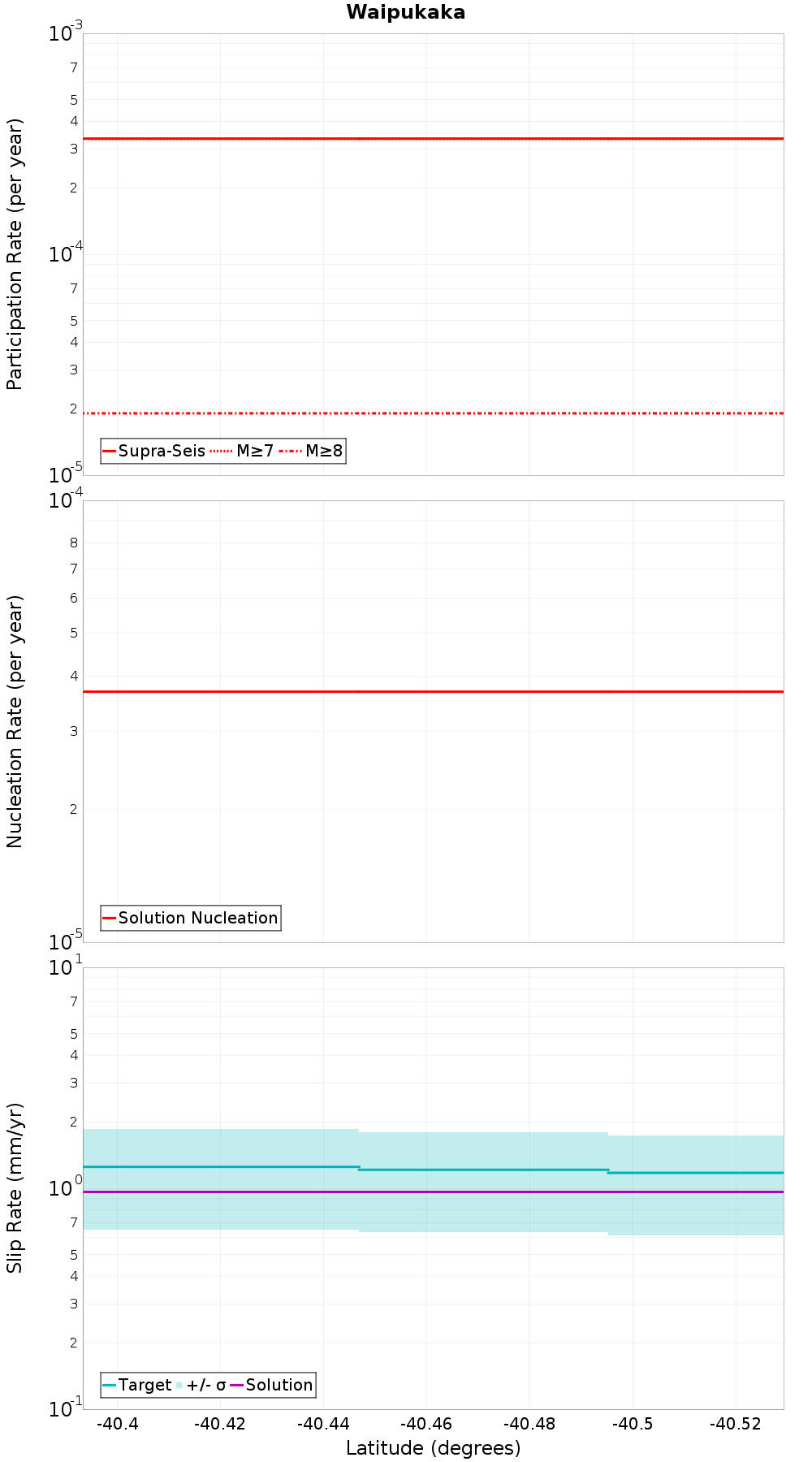

Along-Strike Values

Moment-Rates and b-Values

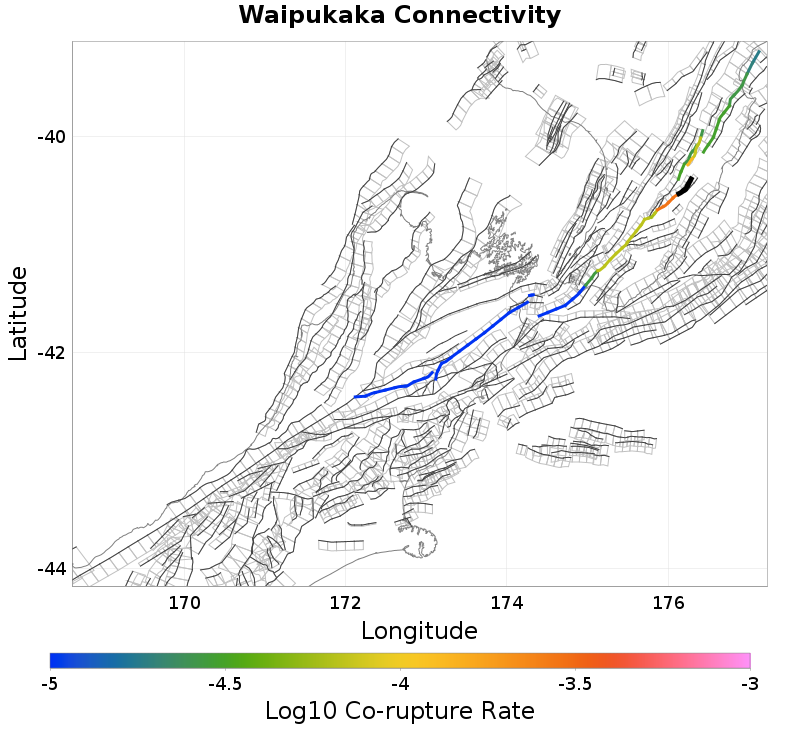

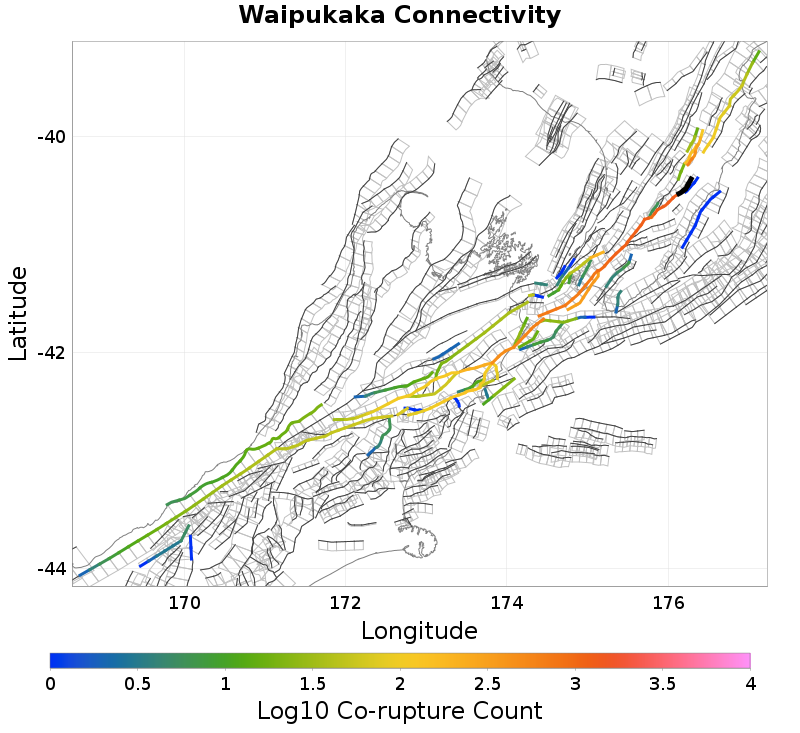

Connectivity

Nearby Sections

Fault Section
Saunders Road, 0.32 km away
Pongaroa - Weber, 2.27 km away
Makuri - Waewaepa, 8.29 km away
Clear Hills - Waikopiro, 10.04 km away
Waitawhiti, 10.86 km away
Waewaepa, 10.92 km away
Oruawharo - Mangatoro, 12.67 km away

Saunders Road, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	true
Co-rupture Count	1,283
Co-rupture Rate	2.859962E-4

Pongaroa - Weber, 2.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Makuri - Waewaepa, 8.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clear Hills - Waikopiro, 10.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	false
Co-rupture Count	149
Co-rupture Rate	2.6380987E-5

Waitawhiti, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waewaepa, 10.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	3.139586E-5

Oruawharo - Mangatoro, 12.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuMGhEOGZB
Connected?	true
Directly Connected?	true
Co-rupture Count	594
Co-rupture Rate	1.3111244E-4
