Ben McLeod Details

PropertyValue
Rupture Count1,889
Ruptures Above Sect Min Mag1,887
Ruptures w/ Nonzero Rates64
Magnitude Range[6.95, 8.09]
Length Range[23, 382] km
Total Rate1.4005452E-4 /yr
Multi-Fault Rate1.4005452E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults64

Table Of Contents

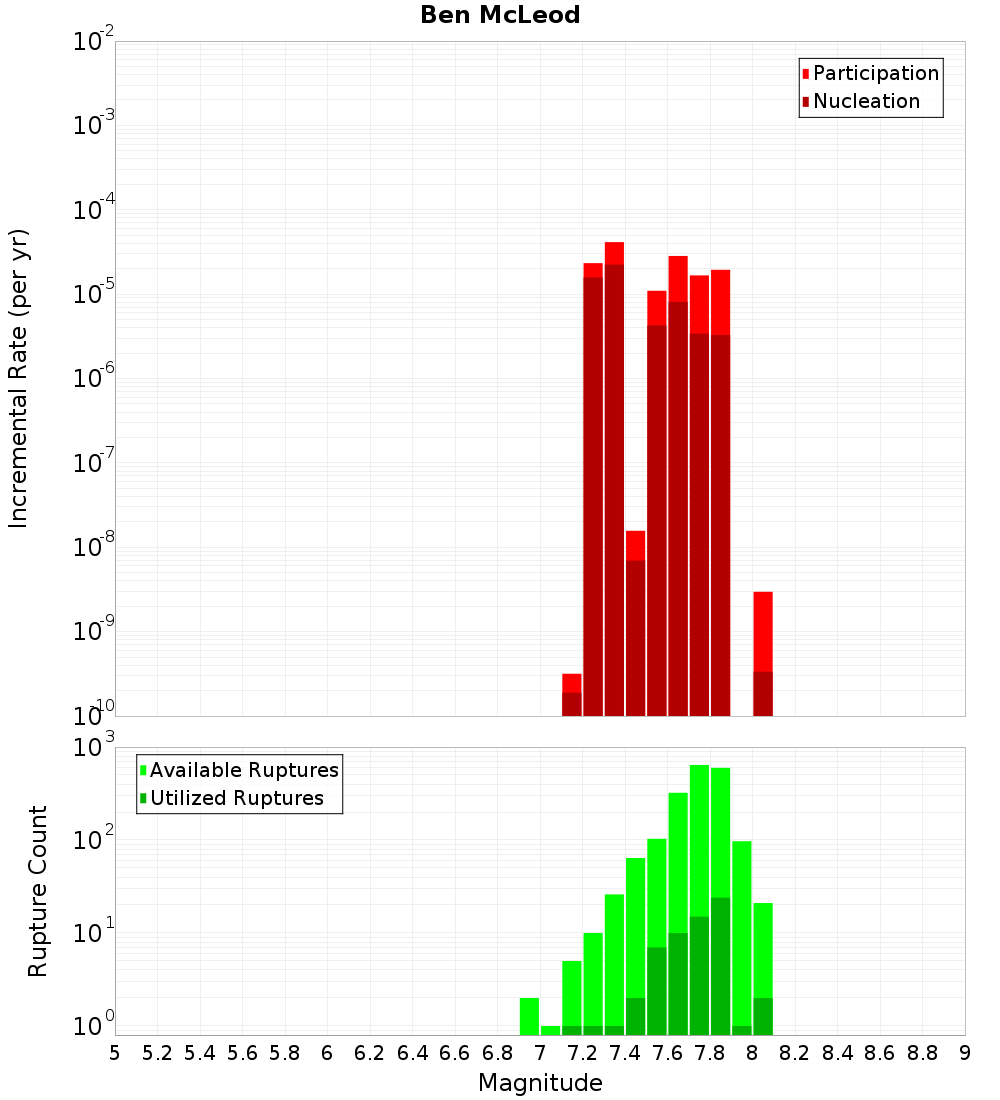

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

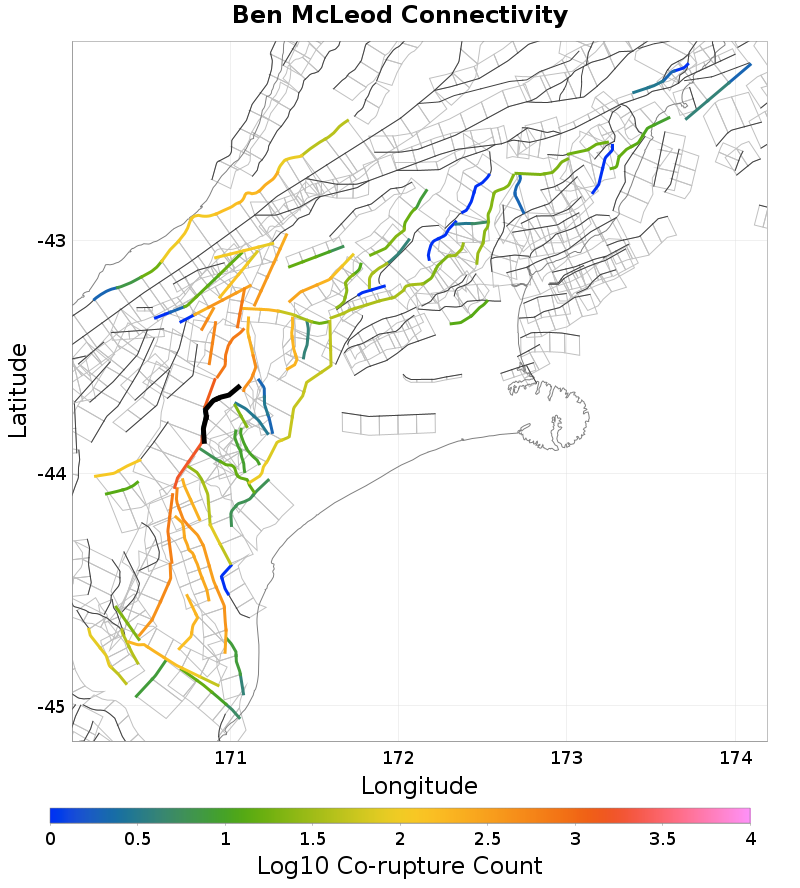

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hutt Peel, 0.06 km away
Catherine, 0.13 km away
Edith, 0.15 km away
Klondyke Moor, 0.19 km away
Coal Creek, 0.22 km away
Quartz Creek, 0.23 km away
Lake Heron, 0.29 km away
Fox Peak, 0.38 km away
Sugarloaf, 4.06 km away
Brothers, 5.41 km away
Potts River, 9.75 km away
Irishman Creek, 14.47 km away

Hutt Peel, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count91
Co-rupture Rate2.6548523E-5

Catherine, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate7.041658E-5

Edith, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate3.169399E-10

Klondyke Moor, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate5.1681973E-6

Coal Creek, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Quartz Creek, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate9.136393E-9

Lake Heron, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count456
Co-rupture Rate1.01859994E-4

Fox Peak, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count2,934
Co-rupture Rate4.9902384E-5

Sugarloaf, 4.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate1.3850254E-5

Brothers, 5.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count90
Co-rupture Rate1.0665824E-6

Potts River, 9.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?false
Co-rupture Count745
Co-rupture Rate6.236674E-6

Irishman Creek, 14.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?false
Co-rupture Count116
Co-rupture Rate0.0
