Hyde North Details

PropertyValue
Rupture Count2,135
Ruptures Above Sect Min Mag2,133
Ruptures w/ Nonzero Rates83
Magnitude Range[6.99, 8.25]
Length Range[28, 461] km
Total Rate2.1329087E-4 /yr
Multi-Fault Rate2.1329087E-4 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults41

Table Of Contents

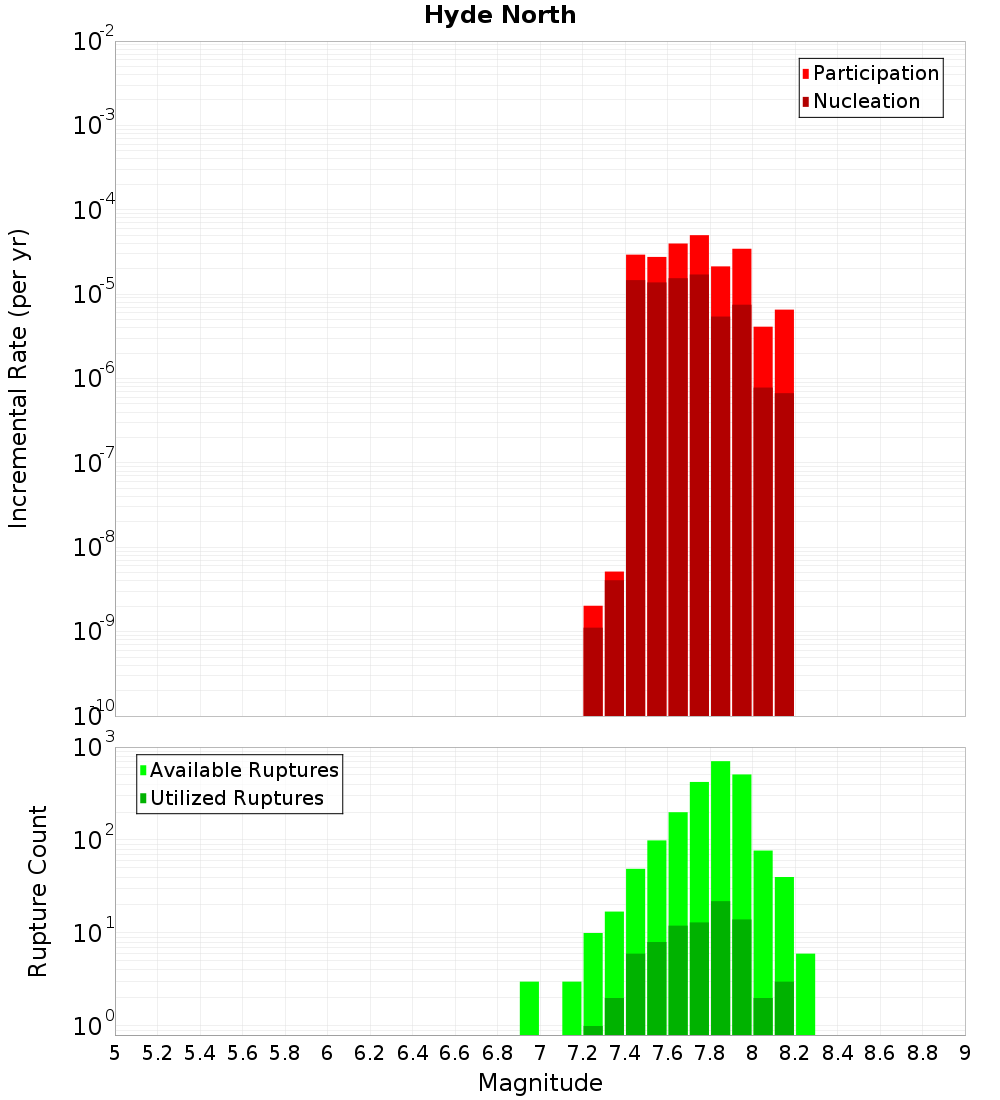

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

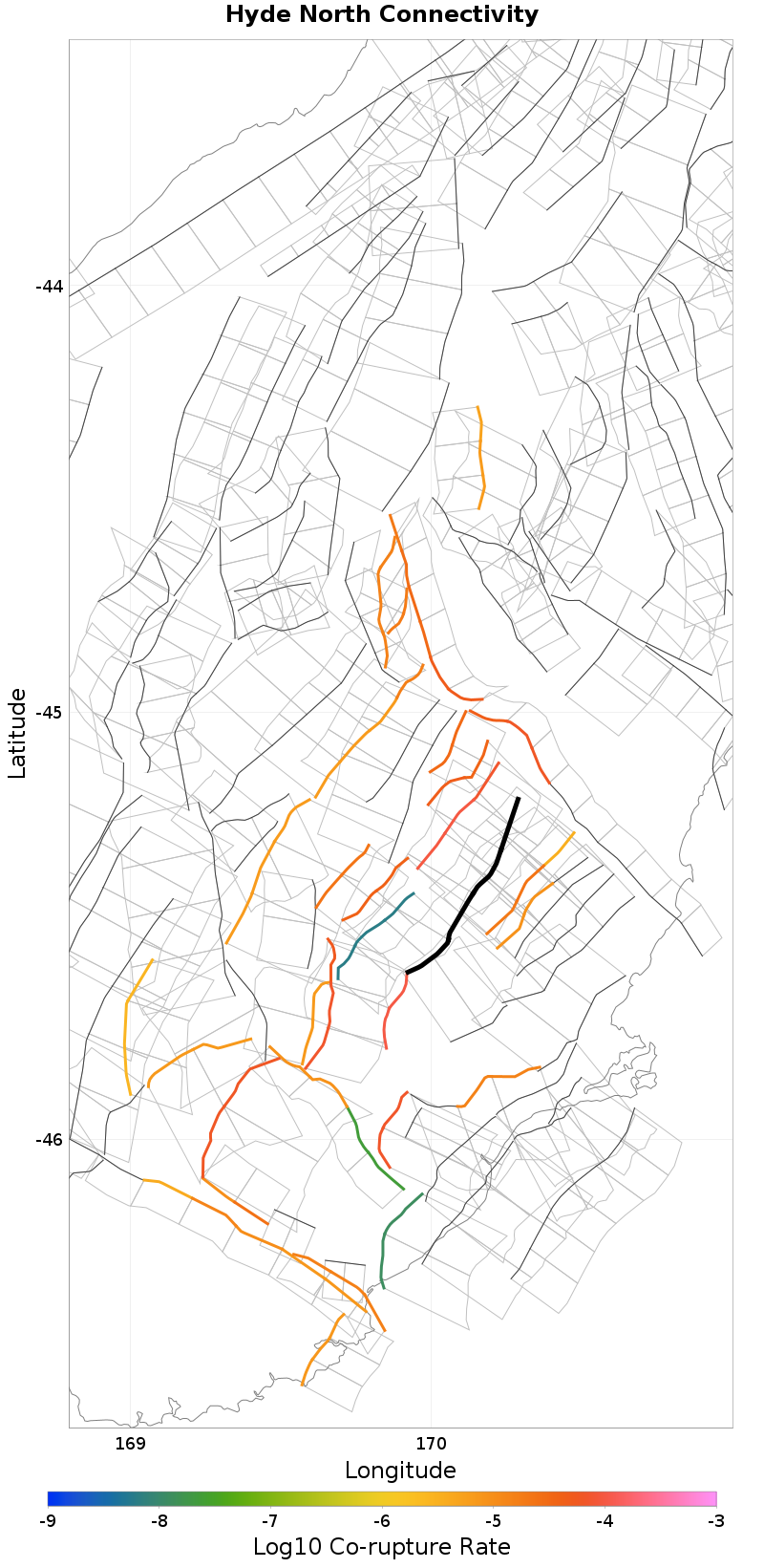

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ranfurly, 0.11 km awayLittle Valley, 4.16 km away
Cross Eden, 0.16 km awayHorse Flat, 6 km away
Logan Burn, 0.2 km awayBillys Ridge, 9.06 km away
Long Valley, 0.26 km awayWaihemo, 9.13 km away
Waipiata, 0.31 km awayMurphys Creek, 12.43 km away
Hyde South - The Twins, 0.33 km awayNichols Rock, 13.81 km away
Pylap, 0.37 km awayDunback Hill, 14.56 km away
Beaumont River, 1.07 km awayFlat Stream - Glenpark, 14.81 km away

Ranfurly, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count153
Co-rupture Rate4.5178505E-5

Cross Eden, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count742
Co-rupture Rate3.128433E-5

Logan Burn, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count498
Co-rupture Rate6.1551155E-9

Long Valley, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate2.2697941E-5

Waipiata, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count122
Co-rupture Rate9.931174E-5

Hyde South - The Twins, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count333
Co-rupture Rate1.0252368E-4

Pylap, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count181
Co-rupture Rate3.9594288E-5

Beaumont River, 1.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count1,415
Co-rupture Rate7.056685E-5

Little Valley, 4.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?false
Co-rupture Count205
Co-rupture Rate6.553055E-6

Horse Flat, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate2.263796E-5

Billys Ridge, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate8.763978E-6

Waihemo, 9.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?true
Directly Connected?true
Co-rupture Count714
Co-rupture Rate6.3194486E-5

Murphys Creek, 12.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 13.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunback Hill, 14.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Flat Stream - Glenpark, 14.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
