Raukumara 24 Details

Property	Value
Rupture Count	15
Ruptures Above Sect Min Mag	13
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.13, 7.60]
Length Range	[4, 103] km
Total Rate	2.3983644E-4 /yr
Multi-Fault Rate	2.3983644E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	8

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

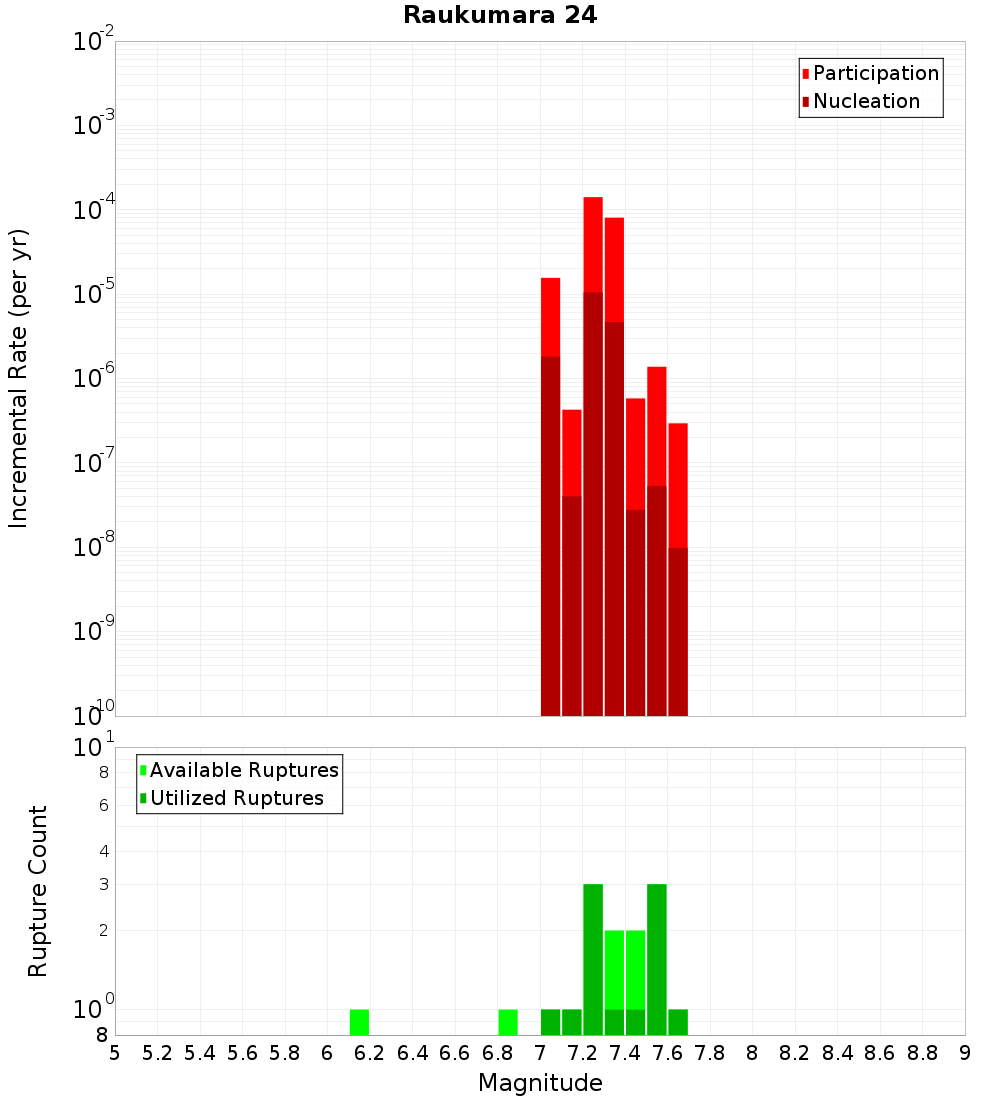

Magnitude-Frequency Distribution

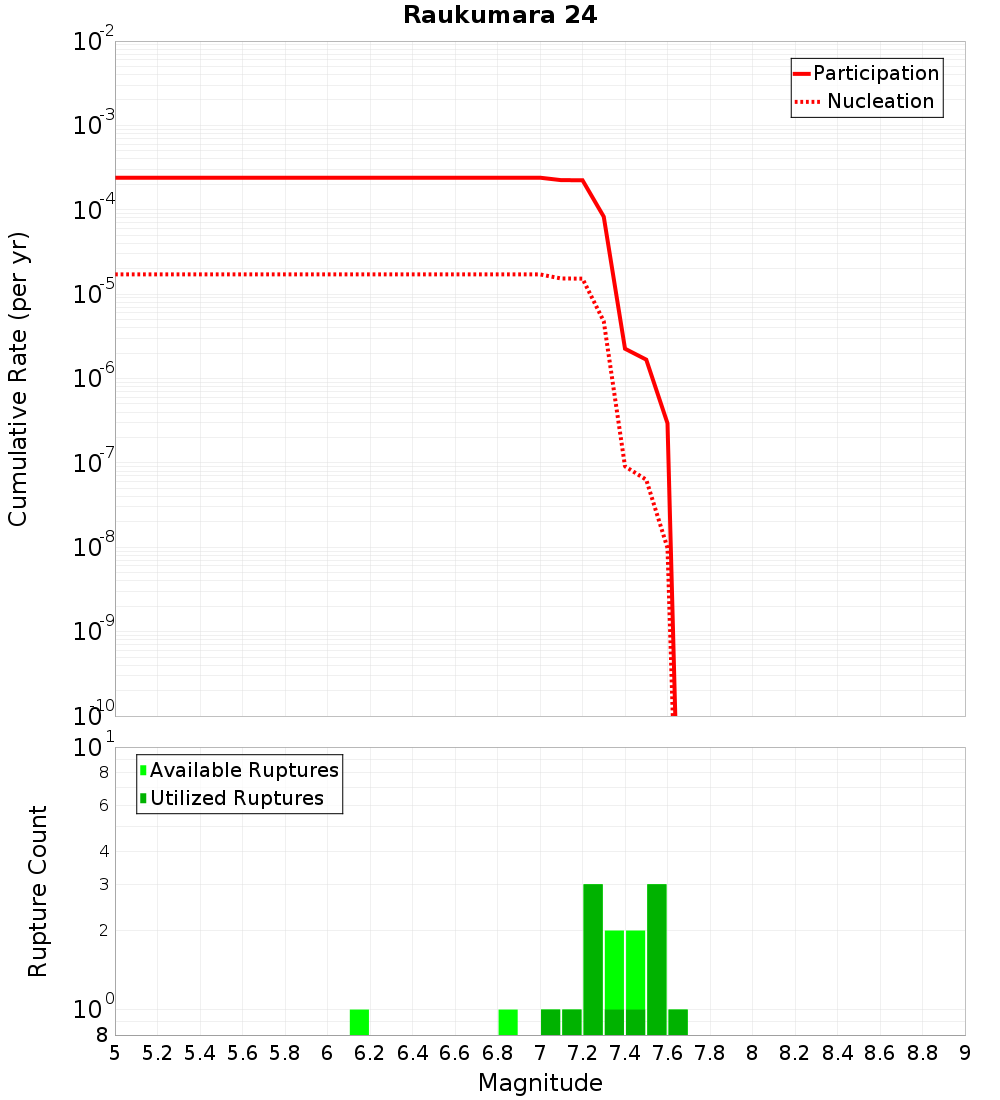

Incremental	Cumulative

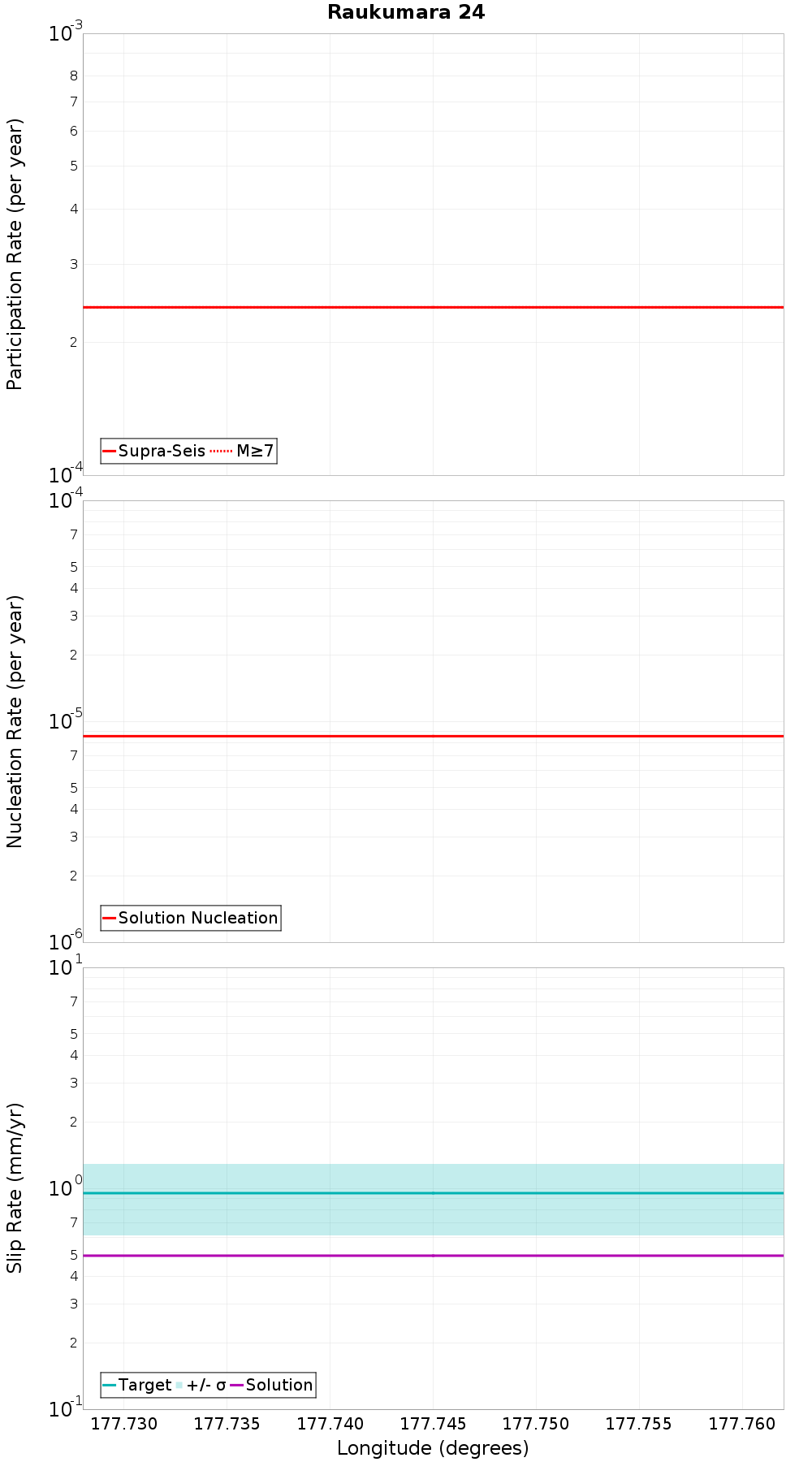

Along-Strike Values

Moment-Rates and b-Values

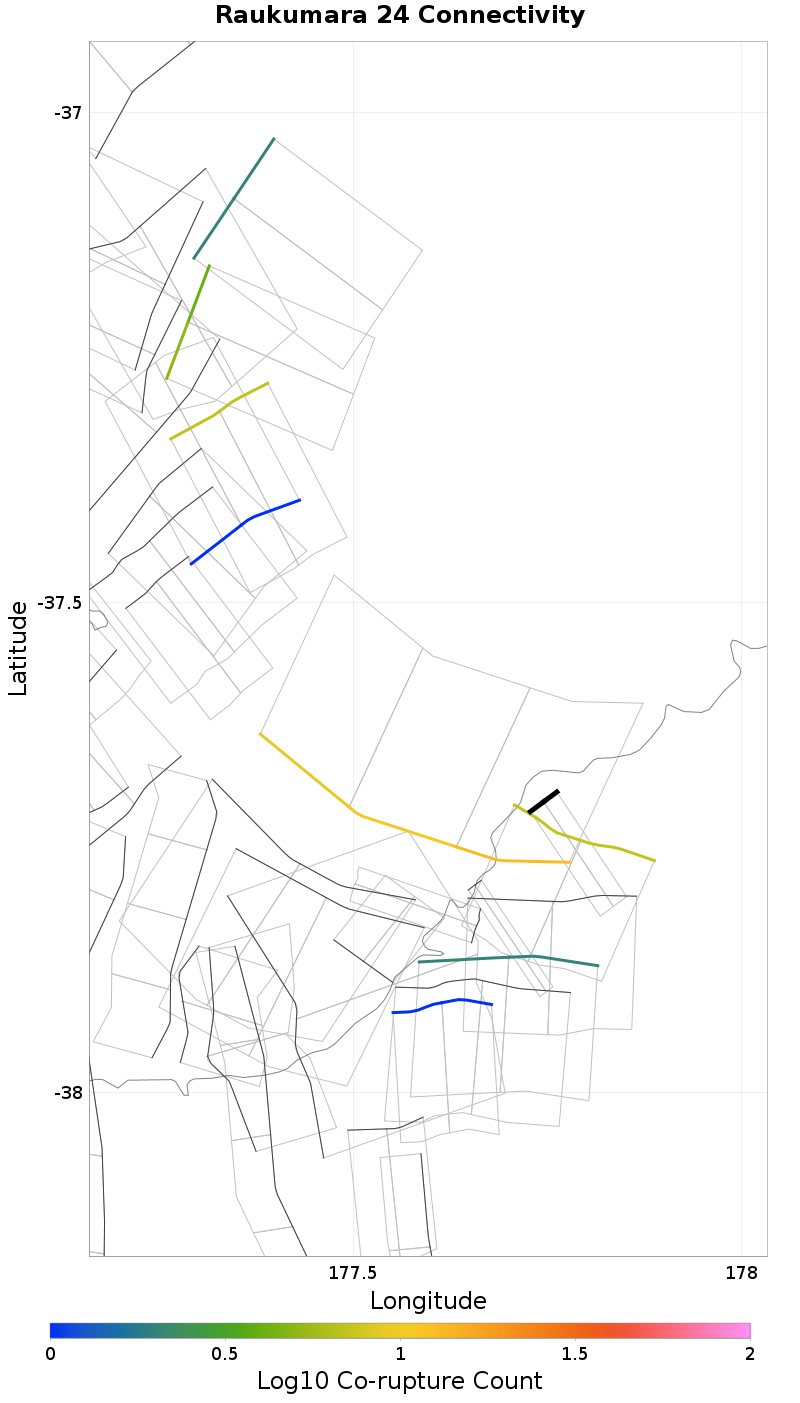

Connectivity

Nearby Sections

Fault Section
Kereu, 0.26 km away
Hariki, 0.34 km away
Raukumara 21, 9.15 km away
Raukumara 25, 9.55 km away
Raukumara 20, 12.39 km away
Opape 1, 14.16 km away
Motu River, 14.87 km away

Kereu, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	true
Directly Connected?	true
Co-rupture Count	7
Co-rupture Rate	1.2469625E-4

Hariki, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	2.3983644E-4

Raukumara 21, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 25, 9.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 20, 12.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opape 1, 14.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motu River, 14.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	7.422898E-5
