Waikuku Details

Property	Value
Rupture Count	553
Ruptures Above Sect Min Mag	536
Ruptures w/ Nonzero Rates	61
Magnitude Range	[6.49, 7.86]
Length Range	[14, 252] km
Total Rate	3.717974E-4 /yr
Multi-Fault Rate	3.717974E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	33

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

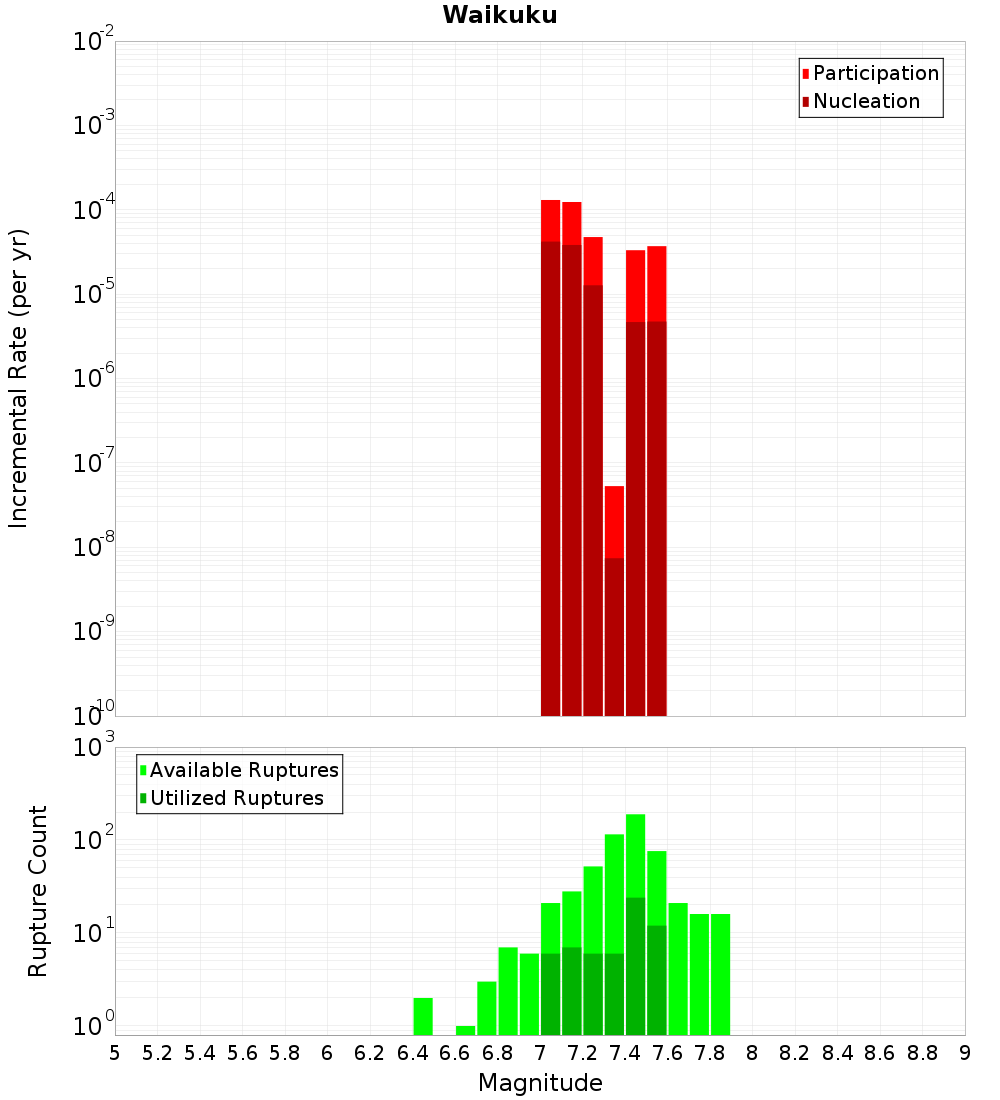

Magnitude-Frequency Distribution

Incremental	Cumulative

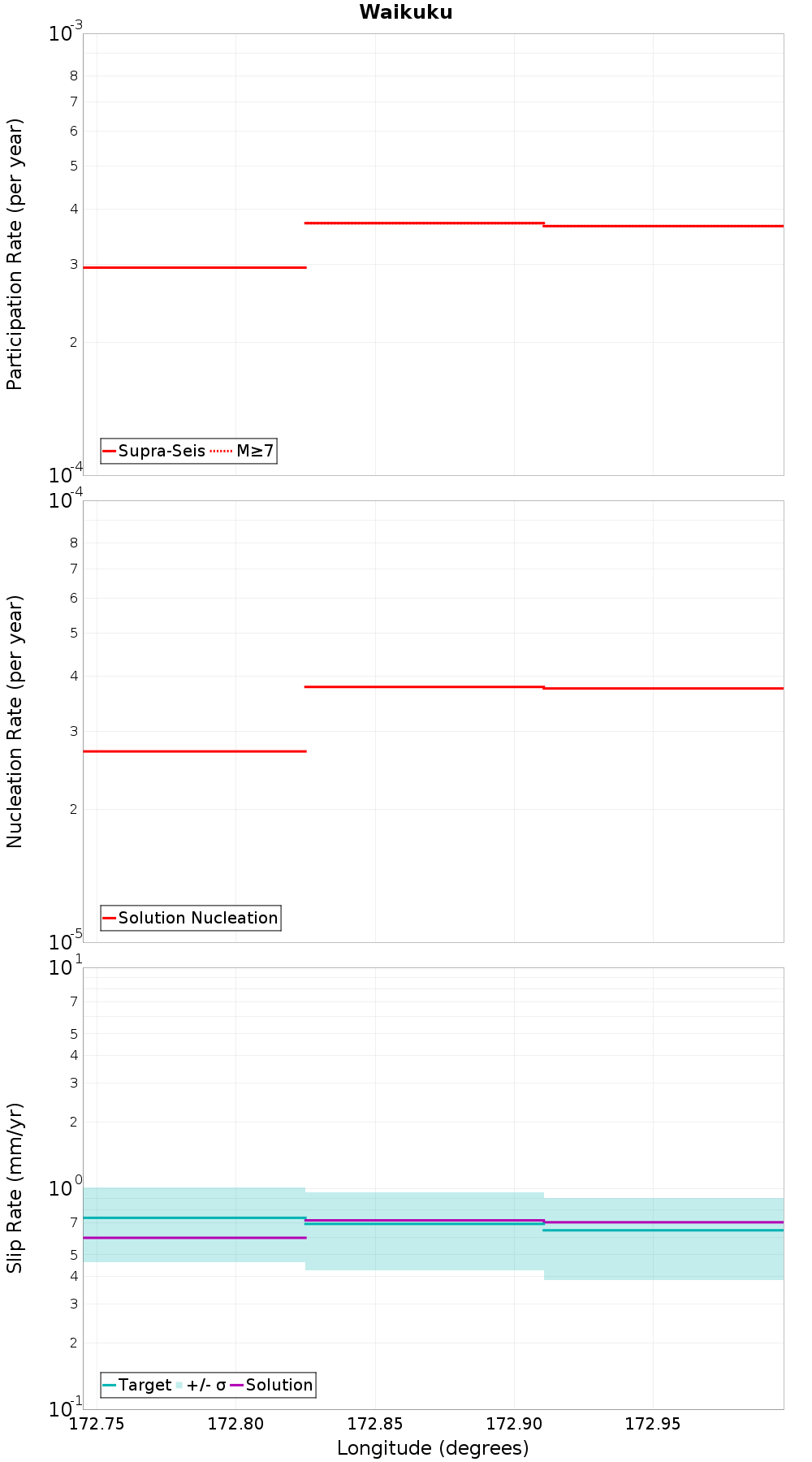

Along-Strike Values

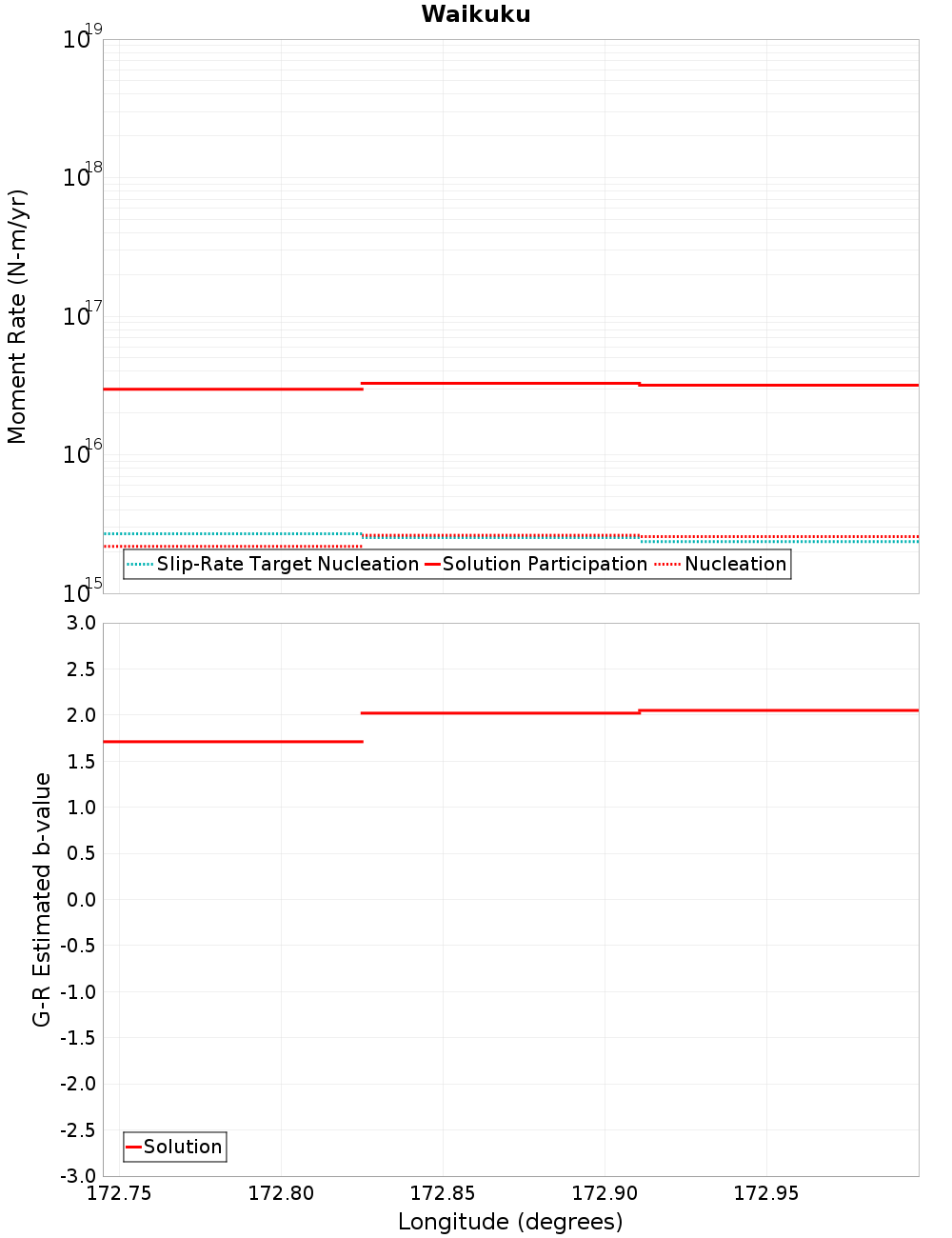

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Pegasus Bay, 3.19 km away
Leithfield - NCVI - NCVII, 4.07 km away
North Canterbury Shelf 2, 4.61 km away
North Canterbury Shelf 4, 5.12 km away
Motunau, 9.01 km away
AmberBlyth, 9.2 km away
Starvation - Ashley, 11.22 km away
CenPeg1n2, 11.9 km away
OmihiLwrHuru, 14.73 km away

Pegasus Bay, 3.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	true
Directly Connected?	true
Co-rupture Count	44
Co-rupture Rate	2.8181018E-11

Leithfield - NCVI - NCVII, 4.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	true
Directly Connected?	true
Co-rupture Count	221
Co-rupture Rate	1.7920932E-4

North Canterbury Shelf 2, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	true
Directly Connected?	true
Co-rupture Count	96
Co-rupture Rate	1.4544645E-4

North Canterbury Shelf 4, 5.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	true
Directly Connected?	true
Co-rupture Count	106
Co-rupture Rate	1.2227835E-4

Motunau, 9.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	4.859575E-5

AmberBlyth, 9.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	true
Directly Connected?	true
Co-rupture Count	9
Co-rupture Rate	0.0

Starvation - Ashley, 11.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	true
Directly Connected?	true
Co-rupture Count	445
Co-rupture Rate	7.02181E-5

CenPeg1n2, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	true
Directly Connected?	true
Co-rupture Count	31
Co-rupture Rate	2.2473189E-4

OmihiLwrHuru, 14.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2NzYuNVBLTEUz
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0
