Grampian Details

PropertyValue
Rupture Count171
Ruptures Above Sect Min Mag170
Ruptures w/ Nonzero Rates8
Magnitude Range[6.99, 7.93]
Length Range[21, 232] km
Total Rate9.9018325E-5 /yr
Multi-Fault Rate9.9018325E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults16

Table Of Contents

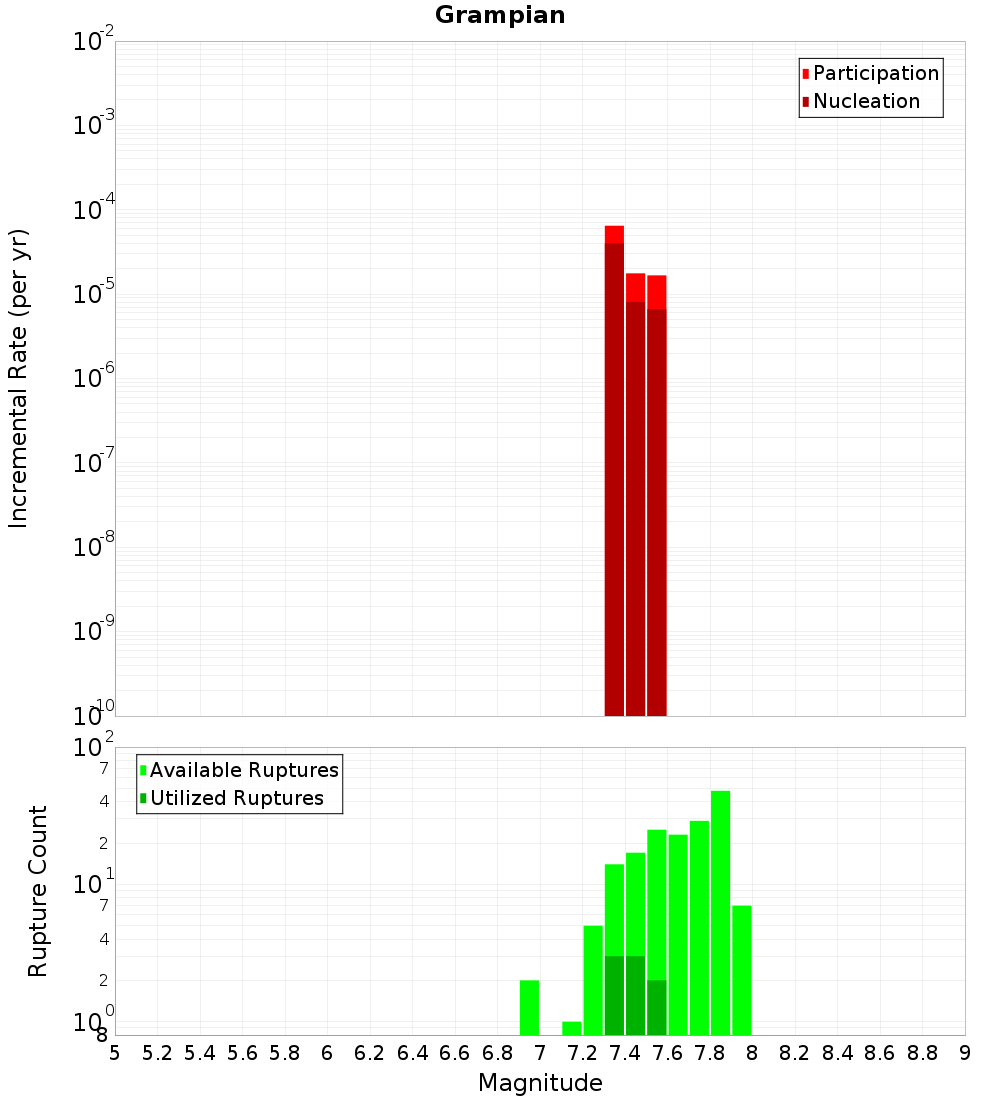

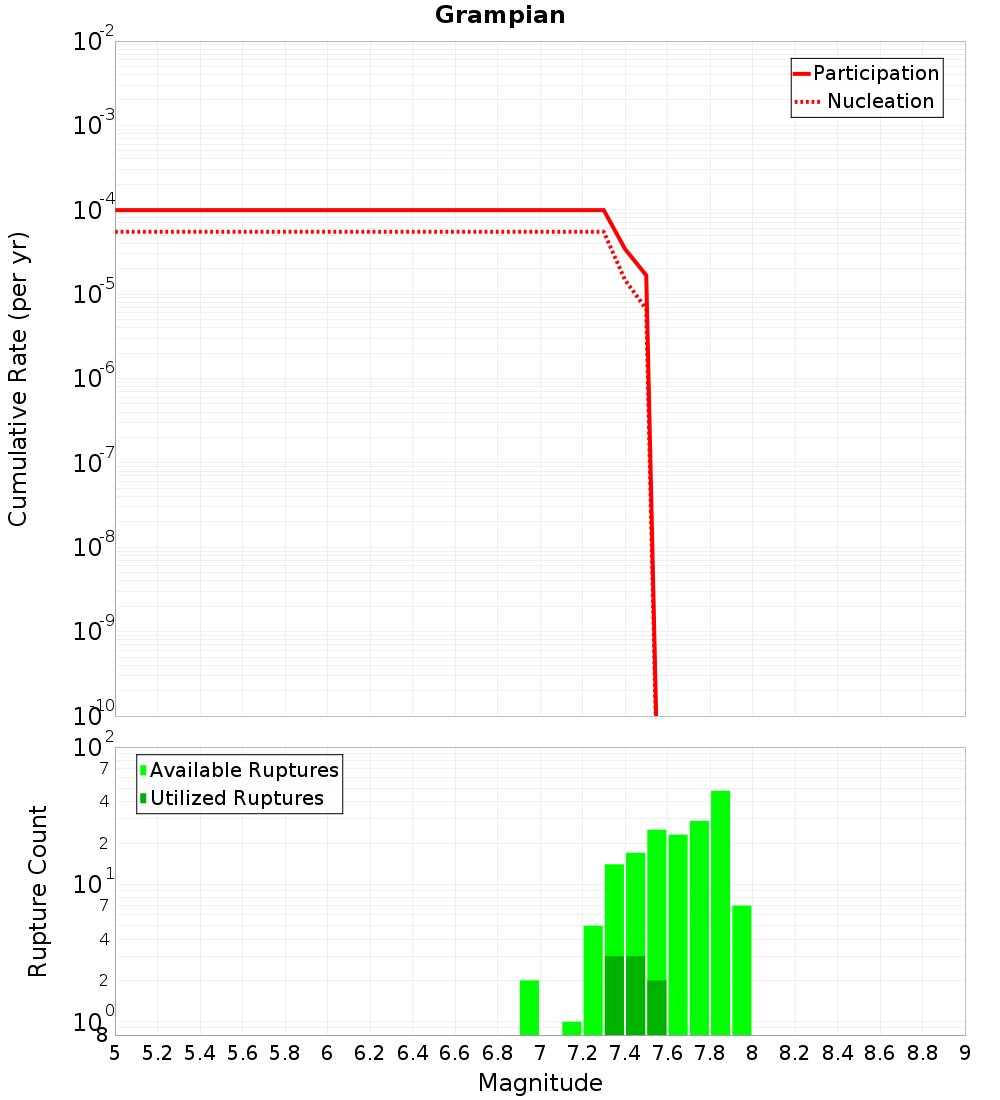

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

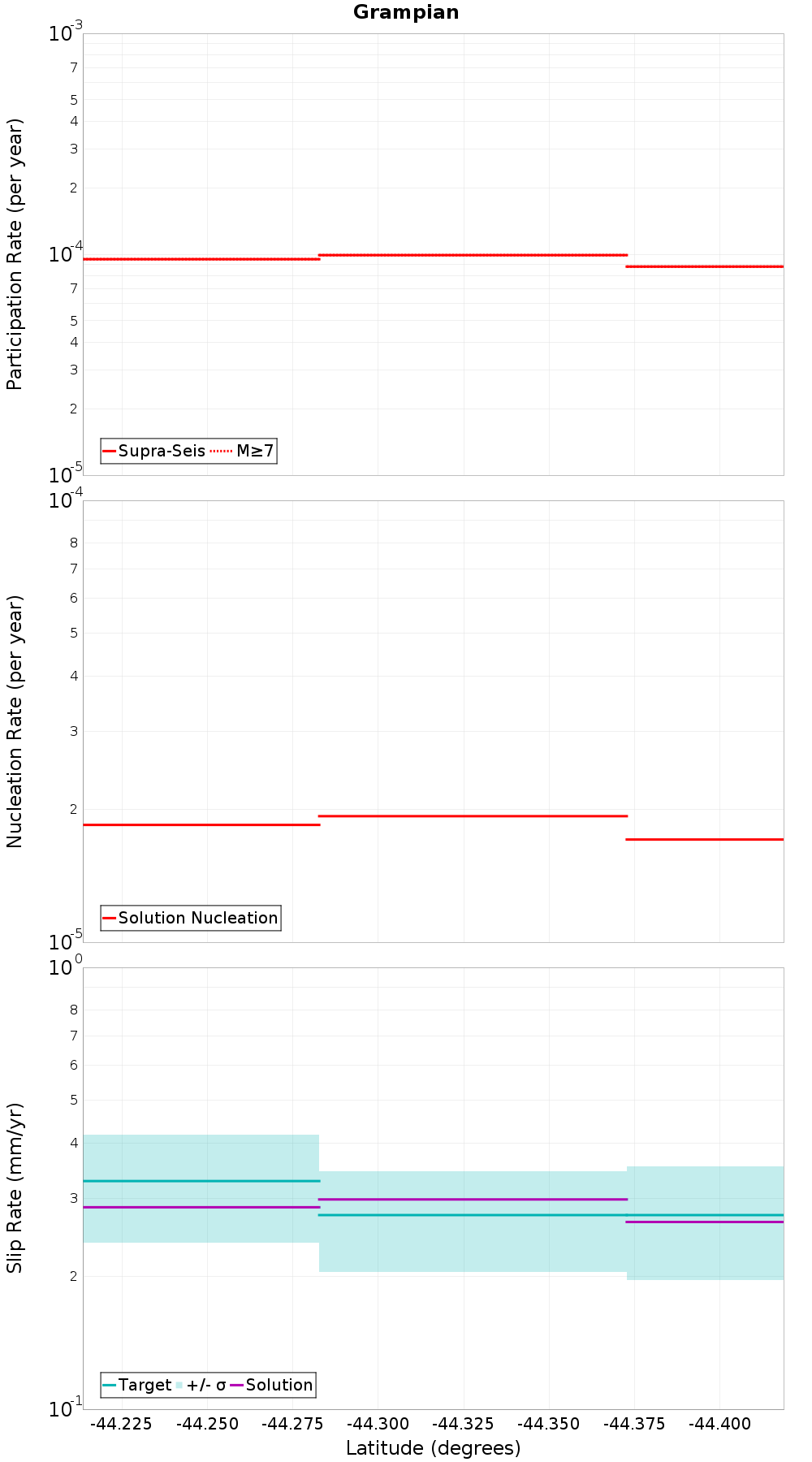

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

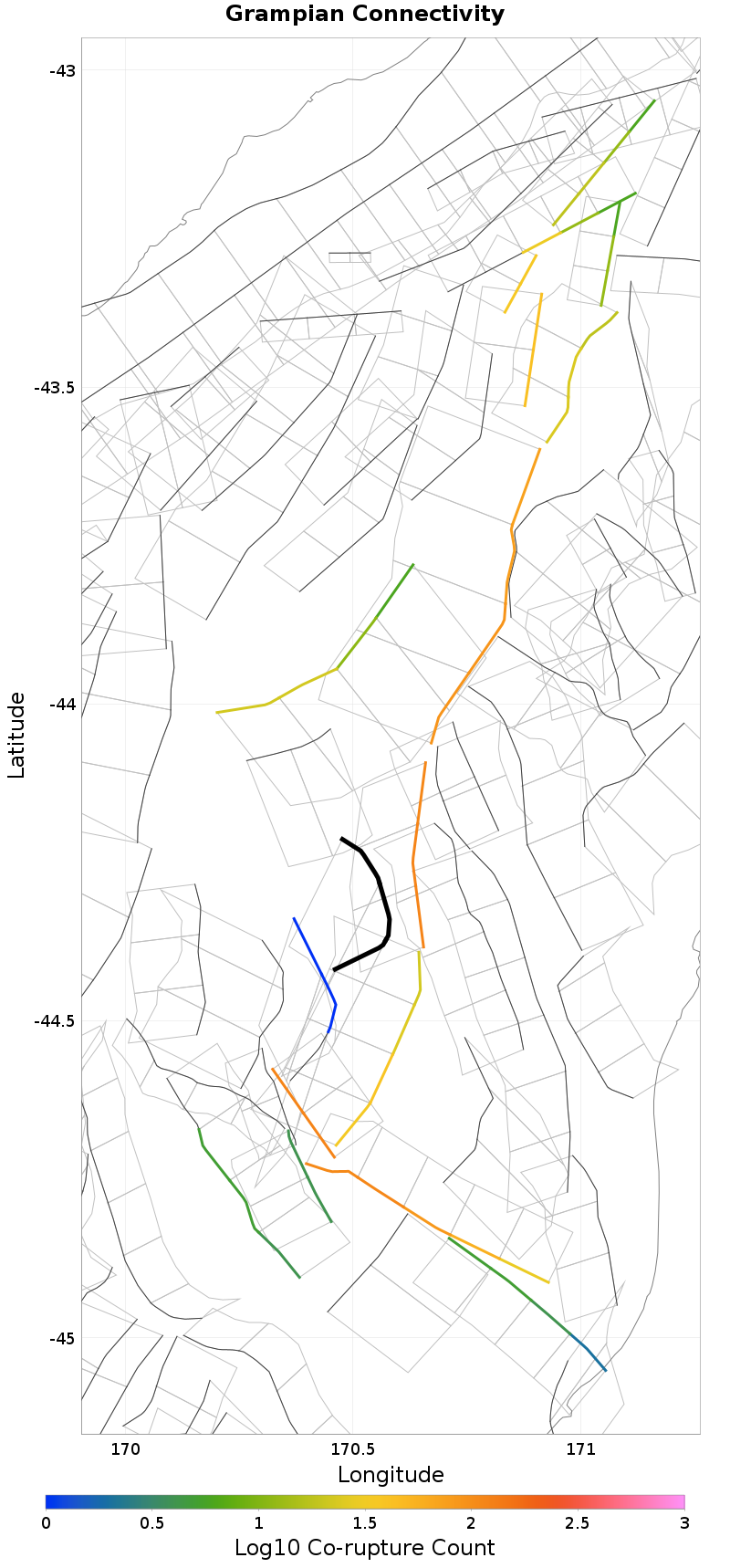

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kirkliston, 0.22 km away
Dryburgh, 0.23 km away
Mt Sutton, 0.7 km away
Dalgety, 4.58 km away
Middle Range, 6.8 km away
Gibson, 8.32 km away
Waitangi, 8.68 km away
The Wolds, 10.21 km away
Stonewall, 10.47 km away
Chamberlain, 11.51 km away
Fern Gully, 11.8 km away
Hunters, 14.81 km away

Kirkliston, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate8.788429E-5

Dryburgh, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?true
Co-rupture Count118
Co-rupture Rate1.5246758E-5

Mt Sutton, 0.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate7.5133885E-6

Dalgety, 4.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?true
Co-rupture Count117
Co-rupture Rate0.0

Middle Range, 6.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Gibson, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitangi, 8.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Wolds, 10.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 10.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?false
Co-rupture Count111
Co-rupture Rate3.433334E-5

Chamberlain, 11.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fern Gully, 11.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hunters, 14.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
