Waimana: North Details

PropertyValue
Rupture Count21,072
Ruptures Above Sect Min Mag21,054
Ruptures w/ Nonzero Rates55
Magnitude Range[6.77, 8.61]
Length Range[18, 1,132] km
Total Rate4.0113812E-4 /yr
Multi-Fault Rate4.0113812E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults120

Table Of Contents

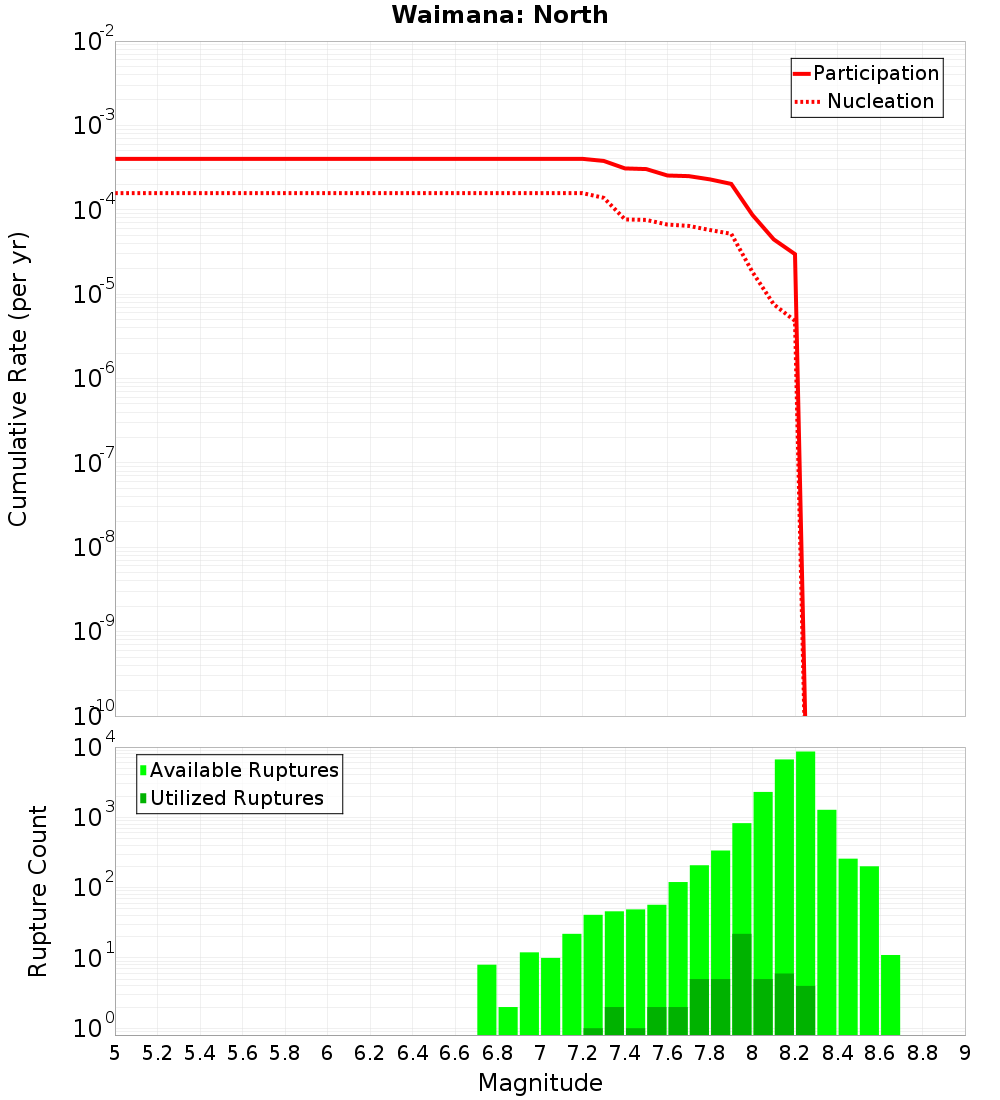

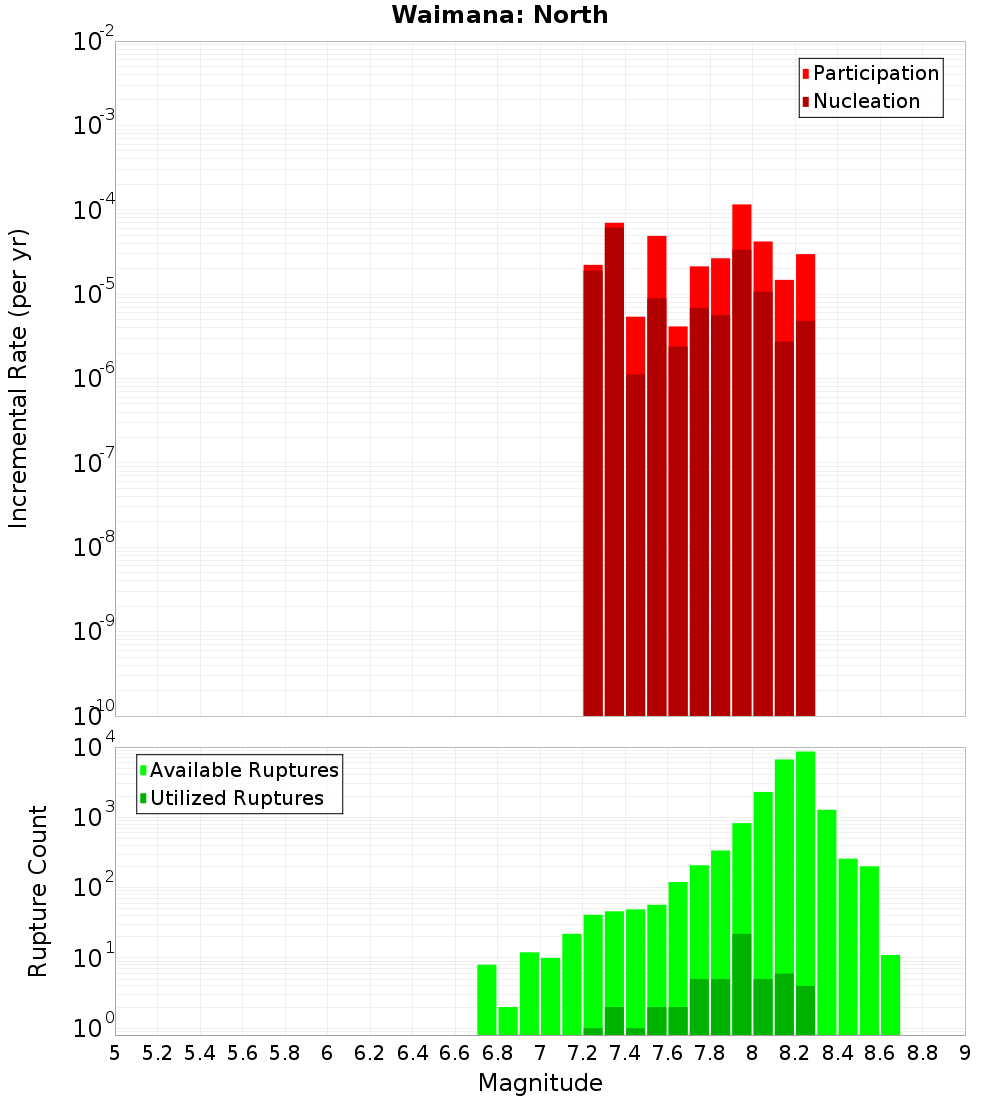

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

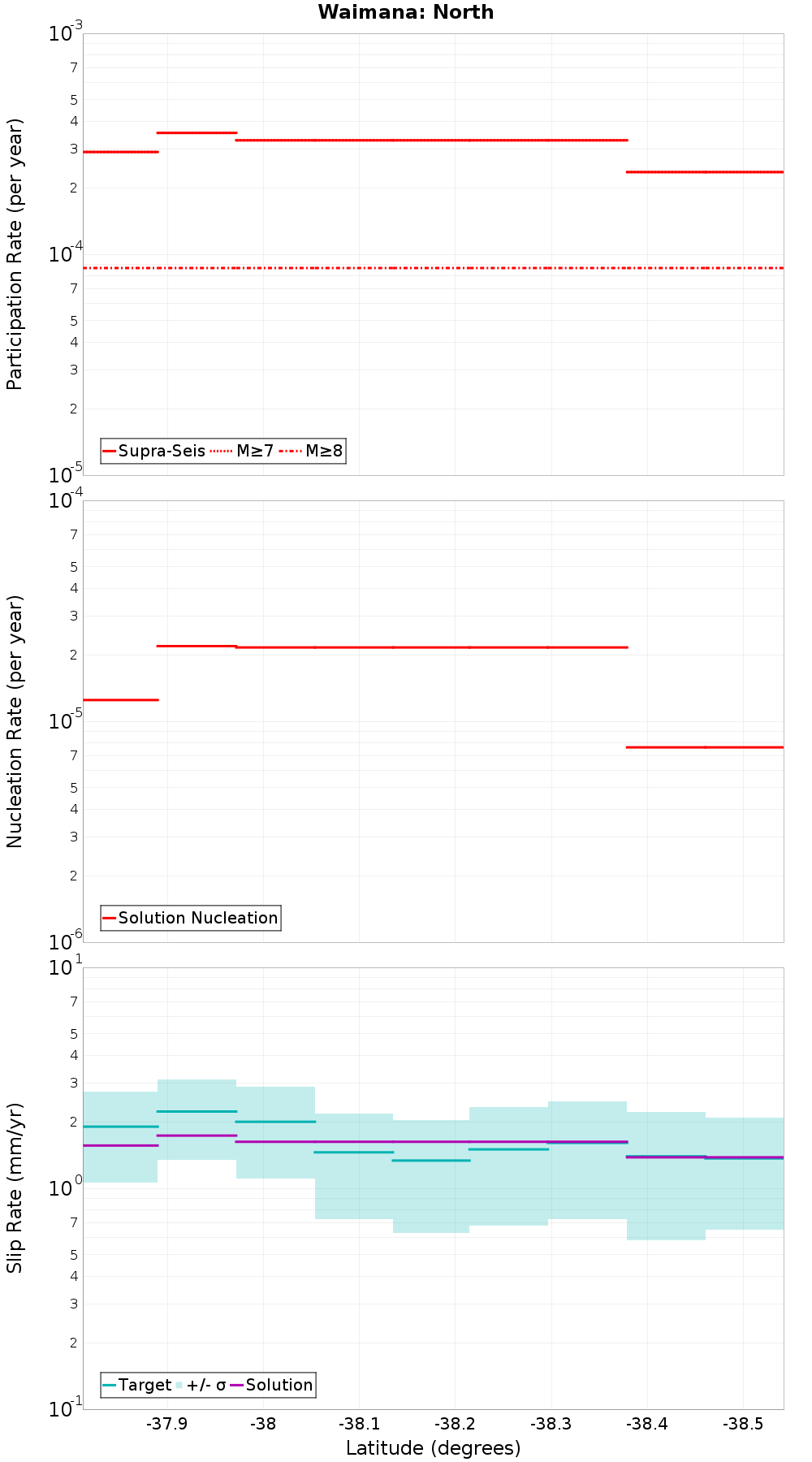

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

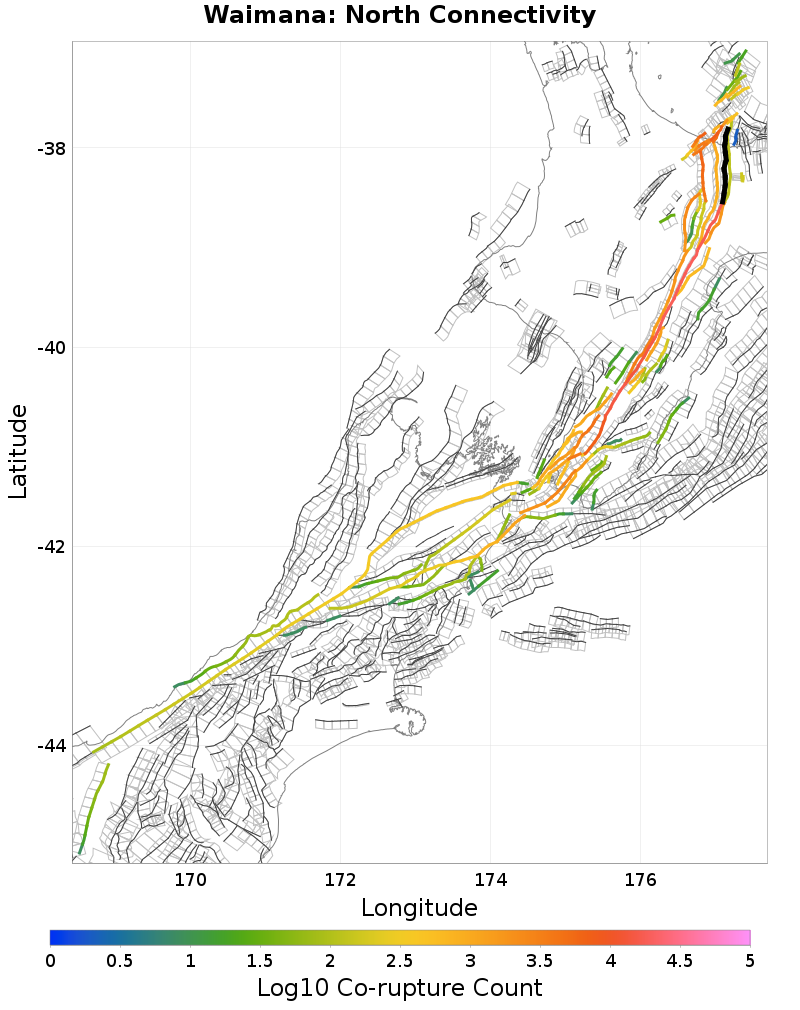

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waimana: South, 0 km awayOhiwa 1, 8.64 km away
Waimanawa - Waikaremoana, 0.36 km awayKeepa, 9.02 km away
Waiotahi: North, 1.8 km awayRangitaiki 2, 9.39 km away
Waiotahi: South, 2.4 km awayOhae 1, 9.52 km away
Whakatane: South, 5.62 km awayRangitaiki 1, 10.53 km away
Whakatane: North, 6.36 km awayOpotiki 2, 12.2 km away
White Island 2, 6.76 km awayWairata, 12.83 km away
White Island 1, 7.11 km awayRaukumara 9, 14.06 km away
Otakiri, 8.25 km awayTirohanga, 14.35 km away
Opotiki 3, 8.45 km awayMatata, 14.41 km away

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?true
Co-rupture Count17,373
Co-rupture Rate1.6542114E-4

Waimanawa - Waikaremoana, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?true
Co-rupture Count111
Co-rupture Rate5.4735996E-5

Waiotahi: North, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?true
Co-rupture Count151
Co-rupture Rate7.3402596E-5

Waiotahi: South, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?true
Co-rupture Count2,048
Co-rupture Rate9.642088E-5

Whakatane: South, 5.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?false
Co-rupture Count847
Co-rupture Rate0.0

Whakatane: North, 6.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?false
Co-rupture Count984
Co-rupture Rate6.975791E-5

White Island 2, 6.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?false
Co-rupture Count510
Co-rupture Rate2.4317502E-5

White Island 1, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?true
Co-rupture Count8,383
Co-rupture Rate1.6303777E-4

Otakiri, 8.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?true
Co-rupture Count3,618
Co-rupture Rate2.4594772E-5

Opotiki 3, 8.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Ohiwa 1, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?false
Co-rupture Count363
Co-rupture Rate5.283061E-5

Keepa, 9.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?true
Co-rupture Count5,105
Co-rupture Rate1.06769054E-4

Rangitaiki 2, 9.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 9.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?false
Co-rupture Count796
Co-rupture Rate5.236863E-5

Opotiki 2, 12.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairata, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?true
Co-rupture Count154
Co-rupture Rate9.772767E-5

Raukumara 9, 14.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?true
Co-rupture Count162
Co-rupture Rate0.0

Tirohanga, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Matata, 14.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2ODYuMGlROFNV
Connected?true
Directly Connected?false
Co-rupture Count6,834
Co-rupture Rate1.3455094E-4
