Calypso 2 Details

PropertyValue
Rupture Count295
Ruptures Above Sect Min Mag294
Ruptures w/ Nonzero Rates97
Magnitude Range[6.82, 8.35]
Length Range[14, 504] km
Total Rate8.508257E-5 /yr
Multi-Fault Rate8.508257E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults37

Table Of Contents

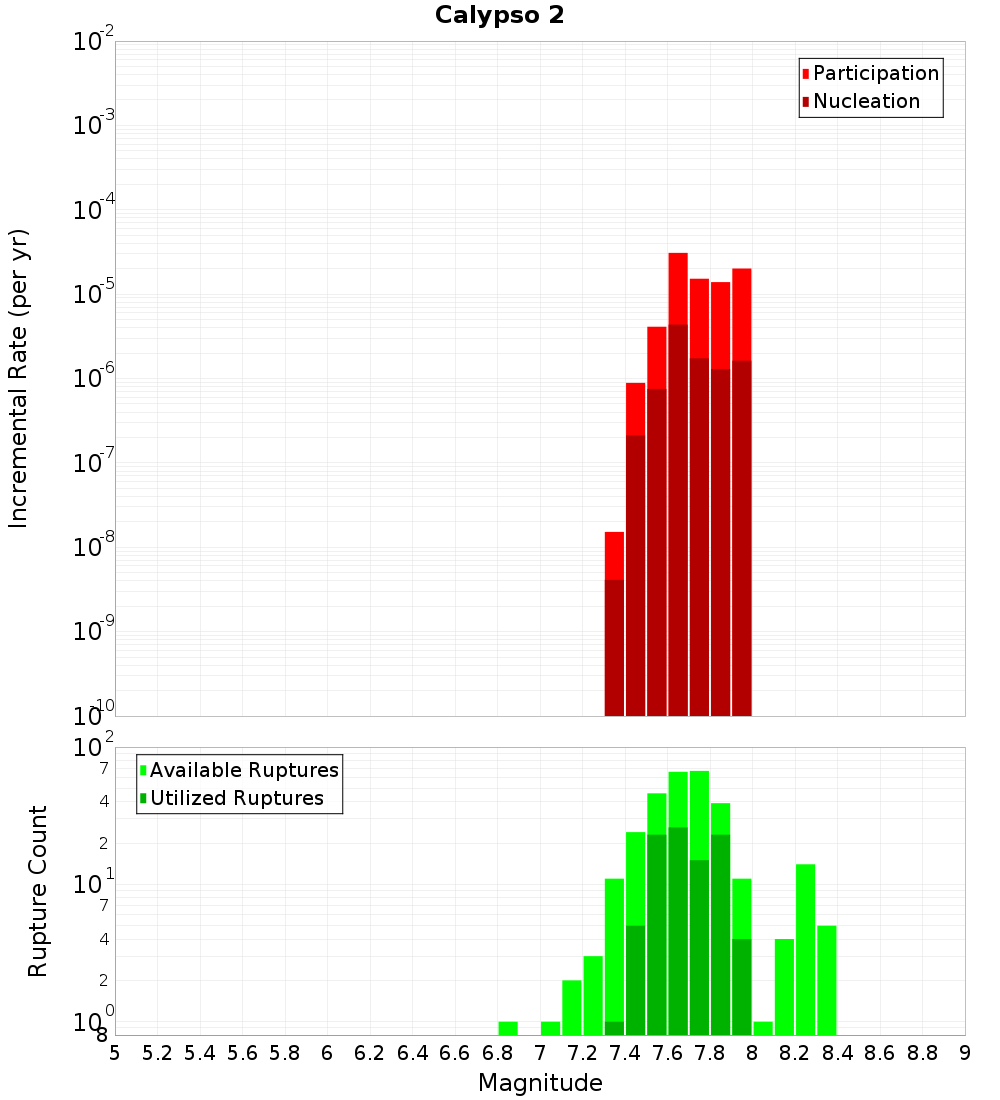

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

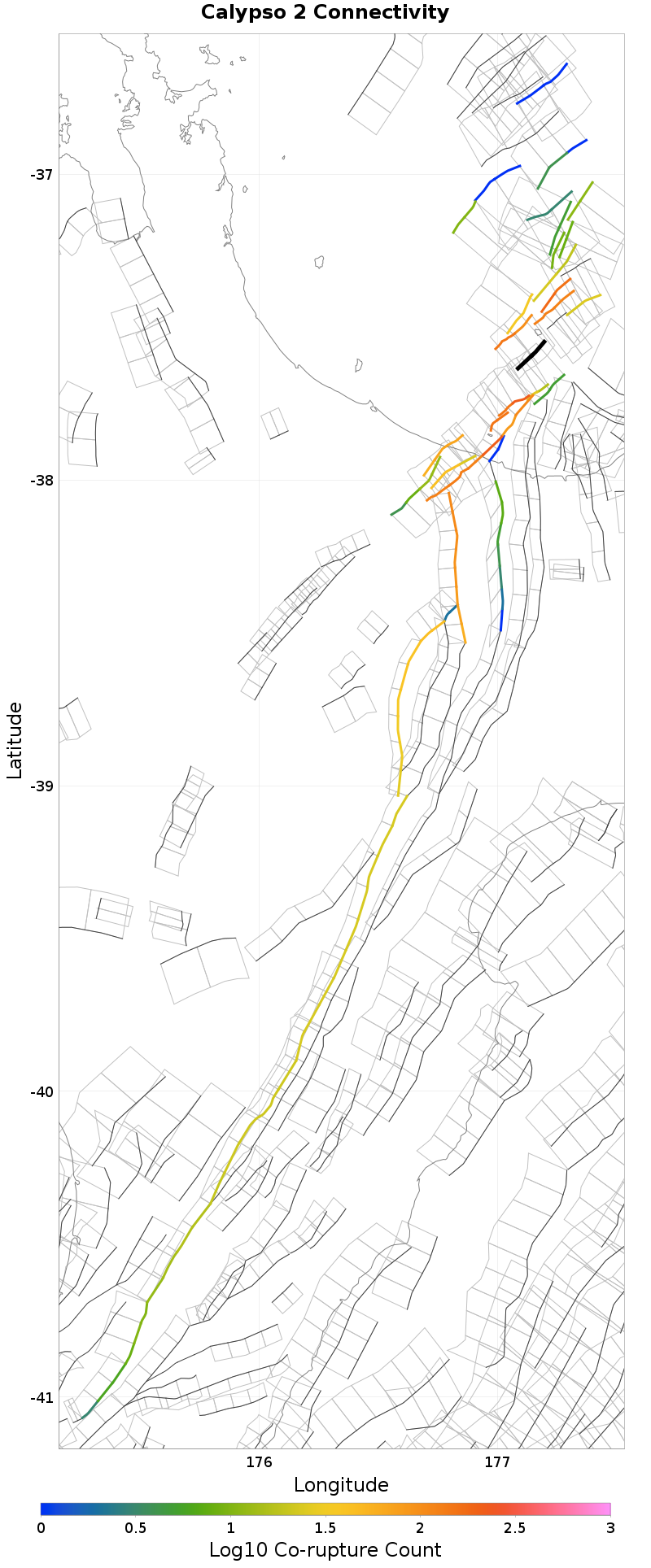

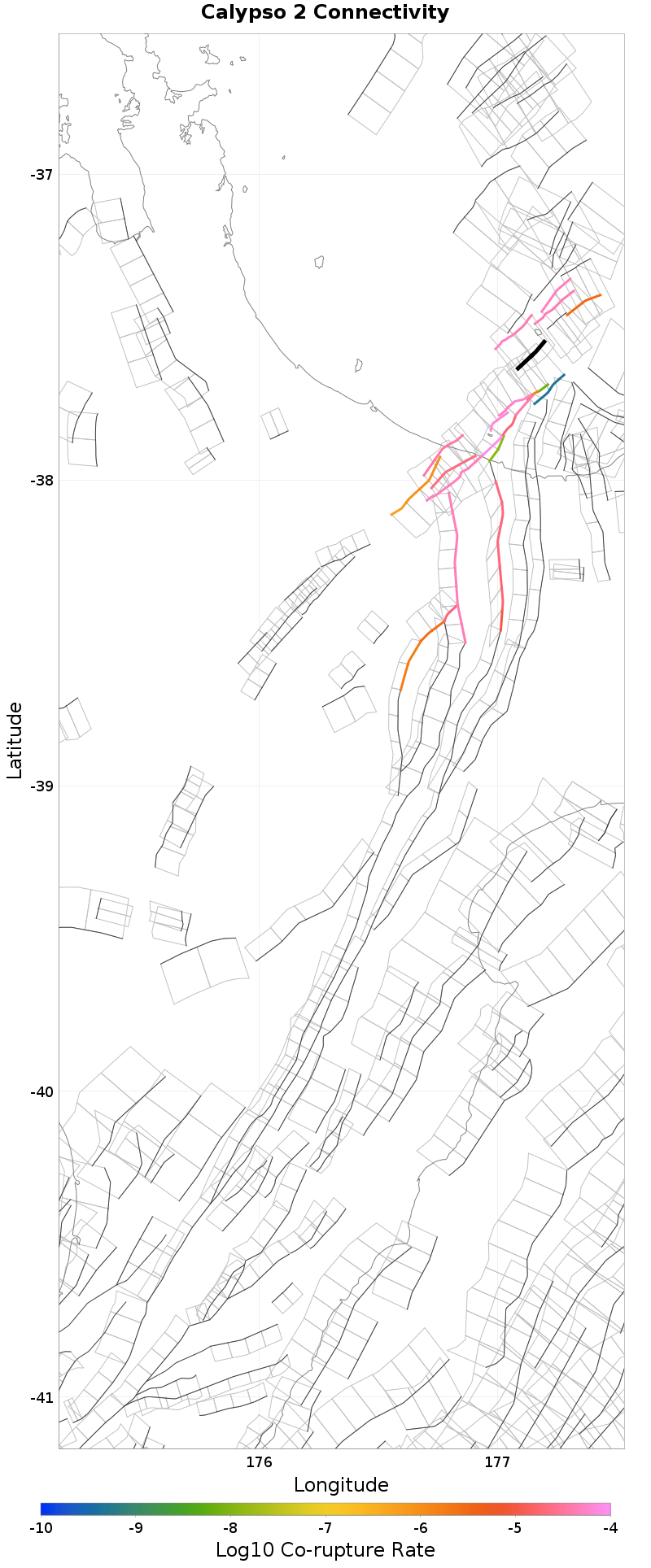

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Whakaari 4, 0.2 km away
Te Arawa 1, 1.54 km away
Tuatoru 1, 3.86 km away
Te Arawa 2, 6.95 km away
Rangitaiki 2, 8.01 km away
Ohiwa 1, 8.32 km away
White Island 1, 8.92 km away
Volkner 3, 9.06 km away
White Island 2, 10.04 km away
Volkner 4, 11.97 km away
Tuatoru 2, 12.9 km away
Rangitaiki 1, 14.65 km away
Waimanawa - Waikaremoana, 14.94 km away

Whakaari 4, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count147
Co-rupture Rate5.1409268E-5

Te Arawa 1, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count128
Co-rupture Rate4.3161748E-5

Tuatoru 1, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 6.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count178
Co-rupture Rate5.056344E-5

Rangitaiki 2, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count214
Co-rupture Rate6.159086E-5

Ohiwa 1, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate1.5372582E-6

White Island 1, 8.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count243
Co-rupture Rate1.0720045E-4

Volkner 3, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate0.0

White Island 2, 10.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate4.5458579E-10

Volkner 4, 11.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Tuatoru 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate2.8696763E-6

Rangitaiki 1, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count149
Co-rupture Rate6.721102E-5

Waimanawa - Waikaremoana, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
