Fox Peak Details

PropertyValue
Rupture Count10,415
Ruptures Above Sect Min Mag10,413
Ruptures w/ Nonzero Rates80
Magnitude Range[7.23, 8.27]
Length Range[28, 356] km
Total Rate2.0289441E-4 /yr
Multi-Fault Rate1.6671972E-4 /yr (82.17%)
Directly-Connected Faults11
All Co-Rupturing Faults50

Table Of Contents

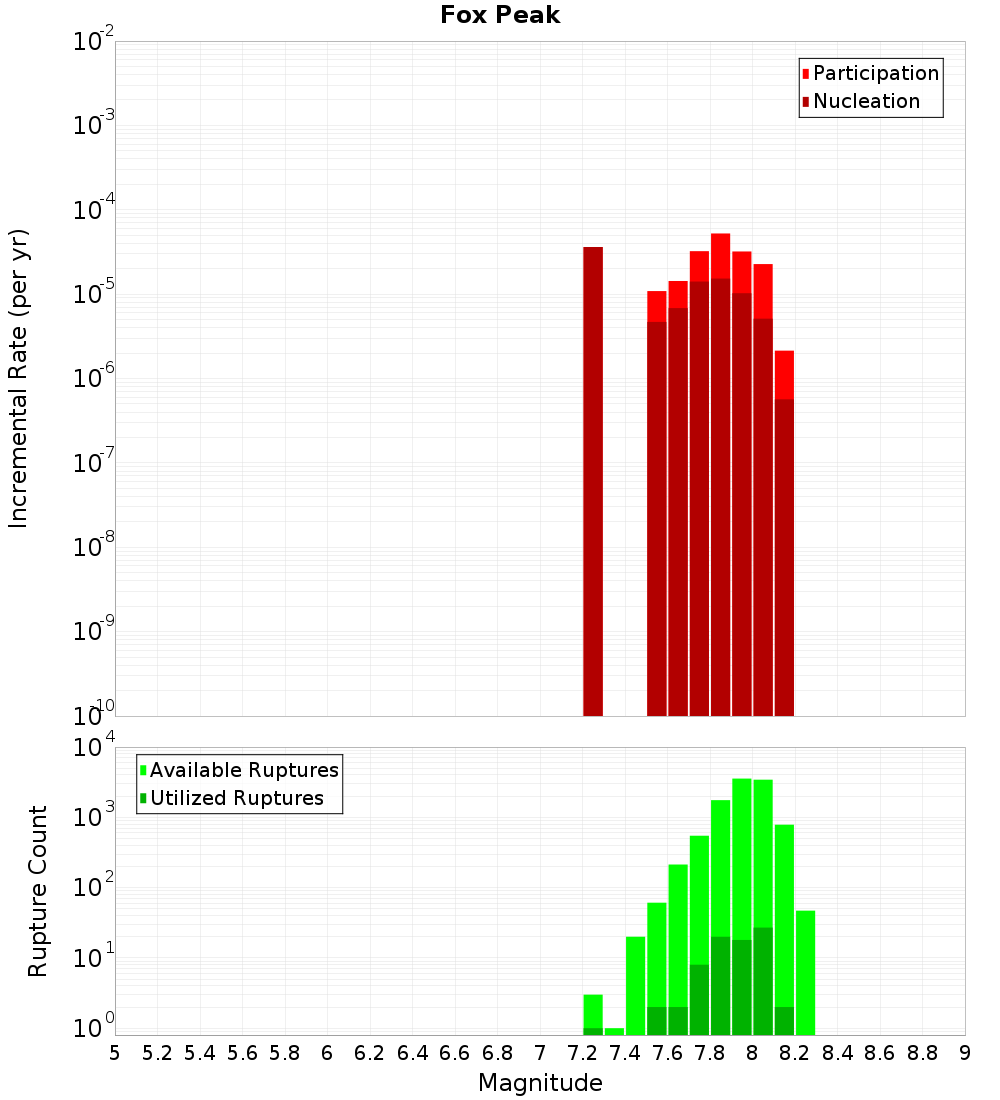

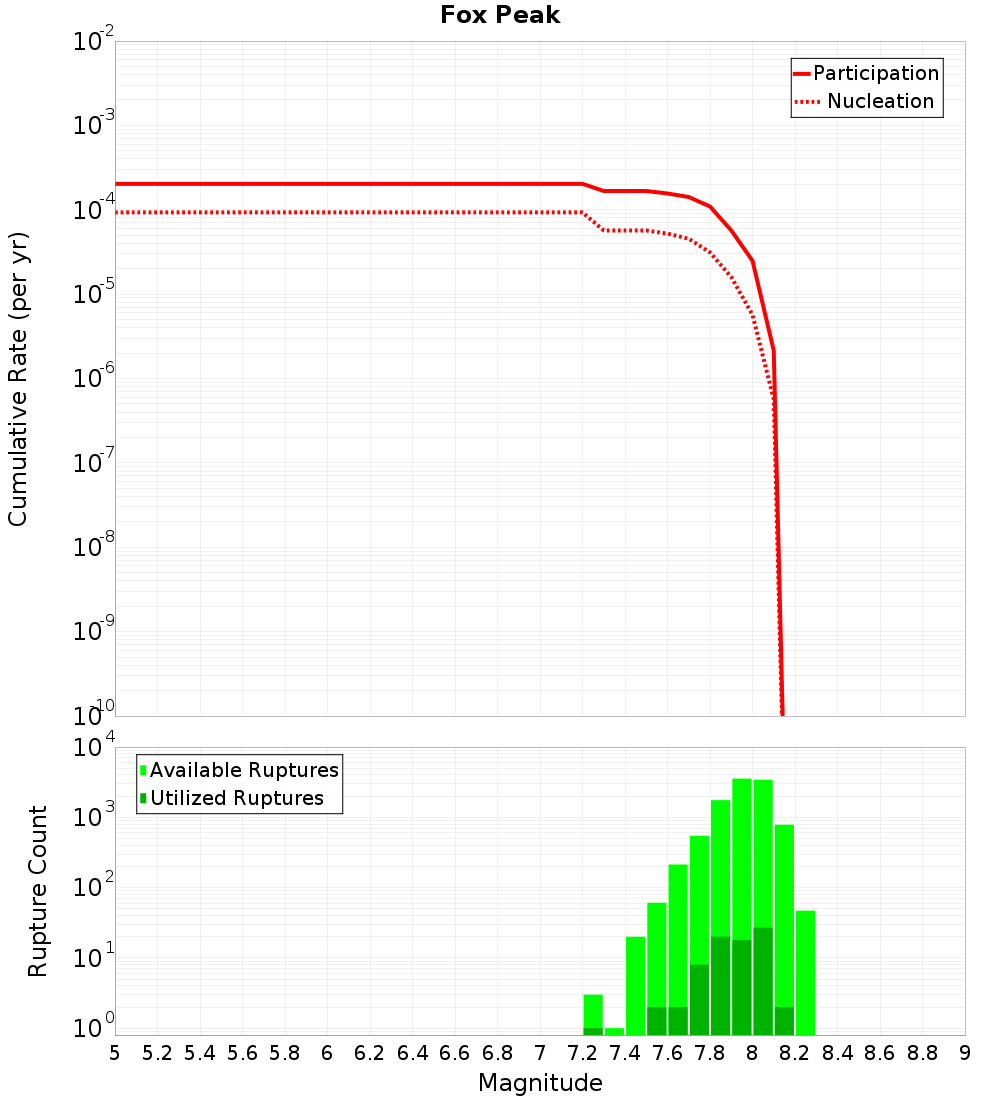

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

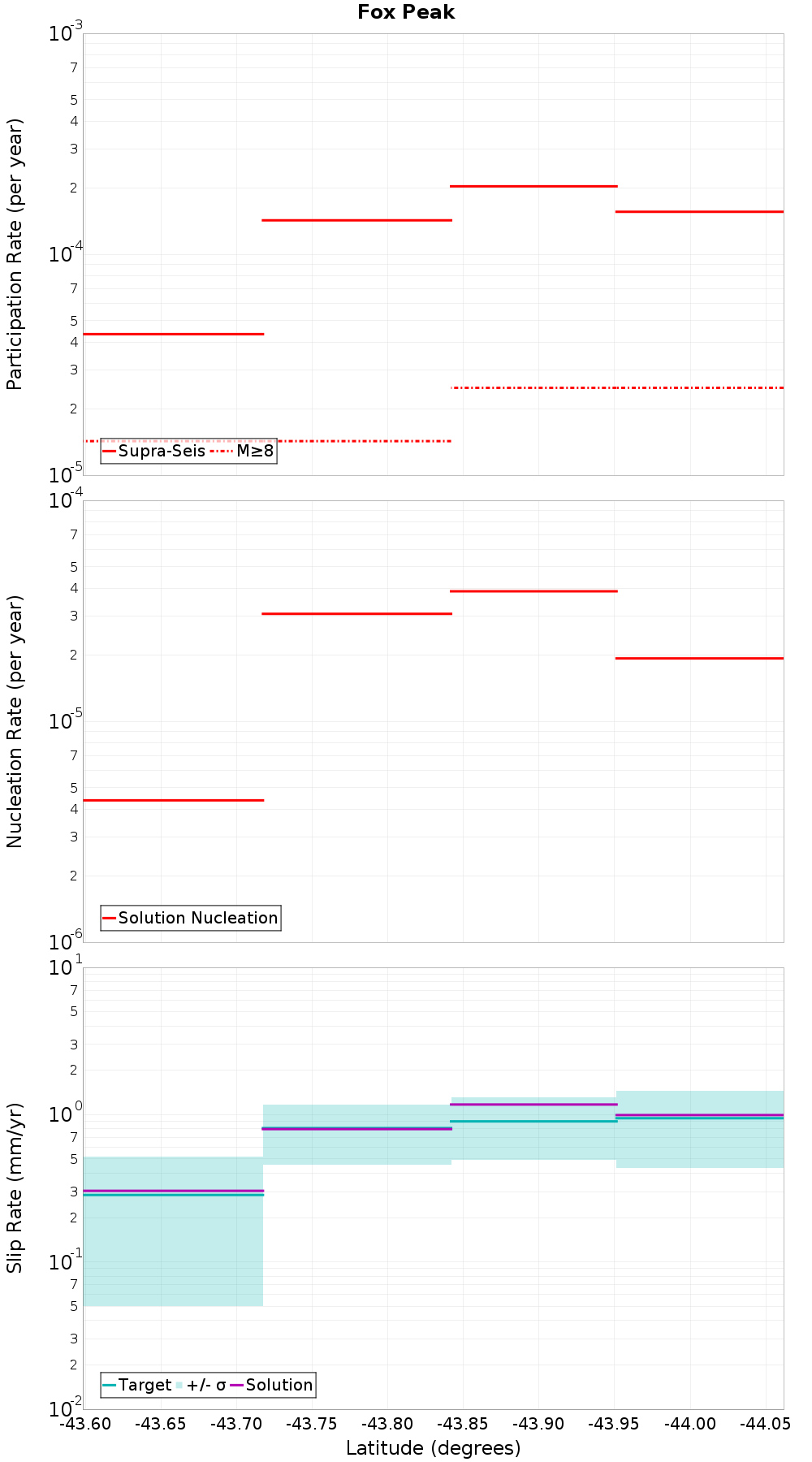

Along-Strike Values

(top)

Along-strike plot

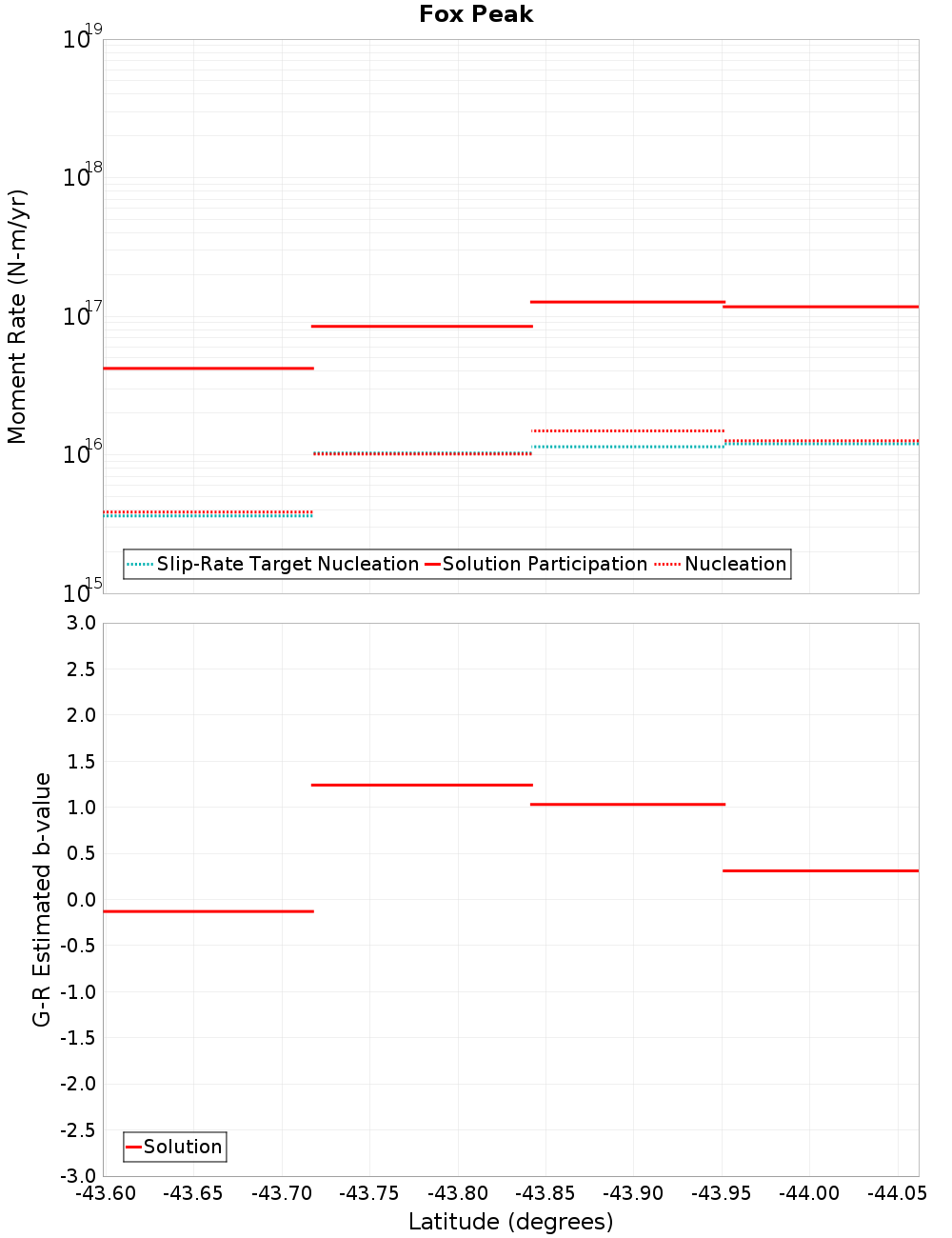

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Irishman Creek, 0.21 km awayLilybank, 7.55 km away
Ben McLeod, 0.38 km awayMacaulay 2, 9.17 km away
Sugarloaf, 0.68 km awayThe Wolds, 9.93 km away
Opawa, 1.29 km awayVeil Stream, 11.08 km away
Brothers, 1.31 km awayCoal Creek, 12.13 km away
Potts River, 1.8 km awayQuartz Creek, 13.08 km away
Albury, 2.46 km awayCatherine, 13.67 km away
Two Thumb Stream, 3.33 km awayGunn Glacier, 13.74 km away
Dalgety, 3.59 km awayChamberlain, 14.1 km away
Potts Range, 4.19 km awayLake Heron, 14.6 km away

Irishman Creek, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count1,551
Co-rupture Rate4.6773624E-5

Ben McLeod, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count1,704
Co-rupture Rate2.6215495E-5

Sugarloaf, 0.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count175
Co-rupture Rate6.115638E-6

Opawa, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count3,052
Co-rupture Rate3.6815884E-5

Brothers, 1.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count1,432
Co-rupture Rate4.8795067E-5

Potts River, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count3,565
Co-rupture Rate8.646015E-6

Albury, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count1,642
Co-rupture Rate1.5609321E-5

Two Thumb Stream, 3.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count765
Co-rupture Rate2.8730492E-5

Dalgety, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count3,260
Co-rupture Rate3.9922816E-5

Potts Range, 4.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count5,047
Co-rupture Rate6.0918237E-6

Lilybank, 7.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Macaulay 2, 9.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Wolds, 9.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count67
Co-rupture Rate5.144757E-5

Veil Stream, 11.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count680
Co-rupture Rate1.1126735E-6

Coal Creek, 12.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate0.0

Quartz Creek, 13.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Catherine, 13.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gunn Glacier, 13.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Chamberlain, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count1,456
Co-rupture Rate2.4405923E-5

Lake Heron, 14.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count337
Co-rupture Rate2.5123481E-5
