Porangahau Northeast Details

PropertyValue
Rupture Count20,896
Ruptures Above Sect Min Mag20,892
Ruptures w/ Nonzero Rates35
Magnitude Range[7.14, 8.58]
Length Range[25, 773] km
Total Rate8.9869565E-5 /yr
Multi-Fault Rate8.9869565E-5 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults105

Table Of Contents

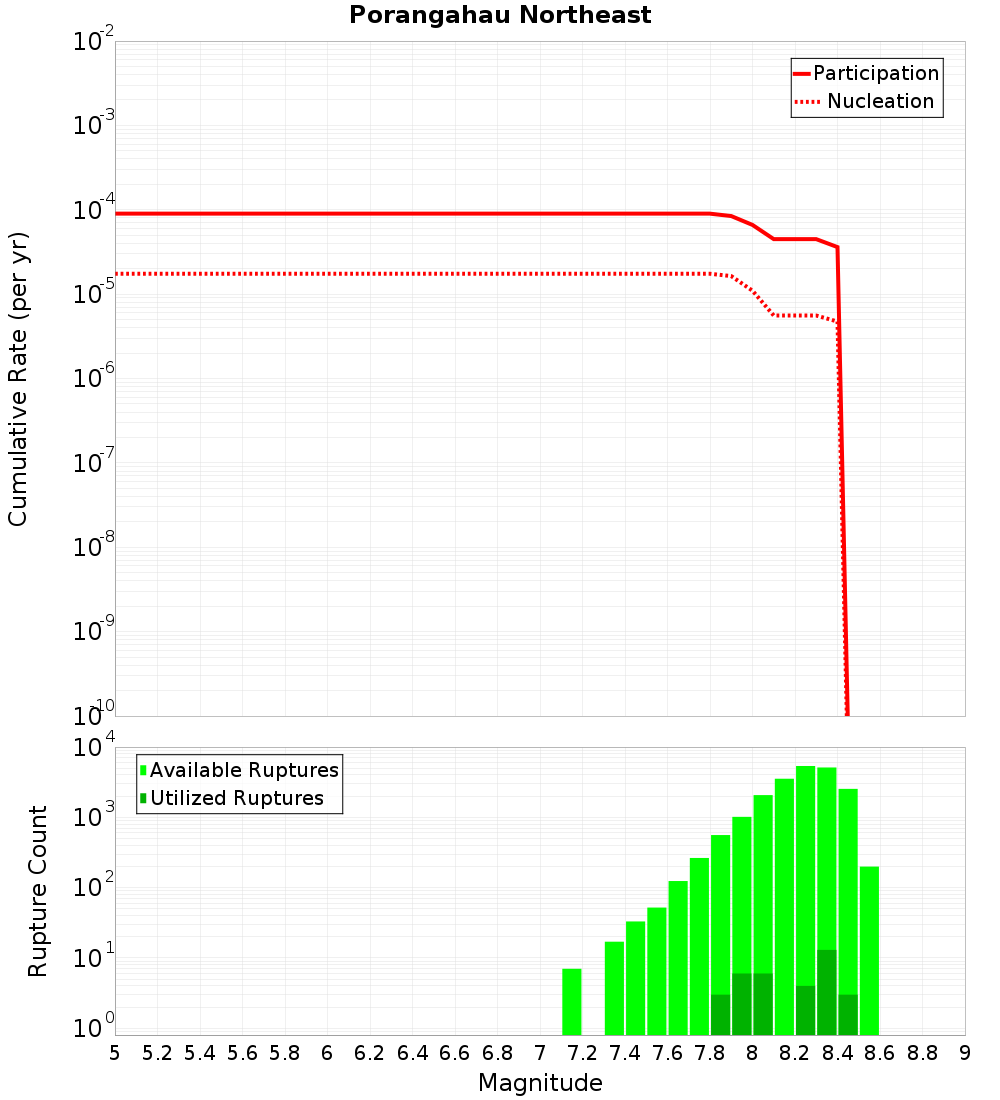

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

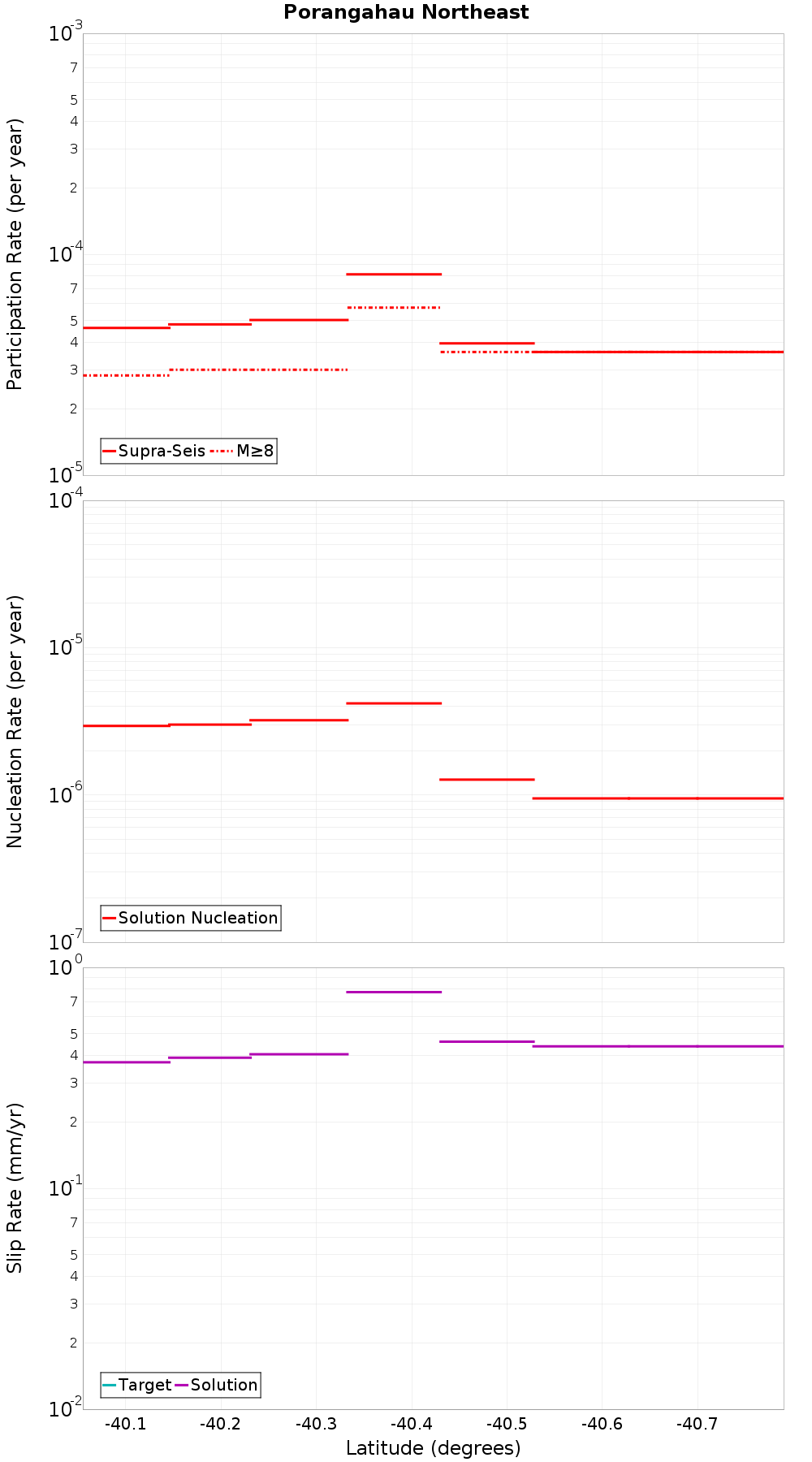

Along-Strike Values

(top)

Along-strike plot

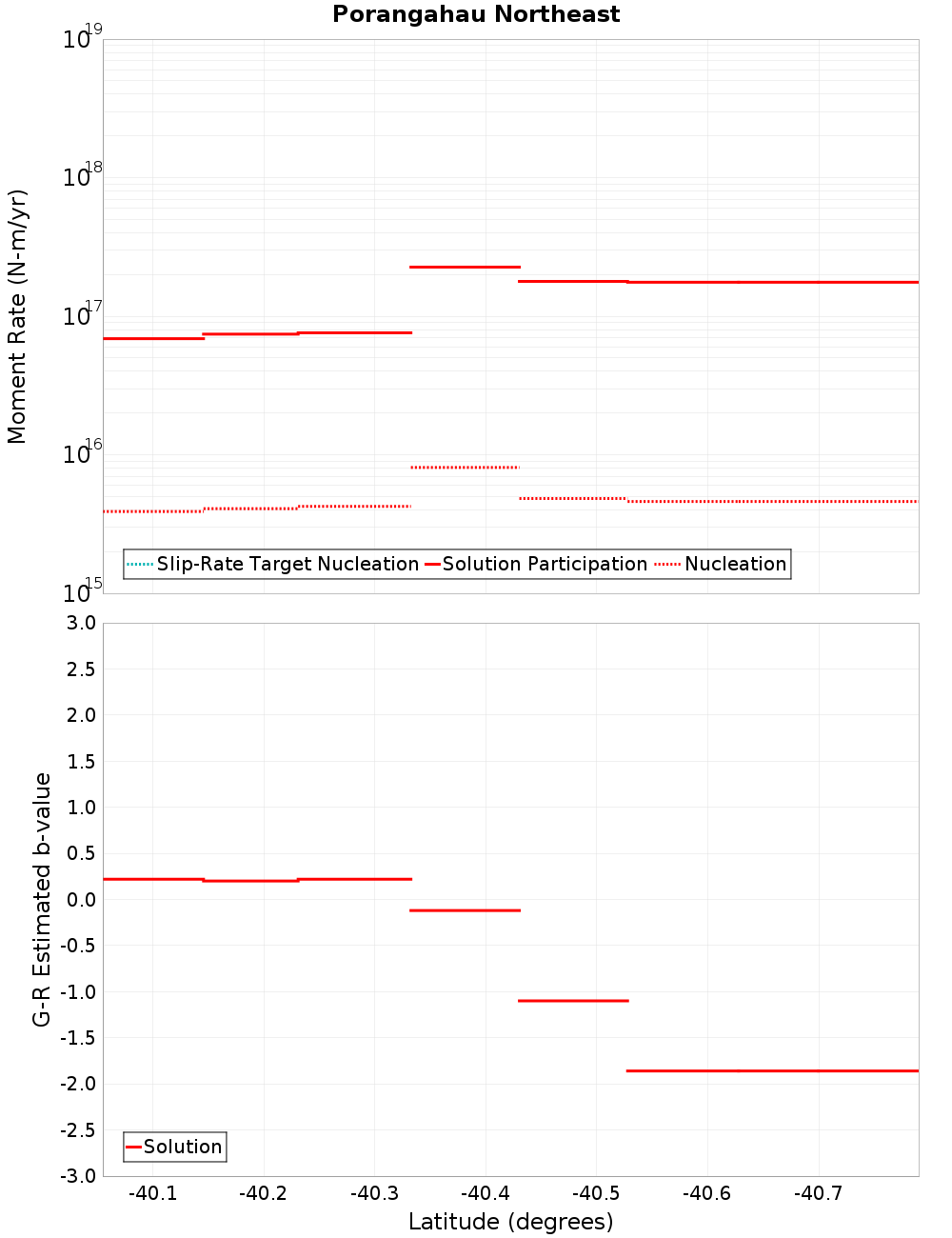

Moment-Rates and b-Values

(top)

Along-strike plot

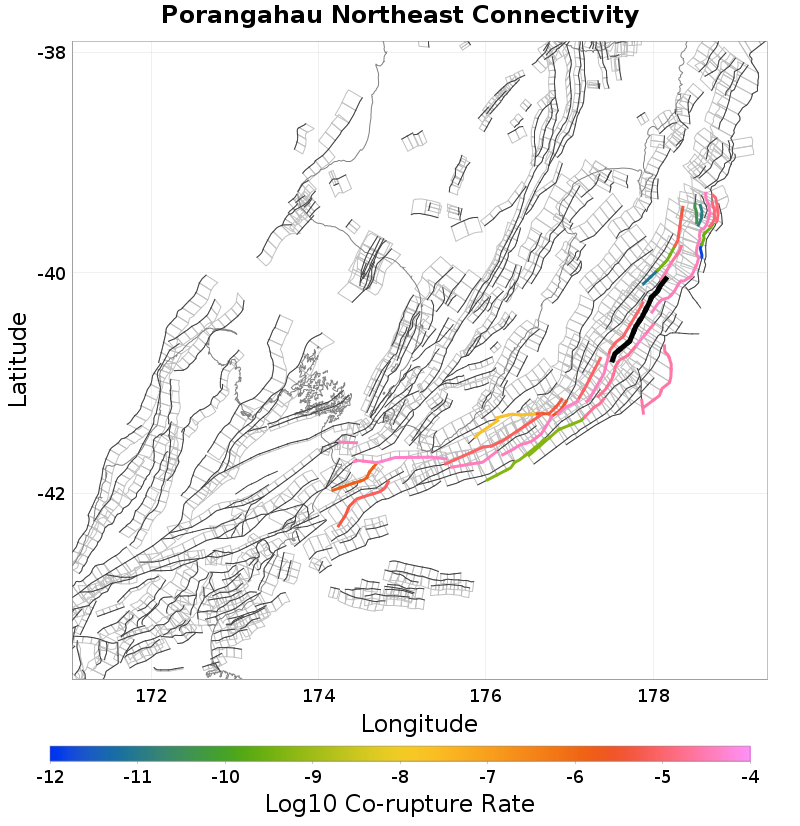

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Paoanui Ridge North, 0.1 km away
PorWest2 - PaoanuiRSouth, 0.63 km away
Porangahau Ridge, 2.7 km away
Ritchie West 1, 2.87 km away
Akitio Trough West, 2.96 km away
Rock Garden - Ritchie East, 3.43 km away
Omakere Ridge, 6.84 km away
Porangahau Basin, 7.17 km away
Akitio Ridge, 9.59 km away
Omakere South, 9.71 km away
Aorangi Trough, 11.55 km away
Rock Garden - Ritchie East 1, 13.27 km away
Uruti East - PorWest 1, 14.3 km away
F16 - Central, 14.86 km away

Paoanui Ridge North, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count2,101
Co-rupture Rate3.227536E-5

PorWest2 - PaoanuiRSouth, 0.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count912
Co-rupture Rate0.0

Porangahau Ridge, 2.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count16,196
Co-rupture Rate4.4847155E-5

Ritchie West 1, 2.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count1,247
Co-rupture Rate6.531118E-6

Akitio Trough West, 2.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count3,665
Co-rupture Rate4.502241E-5

Rock Garden - Ritchie East, 3.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count9,675
Co-rupture Rate3.6086494E-5

Omakere Ridge, 6.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count544
Co-rupture Rate0.0

Porangahau Basin, 7.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count11,659
Co-rupture Rate4.4846664E-5

Akitio Ridge, 9.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Omakere South, 9.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?true
Co-rupture Count207
Co-rupture Rate0.0

Aorangi Trough, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count3,386
Co-rupture Rate1.9193843E-5

Rock Garden - Ritchie East 1, 13.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count2,105
Co-rupture Rate2.587342E-10

Uruti East - PorWest 1, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?true
Directly Connected?false
Co-rupture Count1,001
Co-rupture Rate2.5745812E-6

F16 - Central, 14.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTEuMFVTaDdi
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
