Ruahine: North Details

Property	Value
Rupture Count	33,199
Ruptures Above Sect Min Mag	33,195
Ruptures w/ Nonzero Rates	396
Magnitude Range	[6.87, 8.44]
Length Range	[24, 940] km
Total Rate	6.183574E-4 /yr
Multi-Fault Rate	5.476367E-4 /yr (88.56%)
Directly-Connected Faults	6
All Co-Rupturing Faults	126

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

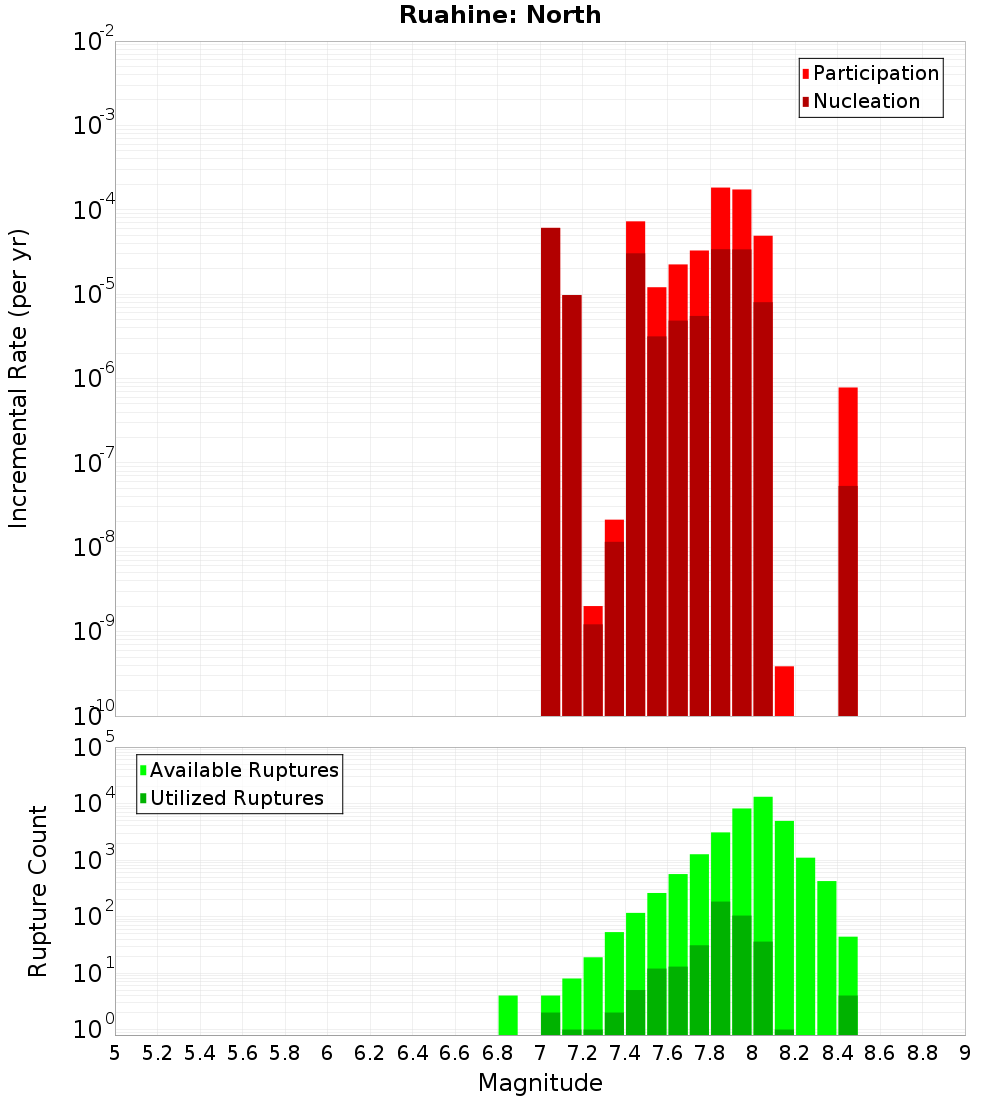

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

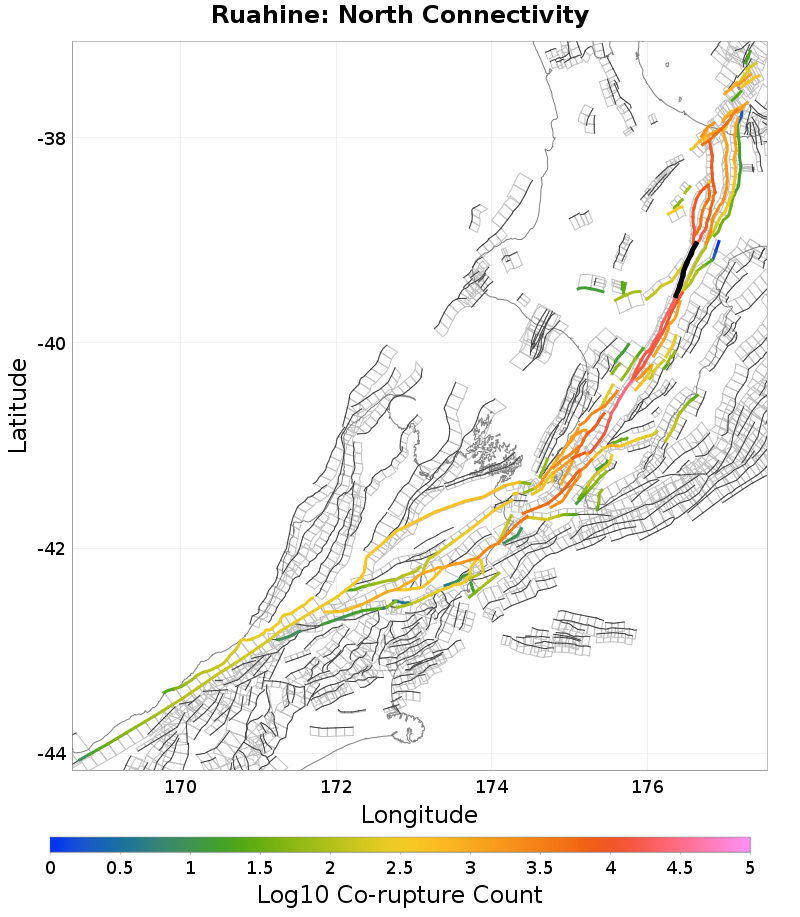

Connectivity

Nearby Sections

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.72 km away
Wakarara, 3.77 km away
Mohaka: South, 4.35 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.12 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away

Waiohau: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTUuMEpYRE5G
Connected?	true
Directly Connected?	true
Co-rupture Count	15,350
Co-rupture Rate	2.5985093E-4

Ruahine: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTUuMEpYRE5G
Connected?	true
Directly Connected?	true
Co-rupture Count	20,523
Co-rupture Rate	3.1137734E-4

Kaweka, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTUuMEpYRE5G
Connected?	true
Directly Connected?	true
Co-rupture Count	187
Co-rupture Rate	1.053937E-4

Wheao: South, 2.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTUuMEpYRE5G
Connected?	true
Directly Connected?	true
Co-rupture Count	12,476
Co-rupture Rate	2.0167421E-4

Wakarara, 3.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTUuMEpYRE5G
Connected?	true
Directly Connected?	true
Co-rupture Count	1,310
Co-rupture Rate	6.3993575E-5

Mohaka: South, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTUuMEpYRE5G
Connected?	true
Directly Connected?	true
Co-rupture Count	18,477
Co-rupture Rate	1.9286104E-4

Mohaka: North, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTUuMEpYRE5G
Connected?	true
Directly Connected?	false
Co-rupture Count	157
Co-rupture Rate	5.988897E-10

Patoka - Rangiora, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTUuMEpYRE5G
Connected?	true
Directly Connected?	false
Co-rupture Count	94
Co-rupture Rate	0.0

Te Whaiti South, 9.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTUuMEpYRE5G
Connected?	true
Directly Connected?	false
Co-rupture Count	7,167
Co-rupture Rate	2.2297334E-4

Whakatane: South, 11.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTUuMEpYRE5G
Connected?	true
Directly Connected?	false
Co-rupture Count	2,292
Co-rupture Rate	5.988897E-10

Waimana: South, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTUuMEpYRE5G
Connected?	true
Directly Connected?	false
Co-rupture Count	296
Co-rupture Rate	0.0
