Kowhai Details

Property	Value
Rupture Count	7,456
Ruptures Above Sect Min Mag	7,428
Ruptures w/ Nonzero Rates	268
Magnitude Range	[6.48, 8.39]
Length Range	[15, 806] km
Total Rate	8.003001E-4 /yr
Multi-Fault Rate	8.003001E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	209

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

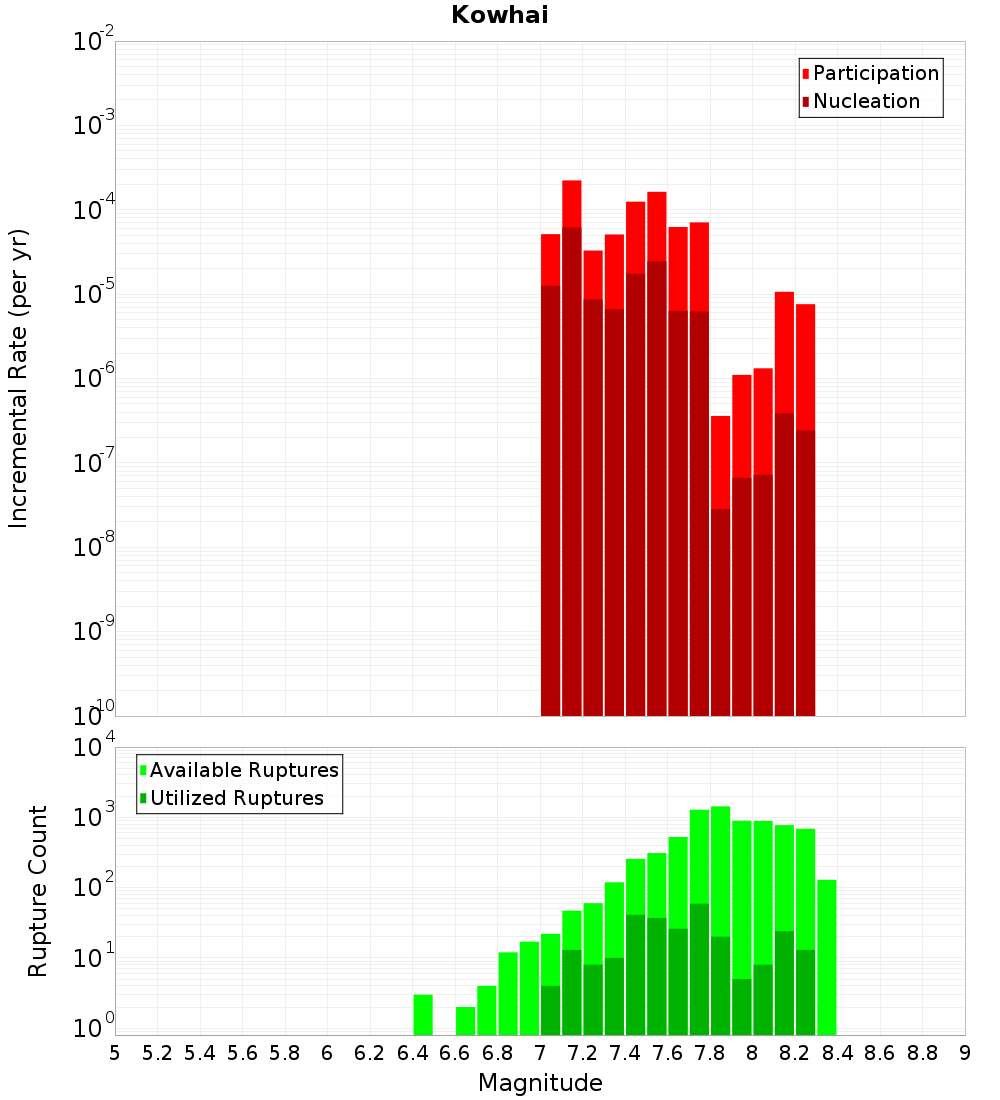

Magnitude-Frequency Distribution

Incremental	Cumulative

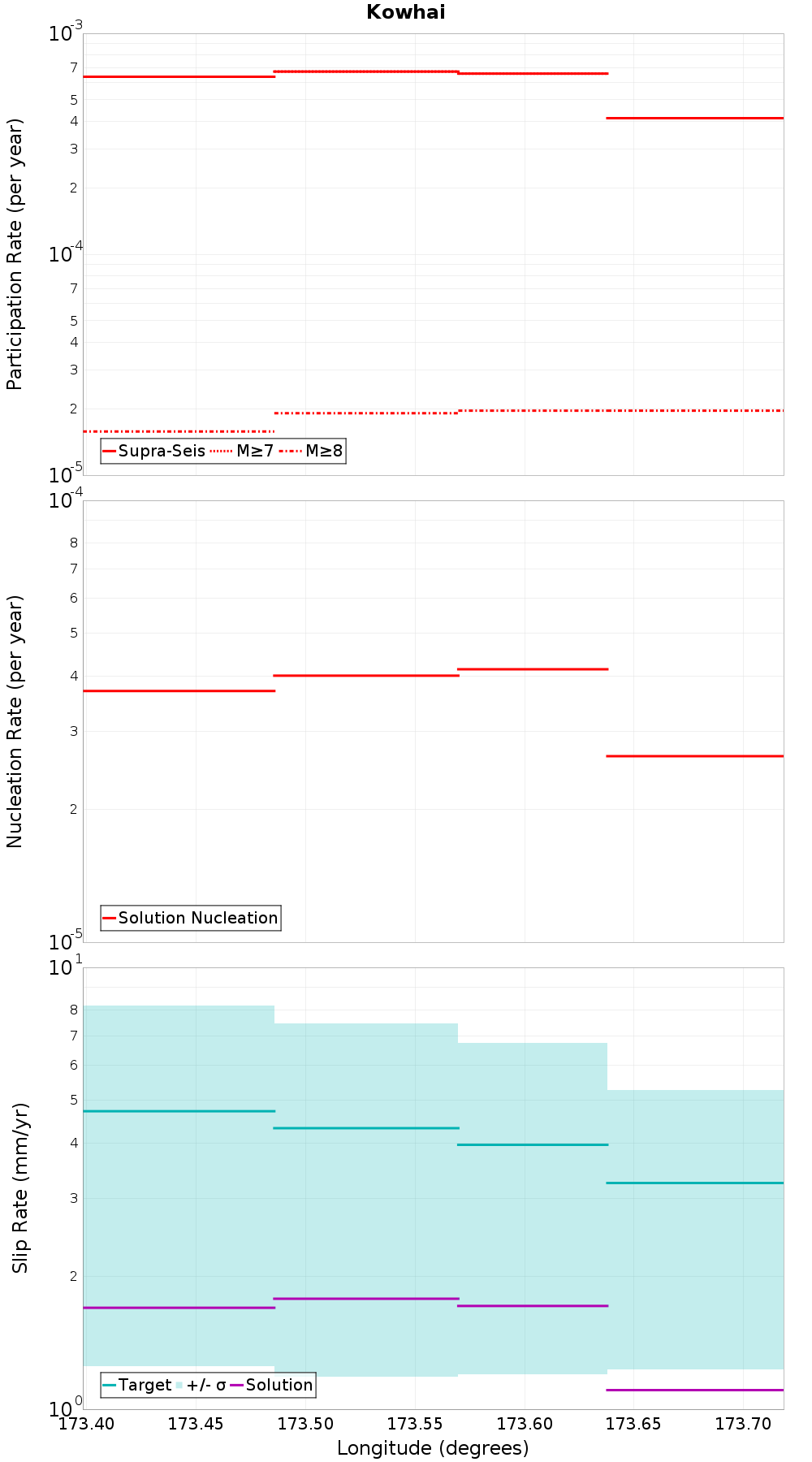

Along-Strike Values

Moment-Rates and b-Values

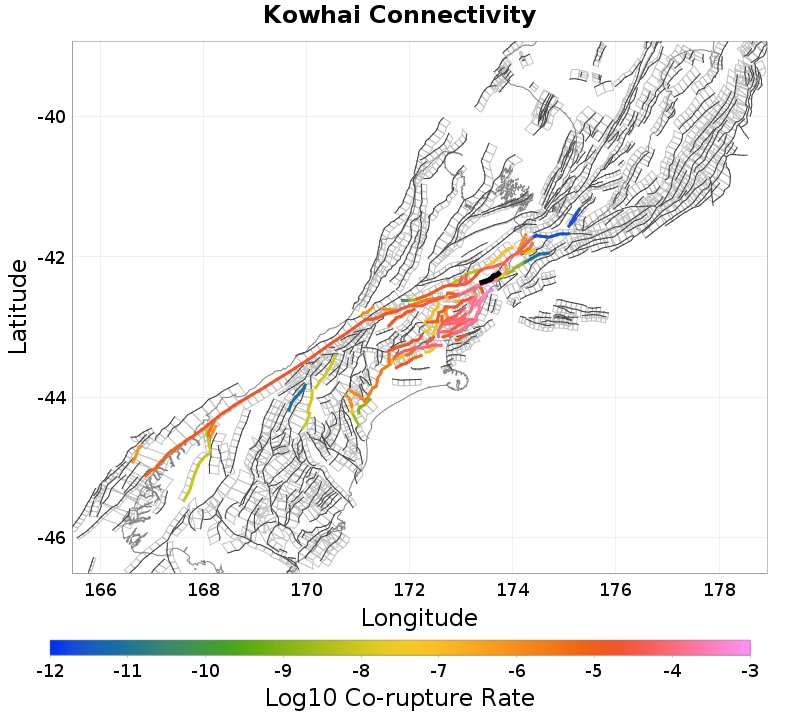

Connectivity

Nearby Sections

Fault Section
Jordan, 0.03 km away
Upper Kowhai - Manakau, 0.06 km away
Offshore Splay Thrust, 0.18 km away
Hope: Conway, 0.31 km away
Hope: Seaward, 1.7 km away
Papatea, 4.46 km away
Kaikoura - Mangamaunu, 5.92 km away
Hundalee, 7.44 km away
Kaikoura 2, 7.44 km away
StoneJug, 7.51 km away
Leader: North, 9.28 km away
Fidget, 13.39 km away
Elliott, 14.44 km away

Jordan, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	false
Co-rupture Count	50
Co-rupture Rate	0.0

Upper Kowhai - Manakau, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	641
Co-rupture Rate	3.5317306E-4

Offshore Splay Thrust, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	249
Co-rupture Rate	0.0

Hope: Conway, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,913
Co-rupture Rate	1.9537417E-4

Hope: Seaward, 1.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	693
Co-rupture Rate	2.7645141E-8

Papatea, 4.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	2,532
Co-rupture Rate	2.7754288E-7

Kaikoura - Mangamaunu, 5.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hundalee, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	2,404
Co-rupture Rate	5.386439E-4

Kaikoura 2, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

StoneJug, 7.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	false
Co-rupture Count	107
Co-rupture Rate	2.0247557E-5

Leader: North, 9.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	9.600032E-5

Fidget, 13.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	552
Co-rupture Rate	6.7265726E-5

Elliott, 14.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	false
Co-rupture Count	50
Co-rupture Rate	2.0416453E-5
