Veil Stream Details

Property	Value
Rupture Count	15,881
Ruptures Above Sect Min Mag	15,874
Ruptures w/ Nonzero Rates	235
Magnitude Range	[6.67, 8.29]
Length Range	[17, 691] km
Total Rate	6.1159715E-4 /yr
Multi-Fault Rate	6.1159715E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	195

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

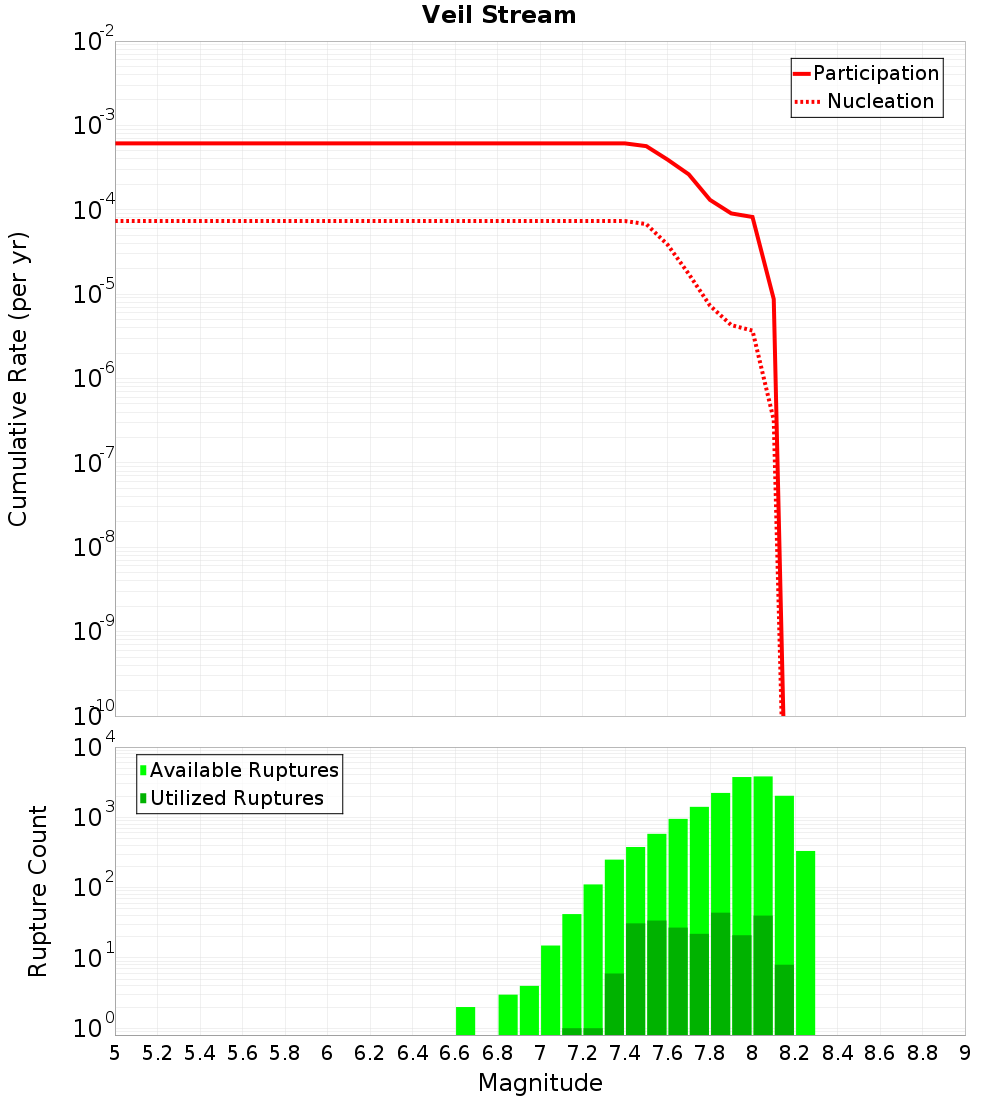

Magnitude-Frequency Distribution

Incremental	Cumulative

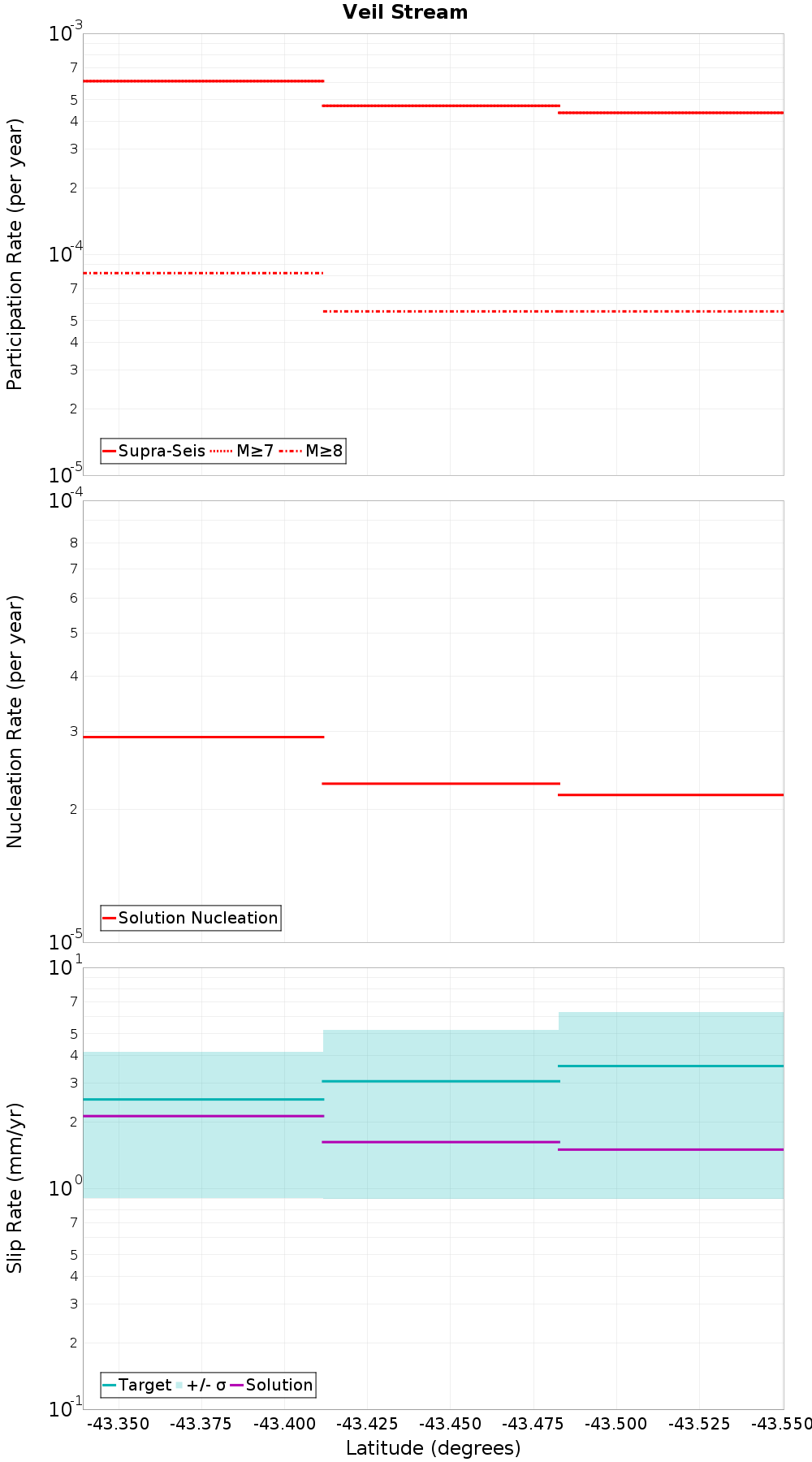

Along-Strike Values

Moment-Rates and b-Values

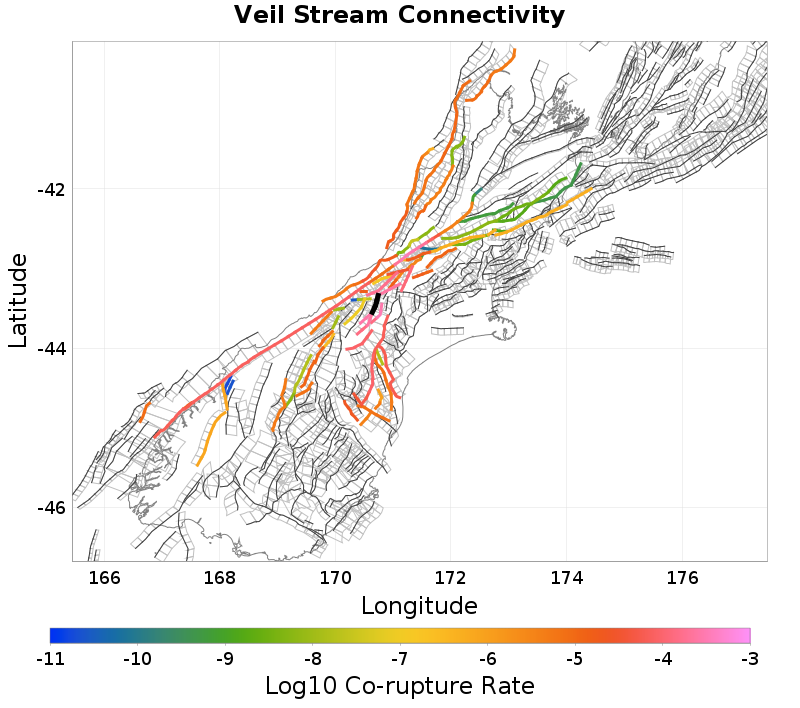

Connectivity

Nearby Sections

Fault Section
Gunn Glacier, 0.1 km away
Macaulay 2, 0.15 km away
Observation, 0.27 km away
Alpine: Jacksons to Kaniere, 0.45 km away
Lilybank, 1.08 km away
Hohonu South, 1.86 km away
Two Thumb Stream, 5.35 km away
Lord Range, 5.41 km away
Mt Adams, 5.84 km away
Jollie Range, 7.58 km away
Waitaha, 11.03 km away
Fox Peak, 11.08 km away
Liebig North, 11.19 km away
Potts Range, 12.05 km away
Murchison 1 - Ice Lake, 14.64 km away

Gunn Glacier, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	false
Co-rupture Count	429
Co-rupture Rate	2.1851214E-8

Macaulay 2, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	2,523
Co-rupture Rate	2.622368E-4

Observation, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	2,657
Co-rupture Rate	2.28456E-4

Alpine: Jacksons to Kaniere, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	8,078
Co-rupture Rate	2.8374908E-4

Lilybank, 1.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	5,647
Co-rupture Rate	2.3987882E-4

Hohonu South, 1.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	7,030
Co-rupture Rate	3.4812347E-5

Two Thumb Stream, 5.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	5,089
Co-rupture Rate	3.2064473E-4

Lord Range, 5.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	3,248
Co-rupture Rate	1.7528704E-4

Mt Adams, 5.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,526
Co-rupture Rate	1.6069747E-5

Jollie Range, 7.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

Waitaha, 11.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	1.3066509E-7

Fox Peak, 11.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	false
Co-rupture Count	680
Co-rupture Rate	6.7990055E-5

Liebig North, 11.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

Potts Range, 12.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Murchison 1 - Ice Lake, 14.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTcuMHljVGZY
Connected?	true
Directly Connected?	false
Co-rupture Count	502
Co-rupture Rate	8.8825104E-8
