Backbone Details

Property	Value
Rupture Count	6,010
Ruptures Above Sect Min Mag	6,010
Ruptures w/ Nonzero Rates	112
Magnitude Range	[7.07, 8.39]
Length Range	[24, 539] km
Total Rate	6.9069756E-5 /yr
Multi-Fault Rate	6.9069756E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	68

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

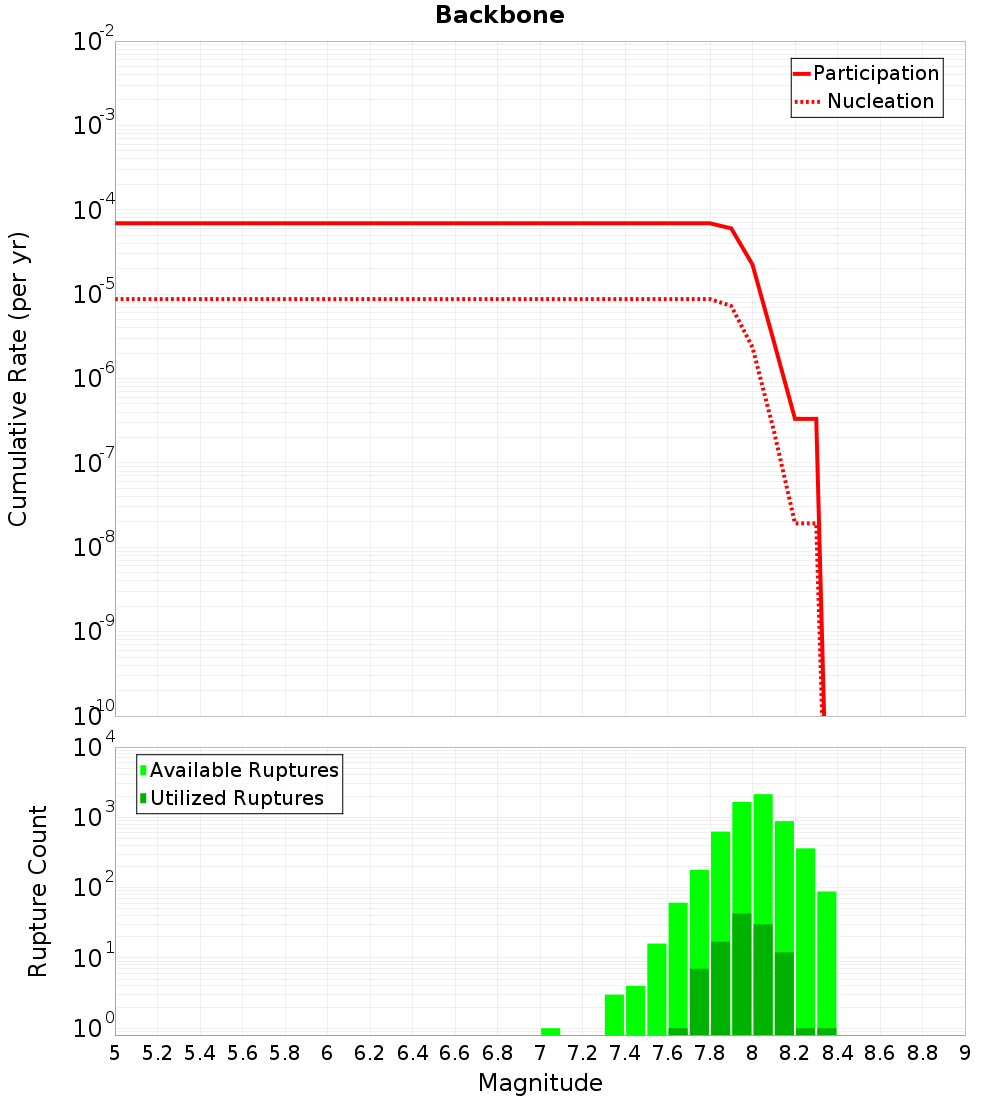

Magnitude-Frequency Distribution

Incremental	Cumulative

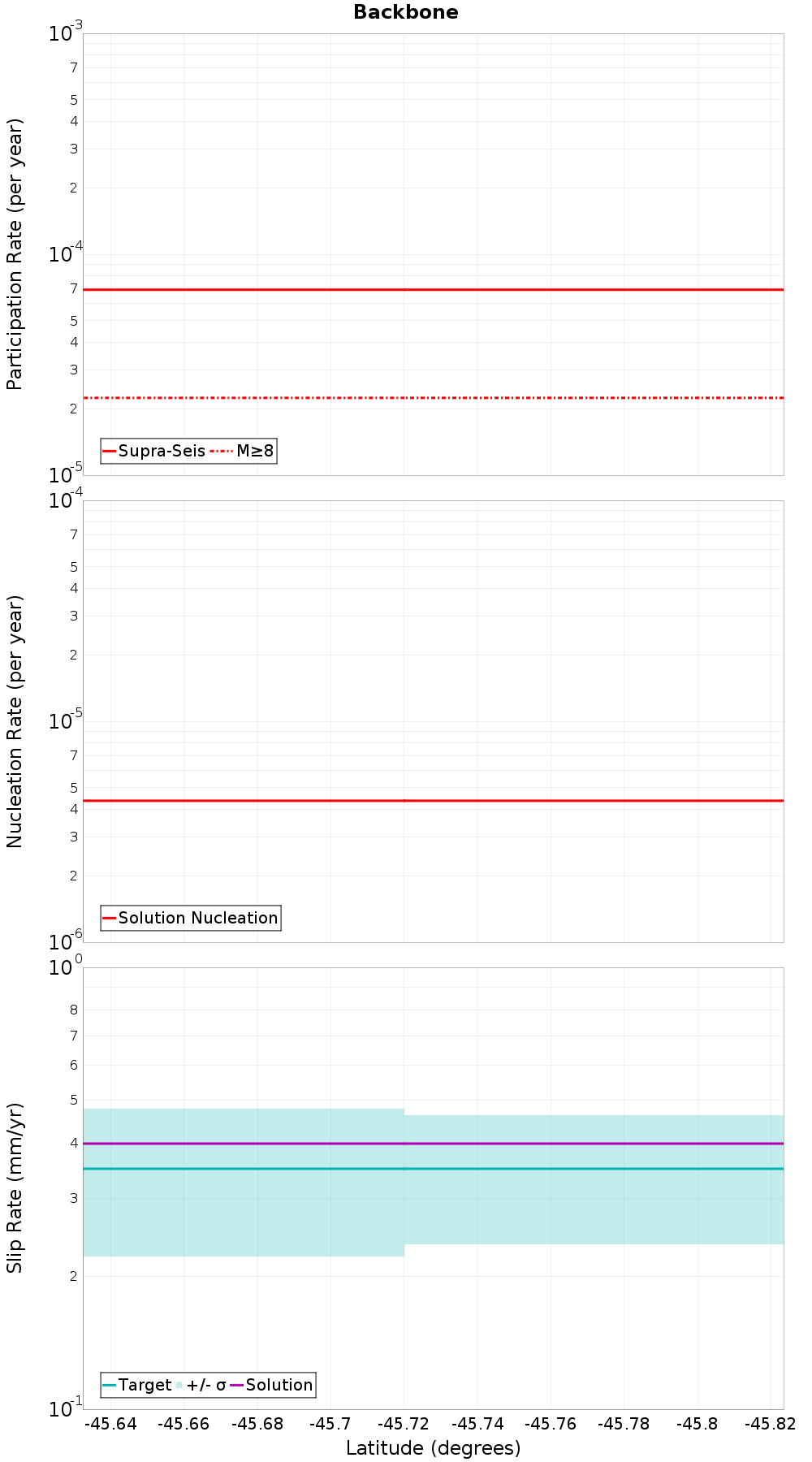

Along-Strike Values

Moment-Rates and b-Values

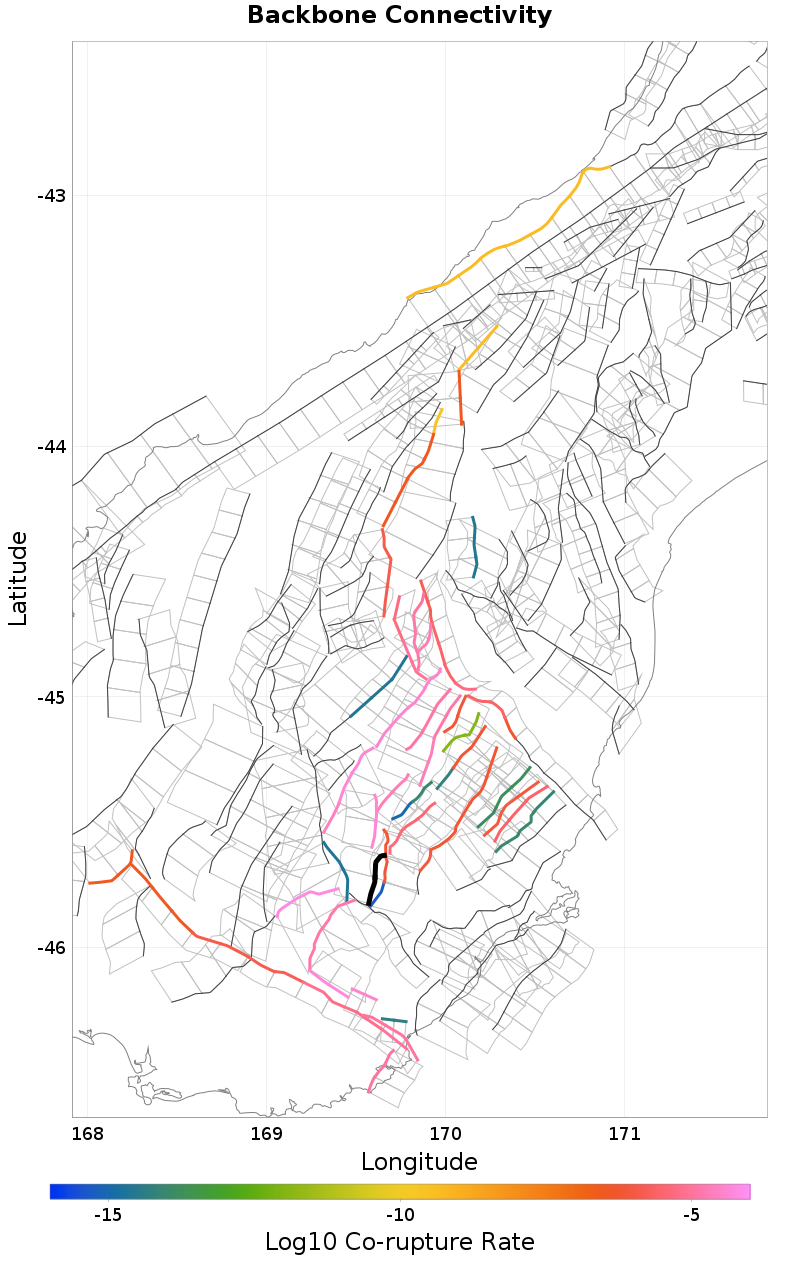

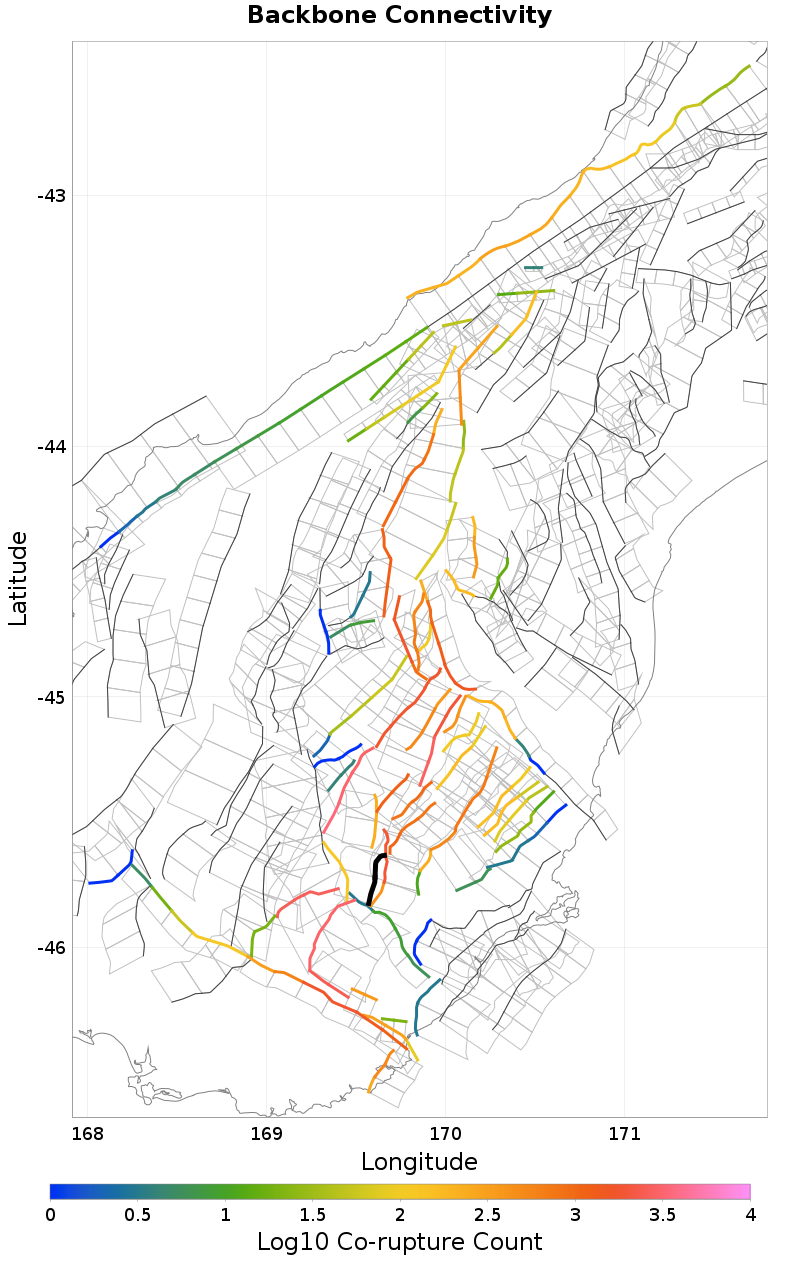

Connectivity

Nearby Sections

Fault Section
Little Valley, 0.41 km away
Beaumont River, 0.6 km away
Tuapeka, 1.03 km away
Blue Mountain, 1.38 km away
Logan Burn, 2.62 km away
Lake Onslow, 4.33 km away
Spylaw, 4.68 km away
Hyde South - The Twins, 6.64 km away
Teviot, 8.32 km away
Wendon Valley, 10.82 km away
Waikaia, 13.79 km away

Little Valley, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	3,678
Co-rupture Rate	6.0157996E-5

Beaumont River, 0.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	1,909
Co-rupture Rate	6.5081855E-7

Tuapeka, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	0.0

Blue Mountain, 1.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	2,992
Co-rupture Rate	1.3675813E-5

Logan Burn, 2.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	1,084
Co-rupture Rate	4.4665017E-6

Lake Onslow, 4.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	230
Co-rupture Rate	4.0311017E-5

Spylaw, 4.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	2,620
Co-rupture Rate	5.539347E-5

Hyde South - The Twins, 6.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	false
Co-rupture Count	234
Co-rupture Rate	9.3622543E-7

Teviot, 8.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	false
Co-rupture Count	120
Co-rupture Rate	2.02515E-15

Wendon Valley, 10.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waikaia, 13.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
