Karangarua Details

Property	Value
Rupture Count	22,829
Ruptures Above Sect Min Mag	22,822
Ruptures w/ Nonzero Rates	367
Magnitude Range	[6.70, 8.39]
Length Range	[16, 676] km
Total Rate	1.1374097E-4 /yr
Multi-Fault Rate	1.1374097E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	207

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

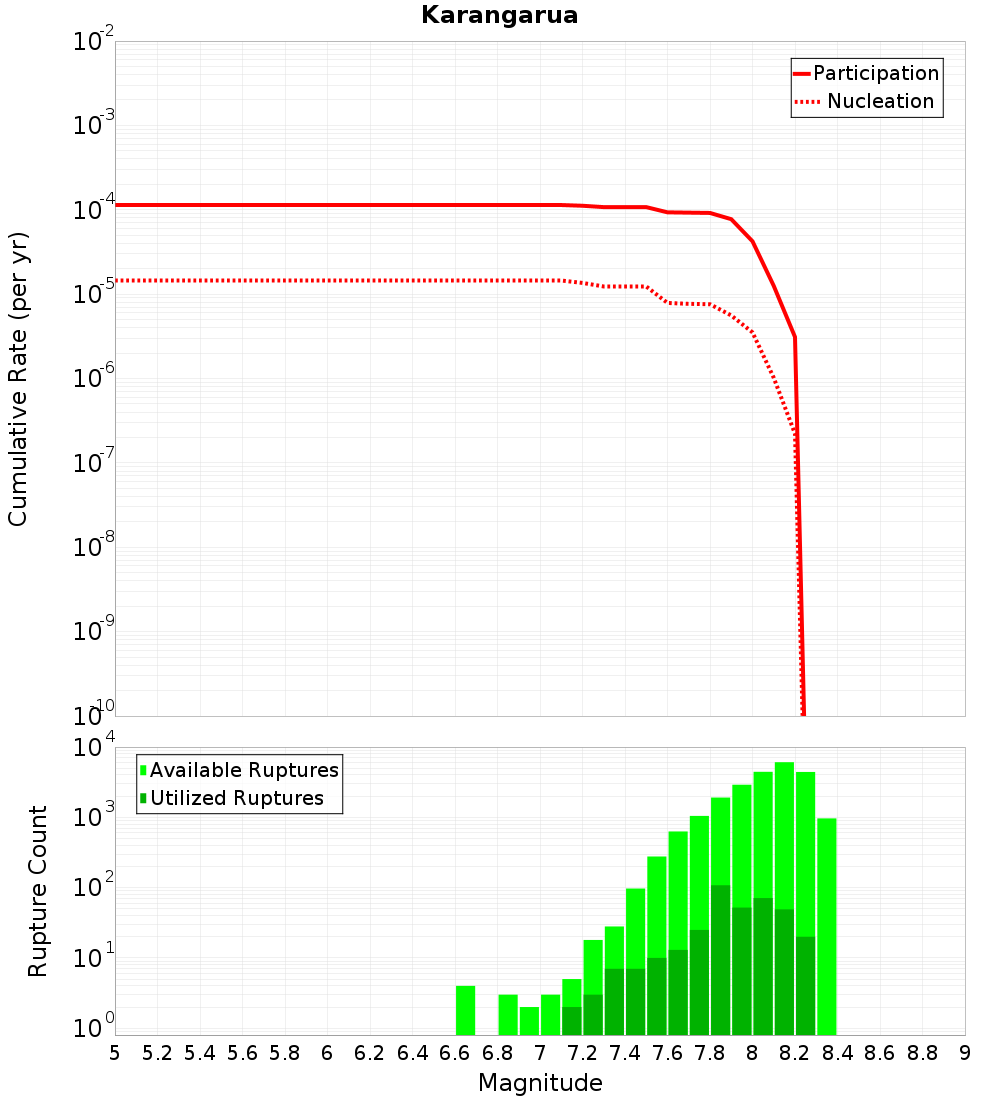

Magnitude-Frequency Distribution

Incremental	Cumulative

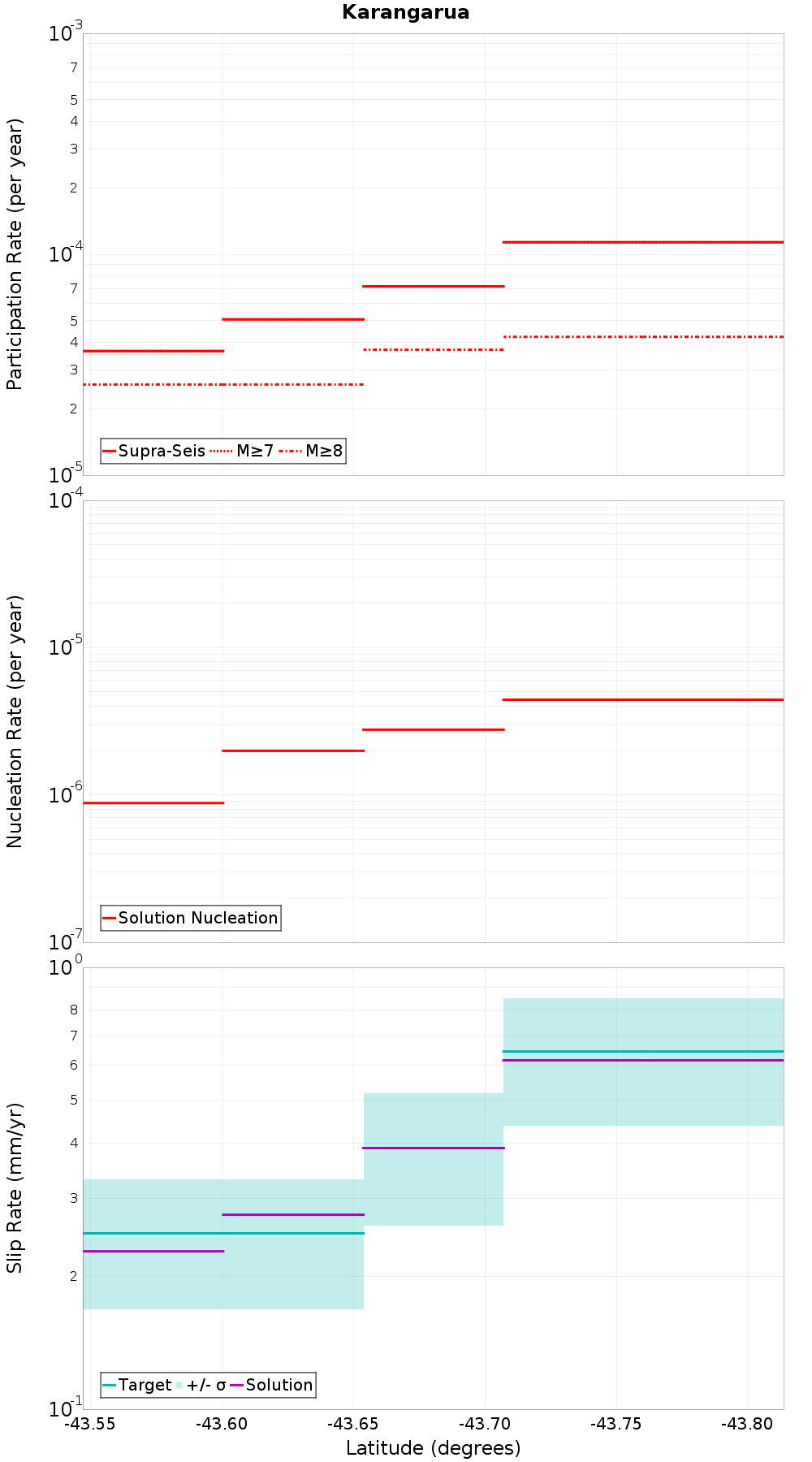

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Jacksons to Kaniere, 0.14 km away
McKerrow - Douglas Duplex, 0.24 km away
Hohonu South, 2.41 km away
Black Blob - Haast Ridge, 2.51 km away
Landsborough 2, 3.37 km away
Great Groove, 3.57 km away
Huxley, 4.17 km away
Straight Creek, 4.85 km away
Murchison 1 - Ice Lake, 5.3 km away
Hopkins, 8.27 km away
Barrier Range, 11.06 km away
Mt Roon, 13.57 km away

Alpine: Jacksons to Kaniere, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	5,365
Co-rupture Rate	8.530274E-5

McKerrow - Douglas Duplex, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	1,419
Co-rupture Rate	1.1624558E-5

Hohonu South, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	21,875
Co-rupture Rate	1.8731893E-5

Black Blob - Haast Ridge, 2.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	672
Co-rupture Rate	2.9452037E-8

Landsborough 2, 3.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	5,311
Co-rupture Rate	1.1974759E-5

Great Groove, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	3,608
Co-rupture Rate	2.4639656E-5

Huxley, 4.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	2,502
Co-rupture Rate	3.797196E-6

Straight Creek, 4.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	true
Co-rupture Count	1,378
Co-rupture Rate	1.6587528E-8

Murchison 1 - Ice Lake, 5.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	false
Co-rupture Count	1,709
Co-rupture Rate	7.72362E-11

Hopkins, 8.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	false
Co-rupture Count	3,084
Co-rupture Rate	3.7962752E-6

Barrier Range, 11.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	true
Directly Connected?	false
Co-rupture Count	2,592
Co-rupture Rate	1.4589357E-5

Mt Roon, 13.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
