Patoka - Rangiora Details

PropertyValue
Rupture Count4,645
Ruptures Above Sect Min Mag4,640
Ruptures w/ Nonzero Rates444
Magnitude Range[6.91, 8.34]
Length Range[22, 605] km
Total Rate2.2294691E-4 /yr
Multi-Fault Rate2.2090941E-4 /yr (99.09%)
Directly-Connected Faults3
All Co-Rupturing Faults84

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

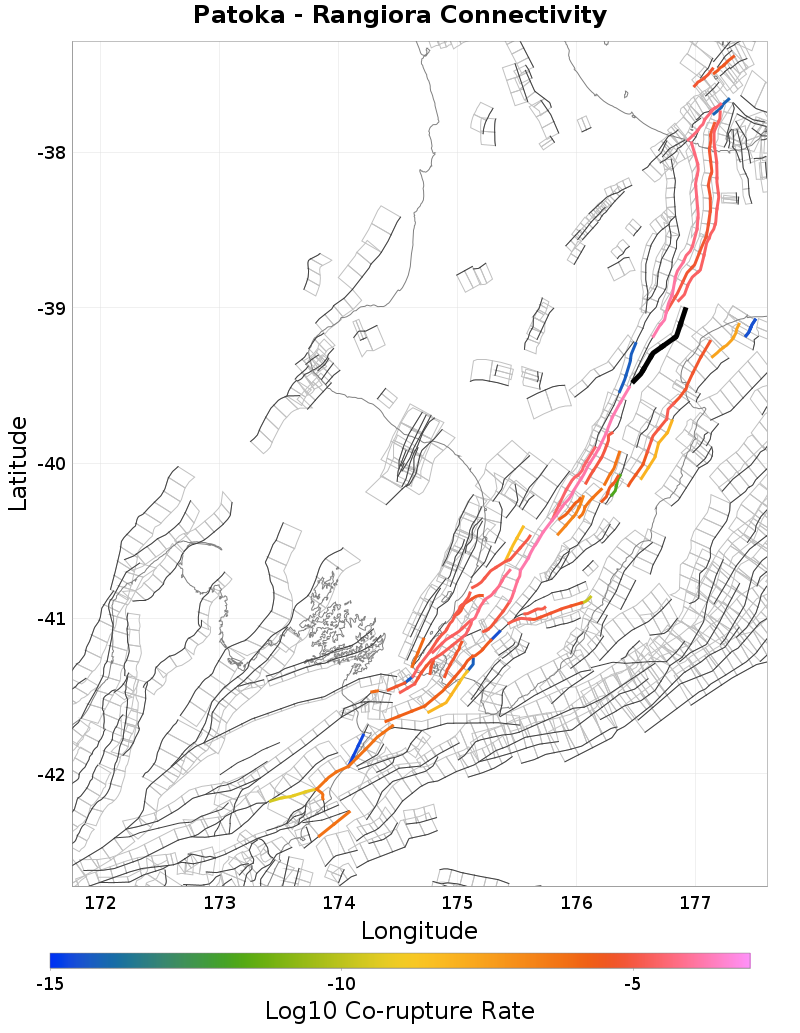

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: North, 0.38 km away
Awanui, 3.5 km away
Mohaka: South, 5.52 km away
Ruahine: North, 6.53 km away
Waiotahi: South, 7.73 km away
Waimana: South, 10.75 km away
Whakatane: South, 12.37 km away
Ruahine: Central, 12.67 km away
Hawke Bay 1, 13.16 km away
Wakarara, 14.99 km away

Mohaka: North, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?true
Co-rupture Count1,990
Co-rupture Rate1.4773713E-4

Awanui, 3.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?true
Co-rupture Count213
Co-rupture Rate1.5467527E-5

Mohaka: South, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?true
Co-rupture Count4,930
Co-rupture Rate1.7797857E-4

Ruahine: North, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?false
Co-rupture Count94
Co-rupture Rate5.3225734E-15

Waiotahi: South, 7.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate2.2425615E-5

Waimana: South, 10.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?false
Co-rupture Count946
Co-rupture Rate1.0921419E-5

Whakatane: South, 12.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?false
Co-rupture Count941
Co-rupture Rate1.1363448E-4

Ruahine: Central, 12.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawke Bay 1, 13.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate2.4876675E-8

Wakarara, 14.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
