Sailor Details

PropertyValue
Rupture Count512
Ruptures Above Sect Min Mag507
Ruptures w/ Nonzero Rates47
Magnitude Range[6.67, 7.96]
Length Range[16, 247] km
Total Rate3.6409252E-5 /yr
Multi-Fault Rate3.6409252E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults27

Table Of Contents

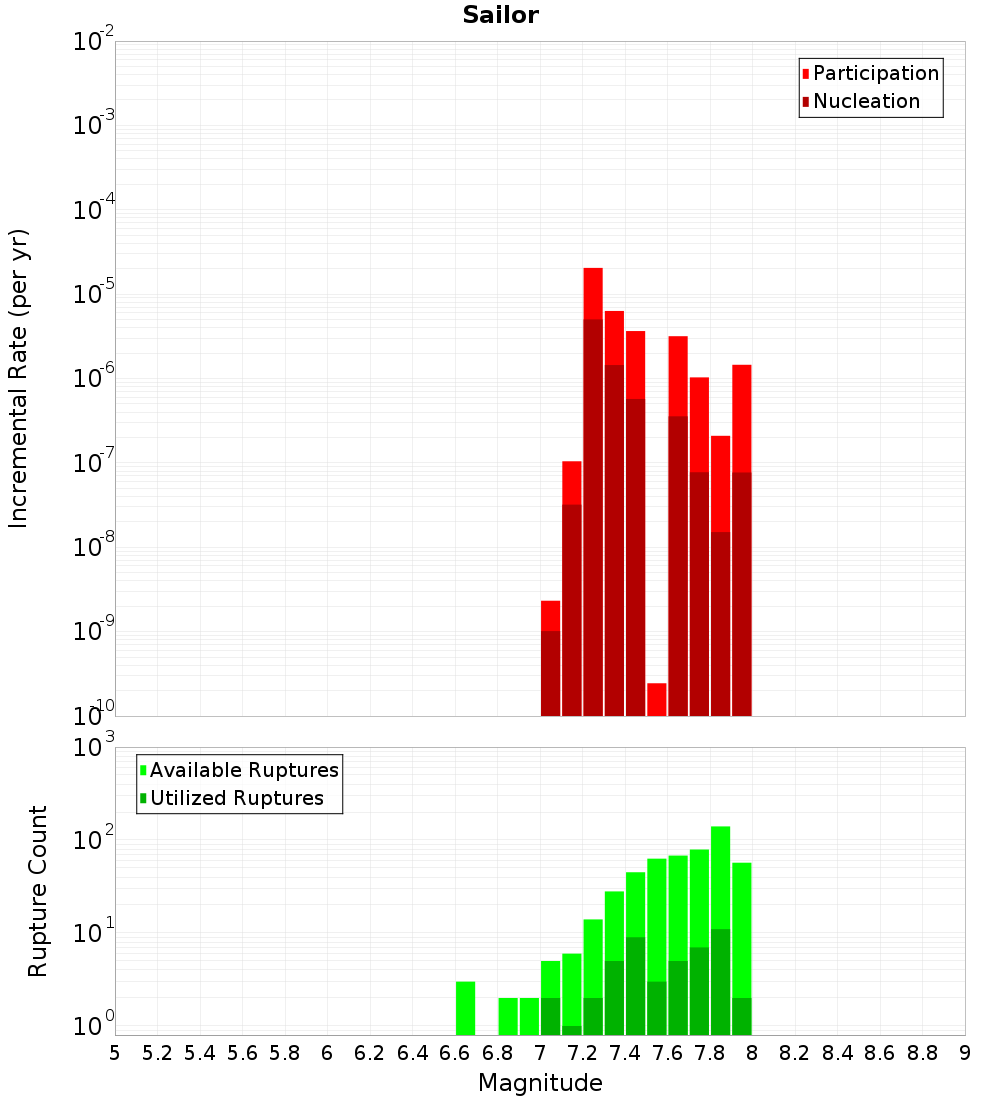

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

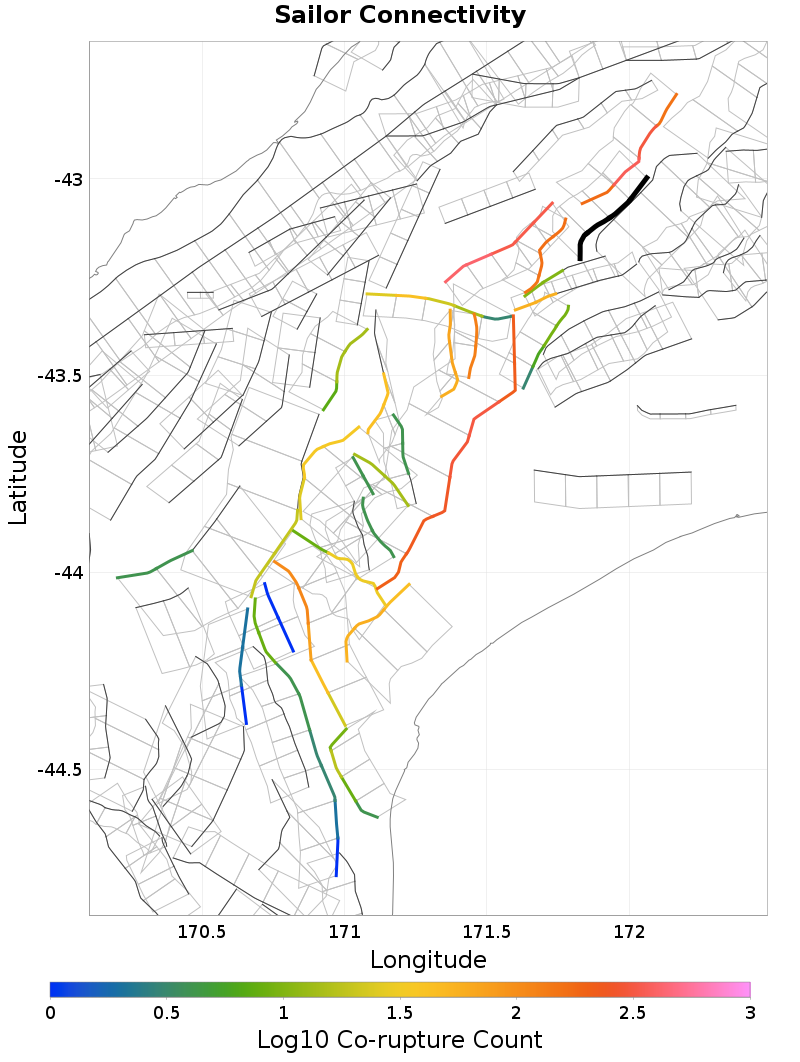

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Harper, 0.17 km away
Esk South, 0.7 km away
Mt White, 1.2 km away
Torlesse, 1.39 km away
Cheeseman, 4.47 km away
Porters Pass, 7.26 km away
Pancake, 10.92 km away
Poulter, 10.96 km away
Bruce, 12.77 km away
Big Ben, 13.73 km away
Lees Valley, 14.17 km away

Harper, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?true
Co-rupture Count419
Co-rupture Rate1.7253706E-5

Esk South, 0.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt White, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?true
Co-rupture Count362
Co-rupture Rate2.0638248E-5

Torlesse, 1.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate1.09156E-14

Cheeseman, 4.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?true
Co-rupture Count160
Co-rupture Rate2.2818736E-5

Porters Pass, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate9.55648E-10

Pancake, 10.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poulter, 10.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Bruce, 12.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Big Ben, 13.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate1.09156E-14

Lees Valley, 14.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTguMFJqd0Zj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
