Awanui 3 Details
| Property | Value |
|---|---|
| Rupture Count | 1,279 |
| Ruptures Above Sect Min Mag | 1,256 |
| Ruptures w/ Nonzero Rates | 21 |
| Magnitude Range | [6.71, 8.29] |
| Length Range | [16, 420] km |
| Total Rate | 2.5790176E-4 /yr |
| Multi-Fault Rate | 1.562589E-5 /yr (6.06%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 12 |
Table Of Contents

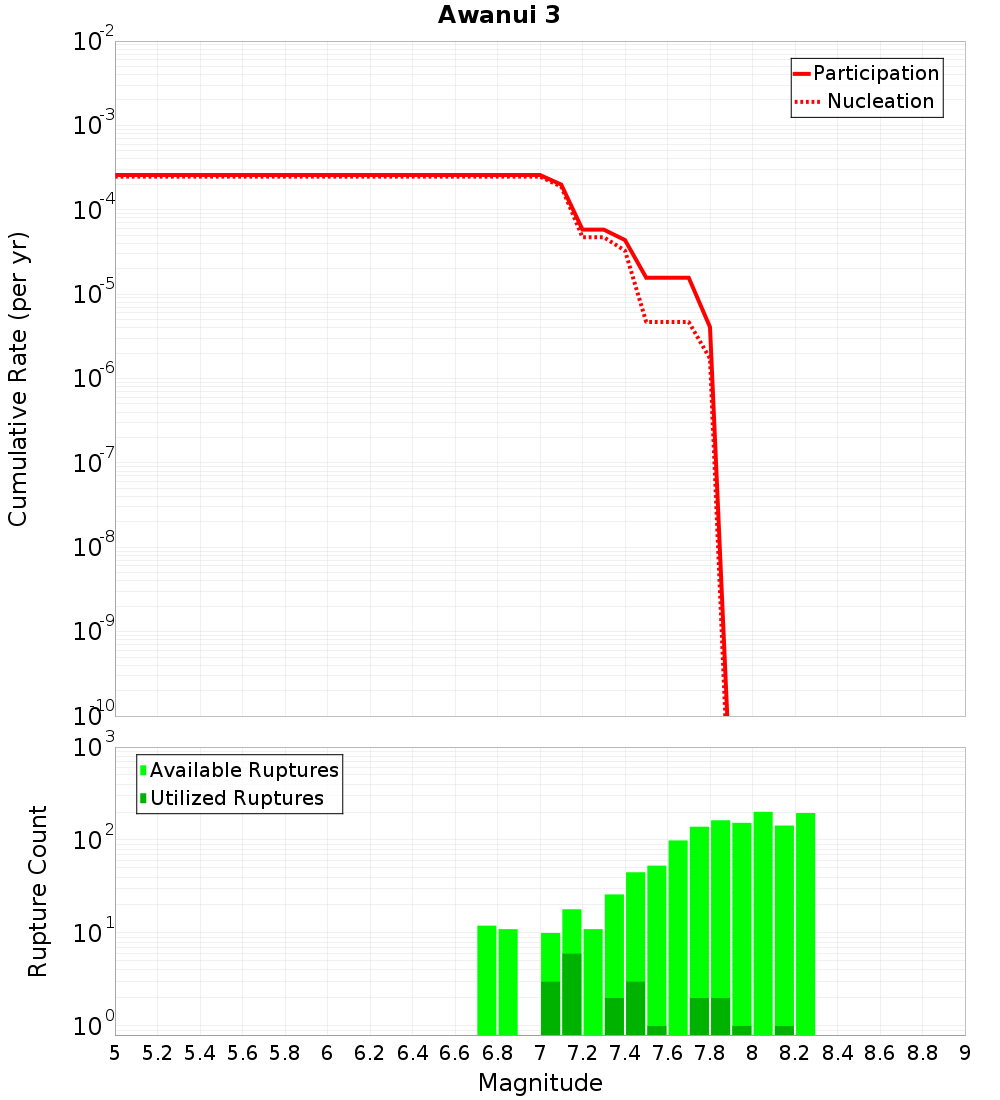

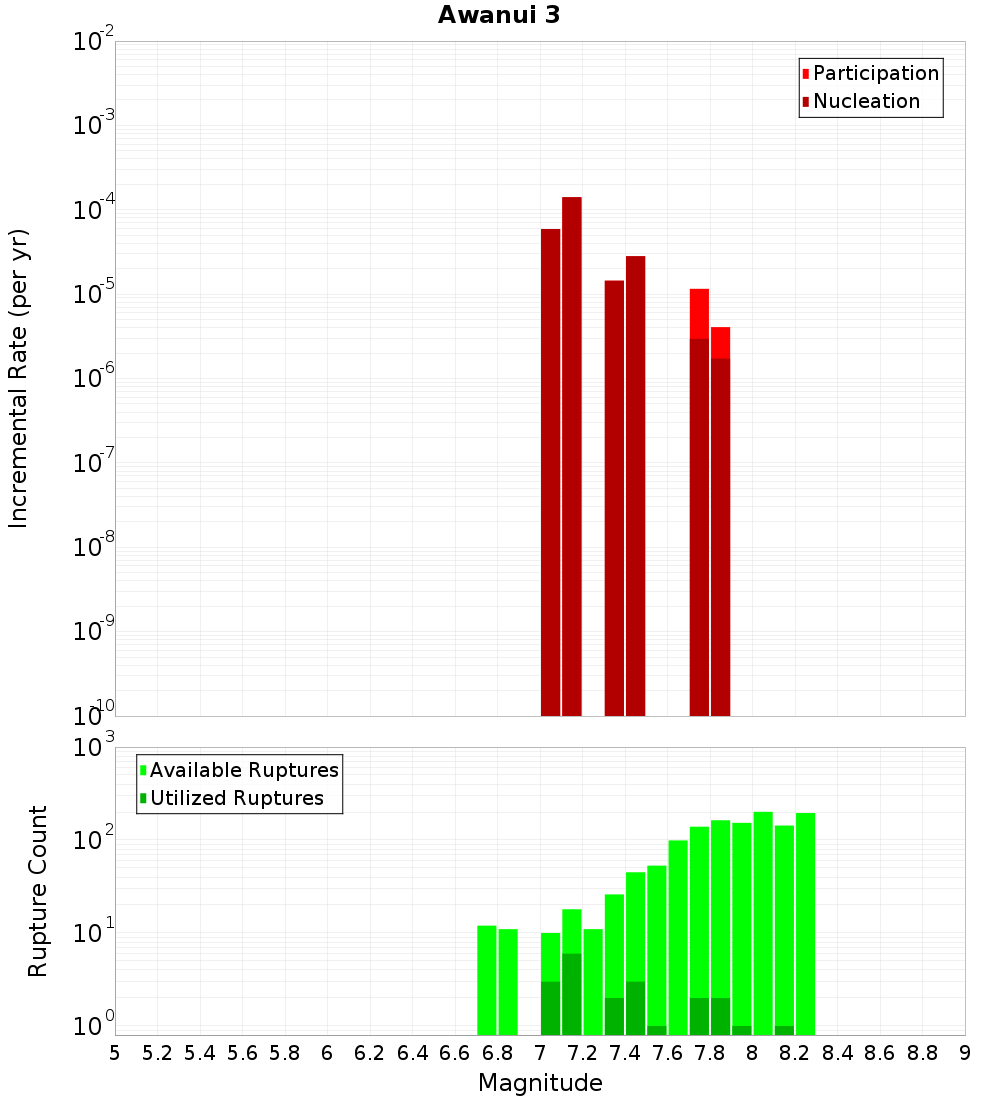

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

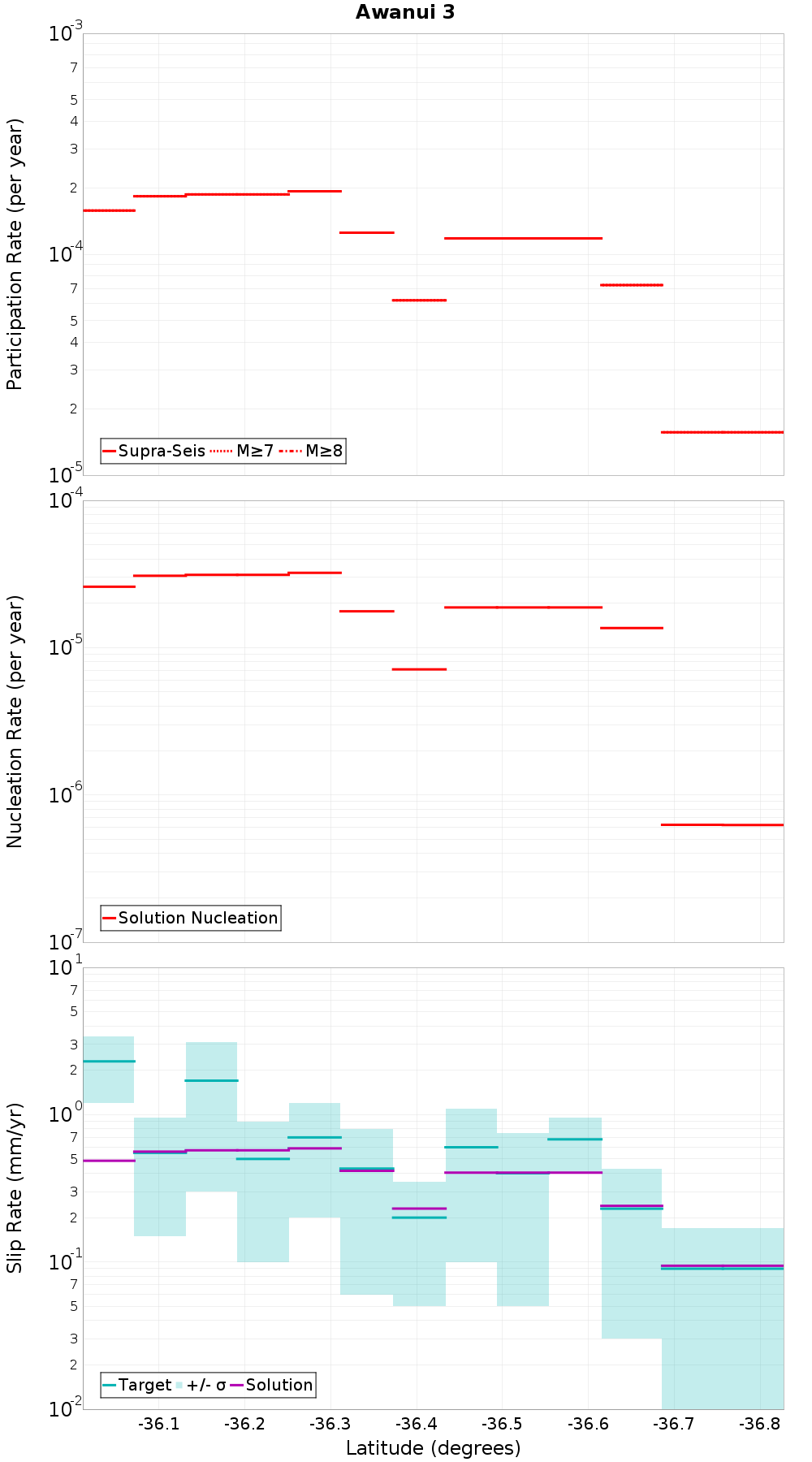

Along-Strike Values
Moment-Rates and b-Values

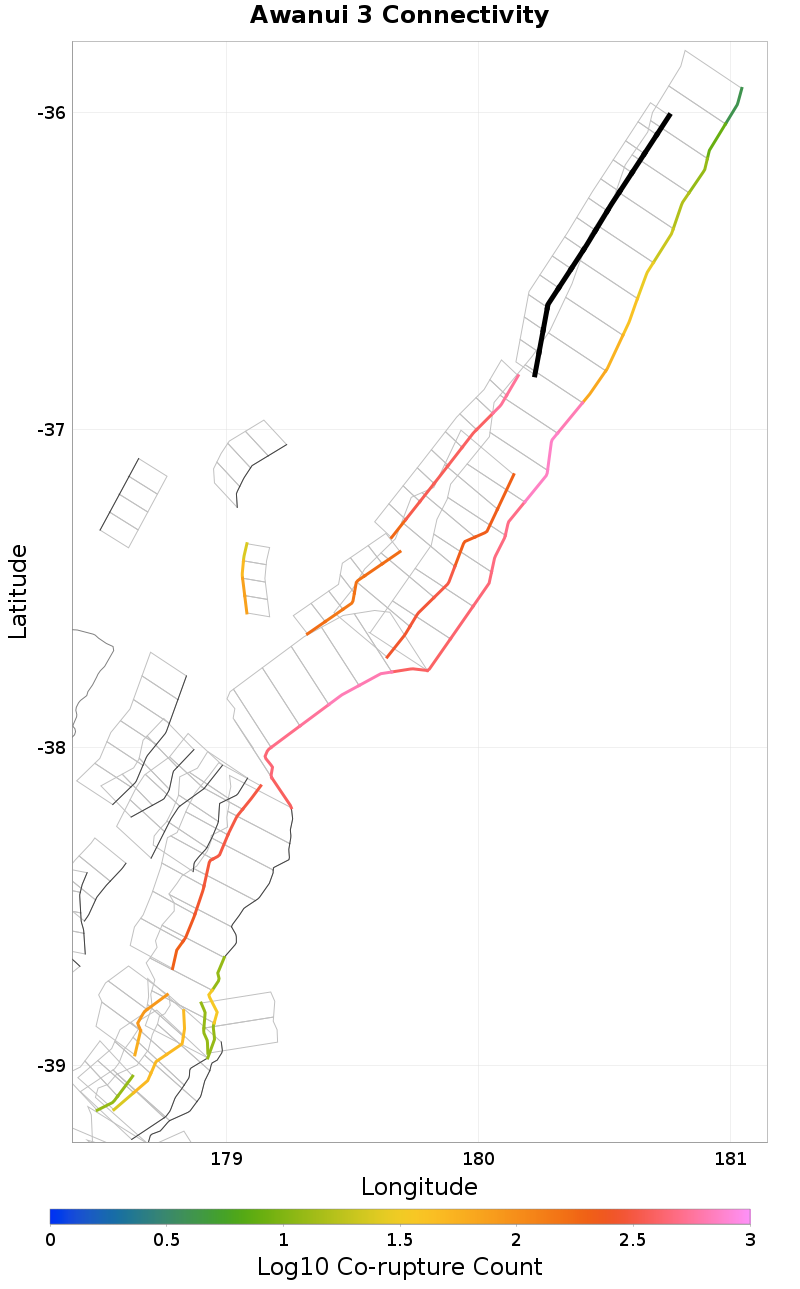

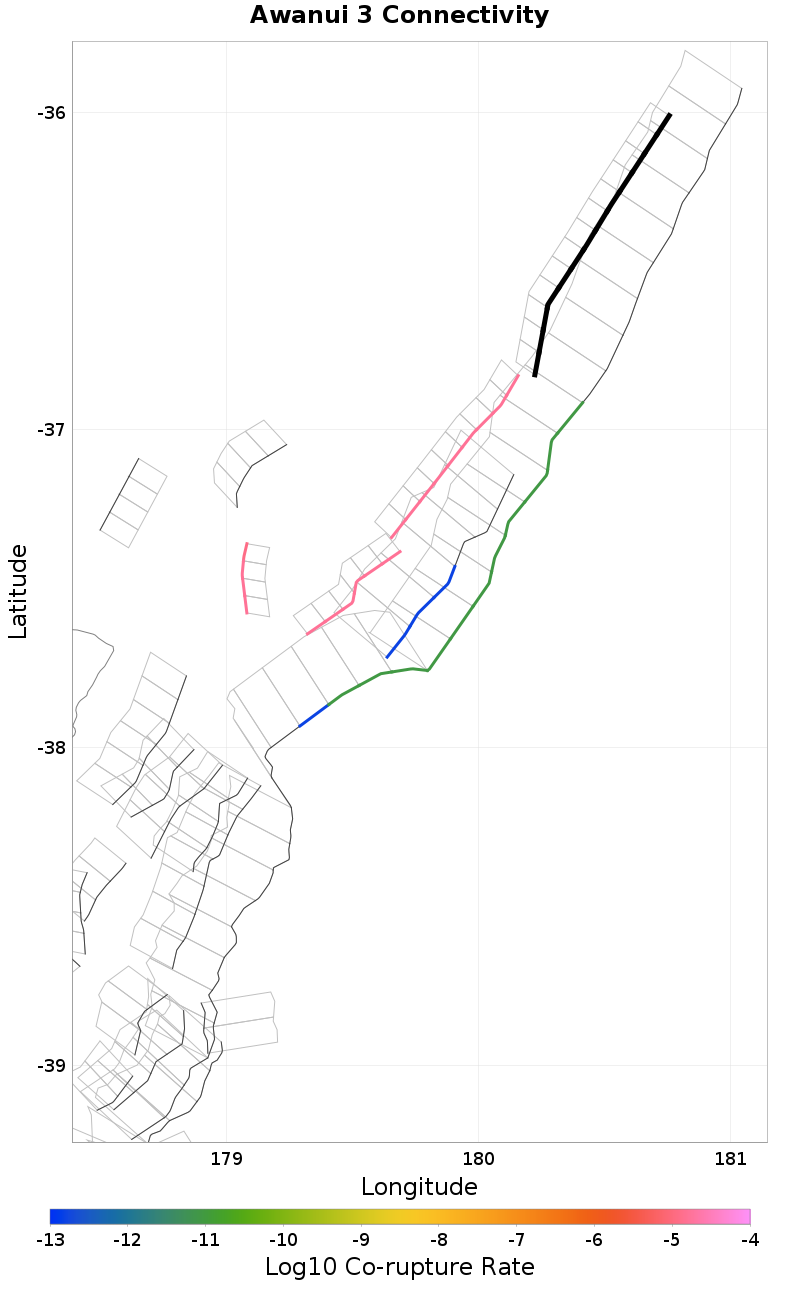

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kermadec Trench, 2.16 km away |
| Awanui 2, 4.72 km away |
Kermadec Trench, 2.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 797 |
| Co-rupture Rate | 8.448851E-12 |
Awanui 2, 4.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 548 |
| Co-rupture Rate | 1.5625881E-5 |
