Cardrona - Hawea Details

Property	Value
Rupture Count	17,921
Ruptures Above Sect Min Mag	17,921
Ruptures w/ Nonzero Rates	118
Magnitude Range	[7.04, 8.63]
Length Range	[21, 797] km
Total Rate	5.2343432E-5 /yr
Multi-Fault Rate	5.2343432E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	106

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

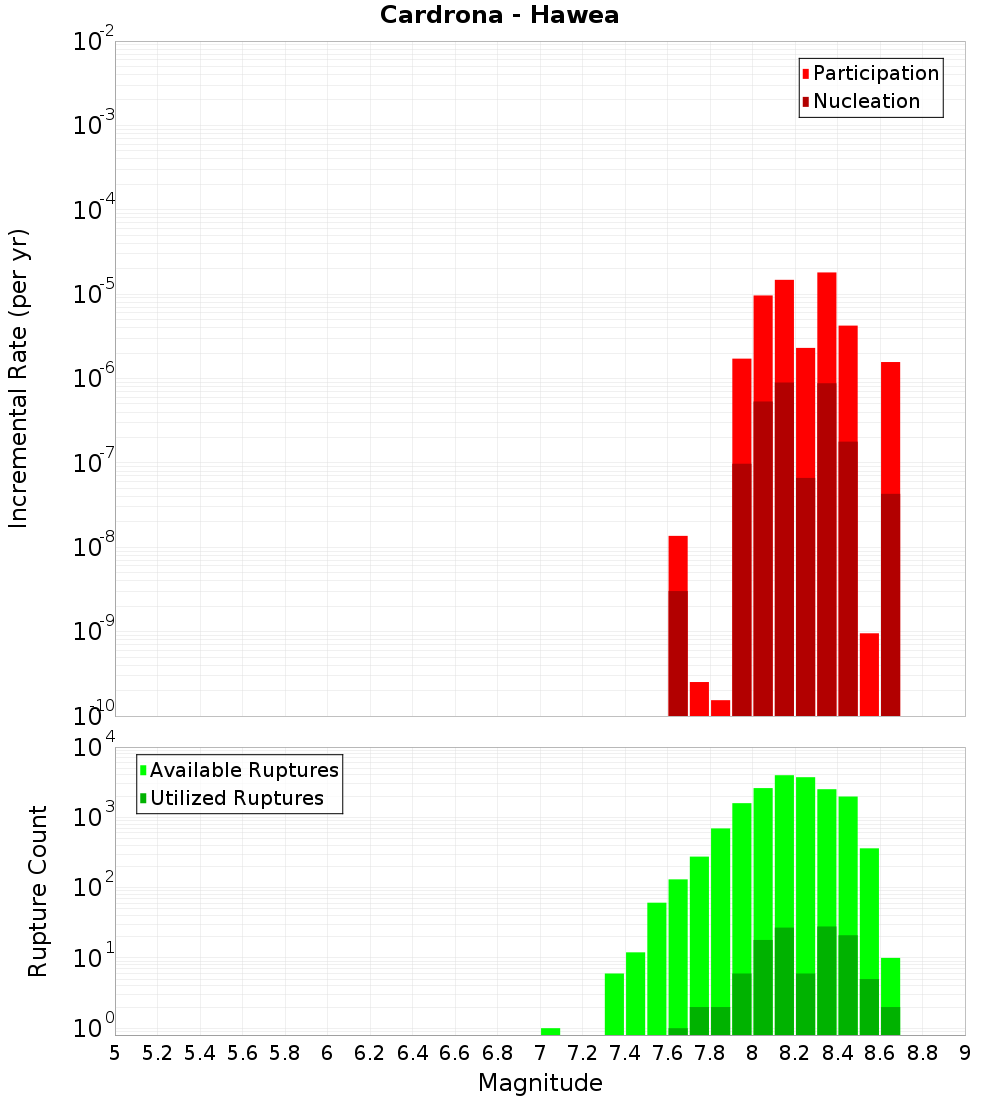

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Motatapu, 0.19 km away
Wanaka, 0.32 km away
Hunter Valley, 0.63 km away
Grandview, 0.97 km away
Paddys Ridge, 1.23 km away
NW Cardrona North, 1.36 km away
Timaru Creek, 4.34 km away
Pisa, 9.89 km away
Dingle, 11.84 km away
Lindis River, 12.02 km away

Motatapu, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	3,609
Co-rupture Rate	1.1613158E-5

Wanaka, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	4,603
Co-rupture Rate	8.1712756E-7

Hunter Valley, 0.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	7,461
Co-rupture Rate	2.7788508E-5

Grandview, 0.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	74
Co-rupture Rate	0.0

Paddys Ridge, 1.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	8,515
Co-rupture Rate	2.6009446E-5

NW Cardrona North, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	4,755
Co-rupture Rate	3.202408E-5

Timaru Creek, 4.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	5,529
Co-rupture Rate	9.249407E-6

Pisa, 9.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	7,589
Co-rupture Rate	1.9310128E-6

Dingle, 11.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	5,087
Co-rupture Rate	1.3643812E-8

Lindis River, 12.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
