Papatea Details

Property	Value
Rupture Count	31,594
Ruptures Above Sect Min Mag	31,593
Ruptures w/ Nonzero Rates	58
Magnitude Range	[6.86, 8.65]
Length Range	[18, 1,034] km
Total Rate	5.8855043E-5 /yr
Multi-Fault Rate	5.8855043E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	274

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

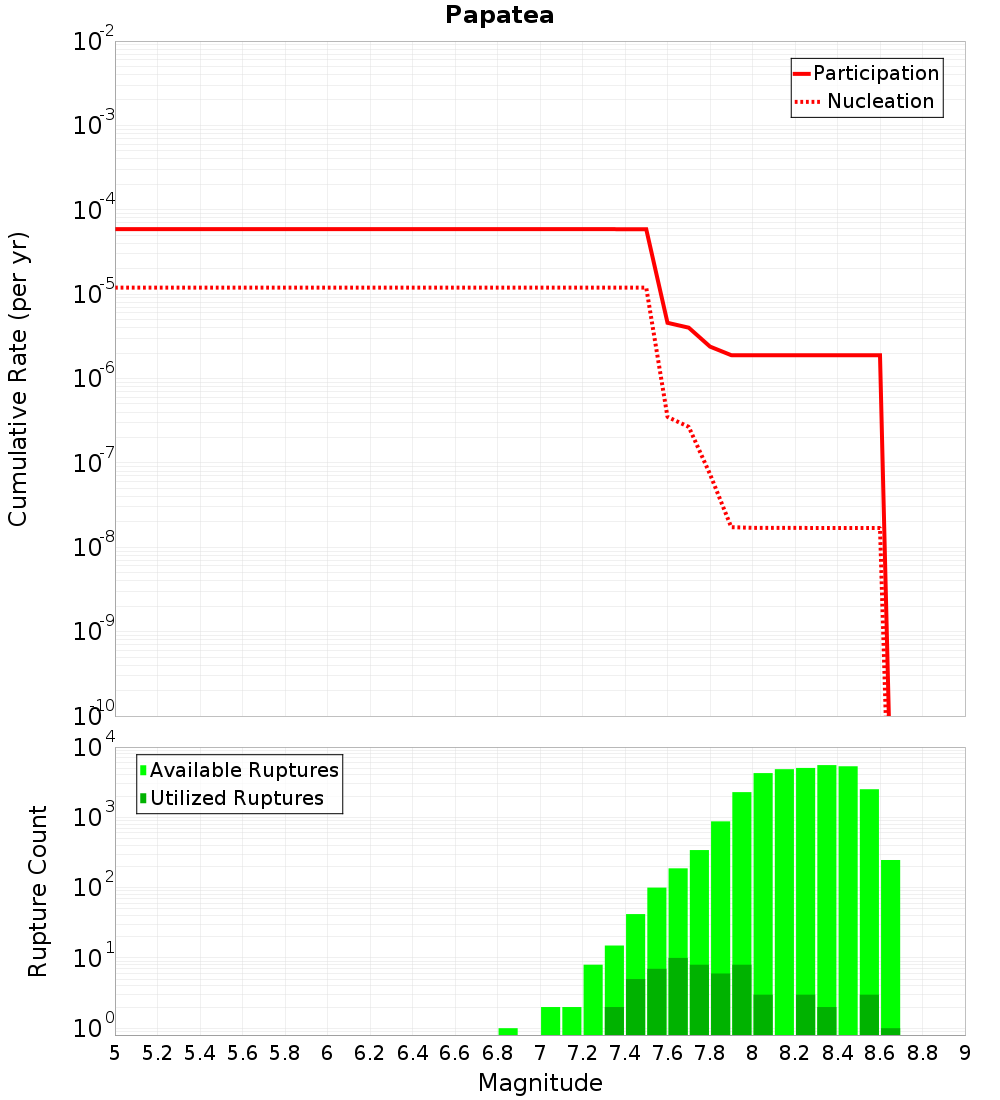

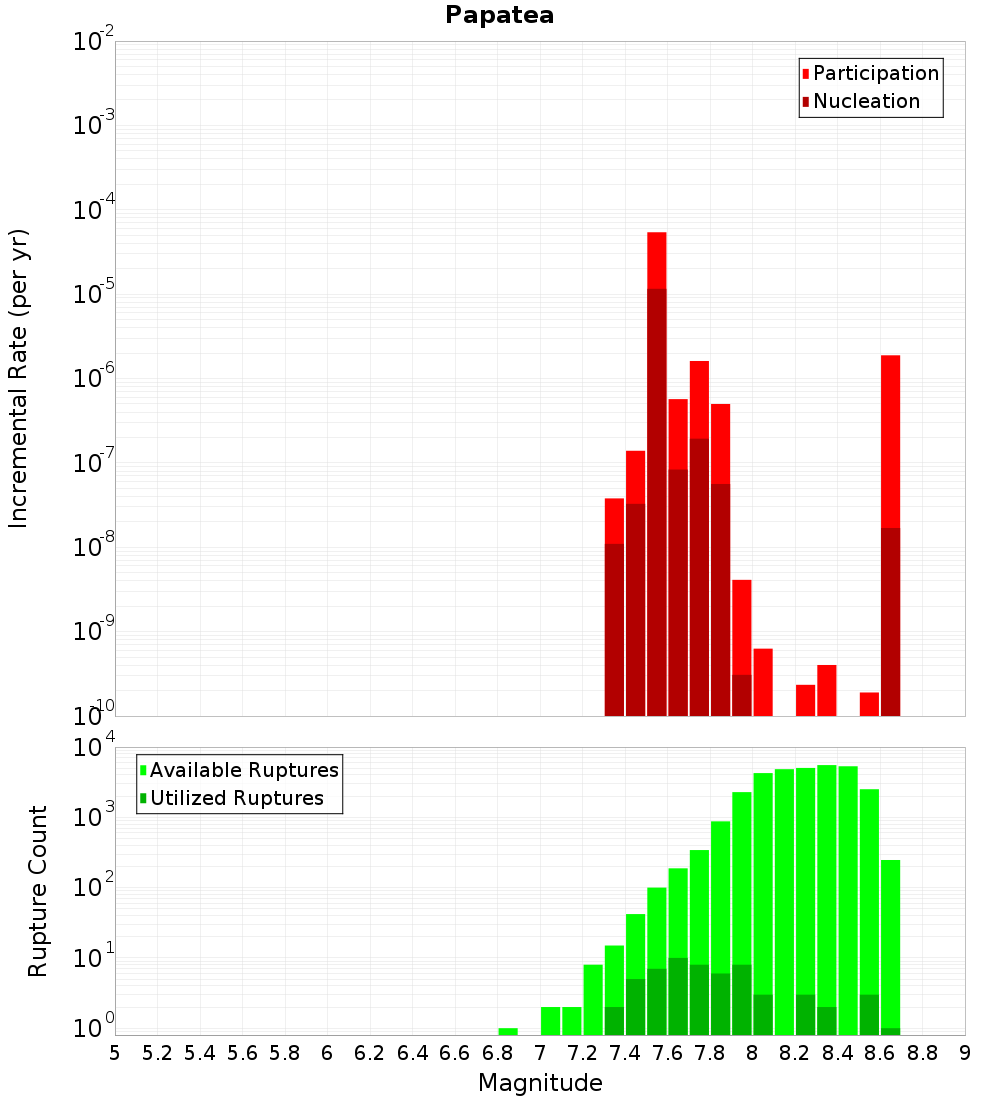

Magnitude-Frequency Distribution

Incremental	Cumulative

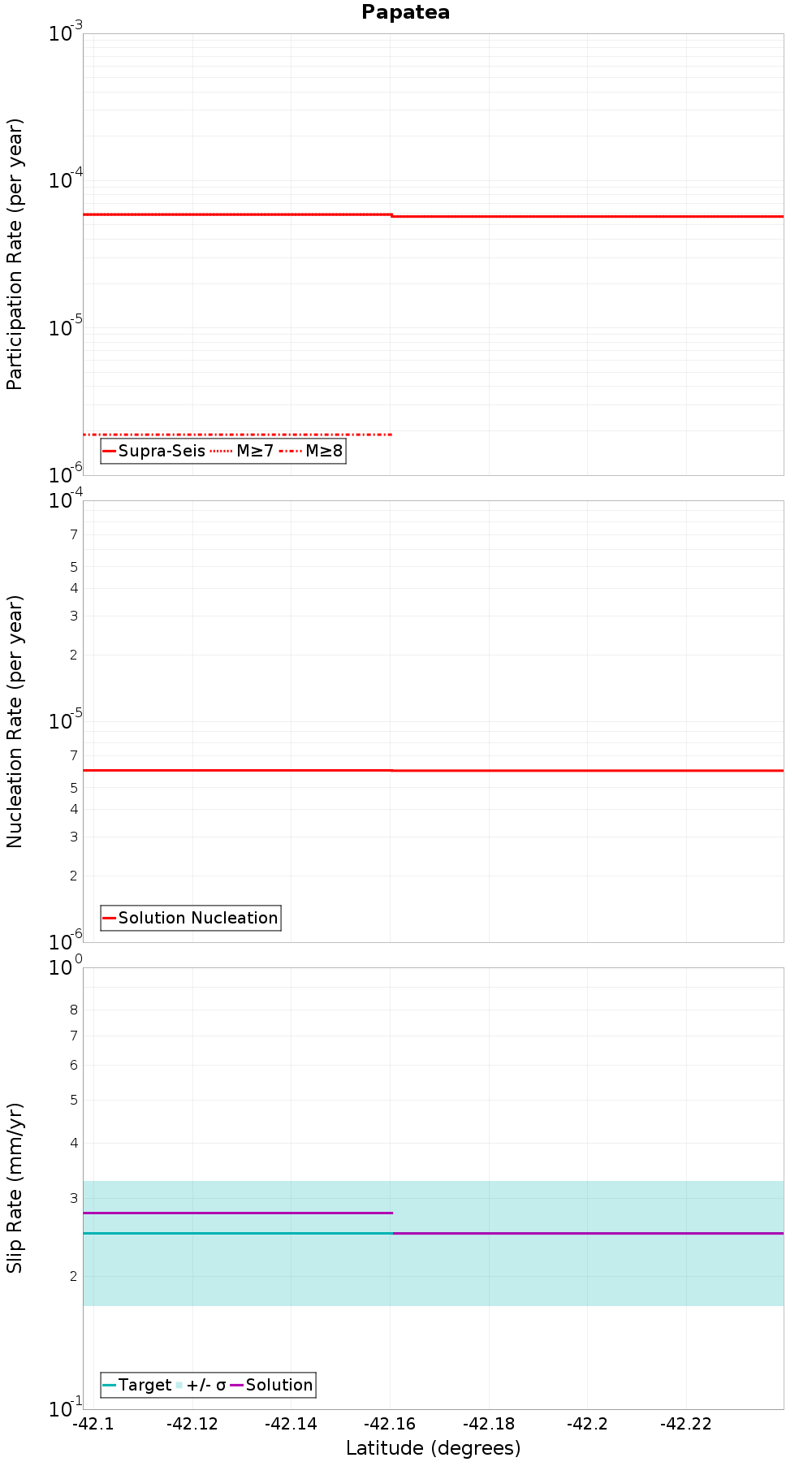

Along-Strike Values

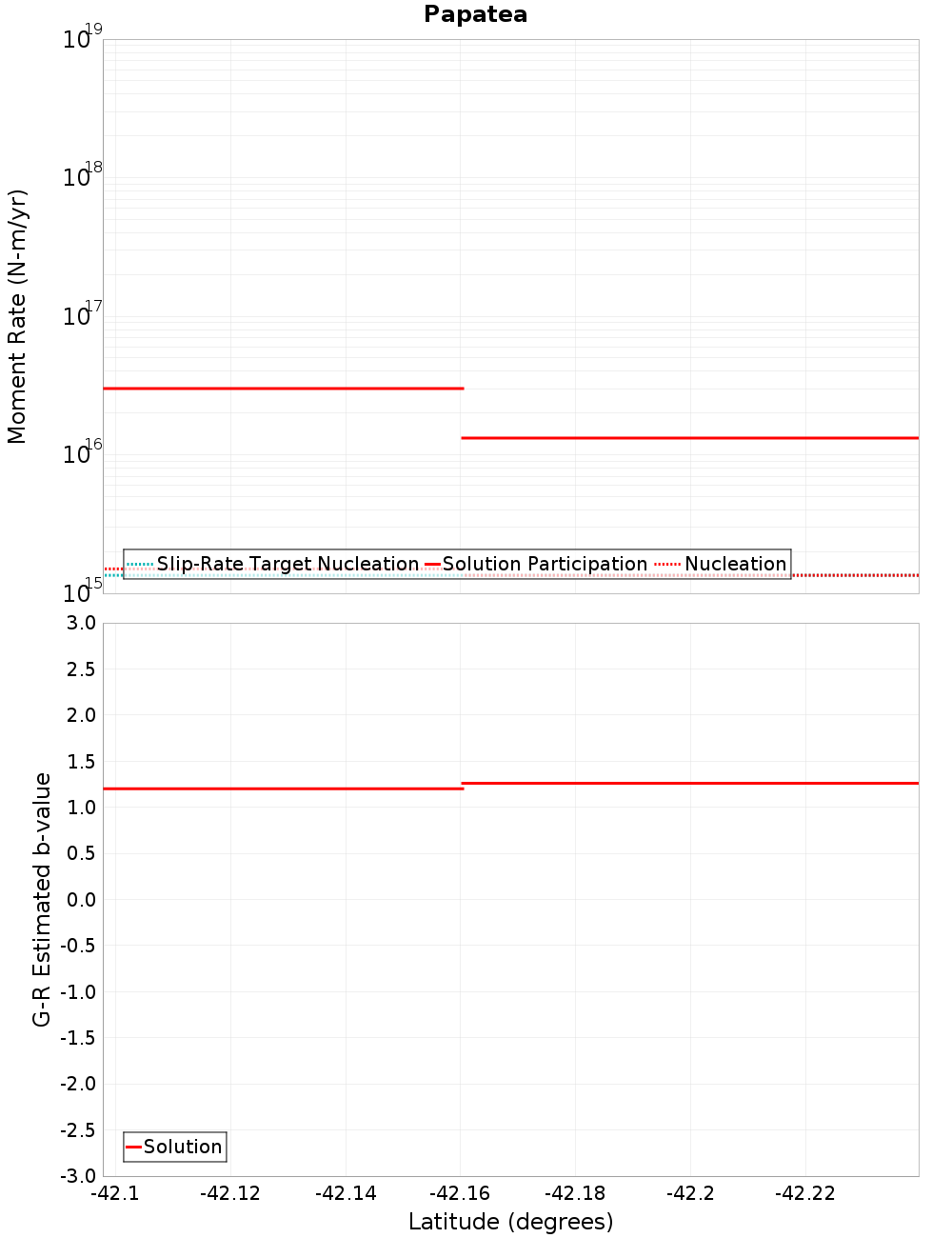

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kekerengu 1, 0 km away
Fidget, 0 km away
Jordan, 0 km away
Hope: Seaward, 0.03 km away
Offshore Splay Thrust, 0.19 km away
Upper Kowhai - Manakau, 0.59 km away
Kaikoura - Mangamaunu, 3.56 km away
Kowhai, 4.46 km away
Hope: Conway, 10.19 km away
Hope: Te Rapa, 11.56 km away
Clarence: Northeast, 12.11 km away
Kaikoura 2, 14.68 km away

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	29,541
Co-rupture Rate	5.8855043E-5

Fidget, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	420
Co-rupture Rate	6.801742E-11

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Seaward, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	19,775
Co-rupture Rate	2.5054821E-6

Offshore Splay Thrust, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	8,303
Co-rupture Rate	1.8905823E-6

Upper Kowhai - Manakau, 0.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaikoura - Mangamaunu, 3.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	283
Co-rupture Rate	0.0

Kowhai, 4.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	2,532
Co-rupture Rate	5.457611E-5

Hope: Conway, 10.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	23,046
Co-rupture Rate	3.479194E-6

Hope: Te Rapa, 11.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Northeast, 12.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	497
Co-rupture Rate	9.442838E-10

Kaikoura 2, 14.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	303
Co-rupture Rate	7.885916E-7
