Snowgrass Details
| Property | Value |
|---|---|
| Rupture Count | 90 |
| Ruptures Above Sect Min Mag | 90 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [7.25, 8.08] |
| Length Range | [29, 268] km |
| Total Rate | 4.0672505E-5 /yr |
| Multi-Fault Rate | 4.0668485E-5 /yr (99.99%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

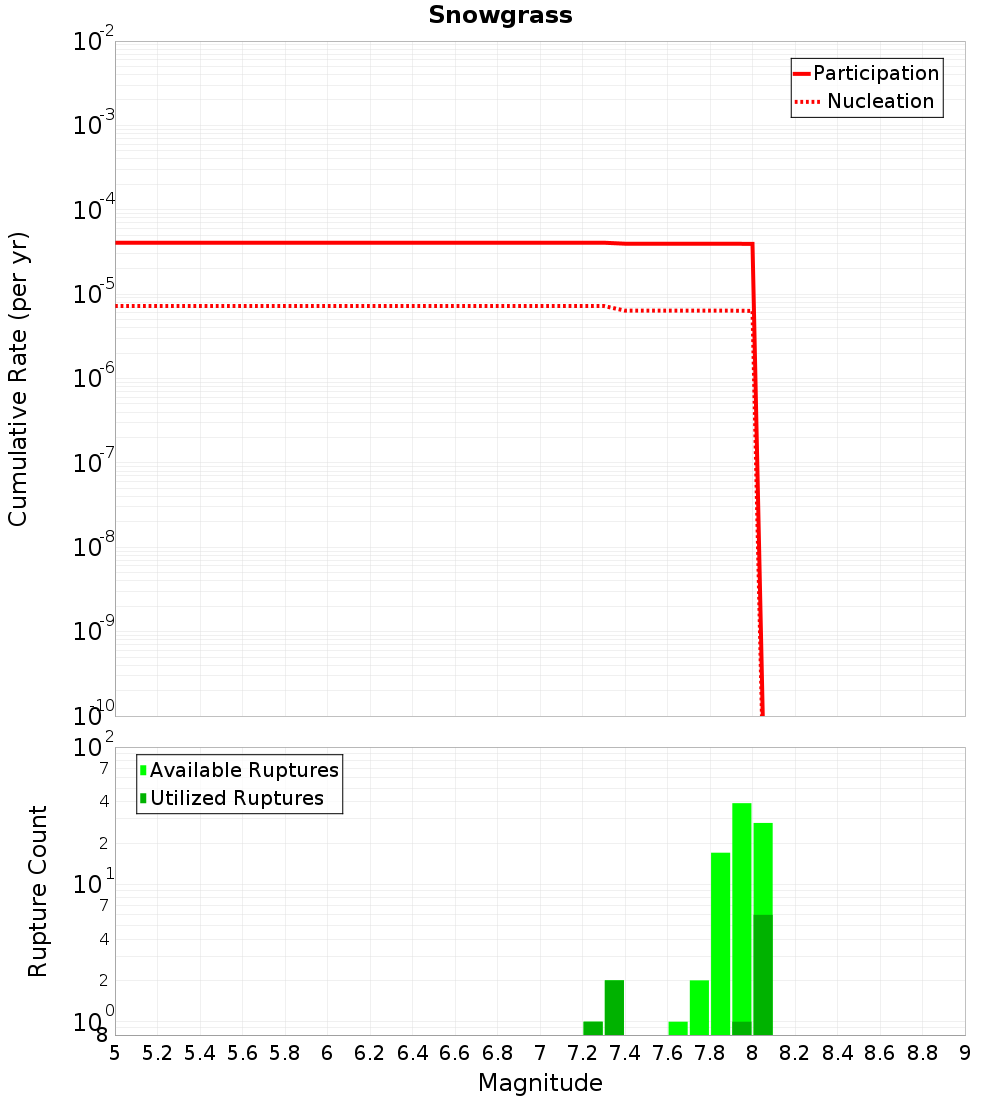

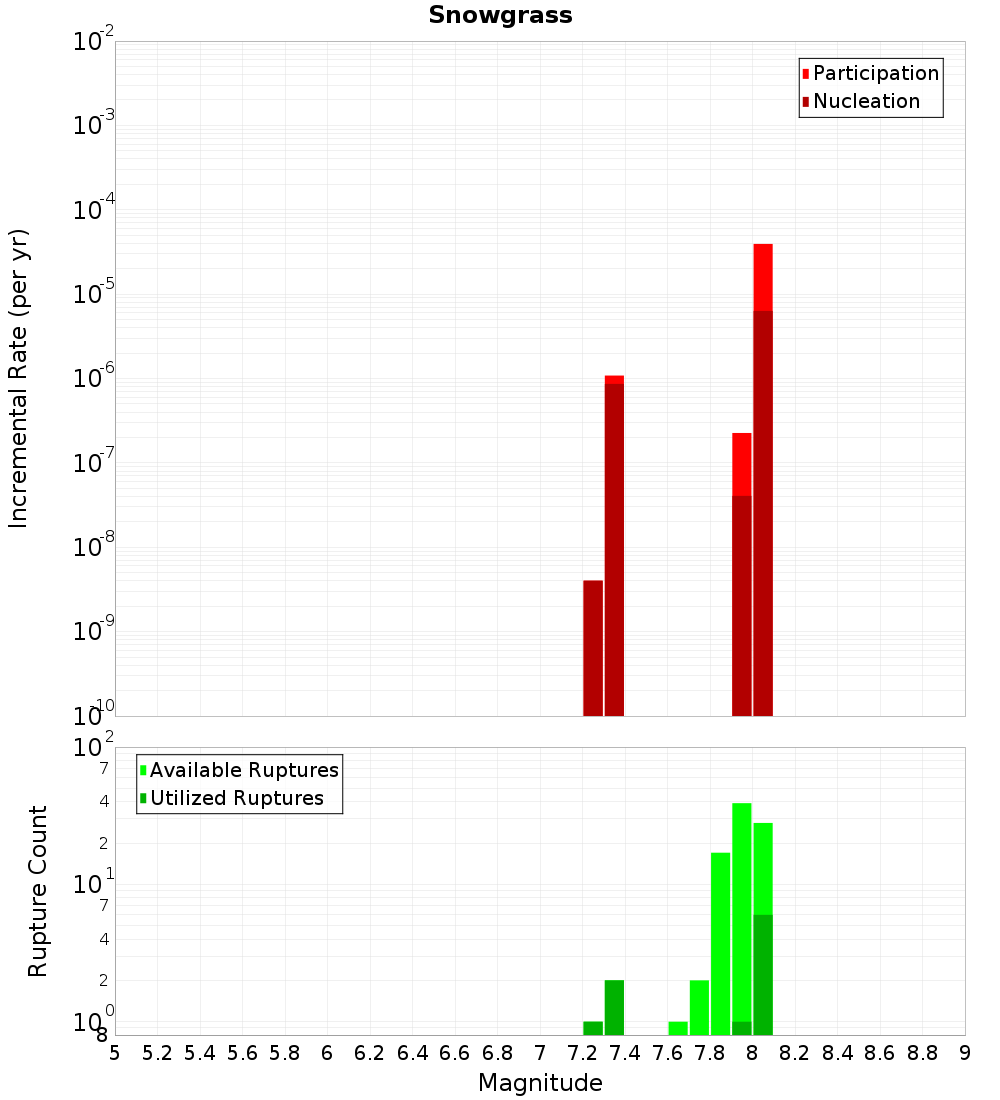

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

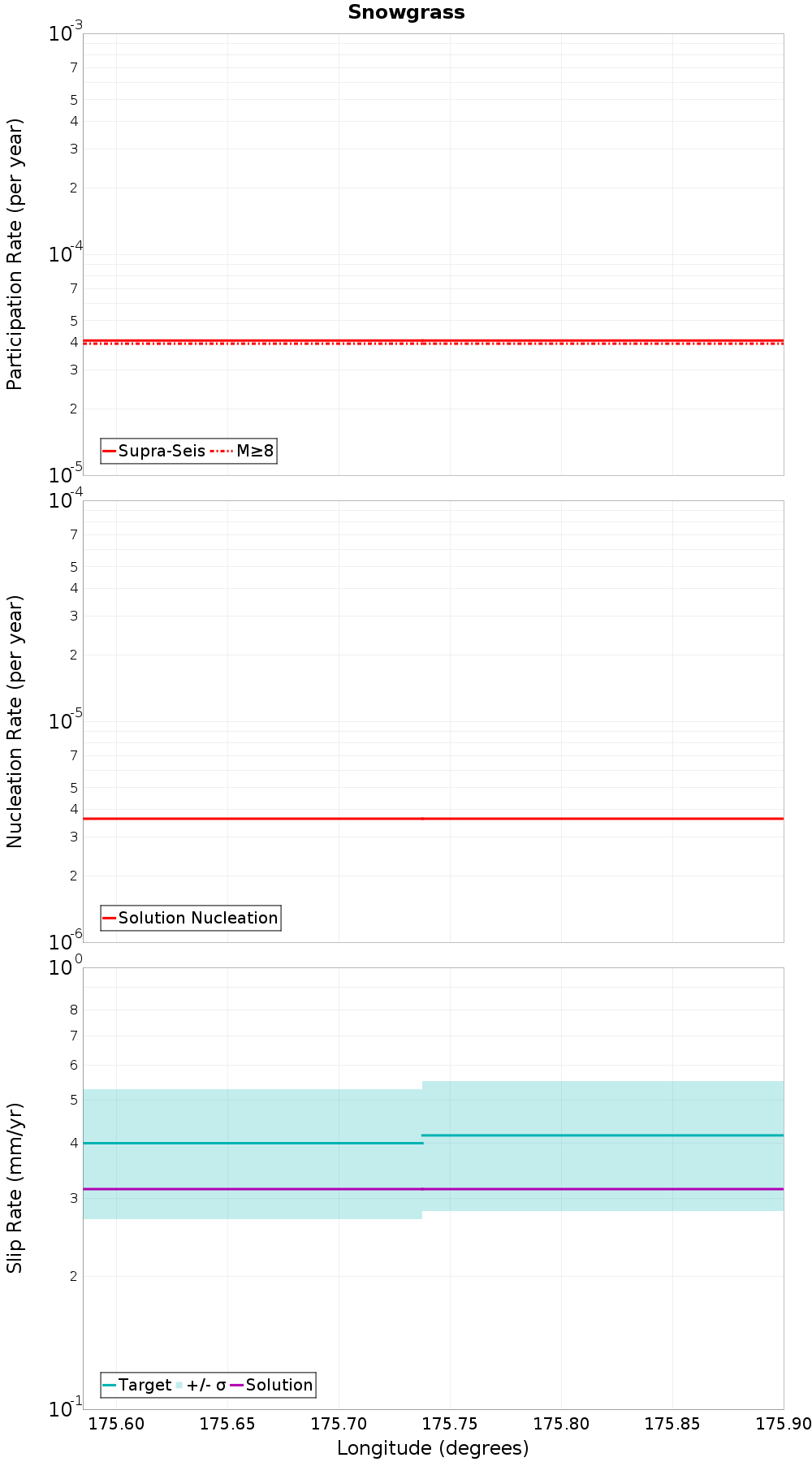

Along-Strike Values

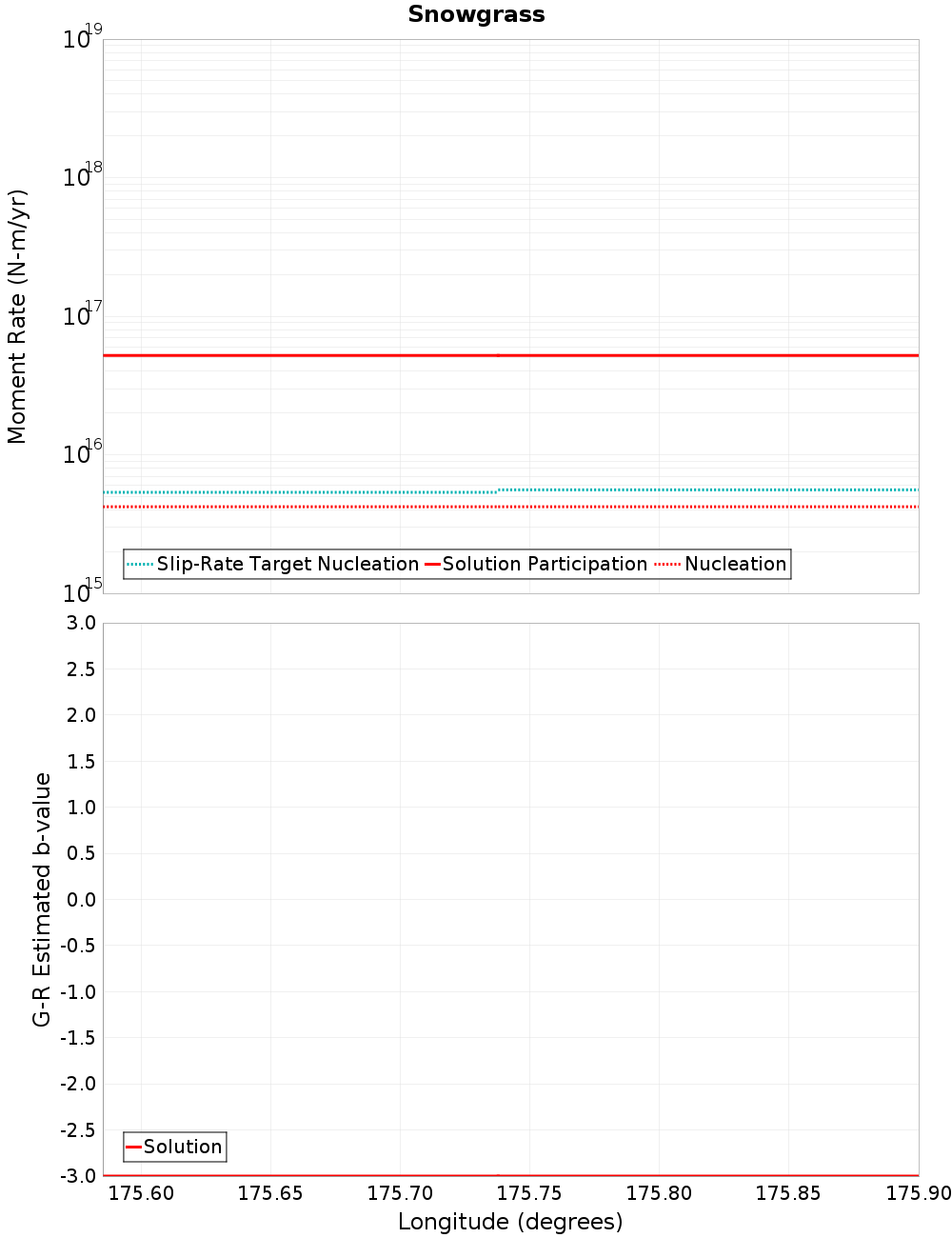

Moment-Rates and b-Values

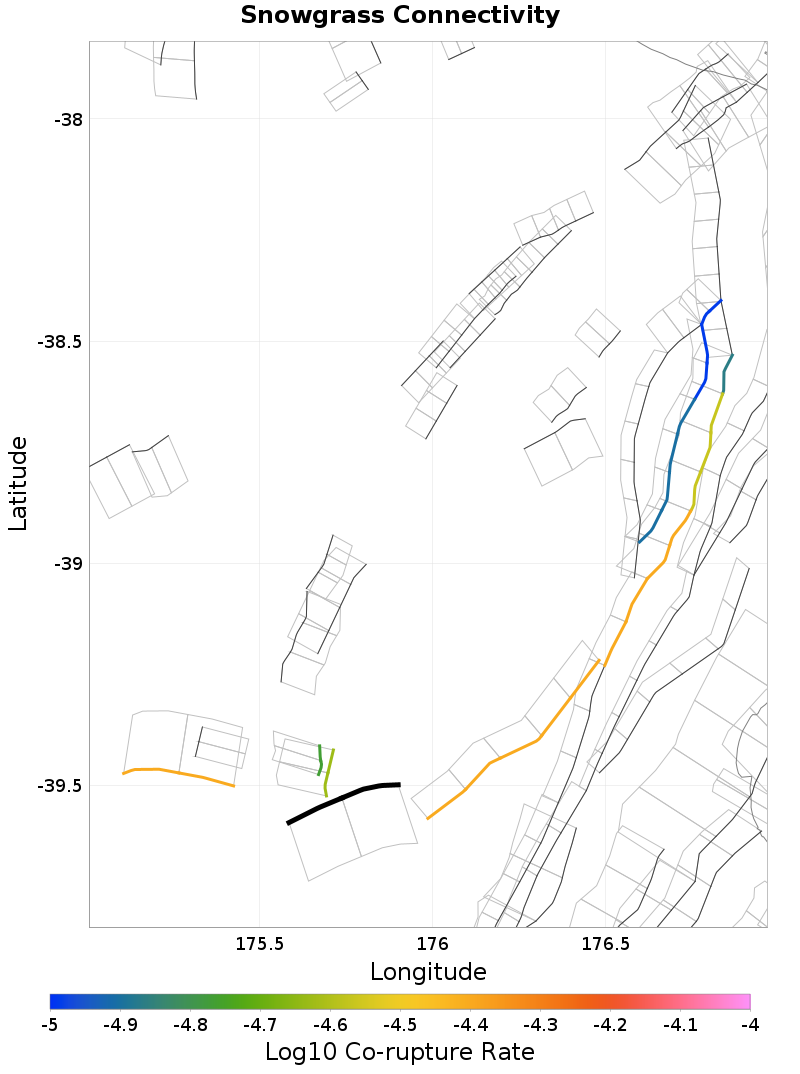

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Rangipo South, 2.02 km away |
| Kaweka, 3.11 km away |
| Rangipo Central, 7.66 km away |
Rangipo South, 2.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 29 |
| Co-rupture Rate | 2.3582783E-5 |
Kaweka, 3.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 87 |
| Co-rupture Rate | 3.9584516E-5 |
Rangipo Central, 7.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 23 |
| Co-rupture Rate | 1.7085702E-5 |
