Waiohau: North Details

Property	Value
Rupture Count	18,639
Ruptures Above Sect Min Mag	18,621
Ruptures w/ Nonzero Rates	87
Magnitude Range	[6.60, 8.47]
Length Range	[14, 675] km
Total Rate	5.651532E-4 /yr
Multi-Fault Rate	3.1892693E-4 /yr (56.43%)
Directly-Connected Faults	7
All Co-Rupturing Faults	82

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

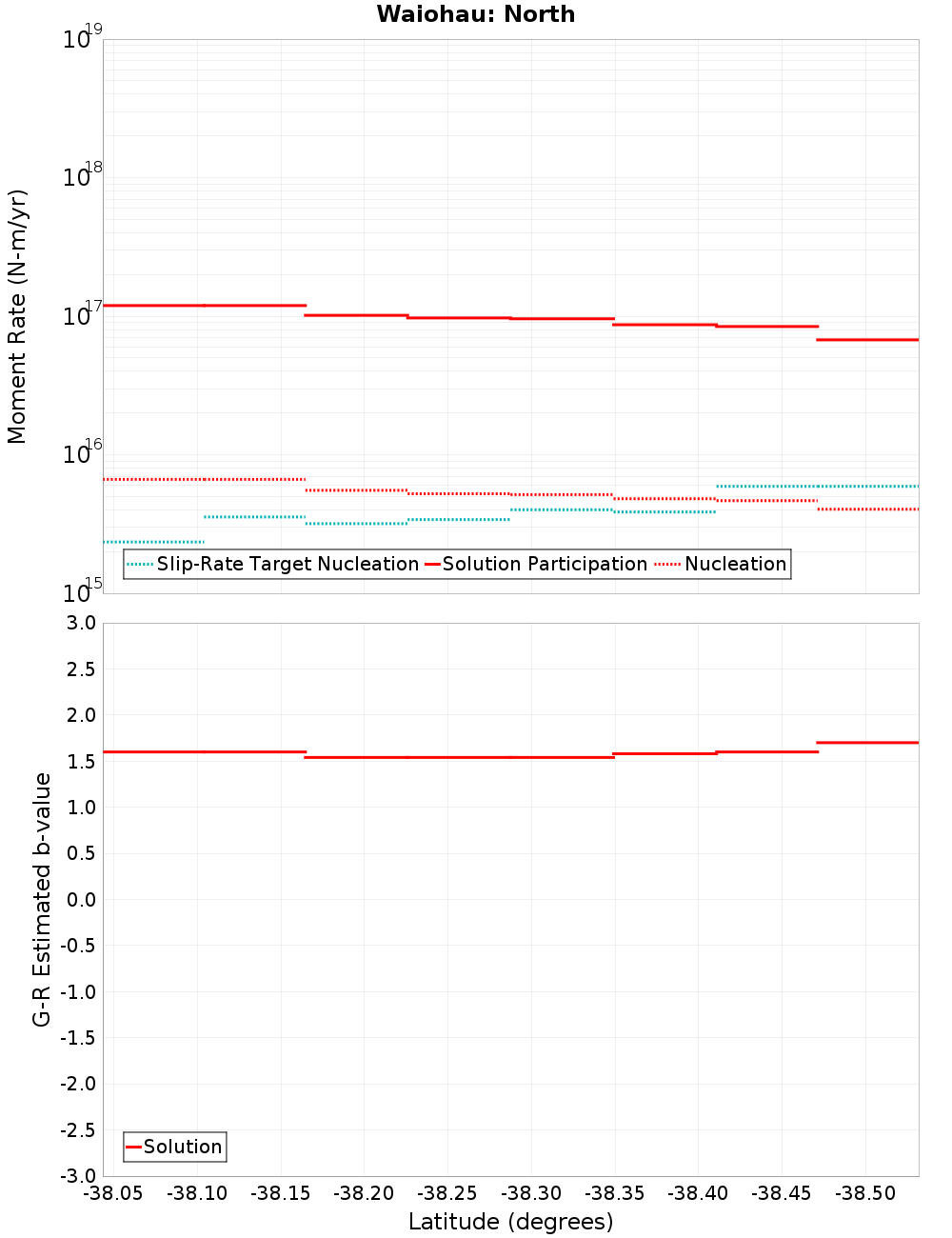

Moment-Rates and b-Values

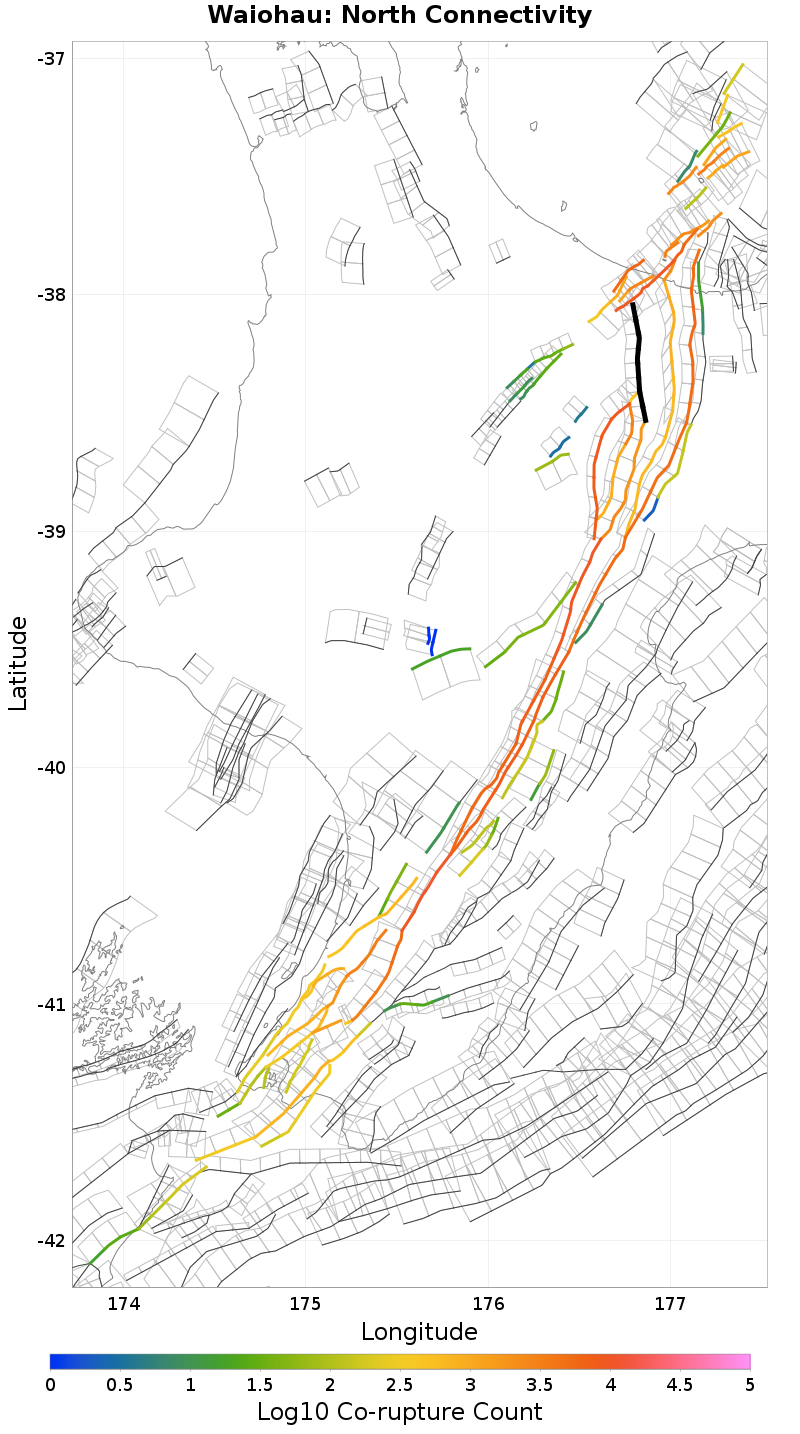

Connectivity

Nearby Sections

Fault Section
Waiohau: South, 0 km away
Te Whaiti North, 0.2 km away
Braemar, 0.3 km away
Otakiri, 0.33 km away
Te Whaiti South, 1.85 km away
Matata, 2.18 km away
Edgecumbe 1987, 2.19 km away
Wheao: North, 2.41 km away
Whakatane: South, 11.09 km away
Edgecumbe Coastal, 11.47 km away
Wheao: South, 11.62 km away
Whakatane: North, 12.82 km away

Waiohau: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	2,525
Co-rupture Rate	4.1930723E-10

Te Whaiti North, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	377
Co-rupture Rate	2.1330447E-5

Braemar, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	1,126
Co-rupture Rate	4.1393734E-5

Otakiri, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	2,628
Co-rupture Rate	1.638719E-10

Te Whaiti South, 1.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	2,927
Co-rupture Rate	8.820141E-6

Matata, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	6,062
Co-rupture Rate	4.2461725E-5

Edgecumbe 1987, 2.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	9,218
Co-rupture Rate	2.6427634E-4

Wheao: North, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	true
Co-rupture Count	9,269
Co-rupture Rate	6.185595E-5

Whakatane: South, 11.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	650
Co-rupture Rate	0.0

Edgecumbe Coastal, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	7,462
Co-rupture Rate	1.5738349E-4

Wheao: South, 11.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	8,763
Co-rupture Rate	6.256499E-5

Whakatane: North, 12.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?	true
Directly Connected?	false
Co-rupture Count	931
Co-rupture Rate	0.0
