Wairarapa: 2 Details

PropertyValue
Rupture Count33,741
Ruptures Above Sect Min Mag33,738
Ruptures w/ Nonzero Rates448
Magnitude Range[6.81, 8.67]
Length Range[18, 1,083] km
Total Rate8.371619E-4 /yr
Multi-Fault Rate8.1703404E-4 /yr (97.60%)
Directly-Connected Faults6
All Co-Rupturing Faults192

Table Of Contents

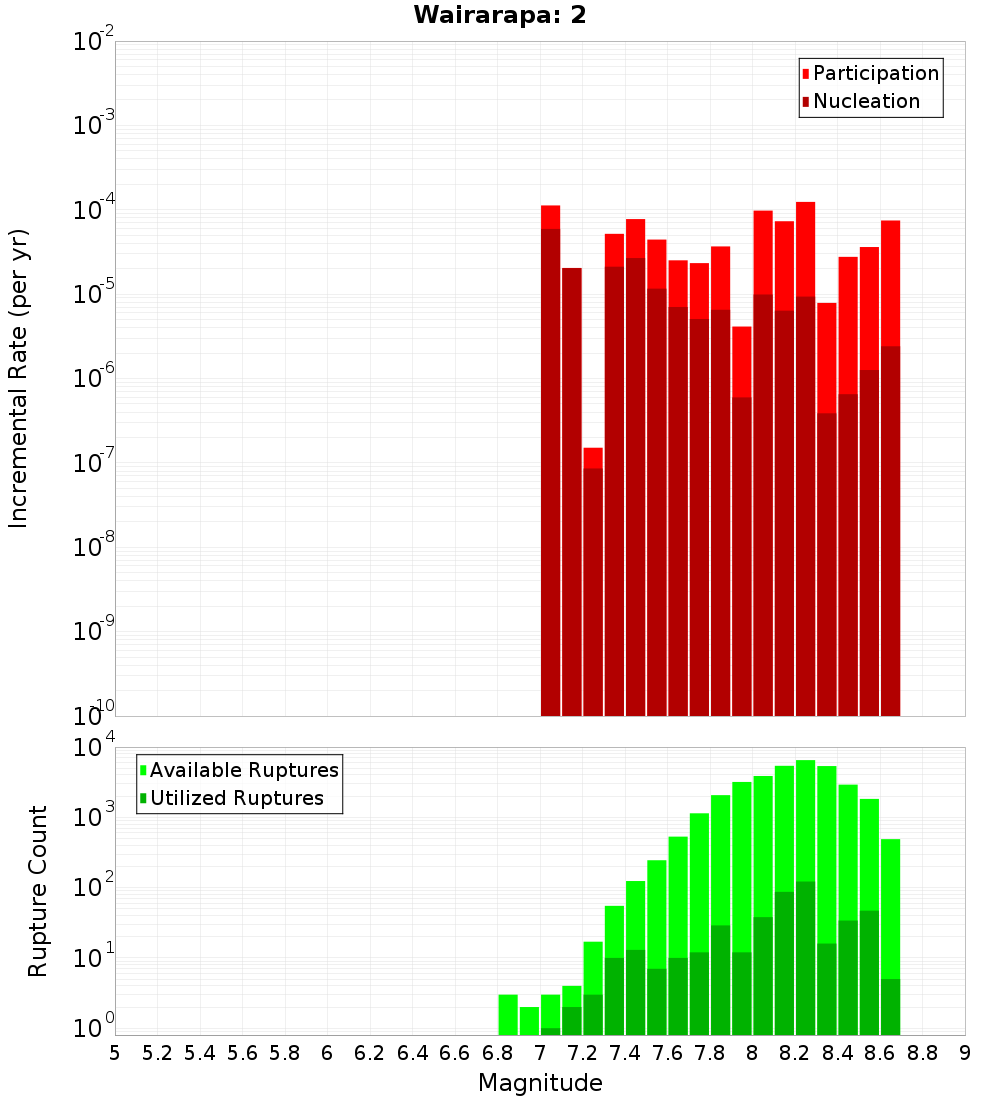

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

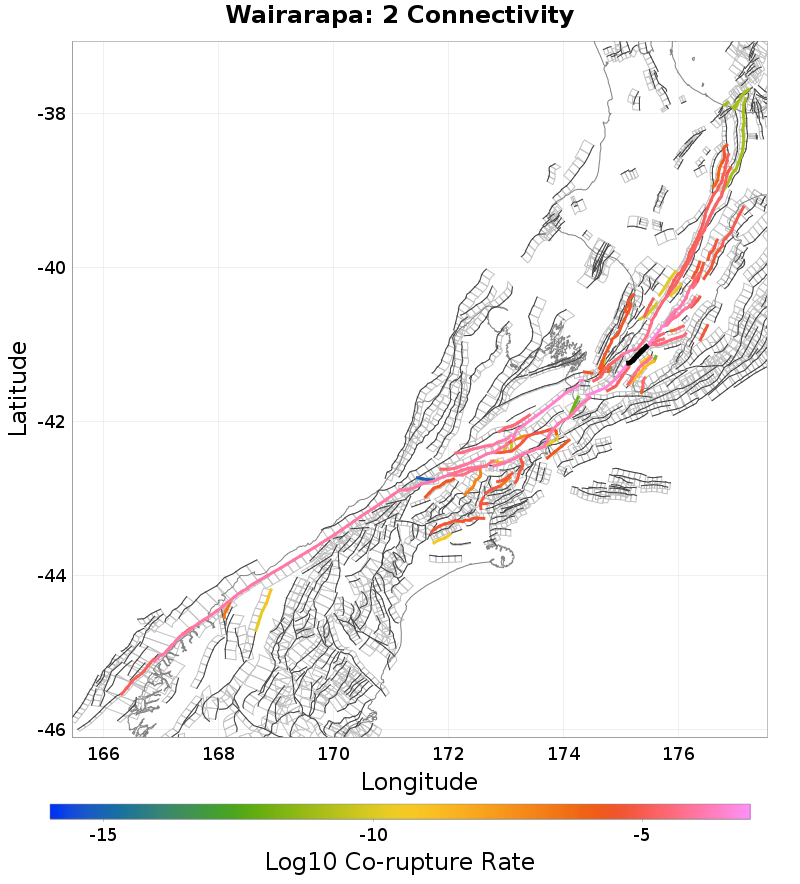

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0 km awayBidwill, 7.72 km away
Wairarapa: 3, 0.03 km awayMartinborough, 9.65 km away
Carterton, 0.05 km awayWhitemans Valley, 10.22 km away
Wellington Hutt Valley: 5, 0.33 km awayMokonui Southwest, 12.05 km away
Wharekauhau, 1.34 km awayAkatarawa, 12.82 km away
Wellington Hutt Valley: 4, 3.98 km awayMoonshine, 13.37 km away
Masterton, 5.7 km awayOtaraia, 13.88 km away
Wellington: Tararua 2, 6.35 km awayGibbs, 13.94 km away
Wellington: Tararua 1, 6.52 km awayWellington: Tararua 3, 14.31 km away

Wairarapa: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?true
Co-rupture Count26,023
Co-rupture Rate4.947128E-4

Wairarapa: 3, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?true
Co-rupture Count16,526
Co-rupture Rate5.4111675E-4

Carterton, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?true
Co-rupture Count3,360
Co-rupture Rate6.881945E-5

Wellington Hutt Valley: 5, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?true
Co-rupture Count2,905
Co-rupture Rate1.5610275E-4

Wharekauhau, 1.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?true
Co-rupture Count7,518
Co-rupture Rate1.5724747E-5

Wellington Hutt Valley: 4, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?false
Co-rupture Count267
Co-rupture Rate2.5373625E-5

Masterton, 5.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate3.4177003E-5

Wellington: Tararua 2, 6.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?true
Co-rupture Count10,896
Co-rupture Rate4.8465572E-5

Wellington: Tararua 1, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Bidwill, 7.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?false
Co-rupture Count235
Co-rupture Rate8.264957E-10

Martinborough, 9.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate5.967079E-5

Whitemans Valley, 10.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?false
Co-rupture Count74
Co-rupture Rate0.0

Mokonui Southwest, 12.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?false
Co-rupture Count326
Co-rupture Rate2.1472184E-5

Akatarawa, 12.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 13.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaraia, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?false
Co-rupture Count197
Co-rupture Rate5.9671616E-5

Gibbs, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Wellington: Tararua 3, 14.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMFViNlRj
Connected?true
Directly Connected?false
Co-rupture Count11,240
Co-rupture Rate4.8381873E-5
