Timaru Creek Details

PropertyValue
Rupture Count15,725
Ruptures Above Sect Min Mag15,723
Ruptures w/ Nonzero Rates80
Magnitude Range[6.89, 8.50]
Length Range[19, 763] km
Total Rate9.052873E-5 /yr
Multi-Fault Rate9.028033E-5 /yr (99.73%)
Directly-Connected Faults8
All Co-Rupturing Faults112

Table Of Contents

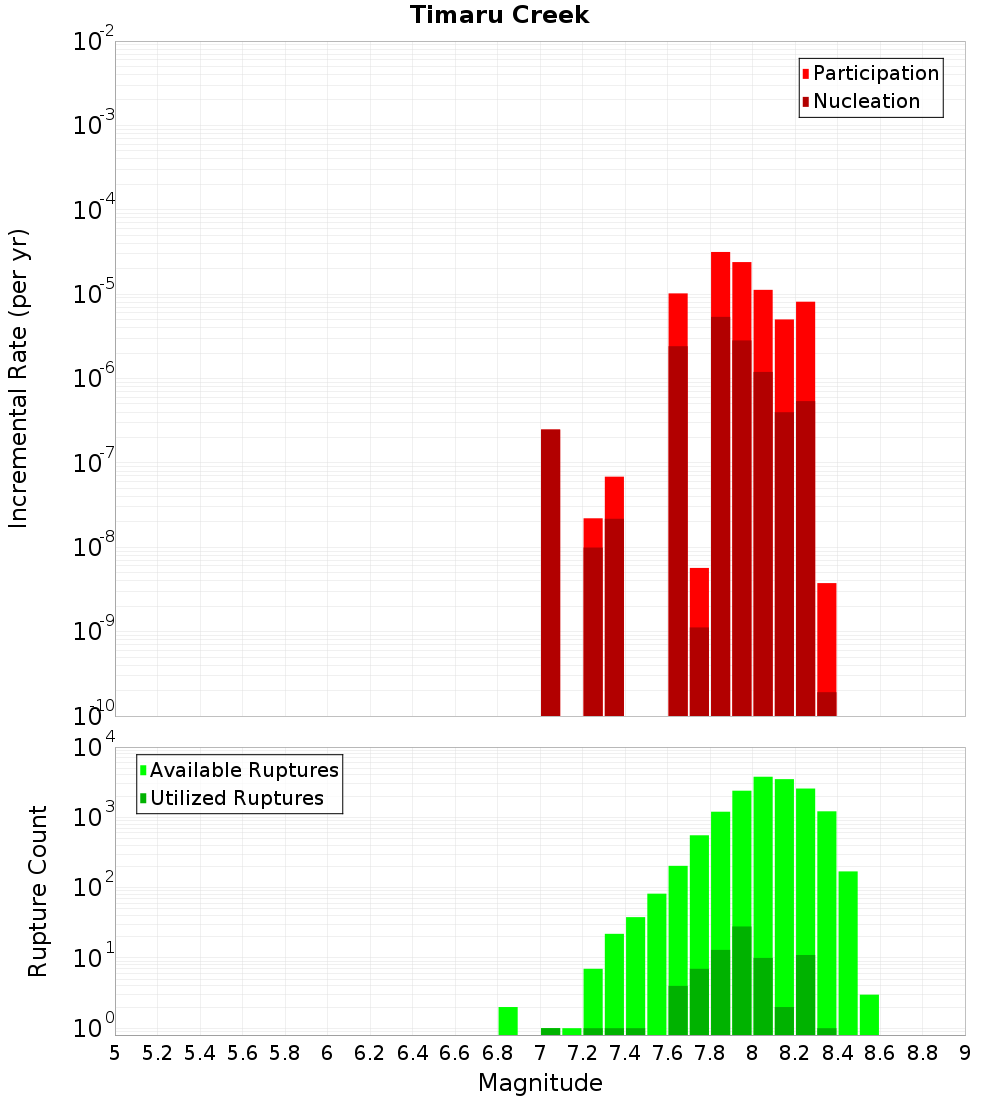

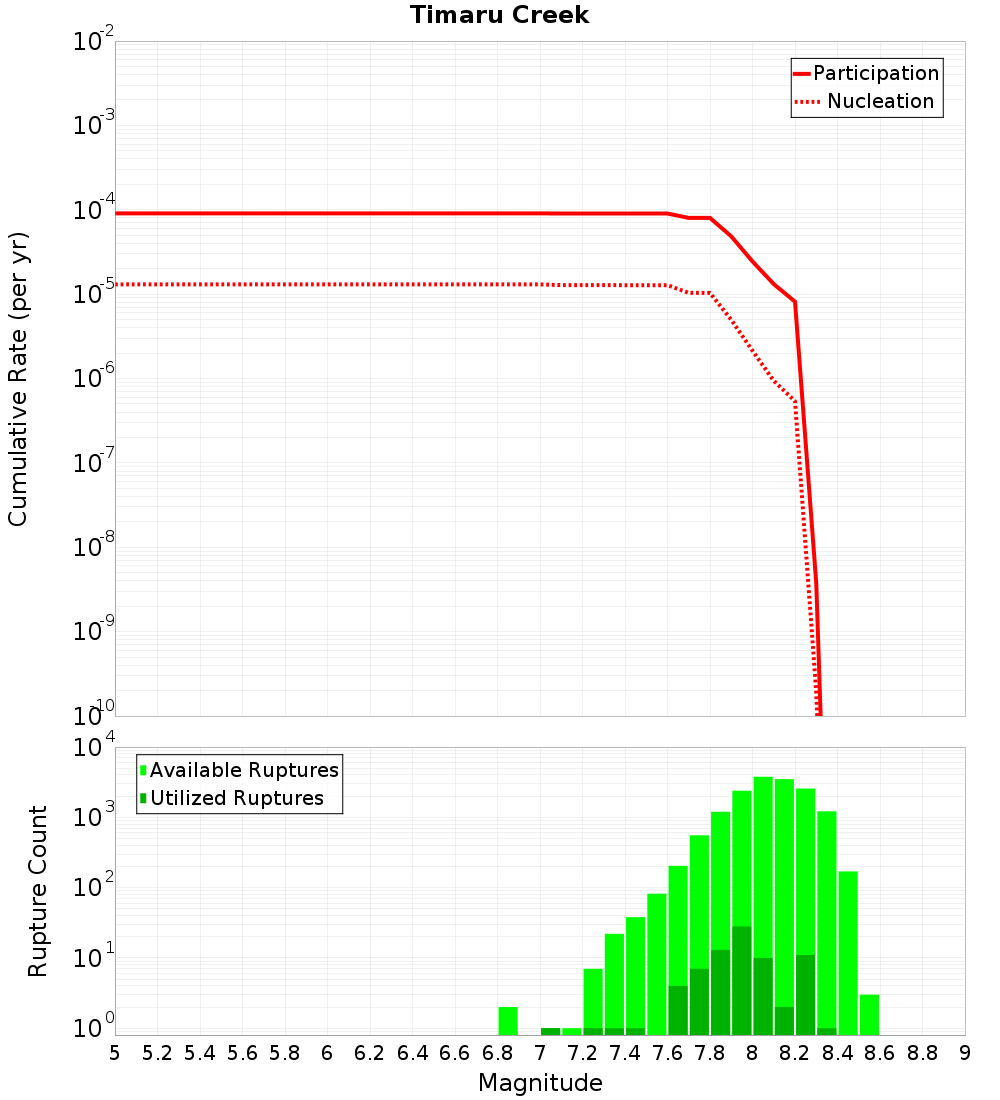

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dromedary, 0.13 km away
Grandview, 0.3 km away
Wanaka, 0.48 km away
Lindis River, 2.49 km away
Cardrona - Hawea, 4.34 km away
Hunter Valley, 4.93 km away
Dingle, 4.97 km away
Motatapu, 7.21 km away
Barrier Range, 9.34 km away
Ostler South, 9.73 km away

Dromedary, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMG9xZlFo
Connected?true
Directly Connected?true
Co-rupture Count106
Co-rupture Rate6.864884E-8

Grandview, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMG9xZlFo
Connected?true
Directly Connected?true
Co-rupture Count7,259
Co-rupture Rate6.5051736E-10

Wanaka, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMG9xZlFo
Connected?true
Directly Connected?true
Co-rupture Count1,101
Co-rupture Rate3.999397E-6

Lindis River, 2.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMG9xZlFo
Connected?true
Directly Connected?true
Co-rupture Count114
Co-rupture Rate6.6836155E-6

Cardrona - Hawea, 4.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMG9xZlFo
Connected?true
Directly Connected?true
Co-rupture Count5,529
Co-rupture Rate7.759426E-6

Hunter Valley, 4.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMG9xZlFo
Connected?true
Directly Connected?true
Co-rupture Count144
Co-rupture Rate2.6406905E-8

Dingle, 4.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMG9xZlFo
Connected?true
Directly Connected?true
Co-rupture Count10,431
Co-rupture Rate6.8185196E-5

Motatapu, 7.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMG9xZlFo
Connected?true
Directly Connected?false
Co-rupture Count1,538
Co-rupture Rate4.054842E-6

Barrier Range, 9.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMG9xZlFo
Connected?true
Directly Connected?true
Co-rupture Count3,516
Co-rupture Rate7.6126466E-6

Ostler South, 9.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE2OTkuMG9xZlFo
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate2.0794333E-11
