Kohaihai Details

Property	Value
Rupture Count	20,726
Ruptures Above Sect Min Mag	20,724
Ruptures w/ Nonzero Rates	292
Magnitude Range	[7.06, 8.67]
Length Range	[23, 1,039] km
Total Rate	1.1482835E-4 /yr
Multi-Fault Rate	1.1482835E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	86

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

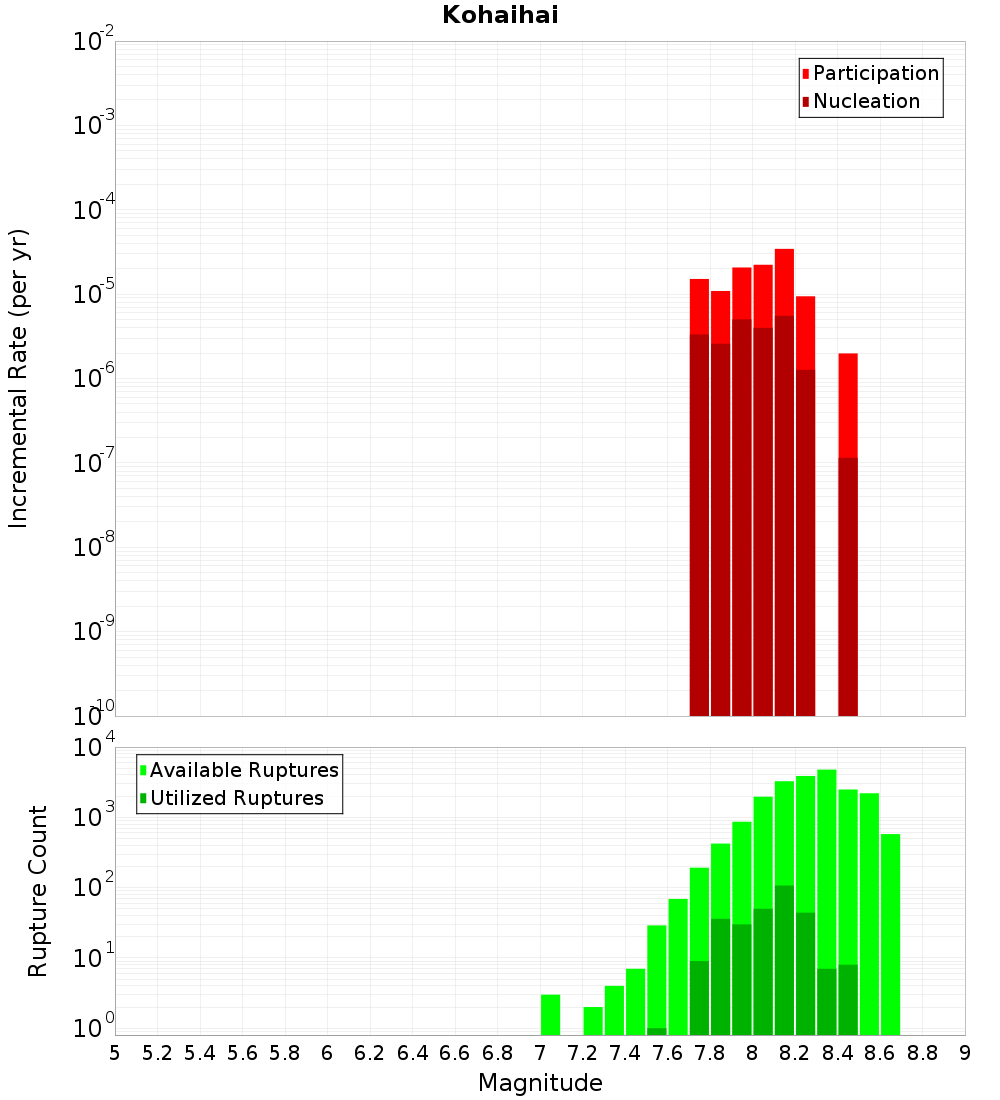

Magnitude-Frequency Distribution

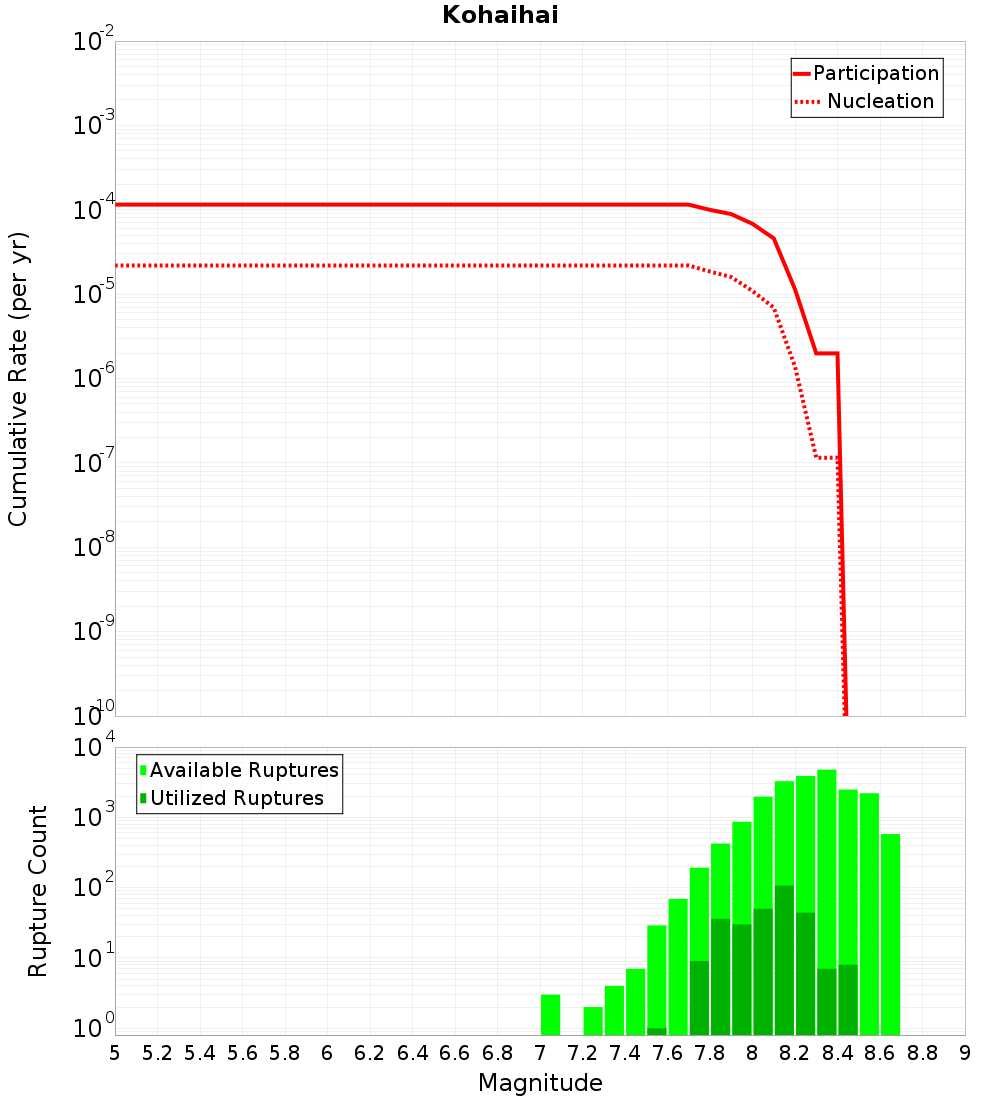

Incremental	Cumulative

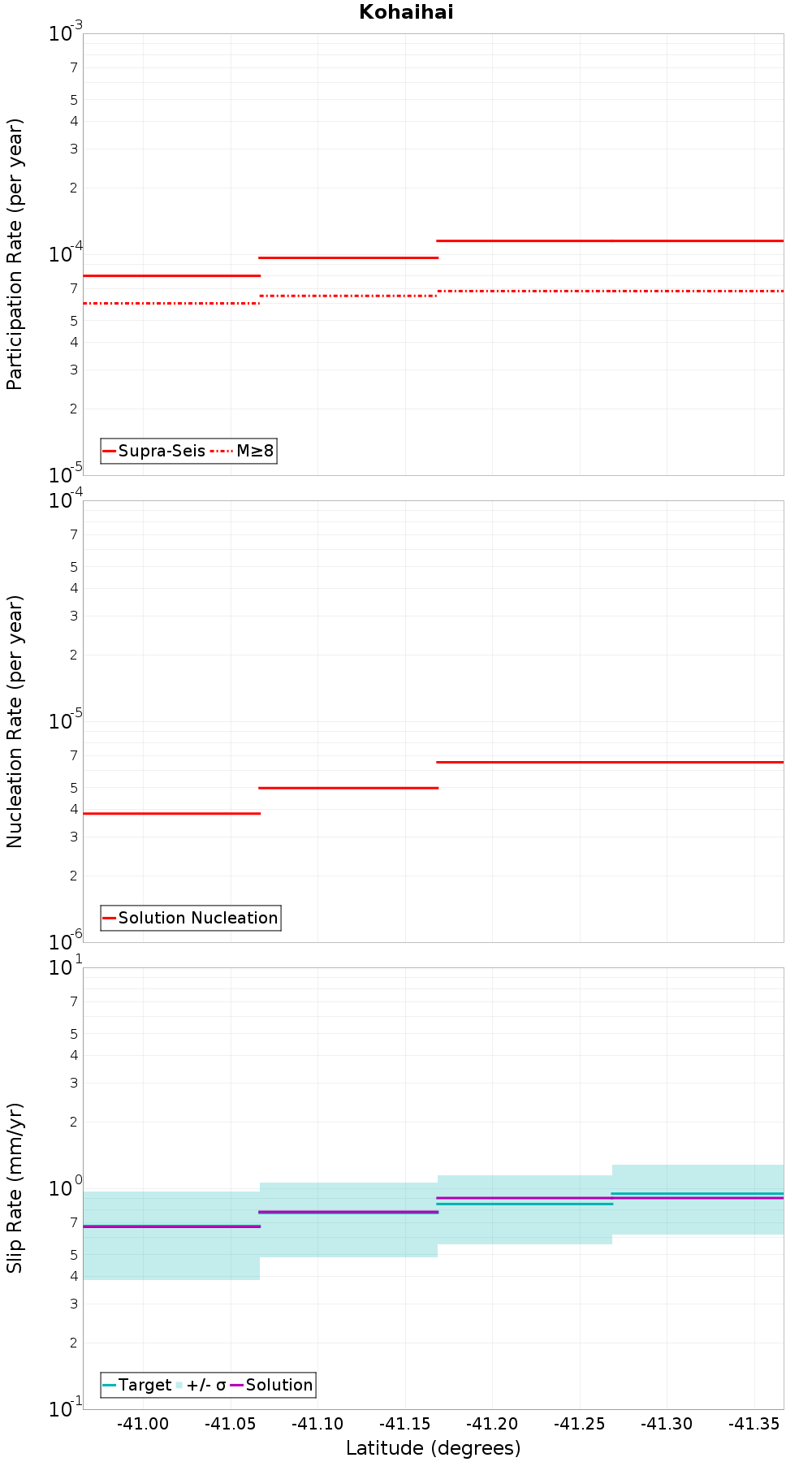

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Matiri West, 1.42 km away
Kohaihai South, 1.69 km away
White Creek, 2.19 km away
Kongahau, 5.4 km away
Wakamarama, 9.36 km away
Cape Foulwind 4, 11.7 km away
Kahurangi, 11.99 km away
Glasgow, 12.23 km away
Karamea South, 14.47 km away

Matiri West, 1.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?	true
Directly Connected?	true
Co-rupture Count	640
Co-rupture Rate	2.2080215E-10

Kohaihai South, 1.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?	true
Directly Connected?	true
Co-rupture Count	3,423
Co-rupture Rate	3.8632155E-5

White Creek, 2.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?	true
Directly Connected?	true
Co-rupture Count	17,737
Co-rupture Rate	8.782144E-5

Kongahau, 5.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?	true
Directly Connected?	true
Co-rupture Count	17,791
Co-rupture Rate	5.2242336E-5

Wakamarama, 9.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?	true
Directly Connected?	false
Co-rupture Count	4,083
Co-rupture Rate	1.9681469E-5

Cape Foulwind 4, 11.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kahurangi, 11.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?	true
Directly Connected?	false
Co-rupture Count	147
Co-rupture Rate	3.6126385E-6

Glasgow, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?	true
Directly Connected?	false
Co-rupture Count	2,020
Co-rupture Rate	2.7009482E-5

Karamea South, 14.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	2.2080081E-10
