Waitahuna 2 Details

PropertyValue
Rupture Count13
Ruptures Above Sect Min Mag12
Ruptures w/ Nonzero Rates8
Magnitude Range[6.79, 7.84]
Length Range[9, 109] km
Total Rate6.81918E-5 /yr
Multi-Fault Rate6.81918E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults5

Table Of Contents

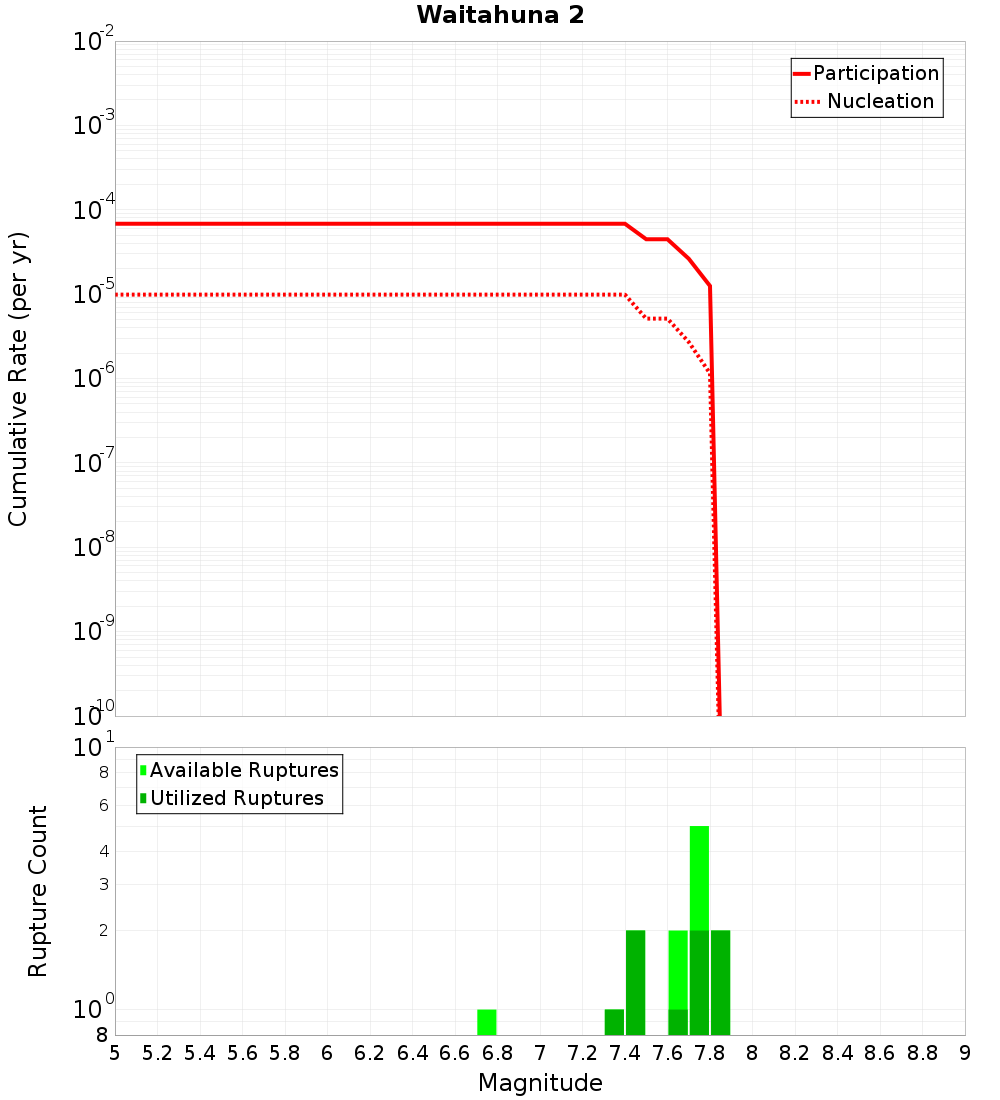

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Maungatua - North Taieri, 0.14 km away
Waitahuna 1, 3.53 km away
Titri Central, 8.29 km away
Tuapeka, 10.05 km away
Titri North, 11.55 km away
Titri South, 13.58 km away

Maungatua - North Taieri, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate4.1276406E-5

Waitahuna 1, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri Central, 8.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate3.330982E-5

Tuapeka, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri North, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate2.4466315E-5

Titri South, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMGRON0dR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
