Alpine: Jacksons to Kaniere Details

PropertyValue
Rupture Count318,093
Ruptures Above Sect Min Mag318,070
Ruptures w/ Nonzero Rates442
Magnitude Range[6.82, 8.51]
Length Range[22, 1,132] km
Total Rate0.0047099805 /yr
Multi-Fault Rate0.0047099805 /yr (100.00%)
Directly-Connected Faults29
All Co-Rupturing Faults265

Table Of Contents

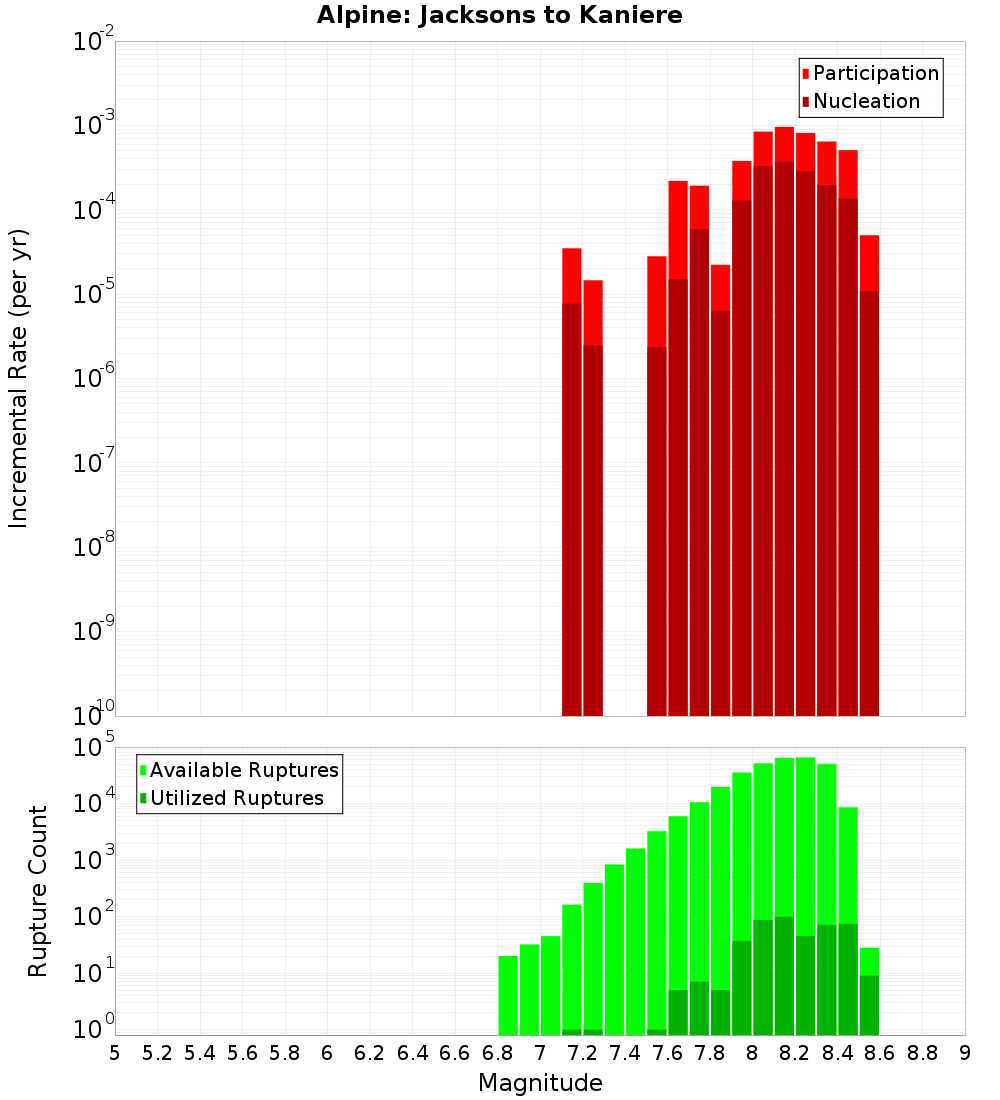

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

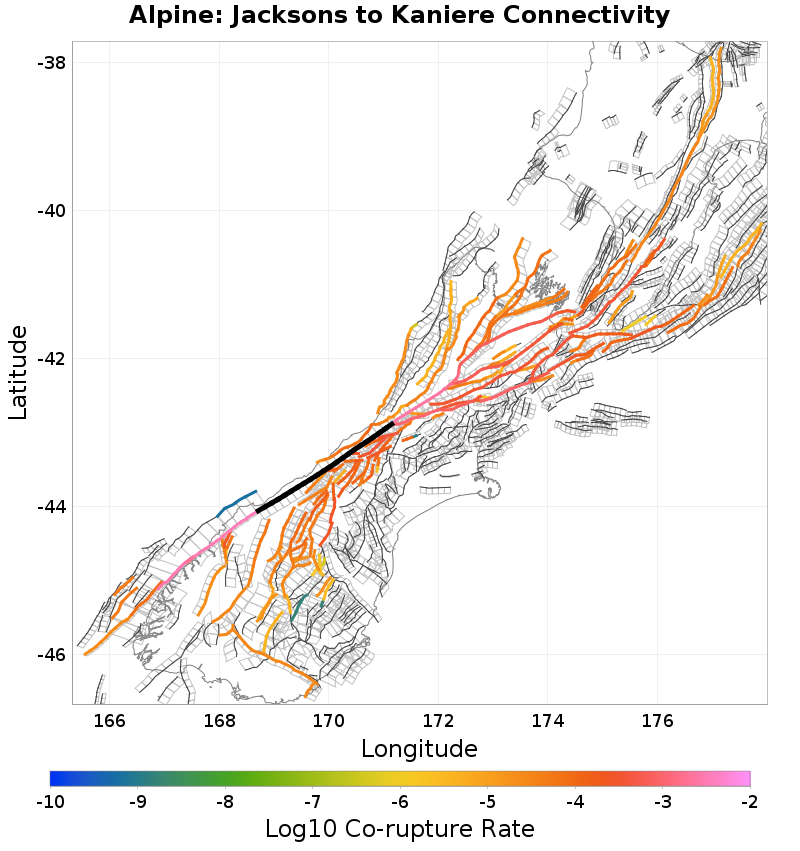

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault SectionFault Section
Alpine: George to Jacksons, 0 km awayBlack Blob - Haast Ridge, 0.33 km awayJollie Range, 3.19 km away
Kelly, 0 km awayBrowning Pass, 0.34 km awayLandsborough 2, 4.68 km away
Alpine: Kaniere to Springs Junction, 0 km awayMt Roon, 0.34 km awayHopkins, 5.86 km away
Lord Range, 0.08 km awayVeil Stream, 0.45 km awayJagged, 6.5 km away
Waitaha, 0.08 km awayGreat Groove, 0.58 km awayTwo Thumb Stream, 7.31 km away
McKerrow - Douglas Duplex, 0.1 km awayHohonu South, 0.74 km awayBarn, 8.94 km away
Karangarua, 0.14 km awayObservation, 0.84 km awayPotts Range, 9.02 km away
Gunn Glacier, 0.15 km awayMungo, 1 km awayBarrier Range, 9.14 km away
Liebig North, 0.21 km awayMoonlight North, 1.47 km awayBruce, 11.03 km away
Mathias, 0.21 km awayMistake - Rolleston, 1.54 km awayMacaulay 2, 12.21 km away
Murchison 1 - Ice Lake, 0.28 km awayHuxley, 1.78 km awayOstler North, 14.01 km away
Mt Adams, 0.3 km awayStraight Creek, 2.64 km awayHunter Valley, 14.34 km away

Alpine: George to Jacksons, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count115,597
Co-rupture Rate0.0034448819

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count165,080
Co-rupture Rate0.0010672915

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count122,197
Co-rupture Rate0.0026136127

Lord Range, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count18,224
Co-rupture Rate4.8256677E-4

Waitaha, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count3,790
Co-rupture Rate1.3721825E-4

McKerrow - Douglas Duplex, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count9,304
Co-rupture Rate3.4006043E-5

Karangarua, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count5,365
Co-rupture Rate4.5783054E-5

Gunn Glacier, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count19,528
Co-rupture Rate1.9502013E-4

Liebig North, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count13,451
Co-rupture Rate2.2076059E-4

Mathias, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count10,773
Co-rupture Rate1.2616493E-4

Murchison 1 - Ice Lake, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count19,444
Co-rupture Rate1.5722786E-4

Mt Adams, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count16,083
Co-rupture Rate2.5974956E-4

Black Blob - Haast Ridge, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count8,682
Co-rupture Rate5.1622605E-6

Browning Pass, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count29,497
Co-rupture Rate6.2730636E-5

Mt Roon, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count2,068
Co-rupture Rate7.074619E-5

Veil Stream, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count8,084
Co-rupture Rate9.779378E-5

Great Groove, 0.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count4,606
Co-rupture Rate1.4266977E-4

Hohonu South, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count35,067
Co-rupture Rate1.7247946E-4

Observation, 0.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count17,376
Co-rupture Rate2.8332765E-4

Mungo, 1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count6,245
Co-rupture Rate4.2886907E-4

Moonlight North, 1.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count41,463
Co-rupture Rate5.8867026E-5

Mistake - Rolleston, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count5,172
Co-rupture Rate0.0

Huxley, 1.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count5,113
Co-rupture Rate1.0766037E-4

Straight Creek, 2.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count5,691
Co-rupture Rate1.3725573E-4

Jollie Range, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count3,736
Co-rupture Rate1.4428984E-4

Landsborough 2, 4.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count10,304
Co-rupture Rate3.9413957E-5

Hopkins, 5.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count36,877
Co-rupture Rate1.9251788E-4

Jagged, 6.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count1,373
Co-rupture Rate0.0

Two Thumb Stream, 7.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count2,169
Co-rupture Rate1.3875839E-4

Barn, 8.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count387
Co-rupture Rate6.1268873E-10

Potts Range, 9.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count1,283
Co-rupture Rate6.363426E-5

Barrier Range, 9.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count7,752
Co-rupture Rate4.861292E-5

Bruce, 11.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count1,428
Co-rupture Rate1.08097265E-4

Macaulay 2, 12.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count1,400
Co-rupture Rate1.0188691E-4

Ostler North, 14.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count9,931
Co-rupture Rate2.7086385E-4

Hunter Valley, 14.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count11,153
Co-rupture Rate1.0117877E-4
