Catherine Details
| Property | Value |
|---|---|
| Rupture Count | 73 |
| Ruptures Above Sect Min Mag | 72 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [6.81, 8.06] |
| Length Range | [20, 395] km |
| Total Rate | 1.1196764E-4 /yr |
| Multi-Fault Rate | 1.1196764E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 25 |
Table Of Contents

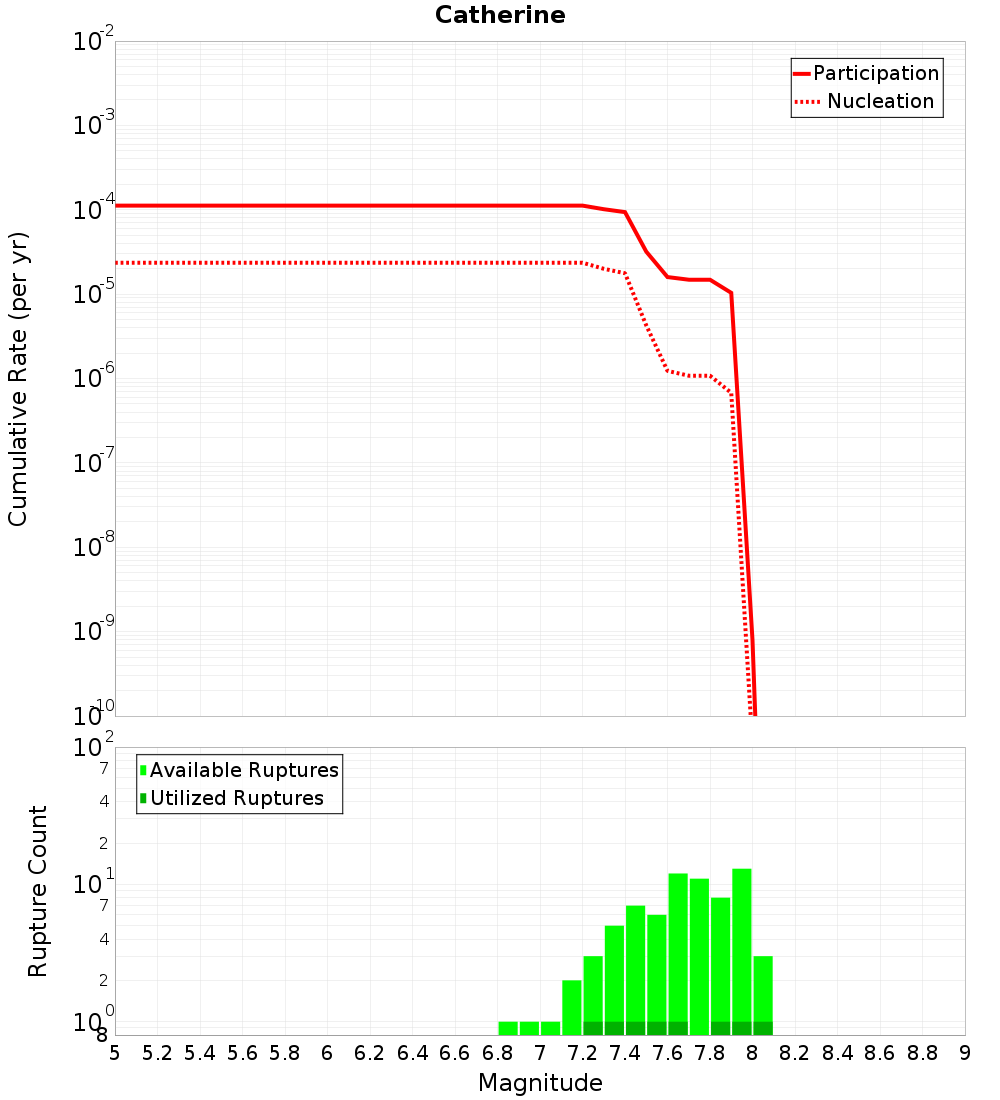

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

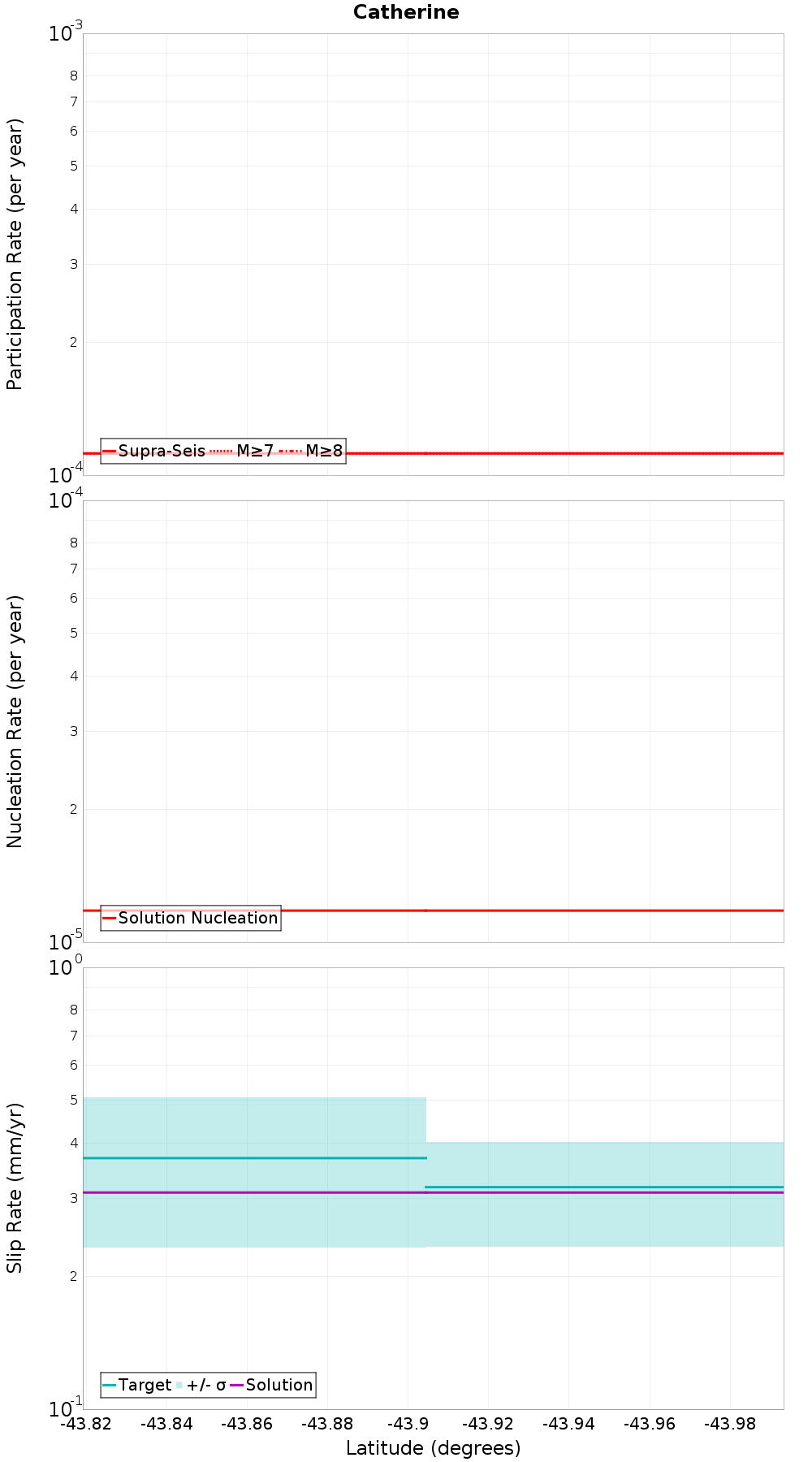

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Brothers, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.8226348E-5 |
Ben McLeod, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9 |
| Co-rupture Rate | 7.780925E-5 |
Hutt Peel, 0.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 52 |
| Co-rupture Rate | 1.5932037E-5 |
Coal Creek, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Edith, 2.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Sugarloaf, 2.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 50 |
| Co-rupture Rate | 1.4819895E-5 |
Quartz Creek, 5.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 1.1121421E-6 |
Irishman Creek, 8.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opawa, 9.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rapuwai, 10.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Fox Peak, 13.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
