F16 - Central Details

PropertyValue
Rupture Count27,464
Ruptures Above Sect Min Mag27,463
Ruptures w/ Nonzero Rates40
Magnitude Range[6.96, 8.33]
Length Range[26, 701] km
Total Rate5.584811E-4 /yr
Multi-Fault Rate5.584811E-4 /yr (100.00%)
Directly-Connected Faults11
All Co-Rupturing Faults64

Table Of Contents

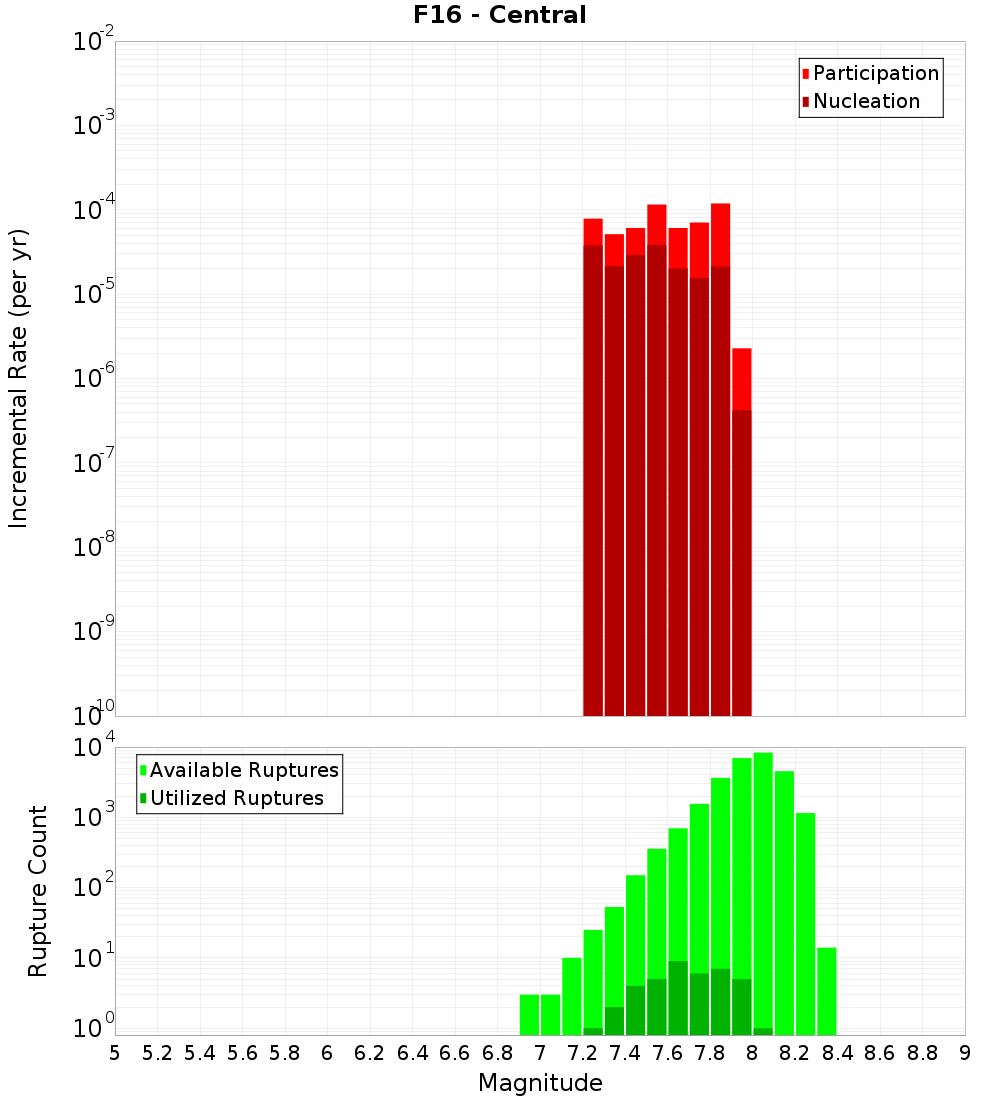

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

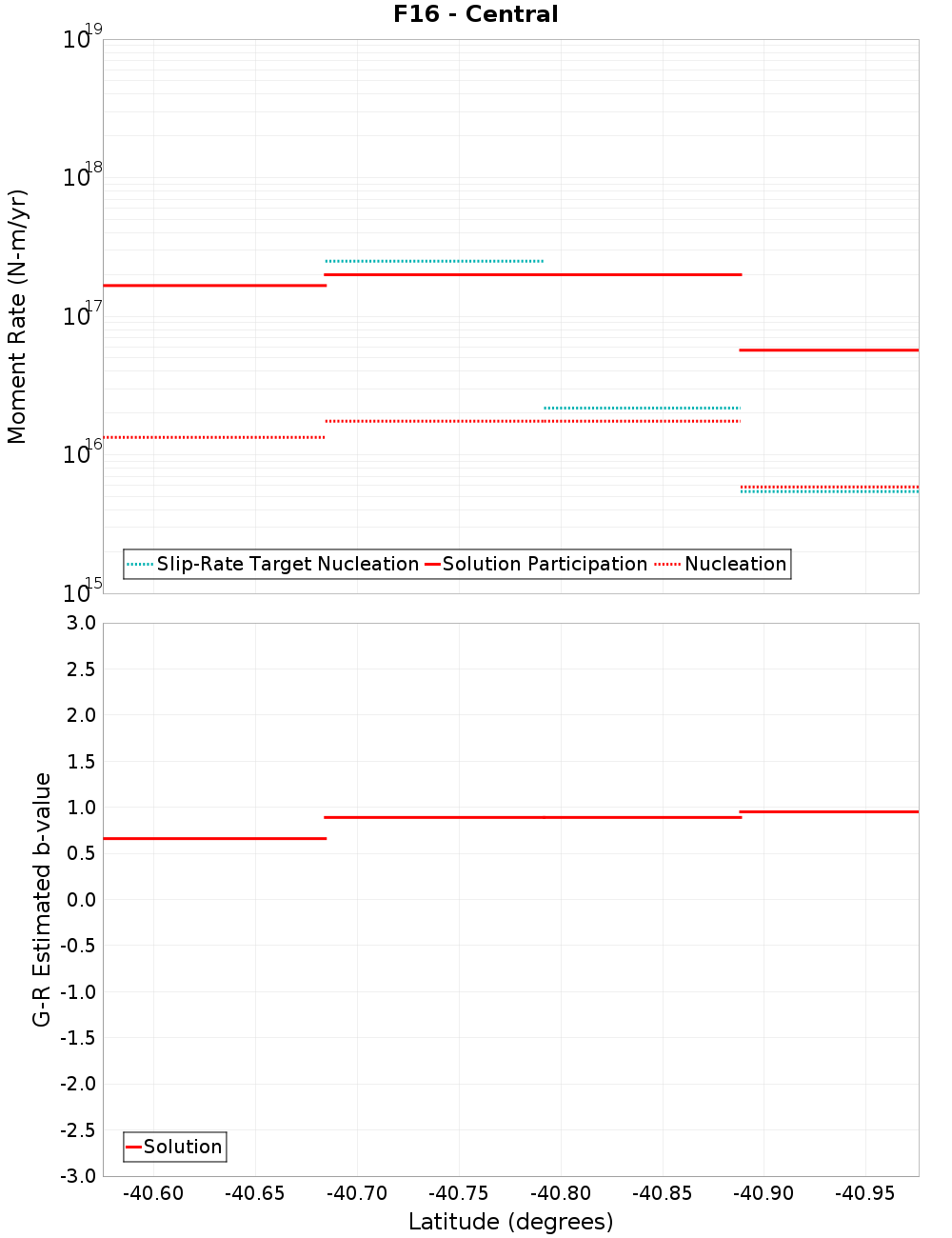

Moment-Rates and b-Values

(top)

Along-strike plot

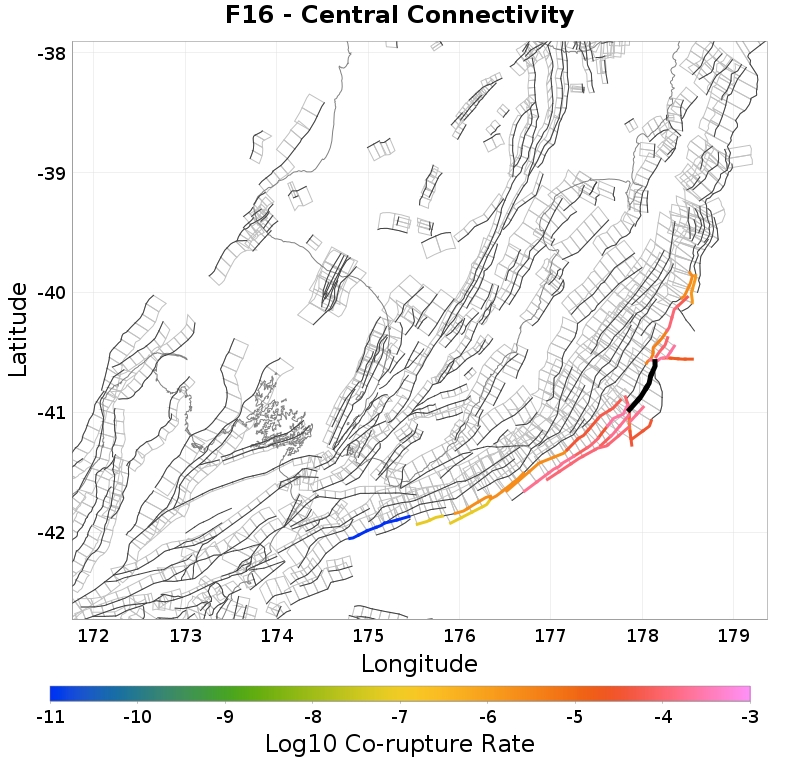

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
BKSmt-North, 0.11 km away
BKSmt-West, 0.19 km away
Aorangi Ridge, 0.8 km away
Bennett Knoll, 1.07 km away
F16 - South, 1.46 km away
Akitio Ridge, 2.28 km away
F17 - Central, 3.82 km away
F14 - North, 4.34 km away
F17 - South, 5.88 km away
Aorangi Trough, 5.98 km away
Akitio Trough West, 8.18 km away
F16 - North, 10.71 km away
Porangahau Northeast, 14.86 km away

BKSmt-North, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count7,843
Co-rupture Rate2.3371063E-4

BKSmt-West, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count3,044
Co-rupture Rate1.2899862E-4

Aorangi Ridge, 0.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count12,501
Co-rupture Rate4.1757722E-4

Bennett Knoll, 1.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count238
Co-rupture Rate3.2230862E-5

F16 - South, 1.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count5,019
Co-rupture Rate1.6900428E-4

Akitio Ridge, 2.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count20,476
Co-rupture Rate1.1005498E-4

F17 - Central, 3.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count4,061
Co-rupture Rate1.726943E-4

F14 - North, 4.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count8,943
Co-rupture Rate9.3181574E-5

F17 - South, 5.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count7,111
Co-rupture Rate1.0949335E-4

Aorangi Trough, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count7,360
Co-rupture Rate5.58513E-5

Akitio Trough West, 8.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count1,747
Co-rupture Rate0.0

F16 - North, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count1,434
Co-rupture Rate2.1729087E-4

Porangahau Northeast, 14.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
